CavityCartridge
Fuse Mini-
Fuse Description
50 40 Amp Green Antilock Brakes
Module (Pump)
51 40 Amp Green Park Lamps
52 Spare
53 40 Amp Green Rear Defogger
54 Spare
55 Spare
56 10 Amp
Red Heated Seats
57 20 Amp
Yellow Airbag System # 2
58 20 Amp
Yellow Heated Seats
59 10 Amp Climate ControlCavityCartridge
Fuse Mini-
Fuse Description
Red System Module
60 10 Amp RedAntilock Brakes
Module
61 20 Amp
Yellow Body Control Module
3 (Reverse Lamps)
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #J13 in the Totally Integrated Power
Module (TIPM) labeled Main Ignition Off Draw (IOD).
•Or, disconnect the negative cable from the battery.
7
MAINTAINING YOUR VEHICLE 391

•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb No.
Dome Lamp ........................ WL212–2
Cargo Lamp ............................ 921
Overhead Console Lamps ................... 192
Reading Lamp ...................... WL212–2LIGHT BULBS – Exterior
Bulb No.
Headlamp ............................. H13
Front Park/Turn/Side Marker ............3157NA
Back-Up .............................. 3157
Center High Mounted Stop Lamp ............. 921
Fog Lamp ............................. 9145
License Plate Lamp ....................... 168
Rear Tail, Stop, Turn Signal .................3057
BULB REPLACEMENT
Headlamp (Halogen)/Front Park and Turn Signal
Lamps
1. Open the hood
2. Remove the three bolts from the front of the headlamp
housing.
392 MAINTAINING YOUR VEHICLE

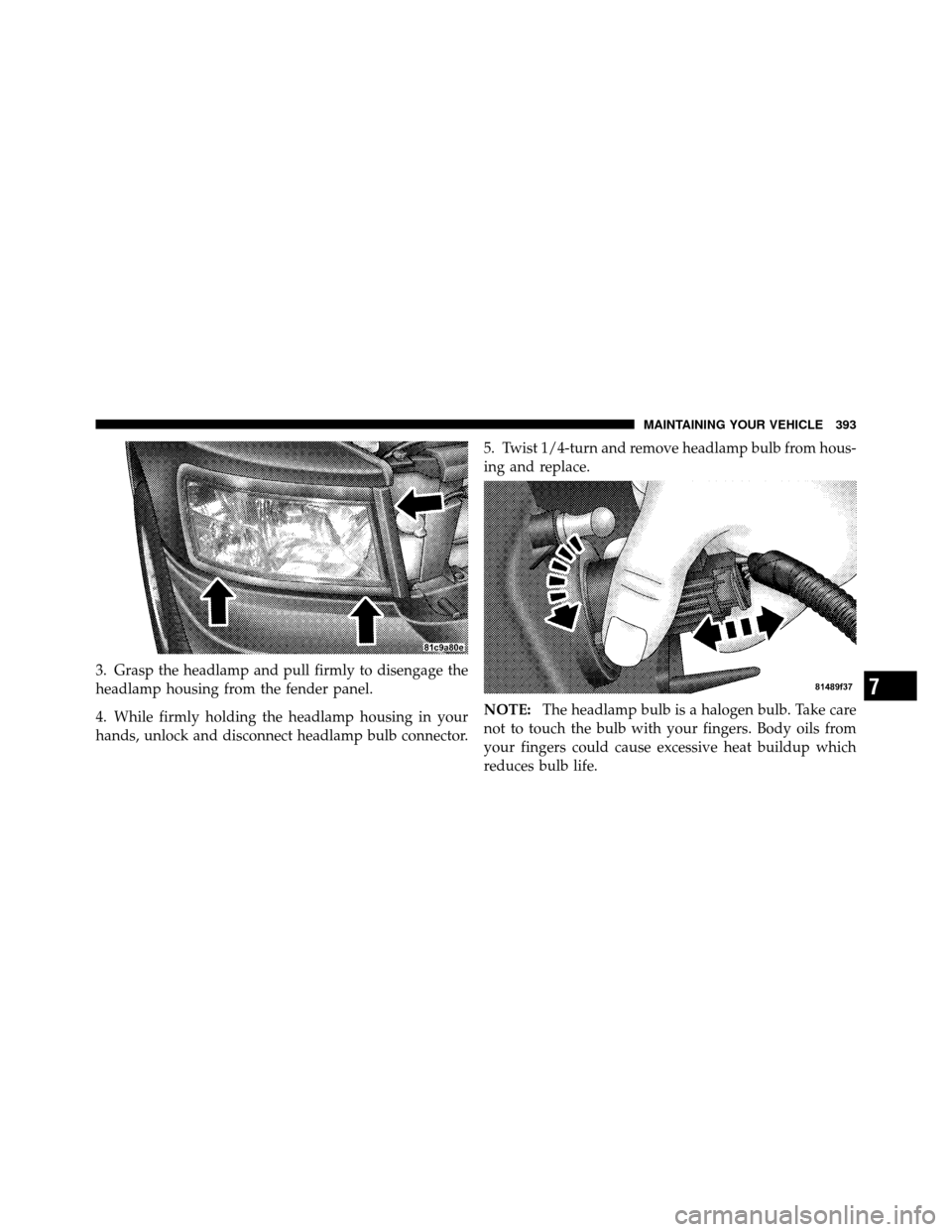

3. Grasp the headlamp and pull firmly to disengage the
headlamp housing from the fender panel.
4. While firmly holding the headlamp housing in your
hands, unlock and disconnect headlamp bulb connector.5. Twist 1/4-turn and remove headlamp bulb from hous-
ing and replace.
NOTE:
The headlamp bulb is a halogen bulb. Take care
not to touch the bulb with your fingers. Body oils from
your fingers could cause excessive heat buildup which
reduces bulb life.
7
MAINTAINING YOUR VEHICLE 393

To remove the park/turn signal bulb, rotate bulb socket
1/4-turn and remove socket from housing. Pull bulb
straight from socket.Rear Side Marker, Taillamps/Stop Lamps, And
Turn Signal Bulbs
1. Remove the two screws that pass through the bed
sheet metal.
394 MAINTAINING YOUR VEHICLE

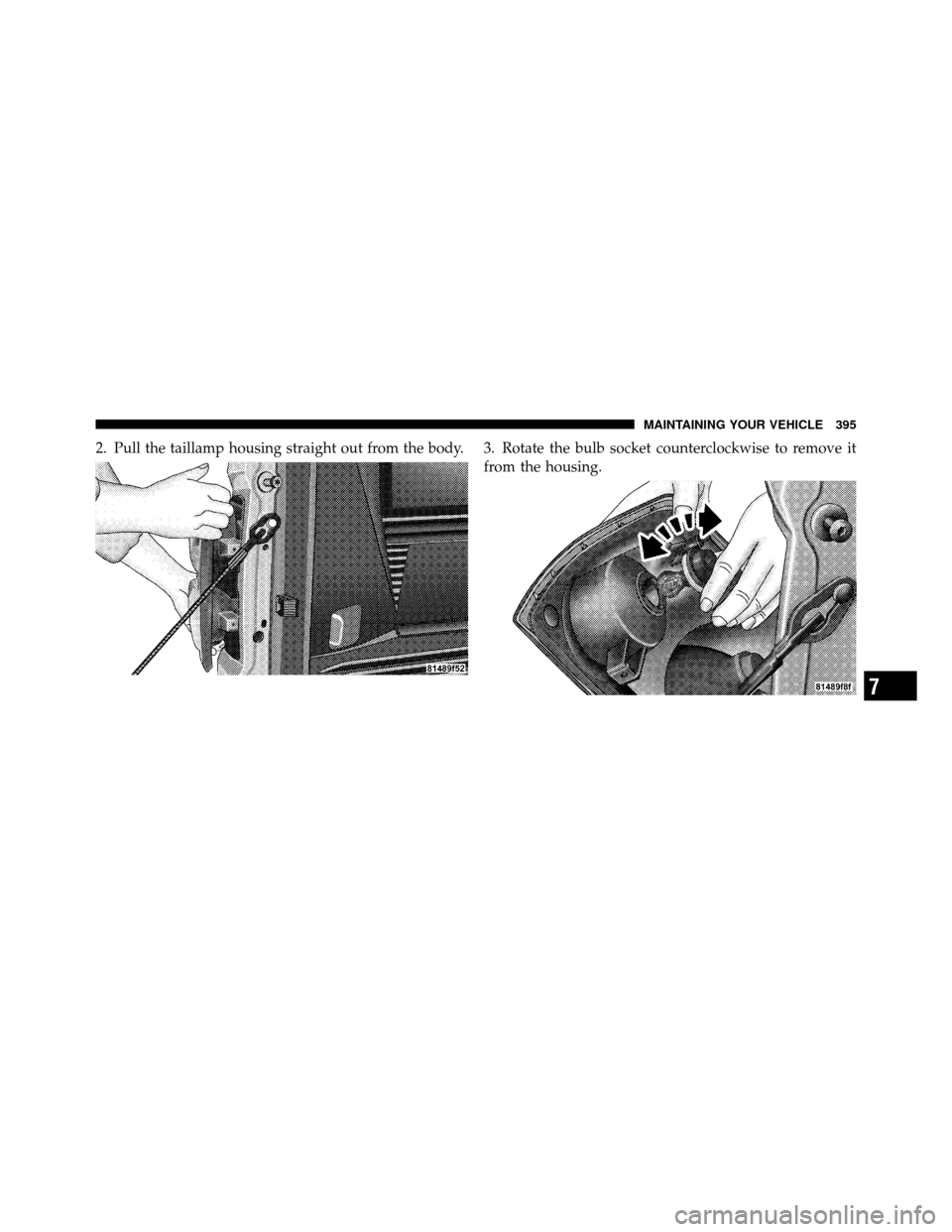

2. Pull the taillamp housing straight out from the body. 3. Rotate the bulb socket counterclockwise to remove itfrom the housing.
7
MAINTAINING YOUR VEHICLE 395

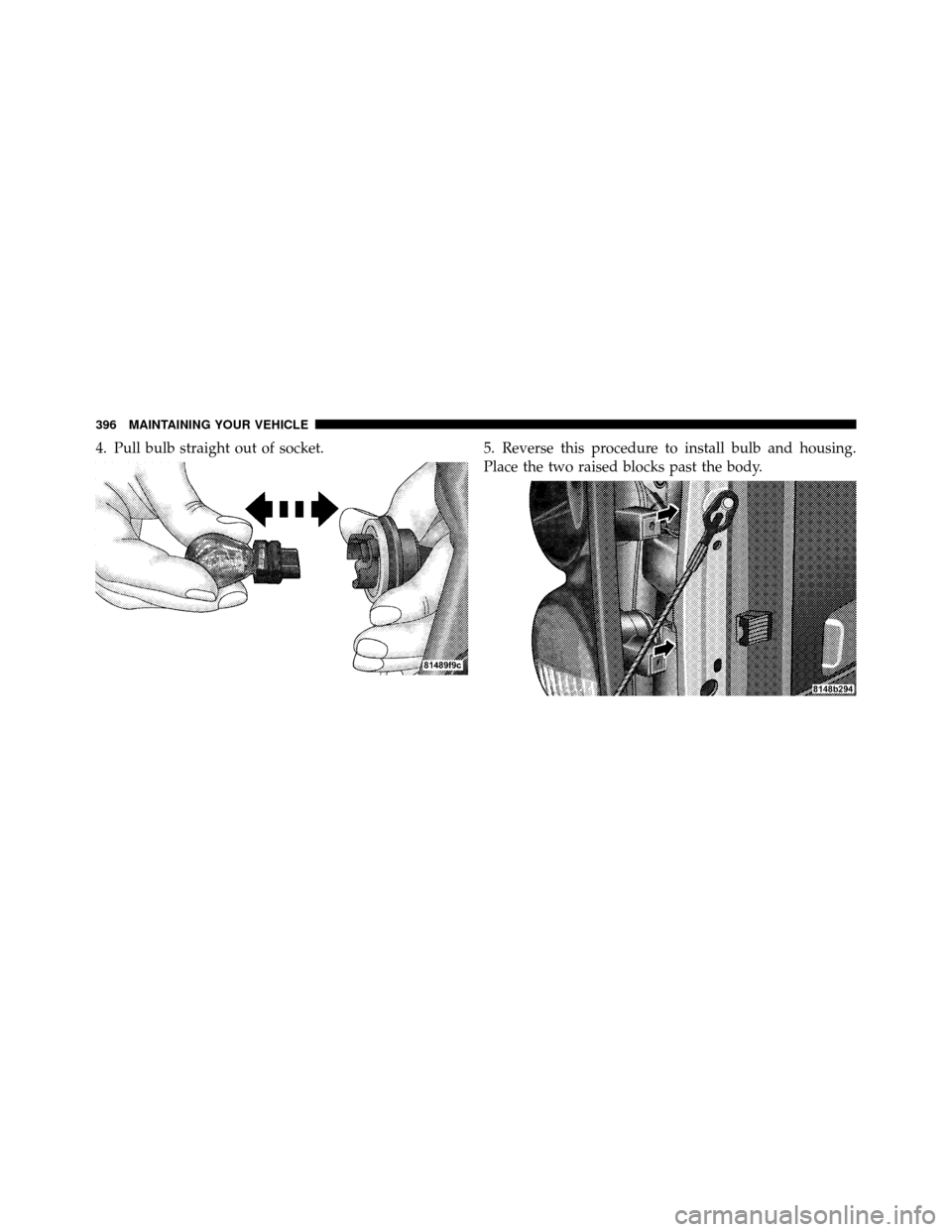

4. Pull bulb straight out of socket.5. Reverse this procedure to install bulb and housing.
Place the two raised blocks past the body.
396 MAINTAINING YOUR VEHICLE

Center High-Mounted Stop Lamp And Cargo
Lamp

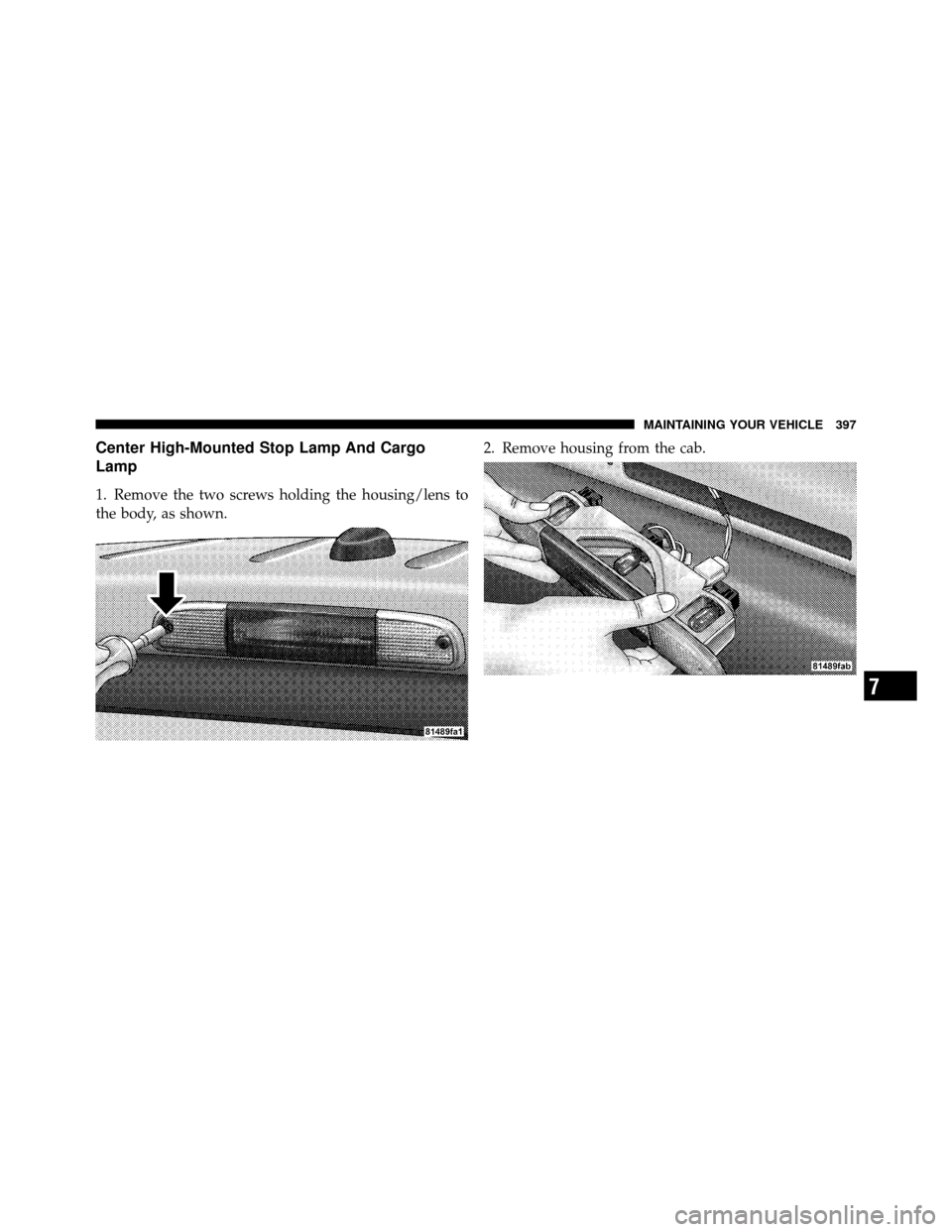

1. Remove the two screws holding the housing/lens to
the body, as shown.2. Remove housing from the cab.
7
MAINTAINING YOUR VEHICLE 397

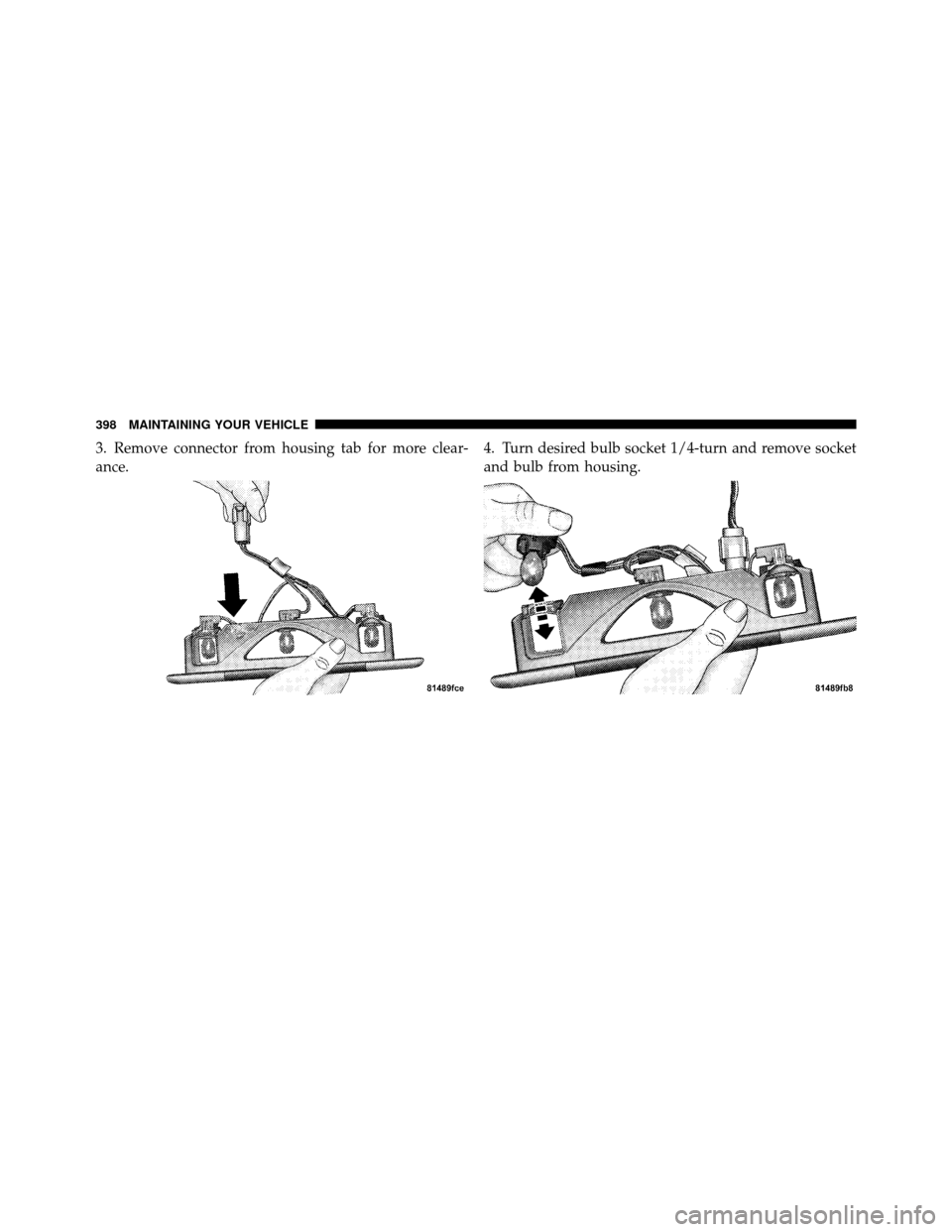

3. Remove connector from housing tab for more clear-
ance.4. Turn desired bulb socket 1/4-turn and remove socket
and bulb from housing.
398 MAINTAINING YOUR VEHICLE
