2011 DODGE DAKOTA Owners Manual

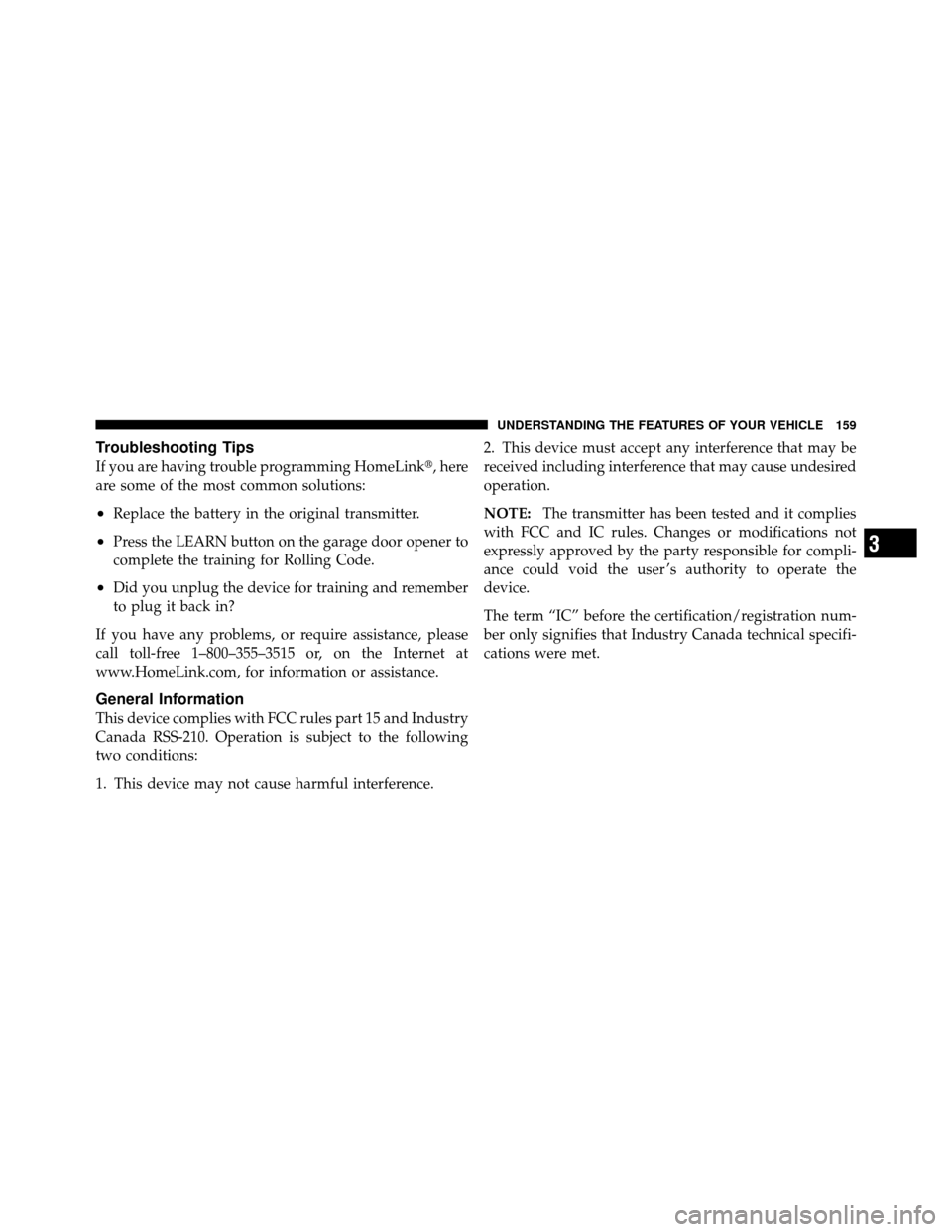

Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the LEARN button on the garage door opener to
complete the training for Rolling Code.
•Did you unplug the device for training and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com, for information or assistance.
General Information
This device complies with FCC rules part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference. 2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
The transmitter has been tested and it complies
with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
The term “IC” before the certification/registration num-
ber only signifies that Industry Canada technical specifi-
cations were met.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

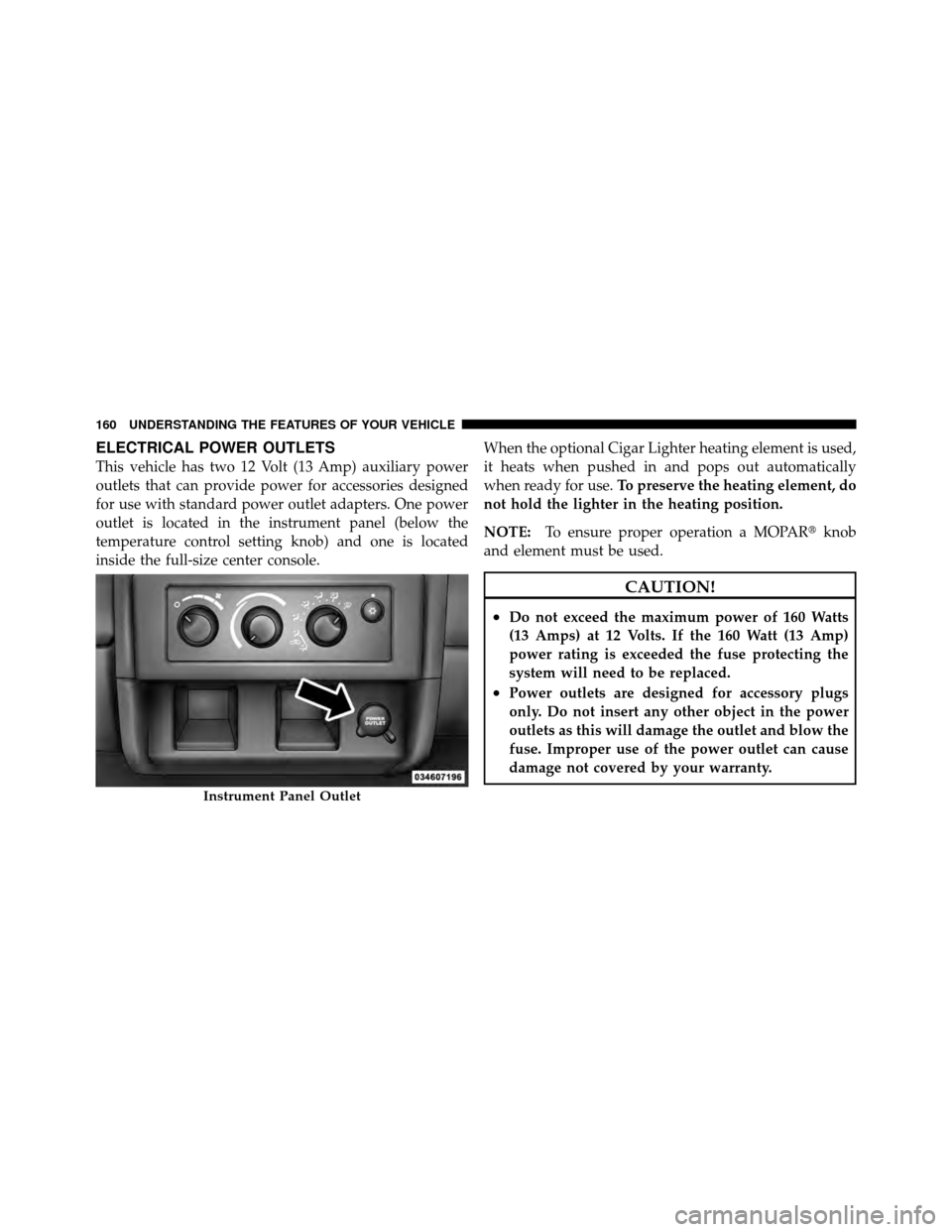

ELECTRICAL POWER OUTLETS
This vehicle has two 12 Volt (13 Amp) auxiliary power
outlets that can provide power for accessories designed
for use with standard power outlet adapters. One power
outlet is located in the instrument panel (below the
temperature control setting knob) and one is located
inside the full-size center console.When the optional Cigar Lighter heating element is used,
it heats when pushed in and pops out automatically
when ready for use.
To preserve the heating element, do
not hold the lighter in the heating position.
NOTE: To ensure proper operation a MOPAR knob
and element must be used.
CAUTION!
•Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse protecting the
system will need to be replaced.
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your warranty.
Instrument Panel Outlet
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.

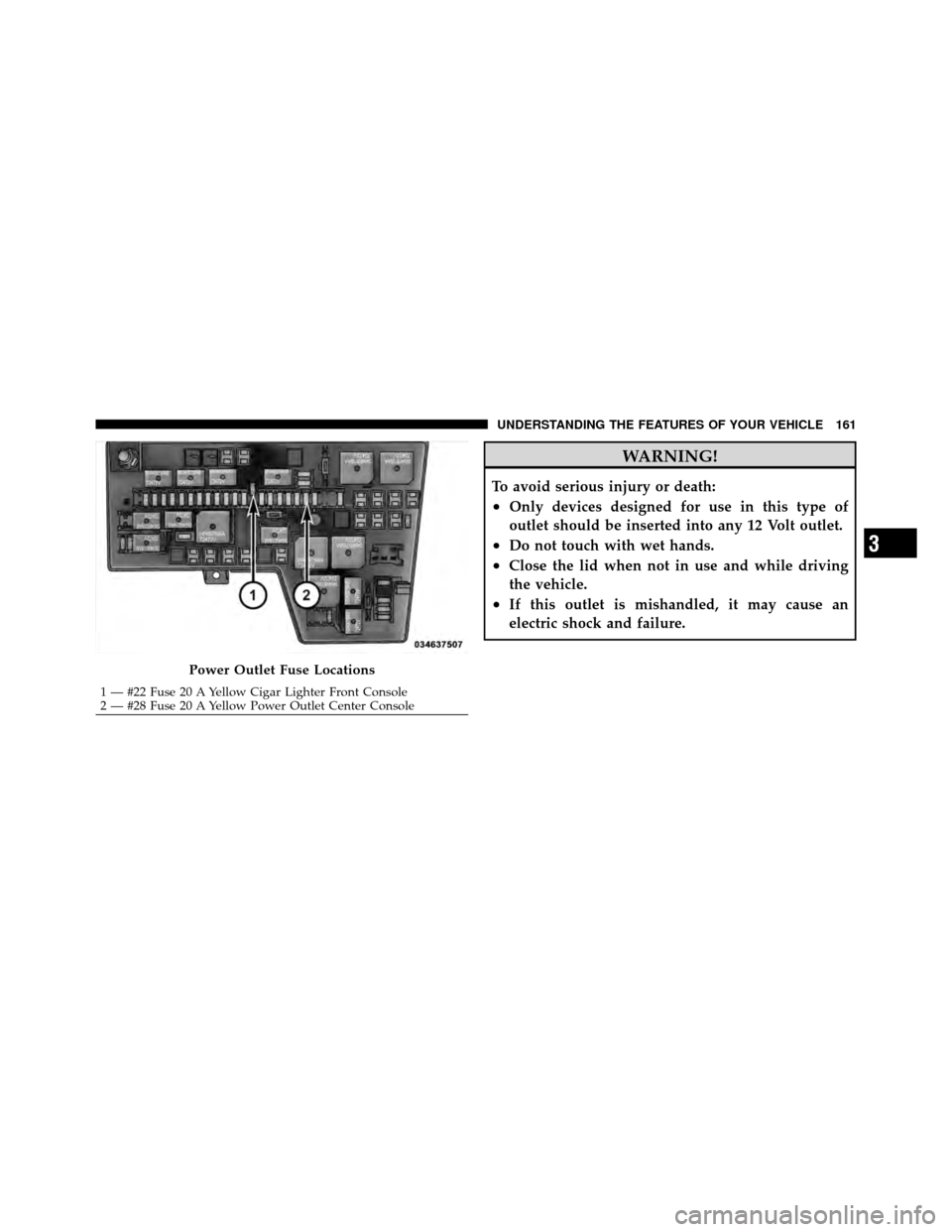

Power Outlet Fuse Locations
1 — #22 Fuse 20 A Yellow Cigar Lighter Front Console
2 — #28 Fuse 20 A Yellow Power Outlet Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

CAUTION!
•Many accessories that can be plugged in, draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Use these only inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

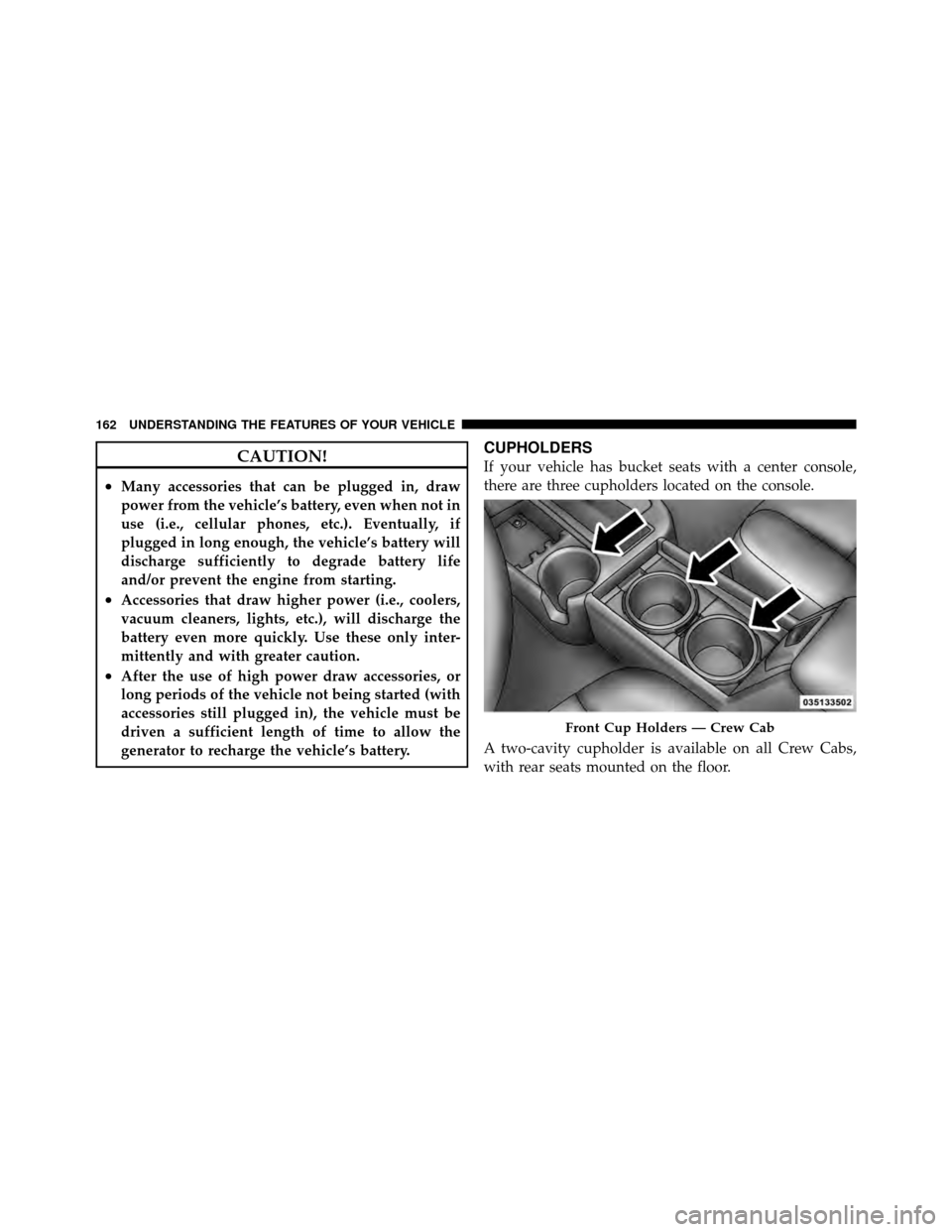

CUPHOLDERS
If your vehicle has bucket seats with a center console,
there are three cupholders located on the console.
A two-cavity cupholder is available on all Crew Cabs,
with rear seats mounted on the floor.
Front Cup Holders — Crew Cab
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

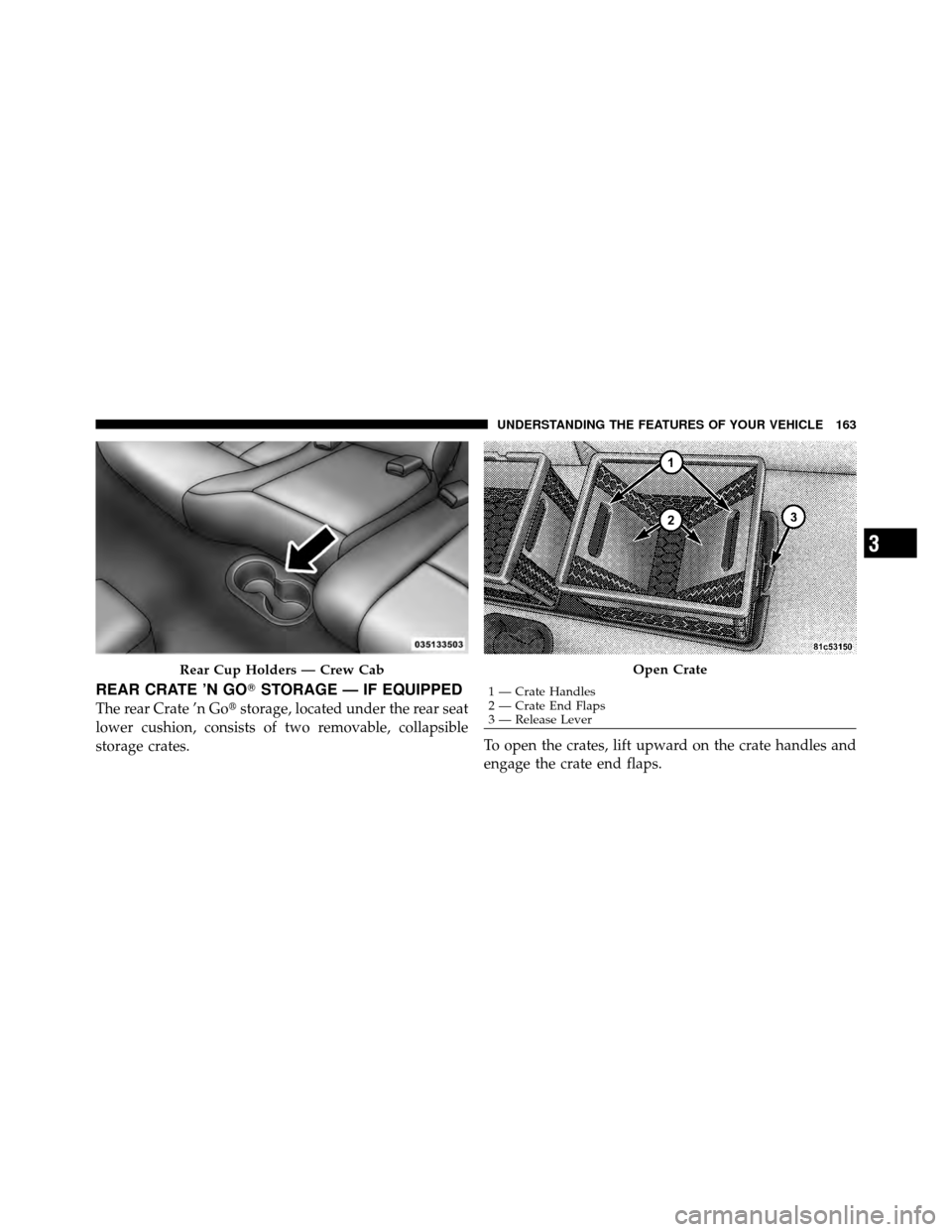

REAR CRATE ’N GOSTORAGE — IF EQUIPPED
The rear Crate ’n Gostorage, located under the rear seat
lower cushion, consists of two removable, collapsible
storage crates. To open the crates, lift upward on the crate handles and
engage the crate end flaps.
Rear Cup Holders — Crew CabOpen Crate
1 — Crate Handles
2 — Crate End Flaps
3 — Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

To remove the crate, press on the release lever, located on
the ends of the base, and lift up on the crate.
To install the crate into the base, insert the crate into the
inboard slot and push down on the outboard side of the
crate, then snap into place.To collapse the crate, push the crate end flaps inward to
disengage. Push the sides inward and snap into place.
WARNING!
Do not sit or stand on this crate. It may collapse
causing serious injury.
CAUTION!
Do not lift up on the “End Flaps” to open the crate,
damage to the “End Flaps” may occur.
NOTE: The maximum loading capacity for the small
crate is 30 lbs (13.6 kg) and 50 lbs (22.6 kg) for the large
crate.
Insert Crate
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

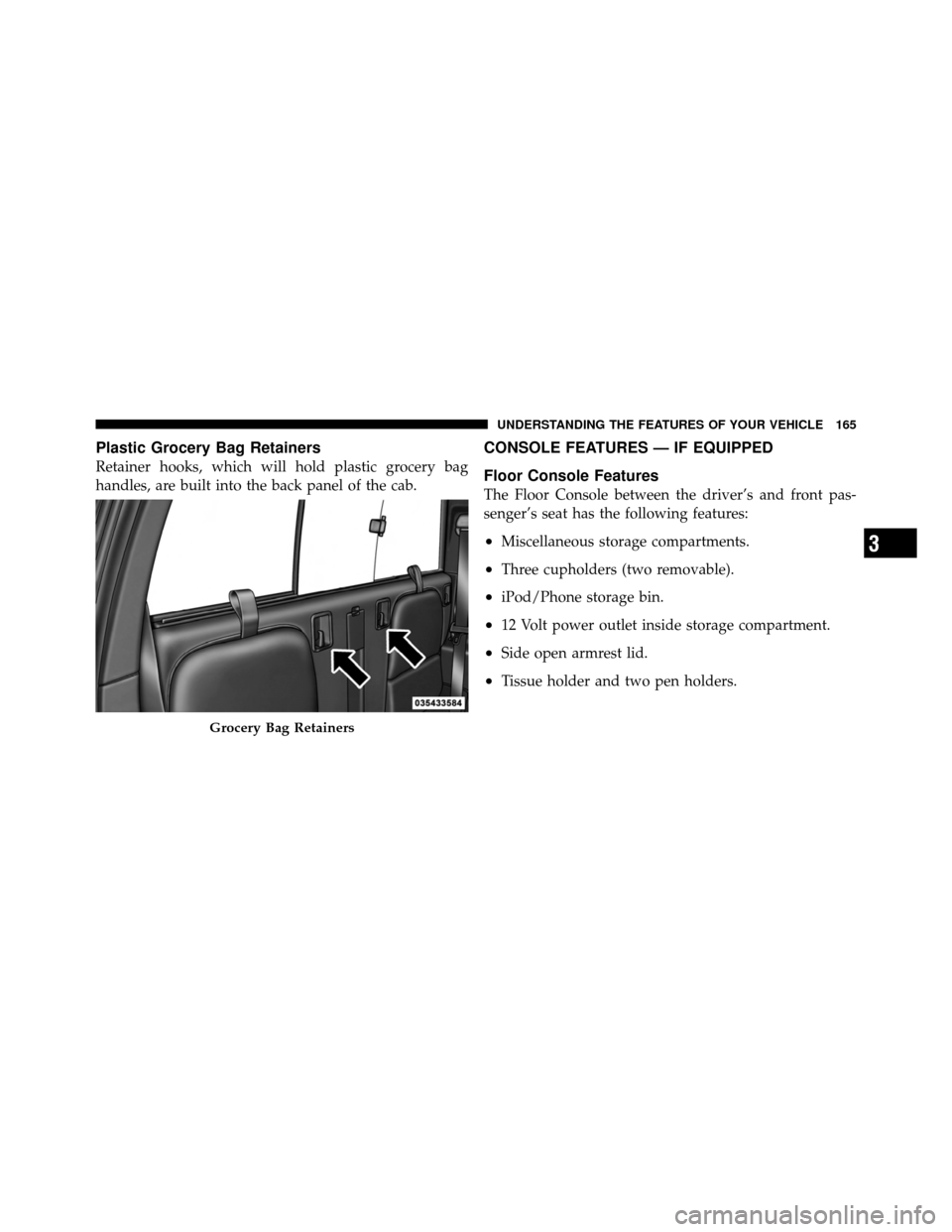

Plastic Grocery Bag Retainers
Retainer hooks, which will hold plastic grocery bag
handles, are built into the back panel of the cab.
CONSOLE FEATURES — IF EQUIPPED
Floor Console Features
The Floor Console between the driver’s and front pas-
senger’s seat has the following features:
•Miscellaneous storage compartments.
•Three cupholders (two removable).
•iPod/Phone storage bin.
•12 Volt power outlet inside storage compartment.
•Side open armrest lid.
•Tissue holder and two pen holders.
Grocery Bag Retainers
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

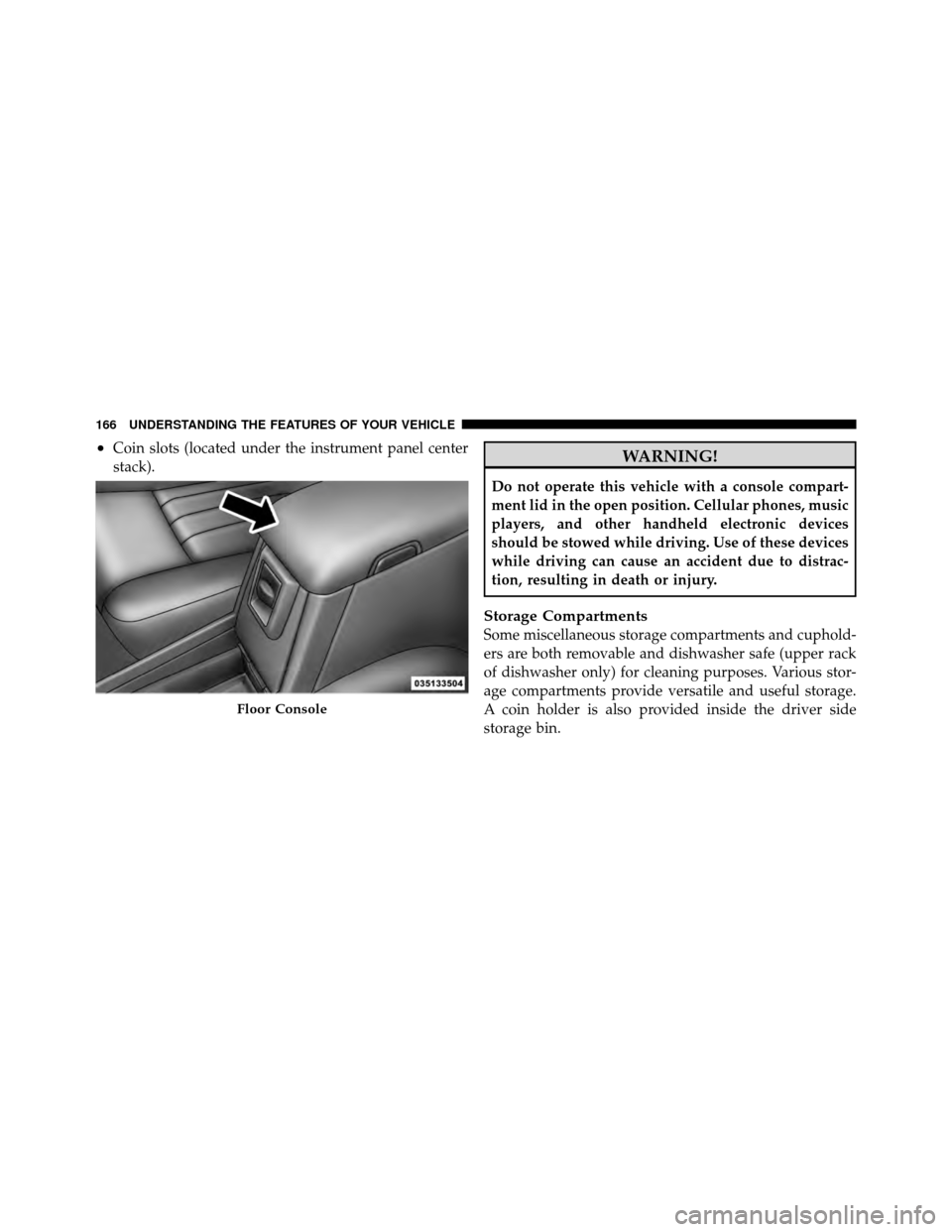

•Coin slots (located under the instrument panel center
stack).WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
Storage Compartments
Some miscellaneous storage compartments and cuphold-
ers are both removable and dishwasher safe (upper rack
of dishwasher only) for cleaning purposes. Various stor-
age compartments provide versatile and useful storage.
A coin holder is also provided inside the driver side
storage bin.
Floor Console
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
