2011 DODGE DAKOTA Owners Manual

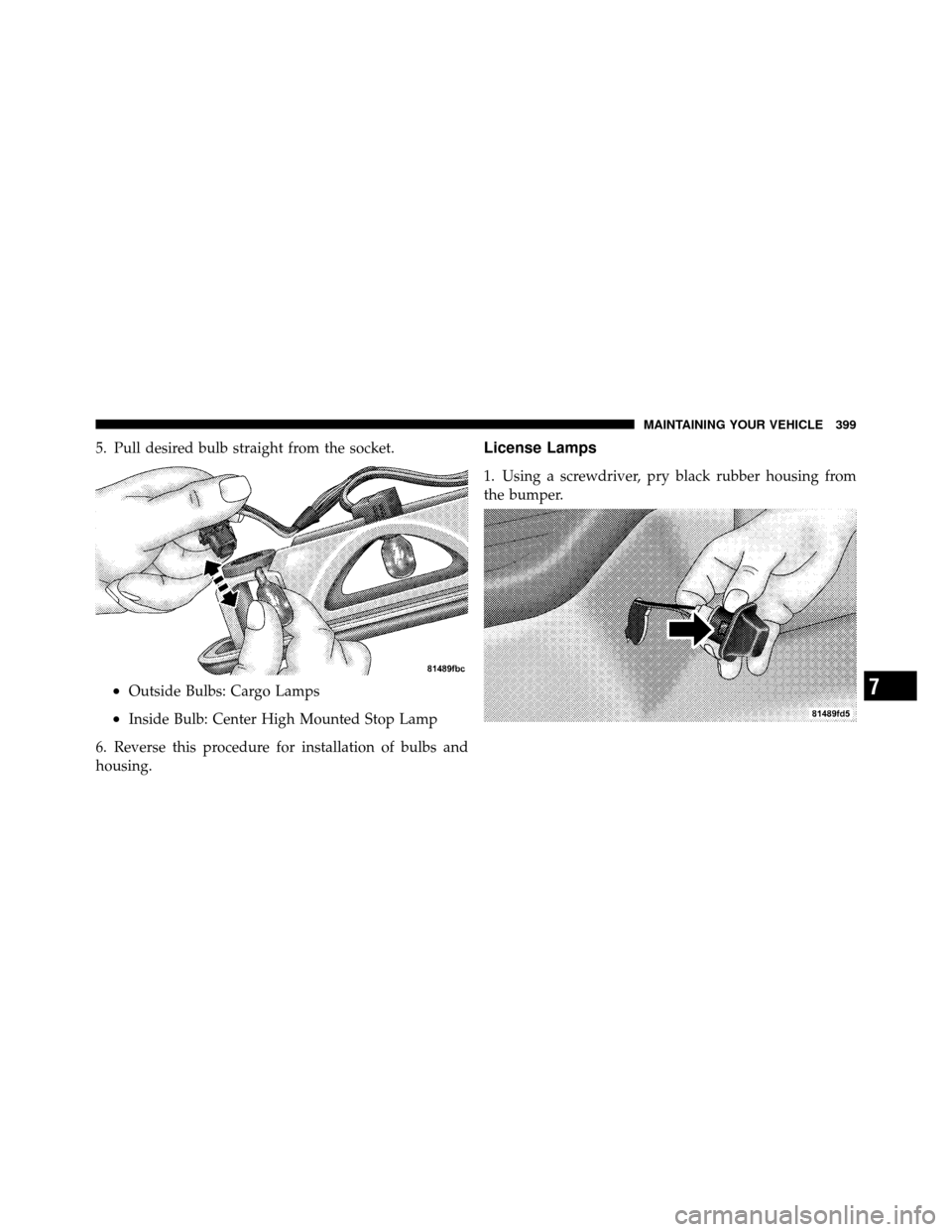

5. Pull desired bulb straight from the socket.
•Outside Bulbs: Cargo Lamps
•Inside Bulb: Center High Mounted Stop Lamp
6. Reverse this procedure for installation of bulbs and
housing.
License Lamps
1. Using a screwdriver, pry black rubber housing from
the bumper.
7
MAINTAINING YOUR VEHICLE 399

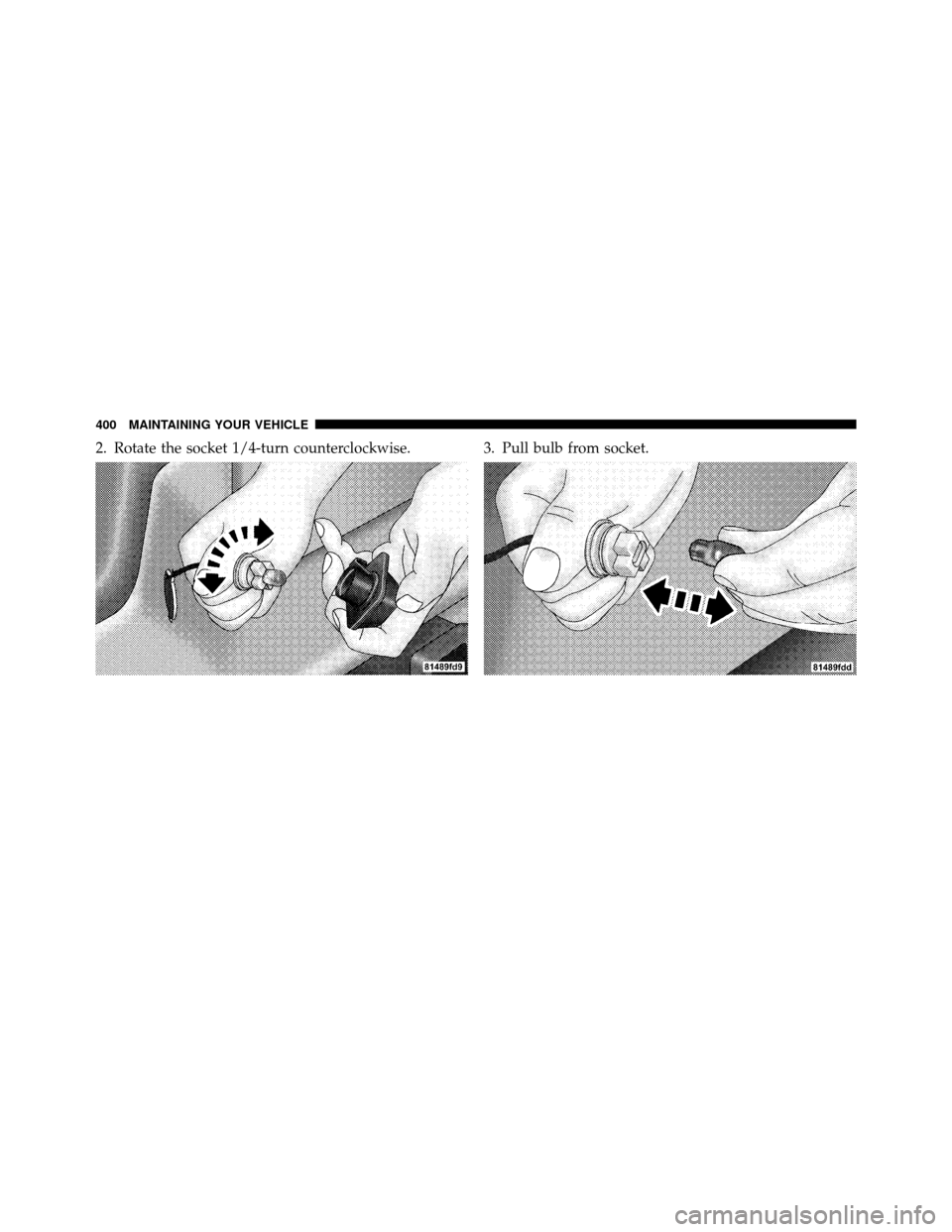

2. Rotate the socket 1/4-turn counterclockwise. 3. Pull bulb from socket.
400 MAINTAINING YOUR VEHICLE

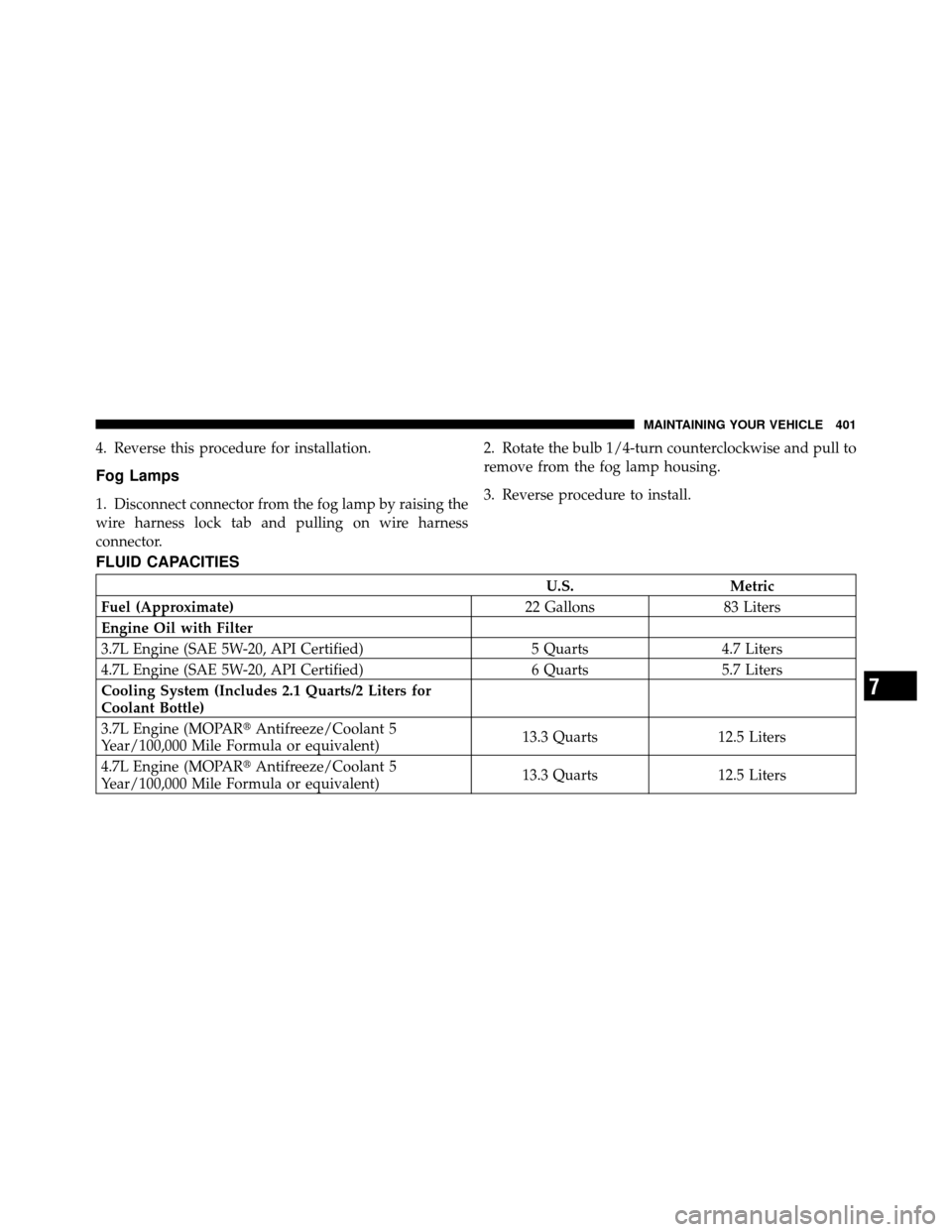

4. Reverse this procedure for installation.
Fog Lamps
1. Disconnect connector from the fog lamp by raising the
wire harness lock tab and pulling on wire harness
connector.2. Rotate the bulb 1/4-turn counterclockwise and pull to
remove from the fog lamp housing.
3. Reverse procedure to install.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate) 22 Gallons83 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
4.7L Engine (SAE 5W-20, API Certified) 6 Quarts5.7 Liters
Cooling System (Includes 2.1 Quarts/2 Liters for
Coolant Bottle)
3.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
4.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
7
MAINTAINING YOUR VEHICLE 401

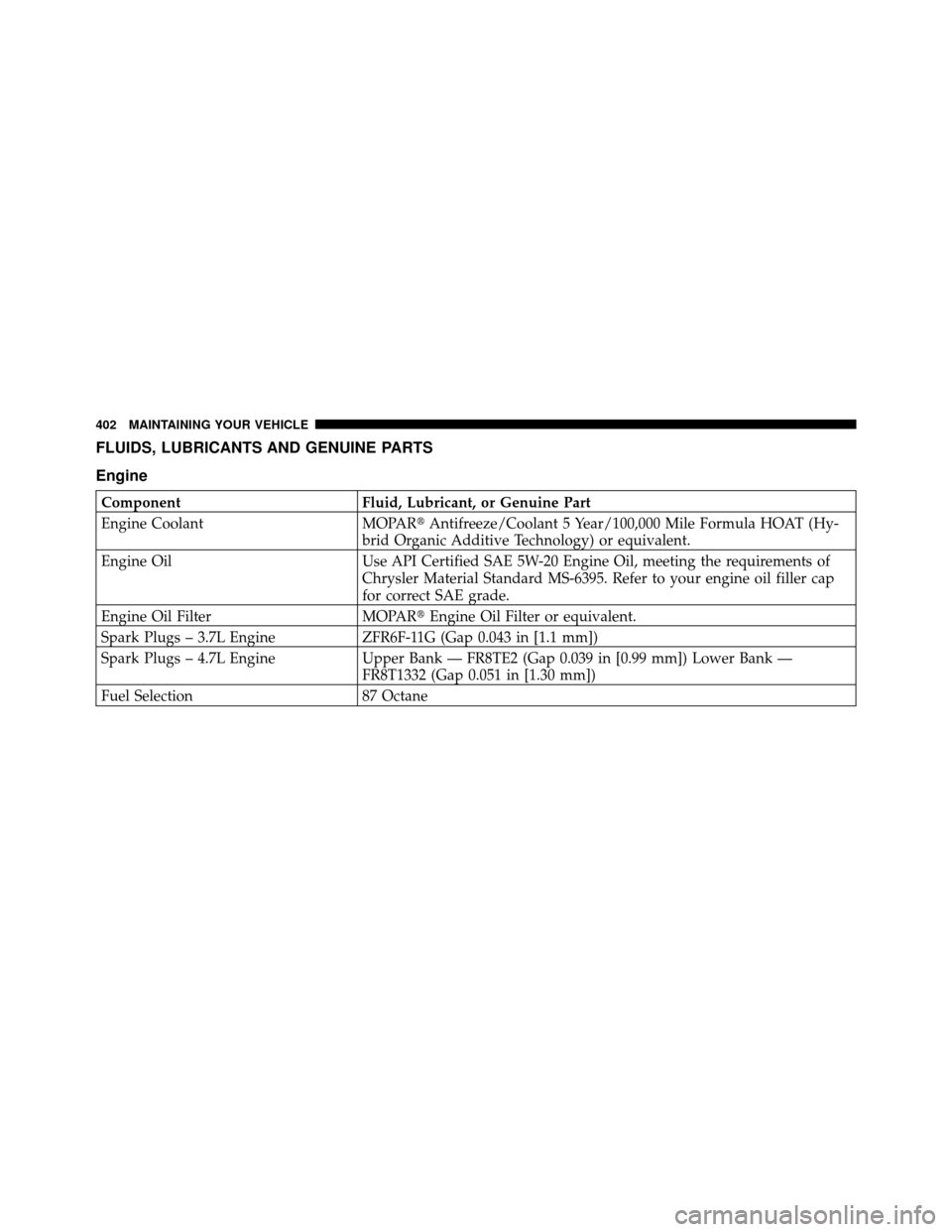

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap
for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.7L Engine ZFR6F-11G (Gap 0.043 in [1.1 mm])
Spark Plugs – 4.7L Engine Upper Bank — FR8TE2 (Gap 0.039 in [0.99 mm]) Lower Bank —
FR8T1332 (Gap 0.051 in [1.30 mm])
Fuel Selection 87 Octane
402 MAINTAINING YOUR VEHICLE

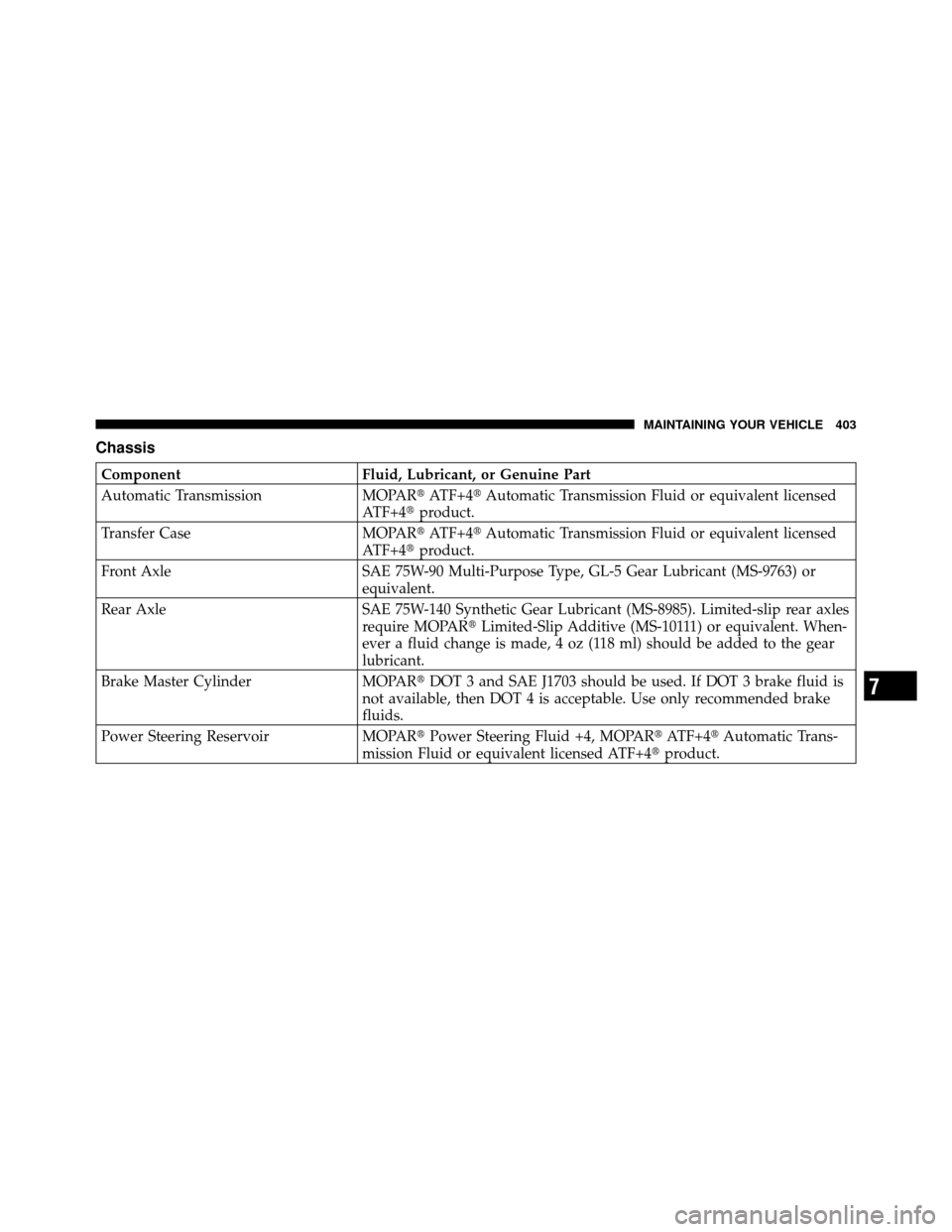

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Transfer Case MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Front Axle SAE 75W-90 Multi-Purpose Type, GL-5 Gear Lubricant (MS-9763) or
equivalent.
Rear Axle SAE 75W-140 Synthetic Gear Lubricant (MS-8985). Limited-slip rear axles
require MOPARLimited-Slip Additive (MS-10111) or equivalent. When-
ever a fluid change is made, 4 oz (118 ml) should be added to the gear
lubricant.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable. Use only recommended brake
fluids.
Power Steering Reservoir MOPARPower Steering Fluid +4, MOPAR ATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
7
MAINTAINING YOUR VEHICLE 403

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 406
▫ Required Maintenance Intervals .......... 408
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
The “Change Oil” message will flash in the instrument
cluster odometer and a single chime will sound, indicat-
ing that an oil change is necessary.Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13 000 km) or six months, which-
ever comes first.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S406 MAINTENANCE SCHEDULES
