2011 Citroen C4 RHD Owner's Manual

239

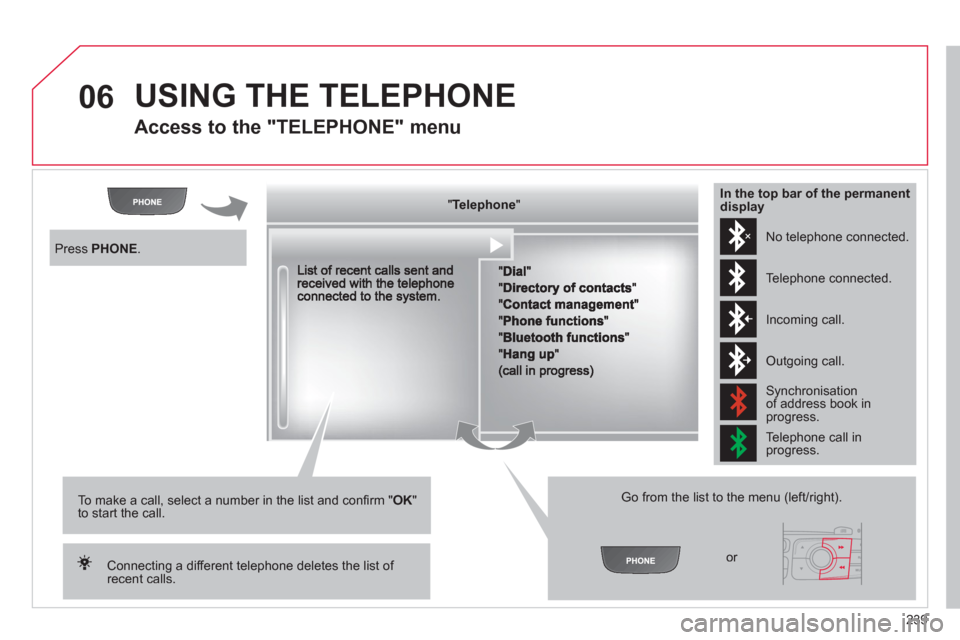

06 USING THE TELEPHONE


Access to the "TELEPHONE" menu
"""""""ppppeepoeTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTl hTl hTl hTl h"""""""
Go from the list to the menu (left/right).
or


Press PHONE.



To make a call, select a number in the list and confi rm "OK"to start the call.

Connecting a different telephone deletes the list of recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of address book in progress.
Telephone call in progress.


In the top bar of the permanentdisplay

240
1
25
6
3
4
06















PAIRING A TELEPHONE


For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.


Activate the telephone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess PHONE.
Select the name of the desired peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in " Audio" mode (streaming: playingmusic fi les on the telephone),
-
or "All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions
" and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE

241
7
8
06
Enter the same code on the telephone then accept
the connection.
The "
Hands-free mode
" should be used in preference if
"Streaming" is not desired.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is started.


USING THE TELEPHONE


The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK
".
On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modi
fy the automatic connection mode, remove the pairingand pair the telephone again with the desired mode.

242
1
2a
2b
2c
2d
2e
06 USING THE TELEPHONE

DIRECTORY/SYNCHRONIZING CONTACTS

Press PHONE
then select "
Contacts
management " and confi rm.

Select "New contact
" to enter a new contact.

Select "Delete all contacts" to delete
the contacts saved in the system.

Select "Import all the entries
" to import
all the contacts in the telephone andsave them in the system.

Once imported, a contact remains visible whatever telephone is connected.
Selection "Synchronization options":


- No s
ynchronization: only the contacts saved in the system (always present).

- Displa
y telephone contacts: only the contacts saved in the telephone.

- Displa
y SIM card contacts: only thecontacts saved on the SIM card.

- Display all phone contacts:
contacts on the SIM card and in thetelephone.


Select "Contact mem. status" to see thenumber of contacts saved in the systemor imported, and the free memory.

243
1
2
3
4
5
6
7
06

MANAGING CONTACTS
Press PHONEthen select "Directory of contacts" and confi rm.
Select the desired contact and confi rm.
Select " Import" to copy one contact to
the system.
Select " Call" to start the call.
Select " Open
" to view an external contact
or modify a contact saved in the system.
Select OK
or ESC
to exit this menu.

Select " Delete" to delete a contact savedin the system.
It is necessar
y to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetoothconnection.
USING THE TELEPHONE

244
1
2
2
3
1
3
4
06USING THE TELEPHONE
Press PHONEtwice.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number using the
virtual keypad selecting each number in turn.
Confi rm " OK
" to make the call.

Press TELor twice on PHONE.


CALLING A NEW NUMBER CALLING A CONTACT
Select the desired contact and confi rm.
I
f access was via the PHONEbutton, select "Call" and confi rm.
Select the number and confi rm to start
the call.






MAKING A CALL
Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.

245
1
2
06
1
USING THE TELEPHONE


CALLING A RECENTLY ENTERED NUMBER
Pr
ess TEL, select "Call list" andconfi rm,
Select the desired number and confi rm.

To erase the calls lo
g, press PHONE
twice, select " Phone functions" and confi rm then select " Delete calls log" andconfi rm.


ENDING A CALL
Press PHONEthen select "OK" to end
the call.
Or make a long press on TELat the
steering mounted controls.
Or make two short presses on TELat
the steering mounted controls.
Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed.
press PHONE
to display the calls log.
or
Press "OK" to display the contextualmenu then select " Hang up" andconfi rm.

1
2
06USING THE TELEPHONE

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed displayon the screen.
"Ye
s
" to accept the call is selected bydefault.
Pr
ess " OK" to accept the call.
Select " No" and confi rm to reject the call.

A short press on TELaccepts an incoming call.

A long press on TEL
rejects anincoming call.
