2011 Citroen C4 RHD Owner's Manual

5
VISIBILITY
103

B.
Rear wiper selection ring: turn the
ring to place the desired symbol
against the marking. Rear wiper

If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle carrier,
deactivate the automatic rear
wiper via the vehicle confi gura-
tion menu. Park,
Intermittent wipe,
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wip-
er operates for a set duration.

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
The function is activated or
deactivated via the vehicle con-
fi guration menu.

This function is activated by de-
fault.

Programming
Special position of the
windscreen wipers
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain
cardboard on the wind-
screen,

- replace them at the fi rst signs
of wear.
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and oper-
ate the stalk.

5
VISIBILITY
104


1.
Front courtesy lamp


2.
Front map reading lamps


3.
Rear courtesy lamp


4.
Rear map reading lamps


COURTESY LAMPS



- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- on opening a door,

- when the remote control locking but-
ton is used to locate your vehicle.


Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed. To switch off the rear courtesy lamp, put
it in the the "permanently off" position.
Permanently off.
Permanent lighting. In permanent lighting mode, the
lighting time varies according to
the circumstances:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, un-
limited.
When the courtesy lamp is in
the "permanent lighting" posi-
tion, the rear courtesy lamp also
comes on, except if it is in the
"permanently off" position.
Front and rear map reading lamps

Take care not to put anything in
contact with the courtesy lamps.

)
With the ignition on, press
the corresponding switch.

5
VISIBILITY
105

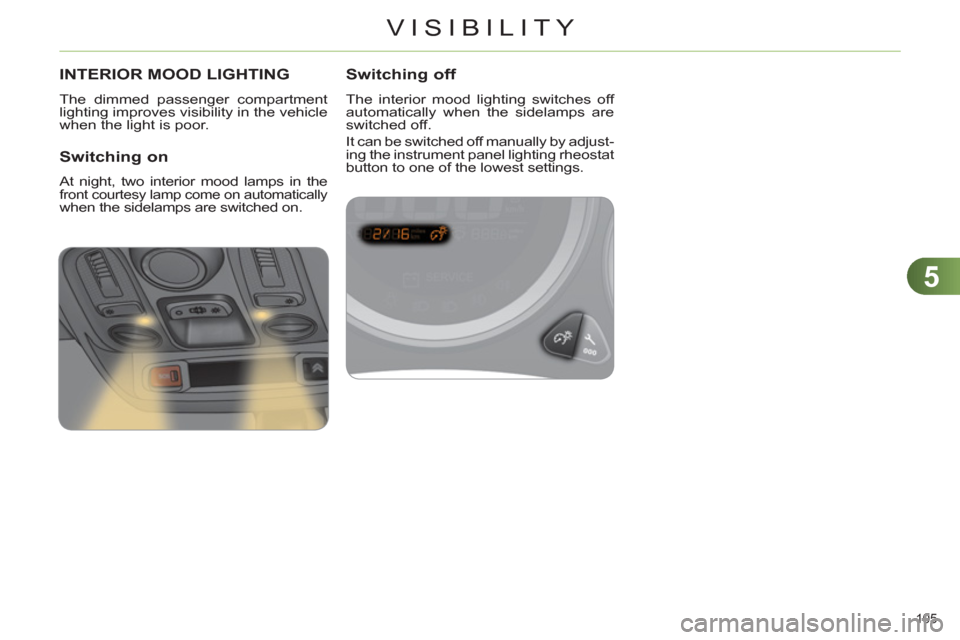

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

Switching on

At night, two interior mood lamps in the front courtesy lamp come on automatically
when the sidelamps are switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by adjust-
ing the instrument panel lighting rheostat
button to one of the lowest settings.

5
106
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:


- when the ignition is off, ap-
proximately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running,
no limit.
INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated depending on the
light intensity detected by the sunshine
sensor.

Switching on
Switchin
g off

The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.

Programming



)
Press the open padlock on
the remote control.
The side spotlamps, the footwell light-
ing and the courtesy lamps come on;
your vehicle is also unlocked. The lighting duration is select-
ed via the vehicle confi guration
menu.

6
FITTINGS
107
INTERIOR FITTINGS


1.
Grab handle


2.
Sun visor


(see details on a following page)

3.
Ticket/card holder


4.
Oddments storage


5.
Illuminated

glove box


(see details on a following page)

6.
Door
pocket
s


7.
Large open storage box
(without audio system)


or
Small storage box with fl ap
(with audio system)


8.
Small open storage box
(without audio system)


9.
USB port/Auxiliary socket


(see details on a following page)

10.
Cigarette

lighter/12 V accessory
socket


(see details on following pages)

11 .
Portable ashtray


(see details on following pages)

12.
Centre armrest with storage


(see details on a following page)

6
FITTINGS
108
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit auto-
matically.
This sun visor is also equipped with a
ticket holder.
SUN VISOR ILLUMINATED GLOVE BOX

Its lid has locations for storing a pen, a
pair of glasses, tokens, maps, a cup...


)
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fi tted with air condition-
ing, it provides access to the ventilation
nozzle B
, distributing the same cooled
air as the vents in the passenger com-
partment.
It gives access to the dashboard fuse-
box (see "Practical information - §
Changing a fuse").
PORTABLE ASHTRAY




)
Pull the cover to open the ashtray.

)
To empty it, remove the ashtray by
pulling it upwards.
To avoid any problem of interfer-
ence or risk of overturning, do
not place the ashtray near the
gear lever.

6
FITTINGS
109
CIGARETTE LIGHTER/12 V
ACCESSORY SOCKET


)
To use the cigarette lighter, press
it in and wait a few seconds until it
pops out automatically.

)
To connect a 12 V accessory (max
power: 120 W), remove the ciga-
rette lighter and connect a suitable
adaptor.
USB PORT/AUXILIARY SOCKET


The "AUX"
connection box, located in the
centre console, comprises an auxiliary
JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
on the multifunction screen.

For more information on the use of
this equipment, refer to the "Audio and
Telematics" section.
Connected to the USB port, the
portable device charges auto-
matically while in use.
LOWER CENTRE CONSOLE




1.
Storage pocket


2.
Cup holder


3.
Large open storage box

6
FITTINGS
110

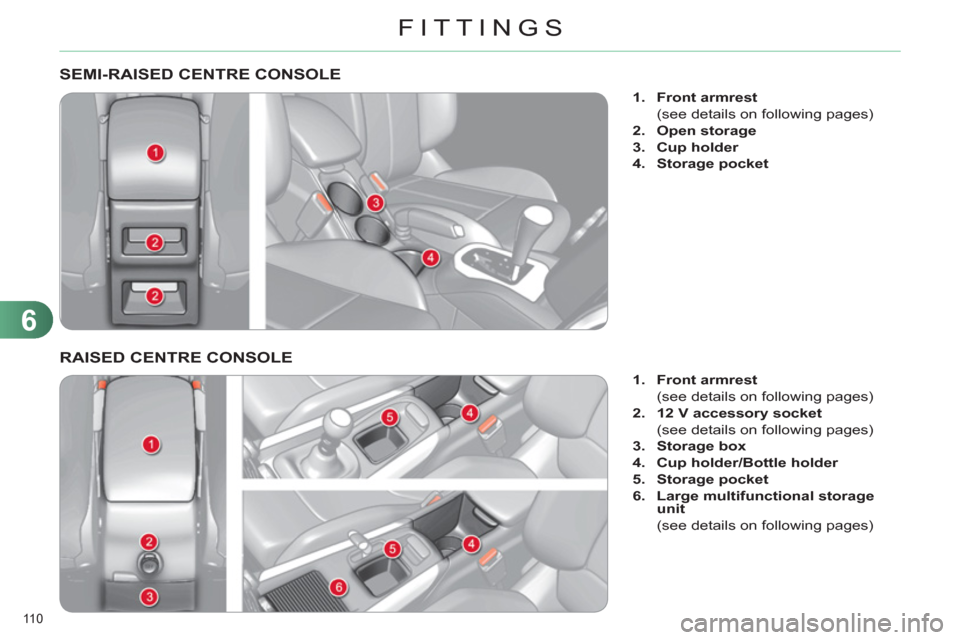

SEMI-RAISED CENTRE CONSOLE



1.
Front armrest


(see details on following pages)

2.
Open storage


3.
Cup holder


4.
Storage pocket



RAISED CENTRE CONSOLE




1.
Front armrest


(see details on following pages)

2.
12 V accessory socket


(see details on following pages)

3.
Storage box


4.
Cup holder/Bottle holder


5.
Storage pocket


6.
Large multifunctional storage
unit


(see details on following pages)
