2011 Citroen C4 RHD Owner's Manual

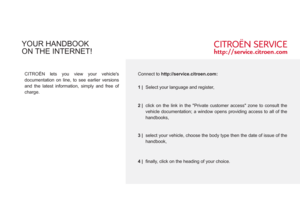

YOUR HANDBOOK
ON THE INTERNET!


CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com:

1|
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of the
handbooks,
select your vehicle, choose the body type then the date of issue of the
handbook,
fi nally, click on the heading of your choice.
2|
3 |
4 |

Your vehicle is fi tted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifi cations for the country in which it is
sold.
The fi tting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specifi c warning and contact a CITROËN
dealer to be shown the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.


Happy motoring!

Key

safety warning We draw your attention to the following...


contributes to the protection of the environment


programming a function with the
confi guration menu
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
additional information

refer to the page indicated

CONTENTS
2
Monochrome screen A 50Monochrome screen C 52Colour screen and map 55Trip computer 58
2 - MULTIFUNCTION
SCREENS 50Î61
Ventilation 62Manual air conditioning 64Dual-zone digital air conditioning 66Rear screen demist - defrost 69Front seats 70Rear seats 74Mirrors 75Steering wheel adjustment 77
3 - COMFORT 62 Î77
Remote control key 78Alarm 85Doors 87Boot 88Electric windows 89Panoramic sunroof 91Fuel tank 92Misfuel prevention 93
4 - ACCESS 78Î 93
Lighting controls 94Automatic illumination
of headlamps 97Welcome lighting 98Headlamp adjustment 98Directional lighting 99Wiper controls 101Automatic rain sensitive wipers 102Courtesy lamps 104
Interior mood lighting 105Boot lamp 106
5 - VISIBILITY 94Î 106
Interior fi ttings 107Centre consoles 110Front armrest 111Boot fi ttings 115
6 - FITTINGS 107Î11 7

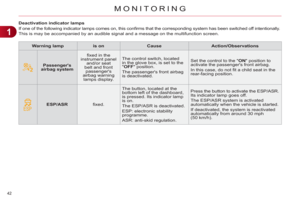

Instrument panels 27Rev counter 31Warning and indicator lamps 32Indicators 43Manual test 46Time and units 47Customisation 49
FAMILIARISATION 4Î 26
1 - MONITORING27Î49

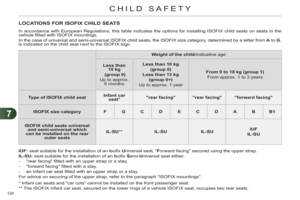

Child seats 118ISOFIX child seats 122Child lock 125
7 - CHILD
SAFETY 118Î 125

CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Front seat belts 131Airbags 134
8 - SAFETY 126 Î137
Electric parking brake 138Manual parking brake 145Manual gearbox 145Gear effi ciency indicator 1466-speed electronic gearbox system 147Automatic gearbox 150Hill start assist 153Stop & Start 154
Blind spot sensors 157Speed limiter 161Cruise control 163Parking space sensors 165Parking sensors 167
9 - DRIVING 138 Î168
Bonnet 170Running out of fuel (Diesel) 171Petrol engines 172Diesel engines 173Checking levels 174Checks 176
10 - CHECKS 169Î 177

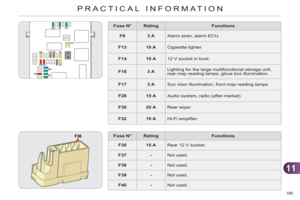

Temporary puncture repair kit 178Changing a wheel 183Changing a bulb 187Changing a fuse 193Battery 197Energy economy mode 199Changing a wiper blade 200Very cold climate screen 200Towing the vehicle 201Towing a trailer 203Audio pre-equipment 204Accessories 205
11 - PRACTICAL
INFORMATION 178Î 206

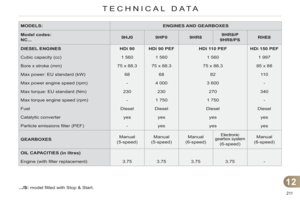

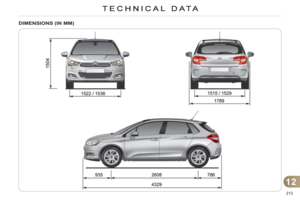

Petrol engines 207Petrol weights 209Diesel engines 211Diesel weights 212Dimensions 213Identifi cation markings 214

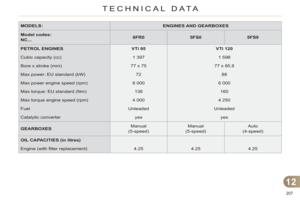

12 - TECHNICAL DATA 207 Î214
Emergency or assistance 215eMyWay 217Audio system 269
AUDIO and TELEMATICS 215 Î302
ALPHABETICAL
INDEX 307Î 310

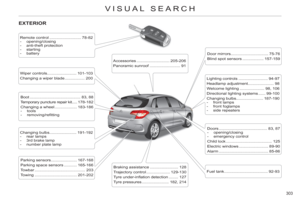

VISUAL
SEARCH 303Î 306

4

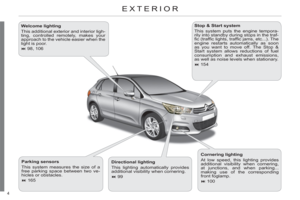

EXTERIOR

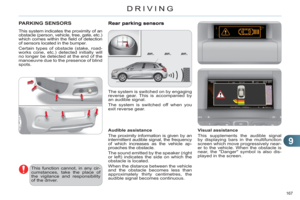

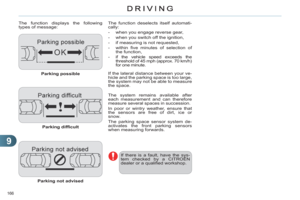

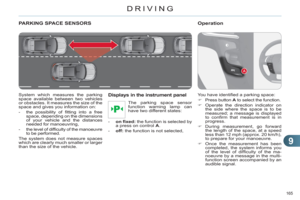

Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.



165

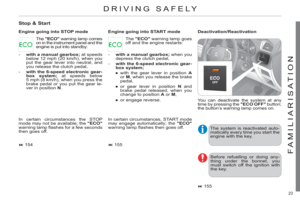

Stop & Start system
This system puts the engine tempora-
rily into standby during stops in the traf-
fi c (traffi c lights, traffi c jams, etc...). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system allows reductions of fuel
consumption and exhaust emissions,
as well as noise levels when stationary.



154

Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.



98, 106


Directional lighting
This lighting automatically provides
additional visibility when cornering.



99

Cornering lighting
At low speed, this lighting provides
additional visibility when cornering,
at junctions, and when parking...
making use of the corresponding
front foglamp.



100

5
FAMILIARISATION

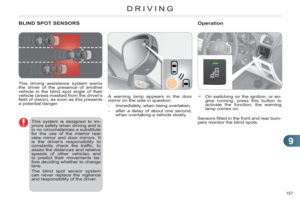

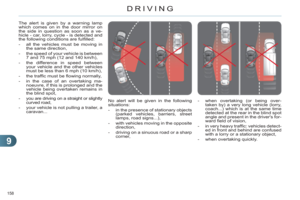

Blind spot sensors
In certain conditions, this system de-
tects the presence of a vehicle in the
blind spot. It informs you by means of a
warning lamp in the corresponding door
mirror.



157


Under-infl ation detection
This system continuously monitors the
pressure in each tyre and warns you in the
event of a puncture or under-infl ation.



127


Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.



91

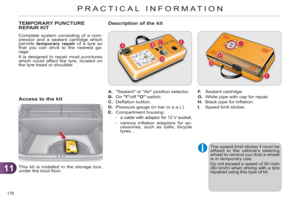

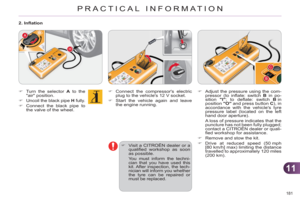

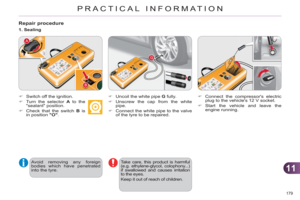

Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and a sealant cartridge,
for the temporary repair of a tyre.



178

6
OPENING

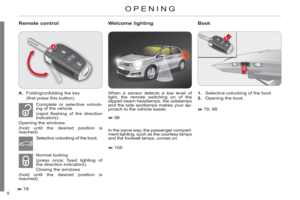

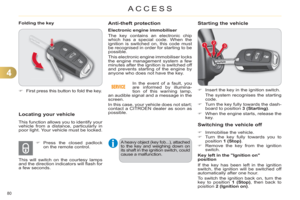

Remote control
Welcome lightingBoot



A.
Folding/unfolding the key
(fi rst press this button).



78
When a sensor detects a low level of
light, the remote switching on of the
dipped beam headlamps, the sidelamps
and the side spotlamps makes your ap-
proach to the vehicle easier.


1.
Selective unlocking of the boot.

2.
Opening the boot.



98 Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Opening the windows
(hold until the desired position is
reached).
Selective unlocking of the boot.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Closing the windows
(hold until the desired position is
reached). In the same way, the passenger compart-
ment lighting, such as the courtesy lamps
and the footwell lamps, comes on.



106



78, 88
