2011 Citroen C4 display

240
04
35
1
2
4
NAVIGATION - GUIDANCE
Press NAV
to display the
"Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save
the modifi cations.

241
04
3
1
2
4
NAVIGATION - GUIDANCE
Select " Map management " and confi rm.
Select:


-
"Vehicle direction" to have the map follow the direction of travel,

- "North direction" to keep the map
alwa
ys North up,

- "Perspective view
" to displa
y aperspective view.


Select "Map orientation
" and confi rm. The colour o
f the map, different from the day and night mode, is confi gured in the " SETUP" menu.

MAP ORIENTATION

Pr
ess NAV
to display the
" Navigation - guidance" menu.
Street names are visible when the map is displa
yed at the 50 m
scale, with either direction of travel or North orientation.

242
04
1
2
36
4
5
NAVIGATION - GUIDANCE
Press NAV to display the"Navigation - guidance" menu.







ADJUSTING THE GUIDANCE SPEECH SYNTHESIS
Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION
Select " Set speech synthesis" andconfi rm.
Select the volume graph and confi rm.

Select "Deactivate " to deactivate voice messages.
Select " OK " and press the dial to confi rm.

Adjust the volume to the desired level and confi rm.
The volume o
f messages can be adjusted during the transmissionof the message using the volume adjustment control.The volume settin
g of guidance messages is also accessible via the "SETUP"/" Voice synthesis " menu.

243
04
3
1
2
NAVIGATION - GUIDANCE


MALE VOICE/FEMALE VOICE
Press SETUP
to display theconfi guration menu.

Select "Select male voice
" or "Selectfemale voice" then confi rm " Ye s
" to activate a male or female voice. Thesystem restarts.

Select "Voice synthesis
" and confi rm.

245
05
1
2
3
4
TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges:",
or
-"Retain the messa
ges:"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

246
05
2 1
1
2
3
TRAFFIC INFORMATION






PRINCIPAL TMC SYMBOLS


Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:







RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Press RADIO
to display the "FM/AM band " menu.
Select " Guidance options
" then confi rm.
Select " Activate/Deactivate TA
" then confi rm.

The volume settin
g for TA mesages can be adjusted only during the
transmission of this type of alert.

247

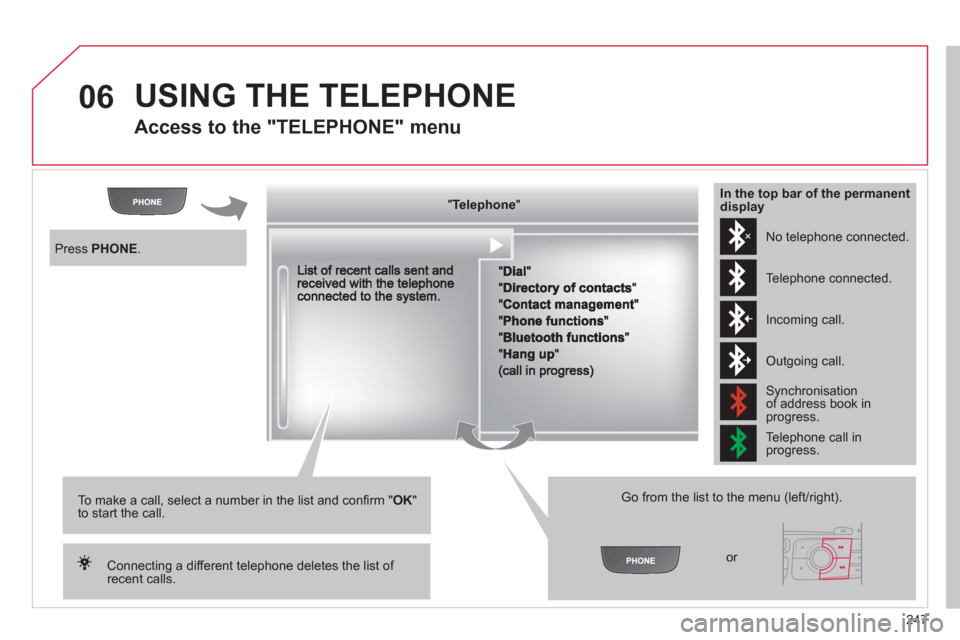

06 USING THE TELEPHONE


Access to the "TELEPHONE" menu
"""""""ppppeepoeTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTl hTl hTl hTl h"""""""
Go from the list to the menu (left/right).
or


Press PHONE.



To make a call, select a number in the list and confi rm "OK"to start the call.

Connecting a different telephone deletes the list of recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of address book in progress.
Telephone call in progress.


In the top bar of the permanentdisplay

248
1
25
6
3
4
06















PAIRING A TELEPHONE


For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.


Activate the telephone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess PHONE.
Select the name of the desired peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in " Audio" mode (streaming: playingmusic fi les on the telephone),
-
or "All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions
" and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE
