DRIVING
153

On sharp acceleration, the gear-
box will not change up unless the
driver acts on the gear lever or
the steering mounted paddles.
Never select neutral N
while the
vehicle is moving.
Only engage reverse gear R

when the vehicle is immobilised
with the brake pedal pressed.



Manual gear changing

This selective gear change mode en-
ables you to overtake, for example, while
still remaining in automatic mode.


)
Operate the +
or -
steering mounted
control paddle.
The gearbox engages the gear request-
ed if the engine speed permits. AUTO
is
still displayed in the instrument panel.
After a few moments without any action
on the controls, the gearbox resumes
automatic control of the gears.
At very low speed, if reverse
gear is requested, this will only
be taken into account when the
vehicle is immobilised. The Foot
on brake
warning lamp may
fl ash in the instrument panel to
prompt you to brake.


Stopping the vehicle

Before switching off the engine, you
can choose to:


- move to position N
to engage neutral,

- leave the gear engaged; in this
case, it will not be possible to move
the vehicle.
In both cases, you must apply the park-
ing brake to immobilise the vehicle.
When immobilising the vehicle,
with the engine running, you
must place the gear lever in neu-
tral N
.
Before carrying out any work in
the engine compartment, check
that the gear lever is in neutral N

and that the parking brake is ap-
plied.

Operating fault

With the ignition on, the fl ashing of
AUTO
, accompanied by an audible sig-
nal and a message in the multifunction
screen, indicates a malfunction of the
gearbox.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

You must press the brake pedal
when starting the engine.
Whatever the circumstances,
you must manually apply the
parking brake when parking,
unless the parking brake is pro-
grammed in automatic mode.



Manual mode



)
When the vehicle has moved off, se-
lect position M
to change to manual
mode.

AUTO
disappears and the
gears engaged appear in suc-
cession in the instrument panel
screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically
to allow the vehicle to accelerate in the
correct gear.

9
DRIVING
154
AUTOMATIC GEARBOX
Six speed automatic gearbox which of-
fers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Four driving modes are offered:


- automatic
operation for electronic
management of the gears by the
gearbox,

- sport
programme for a more dynamic
style of driving,

- snow
programme to improve driving
when traction is poor,

- manual
operation for sequential
changing of the gears by the driver.
Gear selection gate



1.
Gear lever.

2.
Button "S"



(sport)
.

3.
Button " 7
" (snow)
.

P.
Park.


- Immobilisation of the vehicle, parking
brake on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, park-
ing brake on.

- Starting the engine.

D.
Automatic operation.

M



+/-.
Manual operation with sequential
changing of the six gears.


)
Press forwards to change up through
the gears.
or


)
Press rearwards to change down
through the gears.



Gear lever

When you move the lever in the gate
to select a position, the corresponding
indicator is displayed in the instrument
panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.

Sport
programme

7
. Snow
programme

1 to 6.
Gear engaged during manual
operation

-.
Invalid value during manual operation
Displays in the instrument panel

9
DRIVING
156

Manual operation



)
Select position M
for sequential

changing of the six gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.

D
disappears and the gears
engaged appear in succes-
sion in the instrument panel.
If the engine speed is too low
or too high, the gear selected
fl ashes for a few seconds, then the ac-
tual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1

automatically.
The sport and snow programmes do
not operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).



Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle, unless it is
programmed to automatic mode.

If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds af-
ter the ignition is switched off,
there is an audible signal and a
message appears.


)
Return the lever to position P
;
the audible signal stops and
the message disappears.


You risk damaging the gearbox:


- if you press the accelerator
and brake pedals at the same
time,

- if you force the lever from po-
sition P
to another position
when the battery is fl at. When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the multifunction
screen, indicates a gearbox malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.
Operating fault
To reduce fuel consumption
when stationary for long periods
with the engine running (traffi c
jam...), position the gear lever at
N
and apply the parking brake,
unless it is programmed in auto-
matic mode.

9
DRIVING
159

Deactivation

Going into engine START mode

At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message on the screen.
Special cases: START invoked
automatically
If the system has been deacti-
vated in STOP mode, the engine
restarts immediately. The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with the 6-speed electronic gearbox
system
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse gear.

START is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

-
the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with the
6-speed electronic gearbox system,

- the electric parking brake is being
applied,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case the "ECO"
warning
lamp fl ashes for few seconds,
then goes off.
With a manual gearbox in STOP
mode, if a gear is engaged with-
out fully depressing the clutch
pedal, a warning lamp comes
on or a message is displayed
asking you to depress the clutch
pedal to restart the engine.

Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp go-
ing off and a message in the instrument
panel.
The system is reactivated auto-
matically at every new start using
the key.
This operation is perfectly normal.

9
DRIVING
165
MEMORISING SPEEDS
This memorisation of speeds applies
to both the speed limiter and the cruise
control.

Operation

You can memorise up to 5 speeds in
the system.
By default, some speeds are already
memorised.
Access
Press the MEM
button to display the list
of memorised speeds.
Selection

To select a memorised speed:


)
press and hold the " +
" or " -
" but-
ton; the system stops at the nearest
memorised speed,

)
press and hold again the " +
" or " -
"
button to select another memorised
speed.
A reminder of the speed and the state
of the system (on/off) is displayed in the
instrument panel.


)
Select "Vehicle parameters" menu
and confi rm.

)
Select the "Driving assistance" line
and conform.

)
Select "Speeds memorised" line
and confi rm.

)
Modify the speed.

)
Select " OK
" and confi rm to save the
modifi cations.
For safety reasons, when using
the monochrome screen C the
driver must only carry out these
operations when stationary.
These operations are only possi-
ble when stationary, when using
the central colour screen associ-
ated with the satellite navigation
system.

- on the central colour screen asso-
ciated with the satellite navigation
system; press the thumb wheel
on the left of the steering column.

)
Go to the main menu:


-
on the monochrome screen C; press
the "MENU"
button, then select
the "Personalisation-confi guration"
menu and confi rm.

9
DRIVING
166
The programmed information is grouped
together in the instrument panel screen.

6.
Speed limiter on,off indication.

7.

Speed limiter mode selection indication.


8.
Programmed speed value.

9.
Selection of a memorised speed.
(see "Memorising speeds")
SPEED LIMITER

System which prevents the vehicle
from exceeding the speed programmed
by the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect.
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. The functions of this system are grouped
together on the steering mounted con-
trols.


1.
Speed limiter mode selection dial.

2.
Programmed value decrease button.

3.
Programmed value increase button.

4.
Speed limiter on,off button.

5.
List of memorised speeds display
button.
(see "Memorising speeds")



Steering mounted controls

Operation

The speed limiter is switched on
man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off
by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the
accelerator fi rmly beyond the point of
resistance.
To return to the programmed speed,
simply release the accelerator pedal.
The programmed speed remains in the
memory when the ignition is switched
off.

9
DRIVING
167

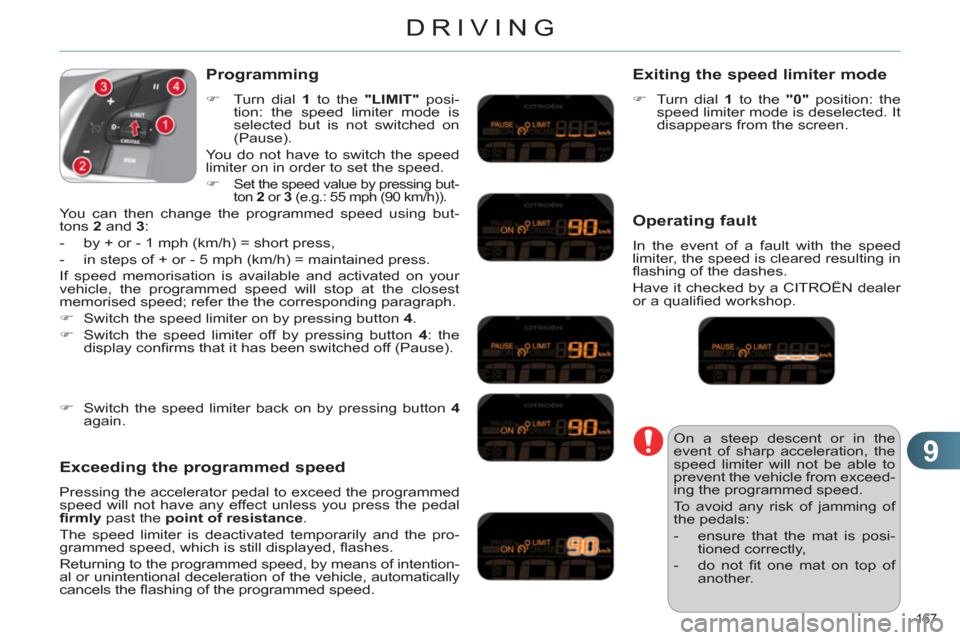

Programming



)
Turn dial 1
to the "LIMIT"
posi-
tion: the speed limiter mode is
selected but is not switched on
(Pause).
You do not have to switch the speed
limiter on in order to set the speed.


)

Set the speed value by pressing but-
ton 2
or 3
(e.g.: 55 mph (90 km/h)).

You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your
vehicle, the programmed speed will stop at the closest
memorised speed; refer the the corresponding paragraph.


)
Switch the speed limiter on by pressing button 4
.

)
Switch the speed limiter off by pressing button 4
: the
display confi rms that it has been switched off (Pause).


Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.
Exiting the speed limiter mode



)
Turn dial 1
to the "0"
position: the
speed limiter mode is deselected. It
disappears from the screen.

Operating fault

In the event of a fault with the speed
limiter, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
On a steep descent or in the
event of sharp acceleration, the
speed limiter will not be able to
prevent the vehicle from exceed-
ing the programmed speed.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- do not fi t one mat on top of
another.

)
Switch the speed limiter back on by pressing button 4

again.

9
DRIVING
168
The cruise control system cannot,
in any circumstances, replace
the need to respect speed limits,
nor can it replace the need for
vigilance and responsibility on the
part of the driver.
You are advised to keep your
feet near the pedals at all times.
CRUISE CONTROL

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The functions of this system are grouped
together on the steering mounted con-
trols.


1.
Cruise control mode selection dial.

2.
Speed programming, value decrease
button.

3.
Speed programming, value increase
button.

4.
Cruise control off, resume button.

5.
Stored speeds display button.
(see "Storing speeds")


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

6.
Cruise control off, resume indica-
tion.

7.
Cruise control mode selection indi-
cation.

8.
Programmed speed value.

9.
Selecting a stored speed.
(see "Storing speeds")
Displays in the instrument panel

Operation

The cruise control is switched on

manually: it requires a minimum ve-
hicle speed of 25 mph (40 km/h) and
engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gear-
box system or automatic gearbox, in
sequential driving mode,

-
position A
on the electronic gearbox
system or D
on the automatic gearbox.

The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
