MONITORING
33


Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Battery charge


fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.


Braking


fi xed, associated
with the STOP
warning lamp. The braking system fl uid level
has dropped signifi cantly. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system
checked by a CITROËN dealer or a
qualifi ed workshop.

+
fi xed, associated
with the electric
parking brake
malfunction
warning lamp,
if the parking
brake is released. The braking system has a
fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.

+
fi xed, associated
with the STOP
and ABS warning
lamps. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.

1
MONITORING
36


Warning lamp



is on



Cause



Action/Observations




Anti-lock
Braking
System (ABS)


fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a CITROËN dealer or a qualifi ed
workshop without delay.


Dynamic
stability control
(ESP/ASR)


fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on), the
ESP/ASR or hill start assist
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Engine
autodiagnosis
system


fi xed. The emission control system
has a fault. The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.


Low fuel level


fi xed with the two
last bars fl ashing.
When it fi rst comes on there
remains approximately
6 litres of

fuel
in the tank. You must refuel as soon as possible to
avoid running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
suffi cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres.
Never continue to drive until you run out
of fuel as this could damage the emission
control and injection systems.

1
MONITORING
37


Warning lamp



is on



Cause



Action/Observations




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.

fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Foot on the
clutch **


fi xed. In the STOP mode of Stop
& Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.

**
Only on the two-tone instrument panel without audio system.

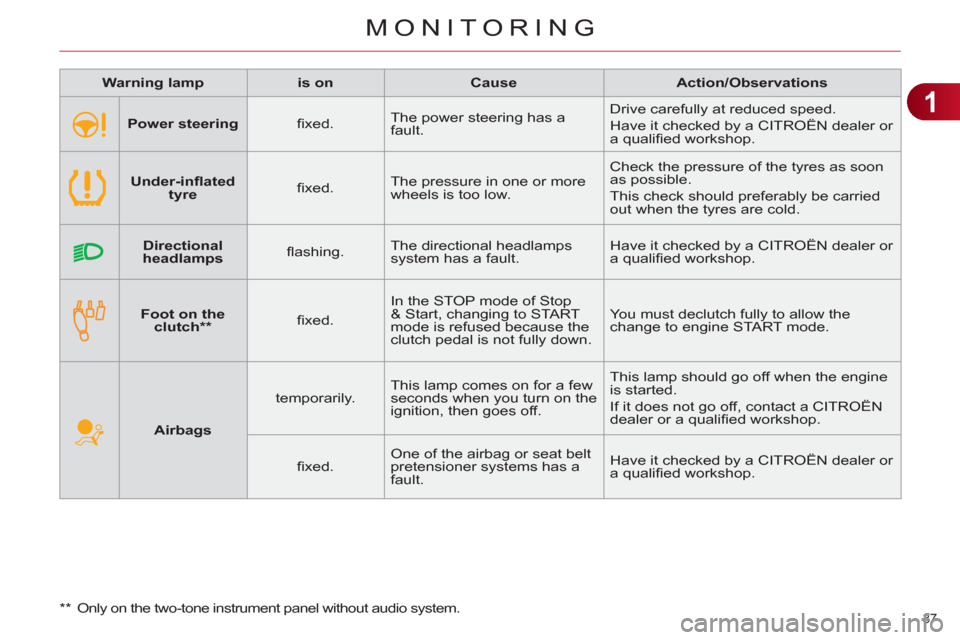

Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.


Under-infl ated
tyre


fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.


Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.

1
MONITORING
40


Warning lamp



is on



Cause



Action/Observations




Parking brake


fi xed. The parking brake is applied
or not properly released. Release the parking brake to switch off
the warning lamp, keeping your foot on
the brake pedal.
Observe the safety recommendations.
For further information on the parking
brake, refer to the "Driving" section.


Electric
parking brake


fi xed. The electric parking brake is
applied. Release the electric parking brake to
switch off the warning lamp: with your
foot on the brake pedal, pull the electric
brake control.
Observe the safety recommendations.
For more information on the electric
parking brake, refer to the "Driving"
section.


Deactivation of
the automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to
country) via the vehicle confi guration
menu or contact a CITROËN dealer or a
qualifi ed workshop.


Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off
before starting.
The period of illumination of the warning
lamp is determined by the climatic
conditions (up to about thirty seconds in
extreme climatic conditions).
If the engine does not start, switch the
ignition off and then on, wait until the
warning lamp goes off again, then start
the engine.

4
81
Locking the vehicle


)
Press the closed padlock to
lock the vehicle.

Normal locking using the remote
control

Normal locking using the key


)
Turn the key towards the rear in the
driver's door lock to lock the vehicle.

Locating your vehicle

This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.


Folding the key


)
First press this button to fold the key.



)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Anti-theft protection


Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.

Locking is confi rmed by fi xed lighting
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
fold at the same time.
It also brings on of the timed operation
of the exterior side spotlamps and the
guide-me-home lighting, if this is acti-
vated.

If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if
it is unlocked inadvertently, it
will relock automatically after
thirty seconds unless a door is
opened.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.


Closing the windows using the
3-button remote control


)
Press and hold down the
closed padlock until the
level of closing is achieved.
The windows stop when
you release the button.
When closing the windows using
the remote control you must en-
sure that nothing prevents their
correct closing.
If you want to leave the windows
partly open, it is necessary to
deactivate the volumetric alarm
protection.

4
ACCESS
82
Starting the vehicle


)
Insert the key in the ignition switch.
The system recognises the starting
code.

)
Turn the key fully towards the dash-
board to position 3 (Starting)
.

)
When the engine starts, release the
key.



A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.



)
Immobilise the vehicle.

)
Turn the key fully towards you to
position 1 (Stop)
.

)
Remove the key from the ignition
switch.







Key left in the "Ignition on" position
If the key has been left in the ignition
switch, the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop)
, then back to
position 2 (Ignition

on

)
.
Operating fault with the 2-button remote control

Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of malfunction
of the remote control, you can no longer
unlock, lock or locate your vehicle.


)
First of all, use the key in the lock to
unlock or lock your vehicle.

)
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.

Reinitialisation


)
Switch off the ignition.

)
Turn the key to position 2 (Ignition
on)
.

)
Press the closed padlock immedi-
ately for a few seconds.

)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Battery ref.: CR1620/3 volts.
Changing the battery

If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the screen.


)
Unclip the casing using a coin at the
notch.

)
Slide the fl at battery out of its loca-
tion.

)
Slide the new battery into its loca-
tion observing the original direction.

)
Clip the casing.

)
Reinitialise the remote control.

5
104
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
downwards.

The instruction is confi rmed by
a wiping cycle, accompanied by
illumination of this warning lamp
in the instrument panel and an activation
message.


Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.
Windscreen and headlamp
wash
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicated
by gauge in the reservoir fi ller neck un-
der the bonnet.
Checking and topping up this fl uid can
only be done when stationary with the
engine off.
The driver should check the level of this
fl uid regularly, particularly during winter.
Refer to "Checks - § Screenwash/head-
lamp wash level" for the procedure on
checking the level.


Low screenwash/headlamp wash
level

)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.

6
FITTINGS
11 5
230 V/50 HZ POWER SOCKET


A 230 V/50 Hz socket (maximum power:
120 W) is fi tted to the centre console.

To use the socket:


)
lift the front armrest cover for ac-
cess to its compartment,

)
check that the warning lamp is on
green,

)
connect your multimedia or other
electrical device (telephone charger,
laptop computer, CD-DVD player,
baby food warmer...).
This socket works with the engine
running, as well as in STOP mode on
Stop & Start.

)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
12 V ACCESSORY SOCKET

Connect only one device at a
time to the socket (no extension
or multi-way connector).
Connect only devices with class
II insulation (shown on the de-
vice).
As a safety measure, when elec-
trical consumption is high and
when required by the vehicle's
electrical system (particular
weather conditions, electrical
overload...), the current supply
to the socket will be cut off; the
green warning lamp goes off.

In the event of a fault with the socket,
the green warning lamp fl ashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
