2010 VOLVO XC60 Owner´s Manual

06 Maintenance and specifications
Fuses
06

* Option/accessory, for more information, see Introduction.249
Engine compartment, upper
Engine compartment, front
Engine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
FunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
FunctionA
Circuit breaker50
–
–
–
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights. Head-
light leveling*10
Central electrical module20
Radar. ACC control module*5
Speed-dependent power
steering5
FunctionA
Engine Control Module (ECM),
transmission, SRS10
Heated washer nozzles10
Vacuum pump I5T20
Lighting panel5
Headlight washers15
12-volt socket, front and rear
seat15
Laminated panoramic roof*,
ceiling console/ECC*10
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module (ECM)10
Control module, automatic
transmission15
Compressor A/C15
Coils5

06 Maintenance and specifications
Fuses
06
250
FunctionA
Starter motor relay30
Ignition coils20
Engine Control Module (ECM),
throttle10
Injection system15
Engine valves10
EVAP/heated oxygen sensor/
Injection15
Crank case ventilation heater20
Fuel leakage detection5
–
-
Cooling fan80

06 Maintenance and specifications
Fuses
06

* Option/accessory, for more information, see Introduction.251 Under the glove compartment
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions
FunctionA
Rain sensor*5
SRS system10
ABS brakes. Electric parking
brake5
FunctionA
Accelerator pedal, heated
seats*7.5
–
ICM display, CD & Radio15
Steering wheel module7.5
–
High beam15
FunctionA
Laminated panoramic roof*20
Backup lights7.5
–
Front fog light*15
Windshield washers15
Adaptive cruise control ACC*10
–

06 Maintenance and specifications
Fuses
06
252* Option/accessory, for more information, see Introduction.
FunctionA
Overhead courtesy lighting,
Control panel driver's door/
Power passenger seat*7.5
Information display5
Power driver's seat*5
Tailgate wiper15
Remote key receiver, Alarm
sensors5
Fuel pump20
Electric steering column lock20
–
Lock, tank/tailgate10
Alarm siren. ECC5
START/STOP ENGINE button5
Brake light switch5

06 Maintenance and specifications
Fuses
06

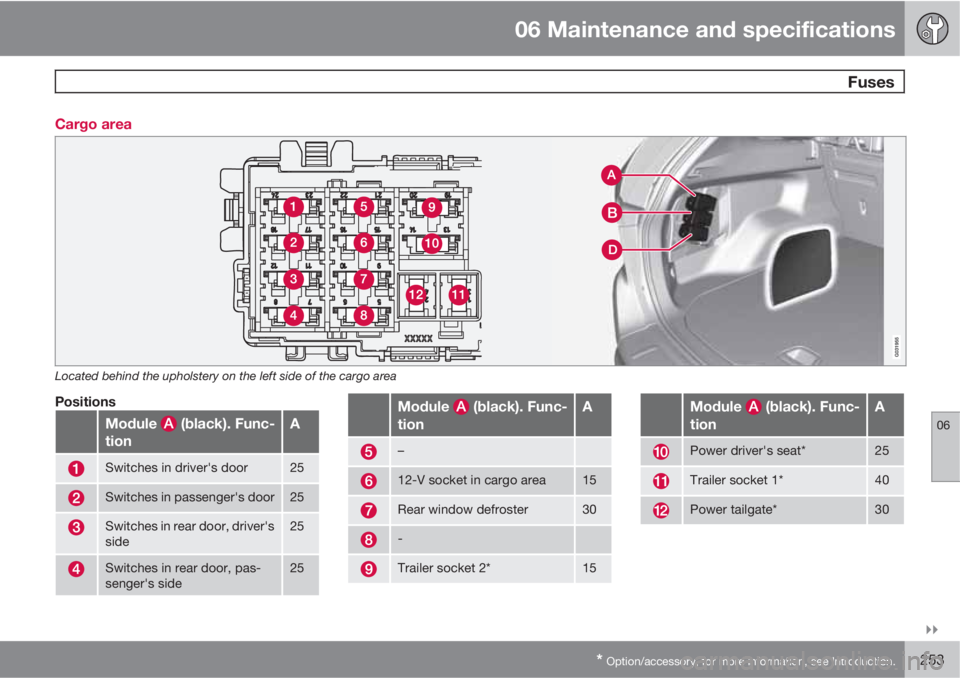

* Option/accessory, for more information, see Introduction.253 Cargo area
Located behind the upholstery on the left side of the cargo area
Positions
Module (black). Func-
tionA
Switches in driver's door25
Switches in passenger's door25
Switches in rear door, driver's
side25
Switches in rear door, pas-
senger's side25
Module (black). Func-
tionA
–
12-V socket in cargo area15
Rear window defroster30
-
Trailer socket 2*15
Module (black). Func-
tionA
Power driver's seat*25
Trailer socket 1*40
Power tailgate*30

06 Maintenance and specifications
Fuses
06
254* Option/accessory, for more information, see Introduction.
Module (white). Func-
tionA
Park assist, Park assist cam-
era*5
Control module Four C*15
Heated driver's seat*15
Heated passenger's seat*15
Rear seat heater, passenger's
side*15
AWD control module10
Rear seat heater, driver's
side*15
–
Power passenger's seat*25
Keyless drive*20
Electric parking brake – driv-
er's side*30
-
Module (blue). Func-
tionA
Navigation system display*10
–
Subwoofer*25
SIRIUS satellite radio*5
Audio amplifier*25
Audio system15
Bluetooth Hands-free system5
Reserve –

06 Maintenance and specifications
Wheels and tires
06

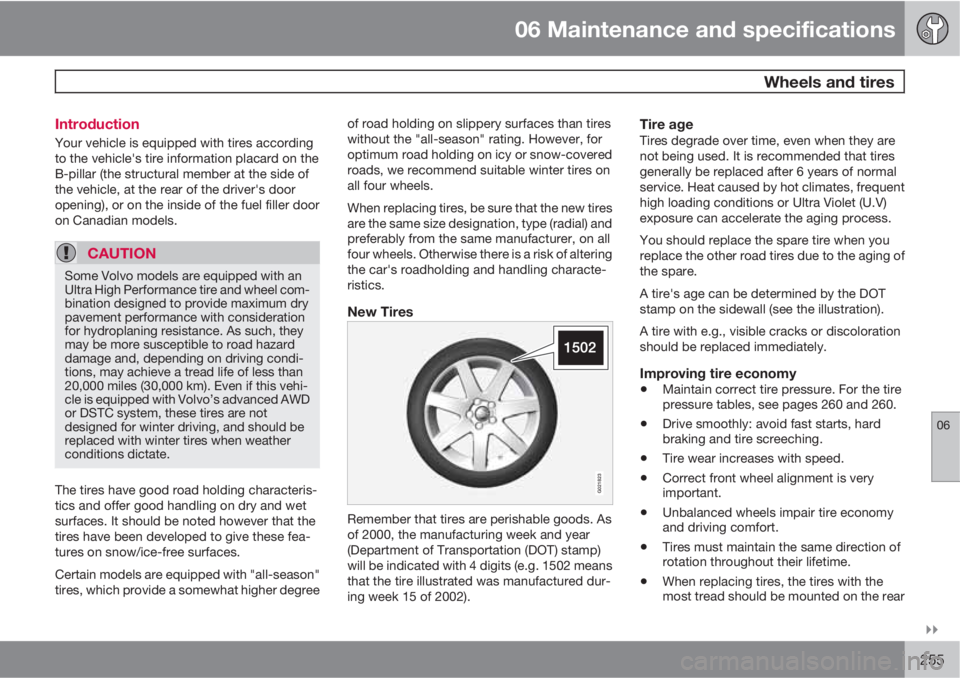

255 Introduction
Your vehicle is equipped with tires according
to the vehicle's tire information placard on the
B-pillar (the structural member at the side of
the vehicle, at the rear of the driver's door
opening), or on the inside of the fuel filler door
on Canadian models.
CAUTION
Some Volvo models are equipped with an
Ultra High Performance tire and wheel com-
bination designed to provide maximum dry
pavement performance with consideration
for hydroplaning resistance. As such, they
may be more susceptible to road hazard
damage and, depending on driving condi-
tions, may achieve a tread life of less than
20,000 miles (30,000 km). Even if this vehi-
cle is equipped with Volvo’s advanced AWD
or DSTC system, these tires are not
designed for winter driving, and should be
replaced with winter tires when weather
conditions dictate.
The tires have good road holding characteris-
tics and offer good handling on dry and wet
surfaces. It should be noted however that the
tires have been developed to give these fea-
tures on snow/ice-free surfaces.
Certain models are equipped with "all-season"
tires, which provide a somewhat higher degreeof road holding on slippery surfaces than tires
without the "all-season" rating. However, for
optimum road holding on icy or snow-covered
roads, we recommend suitable winter tires on
all four wheels.
When replacing tires, be sure that the new tires
are the same size designation, type (radial) and
preferably from the same manufacturer, on all
four wheels. Otherwise there is a risk of altering
the car's roadholding and handling characte-
ristics.
New Tires
Remember that tires are perishable goods. As
of 2000, the manufacturing week and year
(Department of Transportation (DOT) stamp)
will be indicated with 4 digits (e.g. 1502 means
that the tire illustrated was manufactured dur-
ing week 15 of 2002).
G021823
Tire ageTires degrade over time, even when they are
not being used. It is recommended that tires
generally be replaced after 6 years of normal
service. Heat caused by hot climates, frequent
high loading conditions or Ultra Violet (U.V)
exposure can accelerate the aging process.
You should replace the spare tire when you
replace the other road tires due to the aging of
the spare.
A tire's age can be determined by the DOT
stamp on the sidewall (see the illustration).
A tire with e.g., visible cracks or discoloration
should be replaced immediately.
Improving tire economy
•Maintain correct tire pressure. For the tire
pressure tables, see pages 260 and 260.
•Drive smoothly: avoid fast starts, hard
braking and tire screeching.
•Tire wear increases with speed.
•Correct front wheel alignment is very
important.
•Unbalanced wheels impair tire economy
and driving comfort.
•Tires must maintain the same direction of
rotation throughout their lifetime.
•When replacing tires, the tires with the
most tread should be mounted on the rear

06 Maintenance and specifications
Wheels and tires
06
256
wheels to reduce the chance of oversteer
during hard braking.
•Hitting curbs or potholes can damage the
tires and/or wheels permanently.

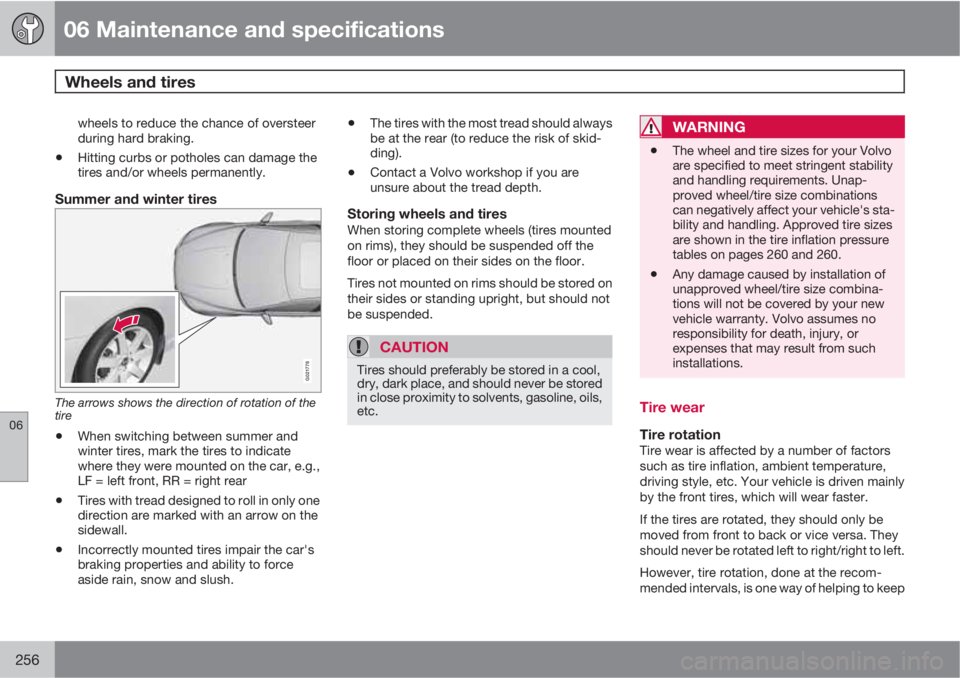

Summer and winter tires
G021778
The arrows shows the direction of rotation of the
tire
•When switching between summer and
winter tires, mark the tires to indicate
where they were mounted on the car, e.g.,
LF = left front, RR = right rear
•Tires with tread designed to roll in only one
direction are marked with an arrow on the
sidewall.
•Incorrectly mounted tires impair the car's
braking properties and ability to force
aside rain, snow and slush.
•The tires with the most tread should always
be at the rear (to reduce the risk of skid-
ding).
•Contact a Volvo workshop if you are
unsure about the tread depth.
Storing wheels and tiresWhen storing complete wheels (tires mounted
on rims), they should be suspended off the
floor or placed on their sides on the floor.
Tires not mounted on rims should be stored on
their sides or standing upright, but should not
be suspended.
CAUTION
Tires should preferably be stored in a cool,
dry, dark place, and should never be stored
in close proximity to solvents, gasoline, oils,
etc.
WARNING
•The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unap-
proved wheel/tire size combinations
can negatively affect your vehicle's sta-
bility and handling. Approved tire sizes
are shown in the tire inflation pressure
tables on pages 260 and 260.
•Any damage caused by installation of
unapproved wheel/tire size combina-
tions will not be covered by your new
vehicle warranty. Volvo assumes no
responsibility for death, injury, or
expenses that may result from such
installations.
Tire wear
Tire rotationTire wear is affected by a number of factors
such as tire inflation, ambient temperature,
driving style, etc. Your vehicle is driven mainly
by the front tires, which will wear faster.
If the tires are rotated, they should only be
moved from front to back or vice versa. They
should never be rotated left to right/right to left.
However, tire rotation, done at the recom-
mended intervals, is one way of helping to keep
