2010 VOLVO XC60 Owner´s Manual

06 Maintenance and specifications
Label information
06

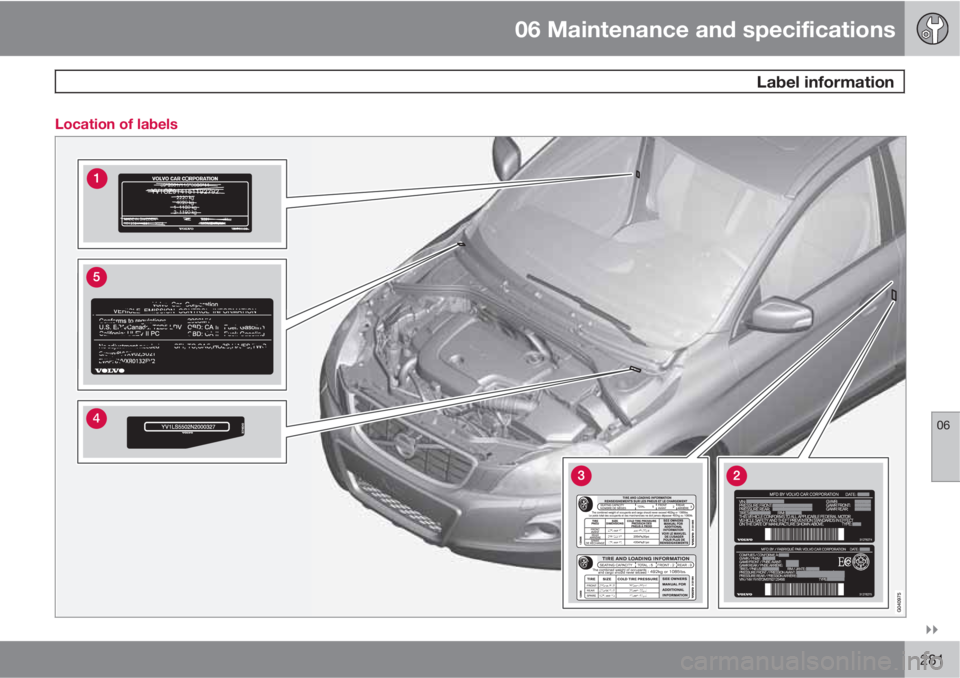

281 Location of labels

06 Maintenance and specifications
Label information
06
282
List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Loads and Tire
Pressures. The appearance of the decal
will vary, depending on the market for
which the vehicle is intended. See also
page 257.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

06 Maintenance and specifications
Specifications
06

283 Dimensions
DimensionIn. (mm)
AWheelbase109.2 (2774)
BLength182.2 (4628)
CLoad length, floor, seatback down70.4 (1789)
DLoad length, floor38.3 (972)
EHeight67.4 (1713)
FLoad height31.6 (802)
GTrack, front64.3 (1632)

06 Maintenance and specifications
Specifications
06
284
DimensionIn. (mm)
HTrack, rear62.4 (1586)
ILoad width, floor42.9 (1090)
JWidth74.4 (1891)
KWidth, incl. door mirrors84.3 (2142)
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 5200 lbs
6-cyl. AWD
B: 5355 lbs
6-cyl. turbo AWD: 5380 lbs
-
6-cyl. AWD:2430 kg
6-cyl. turbo AWD:2440 kg
Capacity weight950 lbs (all models)430 kg (all models
Permissible axle weights, front6-cyl. FWD: 2740 lbs
6-cyl. AWD: 2800 lbs
6-cyl. turbo AWD: 2840 lbs-
6-cyl. AWD:1270 kg
6-cyl. turbo AWD:1290 kg
Permissible axle weights, rear6-cyl. FWD: 2545 lbs
6-cyl. AWD: 2640 lbs
6-cyl. turbo AWD: 2645 lbs-
6-cyl. AWD:1200 kg
6-cyl. turbo AWD:1200 kg
Curb weight3920 – 4140 lbs1770 – 1900 kg
Max. roof load220 lbs100 kg

06 Maintenance and specifications
Specifications
06

285
CategoryUSACanada
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Engine designationB6324SB6324S2B6304T2
Output (kW/rps)175/103168/103210/93
Output (hp/rpm)235/6200225/6200281/5600
Torque (Nm/rps)320/53300/57400/25 – 80
Torque (ft. lbs./rpm)236/3200221/3400295/1500 – 4800
No. of cylinders666
Bore (in/mm)3.31/843.31/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2

06 Maintenance and specifications
Specifications
06
286
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets

06 Maintenance and specifications
Specifications
06

287 Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

06 Maintenance and specifications
Specifications
06
288
Oil volume
Engine modelOil volume between MIN and
MAXVolume (incl. filter)
3.2 (6-cyl.)B6324S/S21.27 US qts (1.2 liters)7.82 US qts (7.4 liters)
3.0T (6 cyl.)B6304T21.27 US qts (1.2 liters)7.82 US qts (7.4 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)5.8 US qts (5.5 liters)Transmission fluid BOT 341
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.8 lbs (800 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
