The brake fluid should always be between the
MIN and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536 °F
(280 °C), P/N 9437433
Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult a trained
and qualified Volvo service technician.
Always entrust brake fluid changing to a
trained and qualified Volvo service technician.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a brake-related
message is shown in the information
display: DO NOT DRIVE. Have the car
towed to a trained and qualified Volvo
service technician and have the brake
system inspected.
•Dot 4+ should never be mixed with any
other type of brake fluid.
Filling1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks.
Power steering fluid
Check the level frequently. The fluid does not
require changing. The fluid level must be
between the MIN and MAX marks. For capaci-
ties and recommended fluid grade, see
page 288.
WARNING
If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.
CAUTION
Keep the area around the power steering
fluid reservoir clean when checking.

06 Maintenance and specifications
Replacing bulbs
06
234* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 240.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting
•Reading lights
•Glove compartment lighting
•Turn signals in the door mirror
•Approach lighting in the door mirror
•Brake/fog/taillights
•Rear side parking lights
•Active Bending Lights and LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.

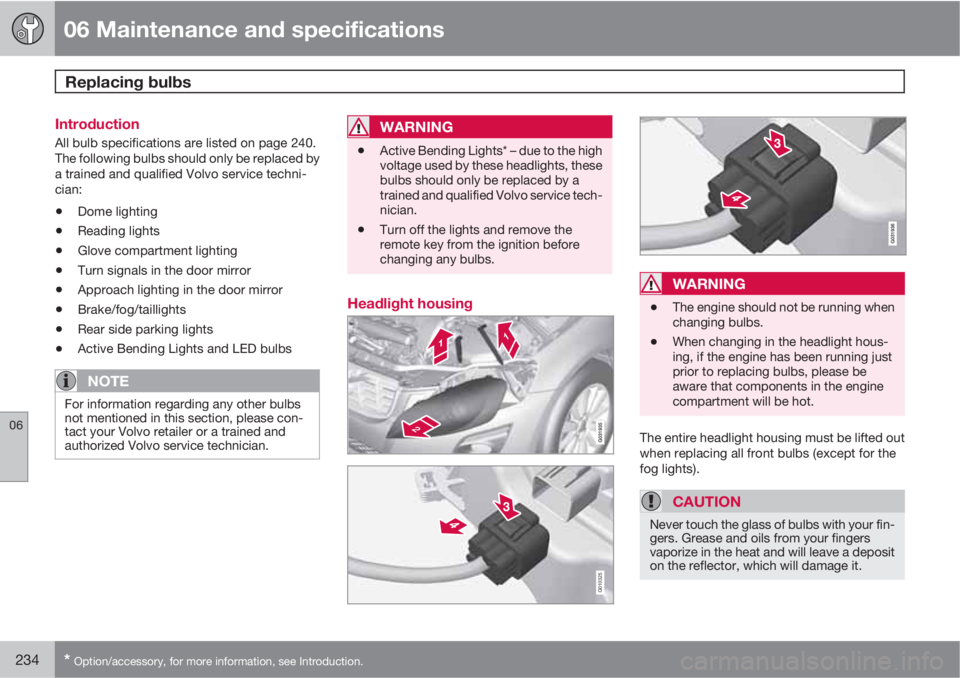

Headlight housing
G010325
WARNING
•The engine should not be running when
changing bulbs.
•When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.
The entire headlight housing must be lifted out
when replacing all front bulbs (except for the
fog lights).
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.

06 Maintenance and specifications
Replacing bulbs
06

235
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.
Removing the headlight housing1. Switch off the ignition by pressing quickly
on the START/STOP ENGINE button and
remove the remote key from the ignition
slot
1.
2. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Pull the headlight housing straight out .
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
3. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
4. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
5. Replace the defective bulb(s).
Reinserting the headlight housing
When reinserting the housing, be sure that the
long locking pin (to the left in the illustration) is
securely in place in both of its retaining clamps.
1. Plug in the connector until it clicks into
place.2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
The headlight wiring must be connected and
the housing must be securely in place before
the ignition is switched on.
Removing the cover to access the
headlights and parking lights
1Does not apply to vehicles with the optional keyless drive.

06 Maintenance and specifications
Replacing bulbs
06
236
NOTE
Before starting to replace a bulb, see
page 234.
1. Open the retaining clamps by pressing
them to the sides.
2. Pull the cover straight out.
Reinstall the cover in the reverse order.

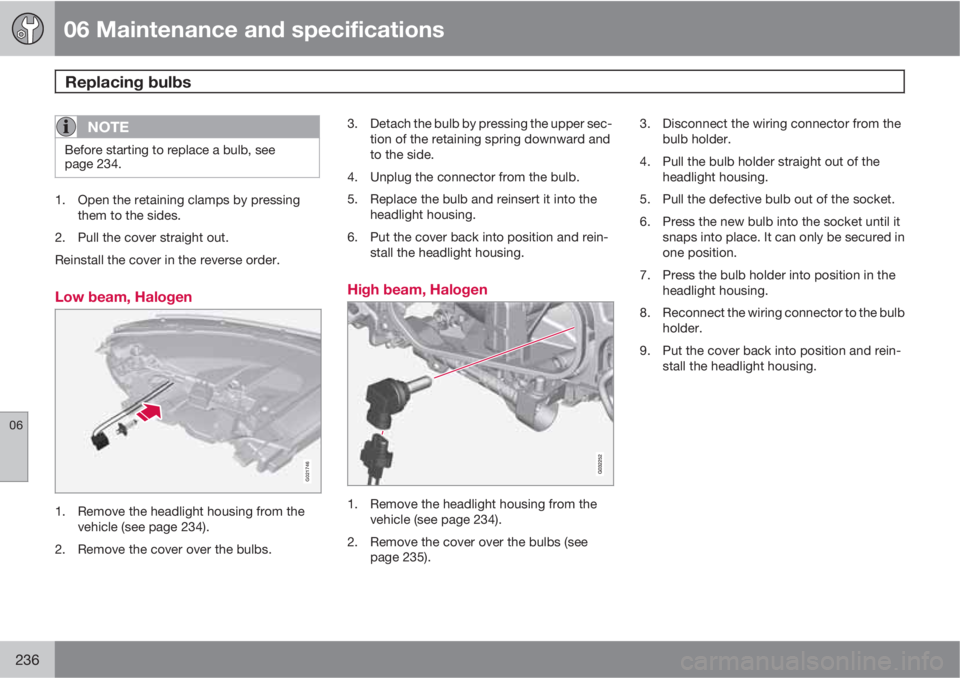

Low beam, Halogen
G021746
1. Remove the headlight housing from the
vehicle (see page 234).
2. Remove the cover over the bulbs.3. Detach the bulb by pressing the upper sec-
tion of the retaining spring downward and
to the side.
4. Unplug the connector from the bulb.
5. Replace the bulb and reinsert it into the
headlight housing.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
1. Remove the headlight housing from the
vehicle (see page 234).
2. Remove the cover over the bulbs (see
page 235).3. Disconnect the wiring connector from the
bulb holder.
4. Pull the bulb holder straight out of the
headlight housing.
5. Pull the defective bulb out of the socket.
6. Press the new bulb into the socket until it
snaps into place. It can only be secured in
one position.
7. Press the bulb holder into position in the
headlight housing.
8. Reconnect the wiring connector to the bulb
holder.
9. Put the cover back into position and rein-
stall the headlight housing.

06 Maintenance and specifications
Replacing bulbs
06

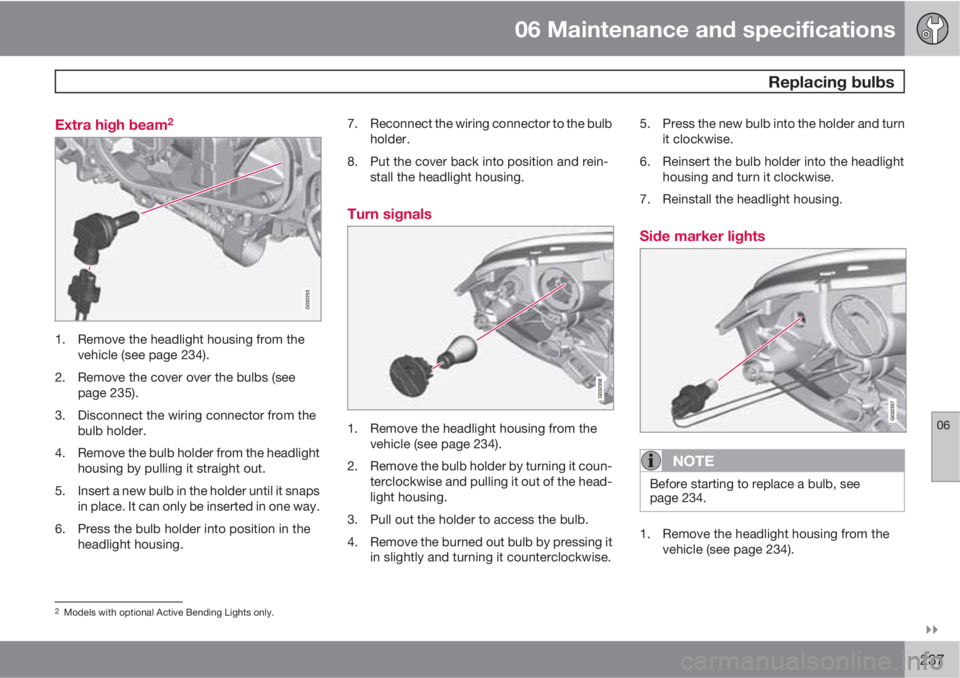

237 Extra high beam
2
1. Remove the headlight housing from the
vehicle (see page 234).
2. Remove the cover over the bulbs (see
page 235).
3. Disconnect the wiring connector from the
bulb holder.
4. Remove the bulb holder from the headlight
housing by pulling it straight out.
5. Insert a new bulb in the holder until it snaps
in place. It can only be inserted in one way.
6. Press the bulb holder into position in the
headlight housing.7. Reconnect the wiring connector to the bulb
holder.
8. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
1. Remove the headlight housing from the
vehicle (see page 234).
2. Remove the bulb holder by turning it coun-
terclockwise and pulling it out of the head-
light housing.
3. Pull out the holder to access the bulb.
4. Remove the burned out bulb by pressing it
in slightly and turning it counterclockwise.5. Press the new bulb into the holder and turn
it clockwise.
6. Reinsert the bulb holder into the headlight
housing and turn it clockwise.
7. Reinstall the headlight housing.
Side marker lights
NOTE
Before starting to replace a bulb, see
page 234.
1. Remove the headlight housing from the
vehicle (see page 234).
2Models with optional Active Bending Lights only.

06 Maintenance and specifications
Replacing bulbs
06
238
2. Remove the bulb holder by turning it coun-
terclockwise and pulling it out of the head-
light housing.
3. Pull out the burned out bulb and install a
new one. It can only be inserted in one
position.
4. Reinsert the bulb holder into the headlight
housing and turn it clockwise.
5. Reinstall the headlight housing.

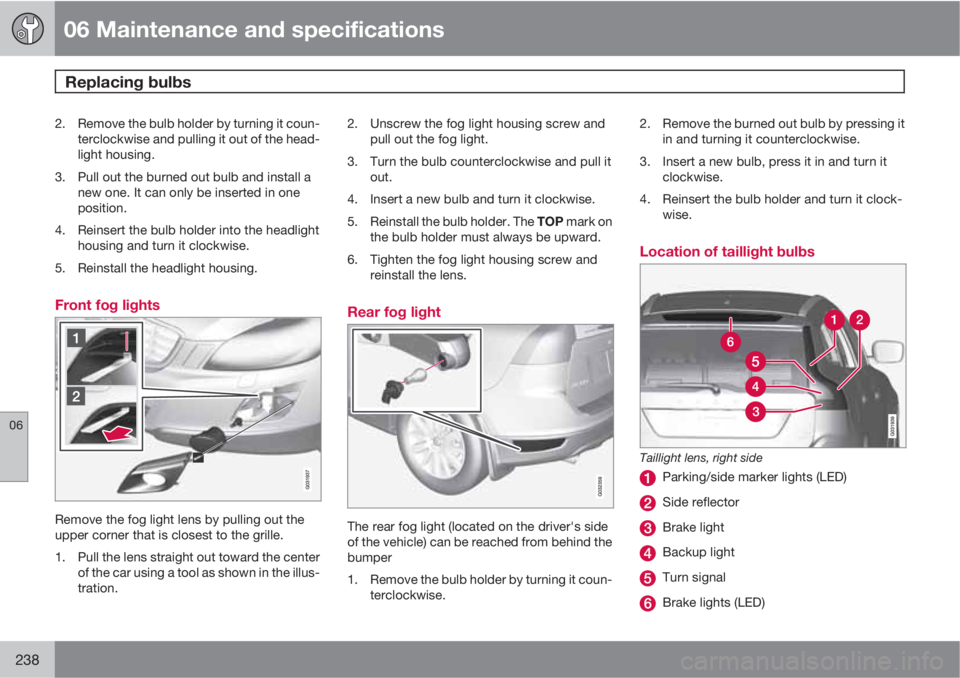

Front fog lights
Remove the fog light lens by pulling out the
upper corner that is closest to the grille.
1. Pull the lens straight out toward the center
of the car using a tool as shown in the illus-
tration.2. Unscrew the fog light housing screw and
pull out the fog light.
3. Turn the bulb counterclockwise and pull it
out.
4. Insert a new bulb and turn it clockwise.
5.
Reinstall the bulb holder. The TOP mark on
the bulb holder must always be upward.
6. Tighten the fog light housing screw and
reinstall the lens.
Rear fog light
The rear fog light (located on the driver's side
of the vehicle) can be reached from behind the
bumper
1. Remove the bulb holder by turning it coun-
terclockwise.2. Remove the burned out bulb by pressing it
in and turning it counterclockwise.
3. Insert a new bulb, press it in and turn it
clockwise.
4. Reinsert the bulb holder and turn it clock-
wise.
Location of taillight bulbs
Taillight lens, right side
Parking/side marker lights (LED)
Side reflector
Brake light
Backup light
Turn signal
Brake lights (LED)

06 Maintenance and specifications
Replacing bulbs
06

239
NOTE
If an error message remains in the display
after a faulty bulb has been replaced, con-
tact an authorized Volvo workshop.
Brake lights and taillights
The brake lights and taillights are replaced from
inside the cargo area.
NOTE
Before starting to replace a bulb, see
page 234.
1. Open the panel.
2. Remove the bulb holder by turning it coun-
terclockwise.3. Remove the burned out bulb by pressing it
in and turning it counterclockwise.
4. Insert a new bulb, press it in and turn it
clockwise.
5. Reinsert the bulb holder and turn it clock-
wise.
License plate lighting
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Reinsert the entire bulb housing and screw
it into place.
Footwell lighting
1. Insert a screwdriver at the short end of the
lens closest to the tunnel console (the cen-
ter of the vehicle) and turn gently so that
the lens comes loose. (Applies to both
lights).
2. Turn carefully until the lens comes loose.
3. Replace the bulb.
4. Press the lens back into place.

06 Maintenance and specifications
Replacing bulbs
06
240

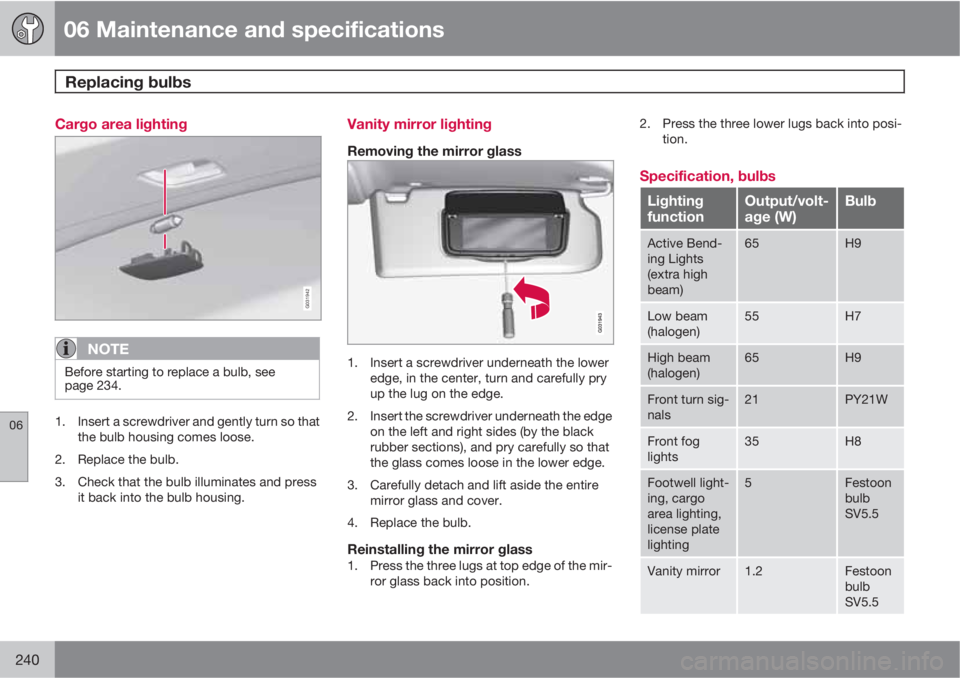

Cargo area lighting
G031942
NOTE
Before starting to replace a bulb, see
page 234.
1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.
Vanity mirror lighting
Removing the mirror glass
1. Insert a screwdriver underneath the lower
edge, in the center, turn and carefully pry
up the lug on the edge.
2. Insert the screwdriver underneath the edge
on the left and right sides (by the black
rubber sections), and pry carefully so that
the glass comes loose in the lower edge.
3. Carefully detach and lift aside the entire
mirror glass and cover.
4. Replace the bulb.
Reinstalling the mirror glass1. Press the three lugs at top edge of the mir-
ror glass back into position.2. Press the three lower lugs back into posi-
tion.
Specification, bulbs
Lighting
functionOutput/volt-
age (W)Bulb
Active Bend-
ing Lights
(extra high
beam)65H9
Low beam
(halogen)55H7
High beam
(halogen)65H9
Front turn sig-
nals21PY21W
Front fog
lights35H8
Footwell light-
ing, cargo
area lighting,
license plate
lighting5Festoon
bulb
SV5.5
Vanity mirror1.2Festoon
bulb
SV5.5
