Page 229 of 302
06 Maintenance and specifications
Hood and engine compartment
06

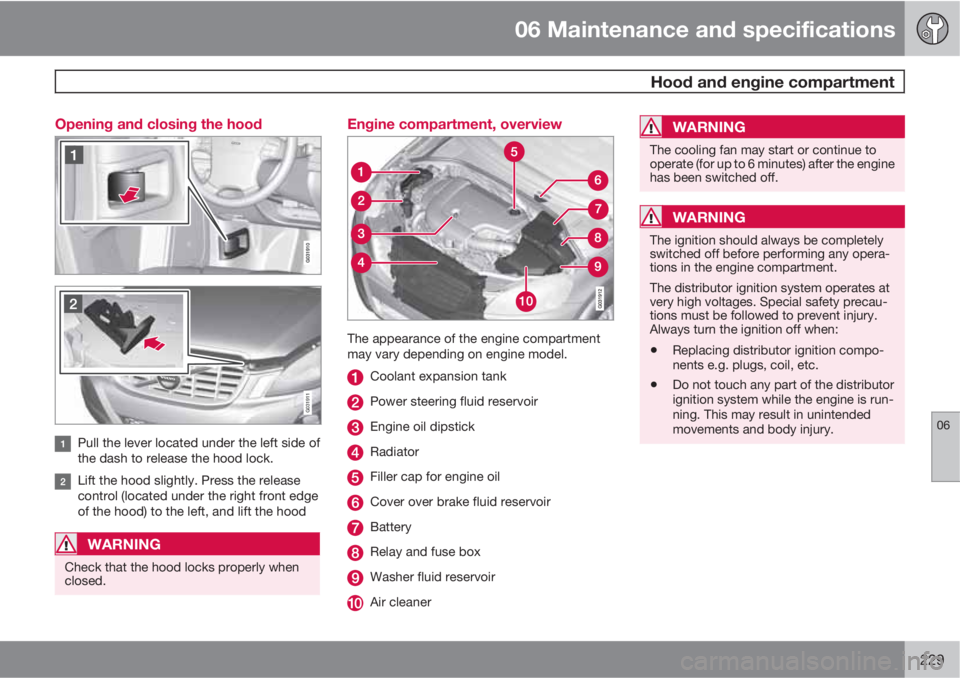

229 Opening and closing the hood
G031911
Pull the lever located under the left side of
the dash to release the hood lock.
Lift the hood slightly. Press the release
control (located under the right front edge
of the hood) to the left, and lift the hood
WARNING
Check that the hood locks properly when
closed.
Engine compartment, overview
The appearance of the engine compartment
may vary depending on engine model.
Coolant expansion tank
Power steering fluid reservoir
Engine oil dipstick
Radiator
Filler cap for engine oil
Cover over brake fluid reservoir
Battery
Relay and fuse box
Washer fluid reservoir
Air cleaner
WARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.
WARNING
The ignition should always be completely
switched off before performing any opera-
tions in the engine compartment.
The distributor ignition system operates at
very high voltages. Special safety precau-
tions must be followed to prevent injury.
Always turn the ignition off when:
•Replacing distributor ignition compo-
nents e.g. plugs, coil, etc.
•Do not touch any part of the distributor
ignition system while the engine is run-
ning. This may result in unintended
movements and body injury.
Page 247 of 302
06 Maintenance and specifications
Fuses
06
247 Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the cargo area.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Location of the fuse boxes
Under the glove compartment
Engine compartment
Cargo area
Page 249 of 302
06 Maintenance and specifications
Fuses
06
* Option/accessory, for more information, see Introduction.249
Engine compartment, upper
Engine compartment, front
Engine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
FunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
FunctionA
Circuit breaker50
–
–
–
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights. Head-
light leveling*10
Central electrical module20
Radar. ACC control module*5
Speed-dependent power
steering5
FunctionA
Engine Control Module (ECM),
transmission, SRS10
Heated washer nozzles10
Vacuum pump I5T20
Lighting panel5
Headlight washers15
12-volt socket, front and rear
seat15
Laminated panoramic roof*,
ceiling console/ECC*10
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module (ECM)10
Control module, automatic
transmission15
Compressor A/C15
Coils5
Page 251 of 302
06 Maintenance and specifications
Fuses
06
* Option/accessory, for more information, see Introduction.251 Under the glove compartment
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions
FunctionA
Rain sensor*5
SRS system10
ABS brakes. Electric parking
brake5
FunctionA
Accelerator pedal, heated
seats*7.5
–
ICM display, CD & Radio15
Steering wheel module7.5
–
High beam15
FunctionA
Laminated panoramic roof*20
Backup lights7.5
–
Front fog light*15
Windshield washers15
Adaptive cruise control ACC*10
–
