496 4-3. Do-it-yourself maintenance
4RUNNER_U
4.0 L V6 (1GR-FE) engine
Washer fluid tank (P. 512)
Power steering fluid reservoir ( P. 507)
Engine oil level dipstick ( P. 498)
Engine coolant reservoir ( P. 503)
Engine oil filler cap ( P. 498)Brake fluid reservoir
( P. 505)
Fuse box ( P. 531)
Battery ( P. 509)
Condenser ( P. 504)
Radiator ( P. 504)
CTH43AS117

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

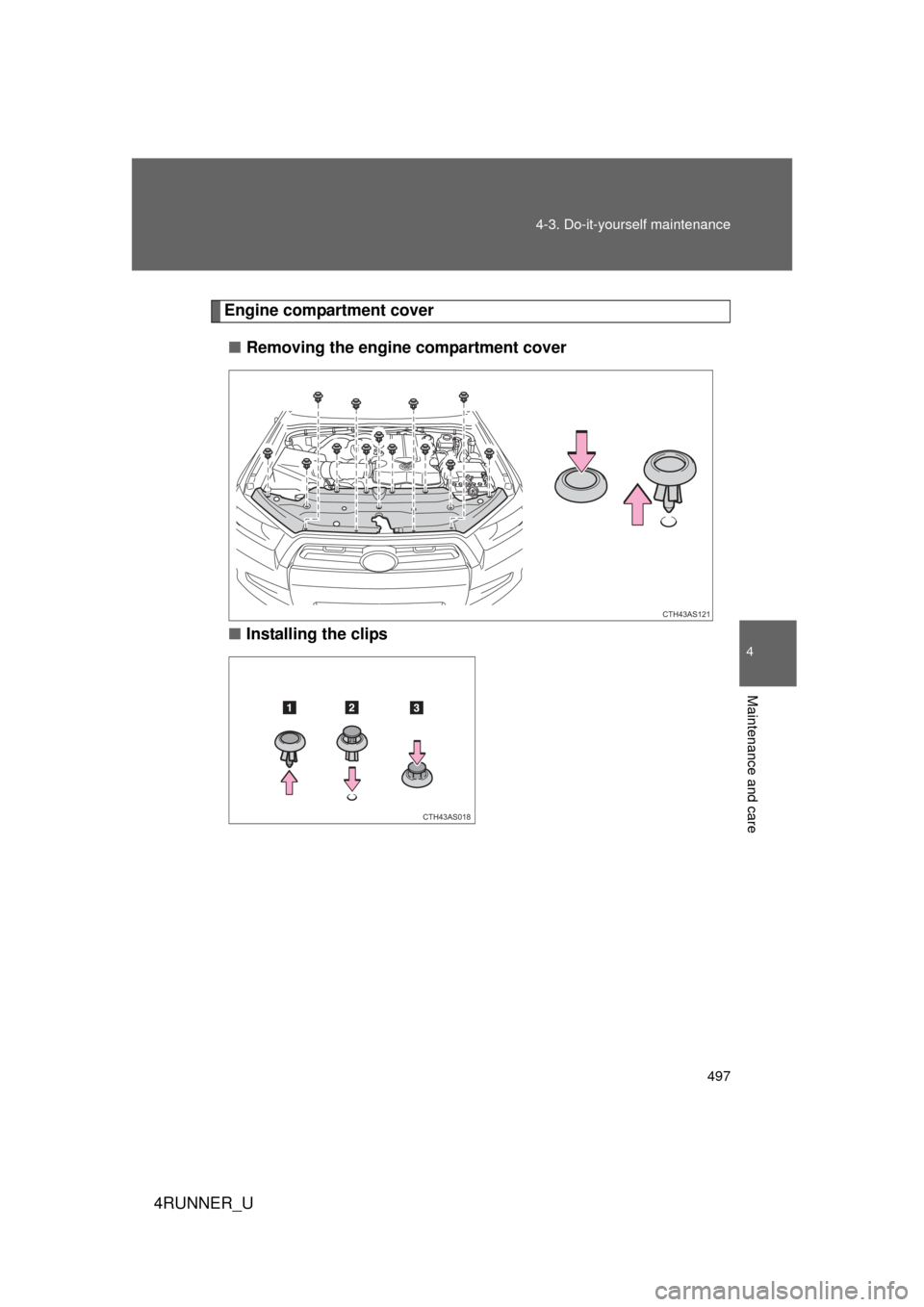

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
CTH43AS121
CTH43AS018

498 4-3. Do-it-yourself maintenance
4RUNNER_U

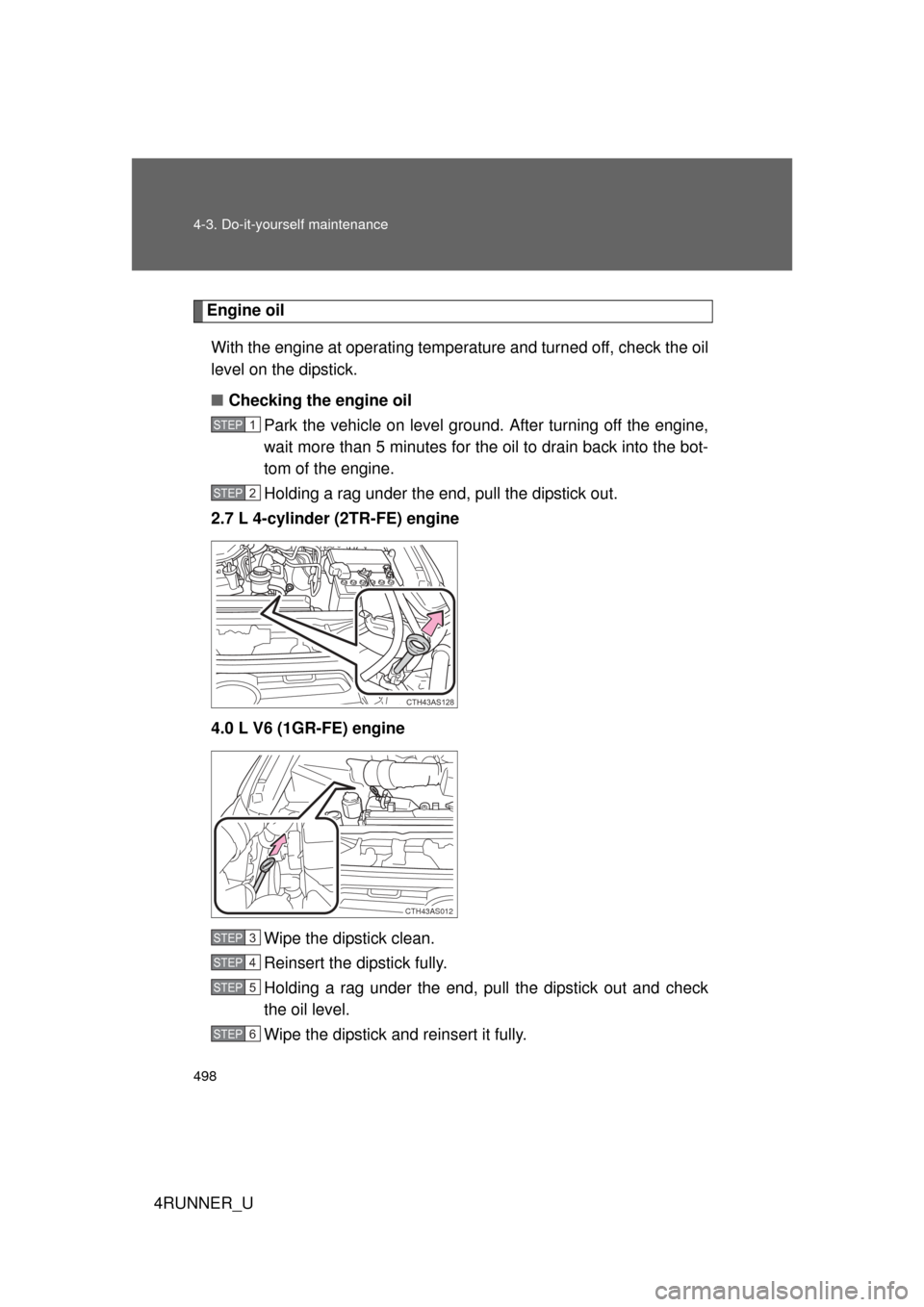

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than 5 minutes for the oil to drain back into the bot-
tom of the engine.
Holding a rag under the end, pull the dipstick out.
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP 1
STEP 2
CTH43AS128
CTH43AS012
STEP 3
STEP 4
STEP 5
STEP 6

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

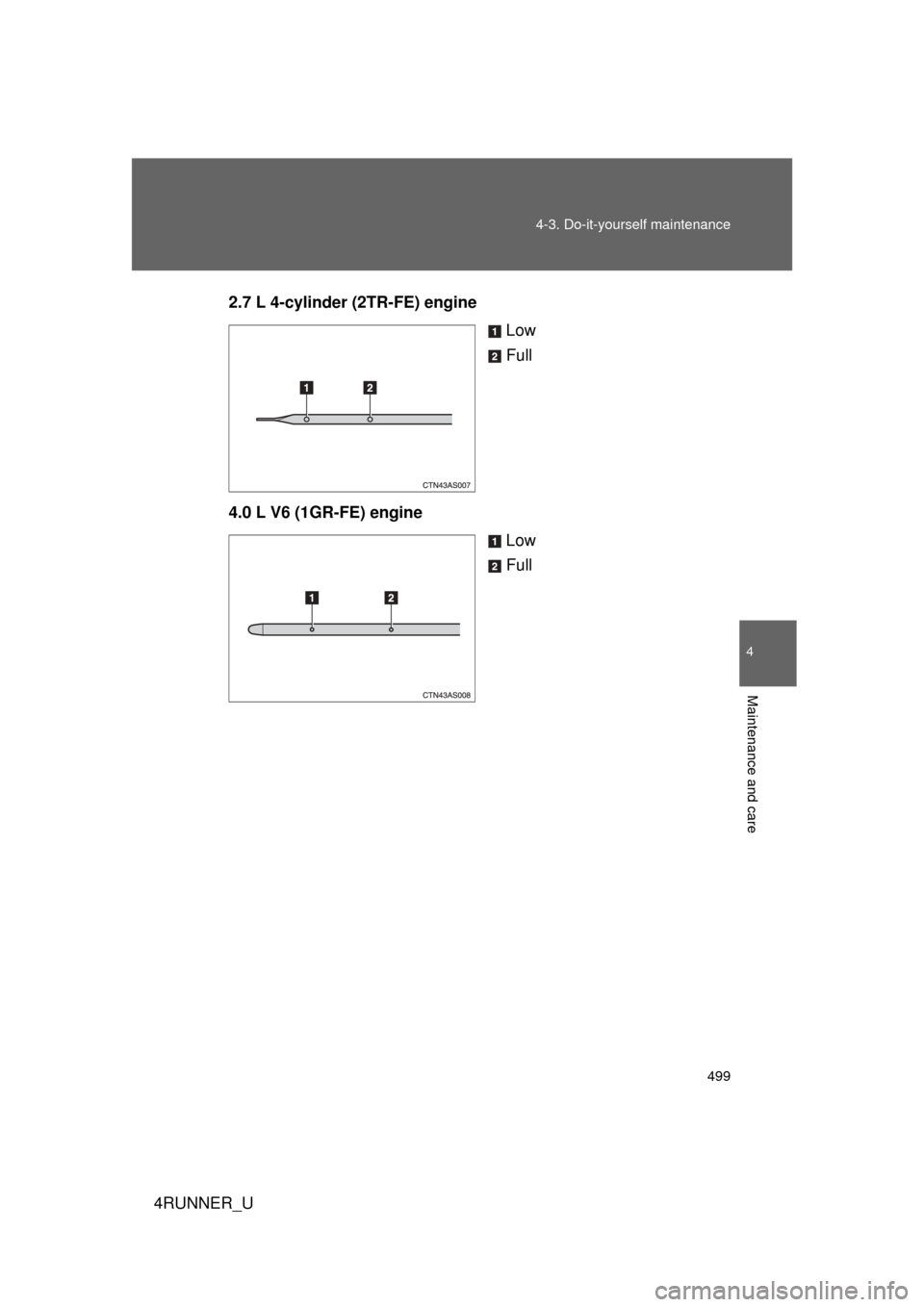

2.7 L 4-cylinder (2TR-FE) engine
Low
Full
4.0 L V6 (1GR-FE) engine Low
Full

500 4-3. Do-it-yourself maintenance
4RUNNER_U■
Adding engine oil
2.7 L 4-cylinder (2TR-FE) engine
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
4.0 L V6 (1GR-FE) engine If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
CTH43AS129
CTH43AS122
Engine oil selectionP. 614
Oil quantity
(Low  Full)
2.7 L 4-cylinder (2TR-FE) engine
1.6 qt. (1.5 L, 1.3 Imp. qt.)
4.0 L V6 (1GR-FE) engine
1.8 qt. (1.7 L, 1.5 Imp. qt.)
ItemsClean funnel
STEP 1
STEP 2
STEP 3

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
Engine oil consumption
● The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
● Oil consumption: Max. 1.1 qt./600 miles (0.9 Imp. qt./600 miles, 1.0 L/
1000 km)
● If your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp. qt.) every 600
miles (1000 km), contact your Toyota dealer.

502 4-3. Do-it-yourself maintenance
4RUNNER_U
CAUTION
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
Engine coolant
The coolant level is sati sfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
(P. 603)
CTH43AS108
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Minimum temperature: -31 F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Minimum temperature: -44 F [-42 C])
For more details about engine coolant, contact your Toyota dealer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.
