2010 TOYOTA 4RUNNER Owners Manual

449
3-7. Other interior features
3
Interior features
4RUNNER_U
Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space onto the car-
pet.
Secure the driver’s floor mat
using the hooks provided.
CTH37AS074

450
3-7. Other interior features
4RUNNER_U

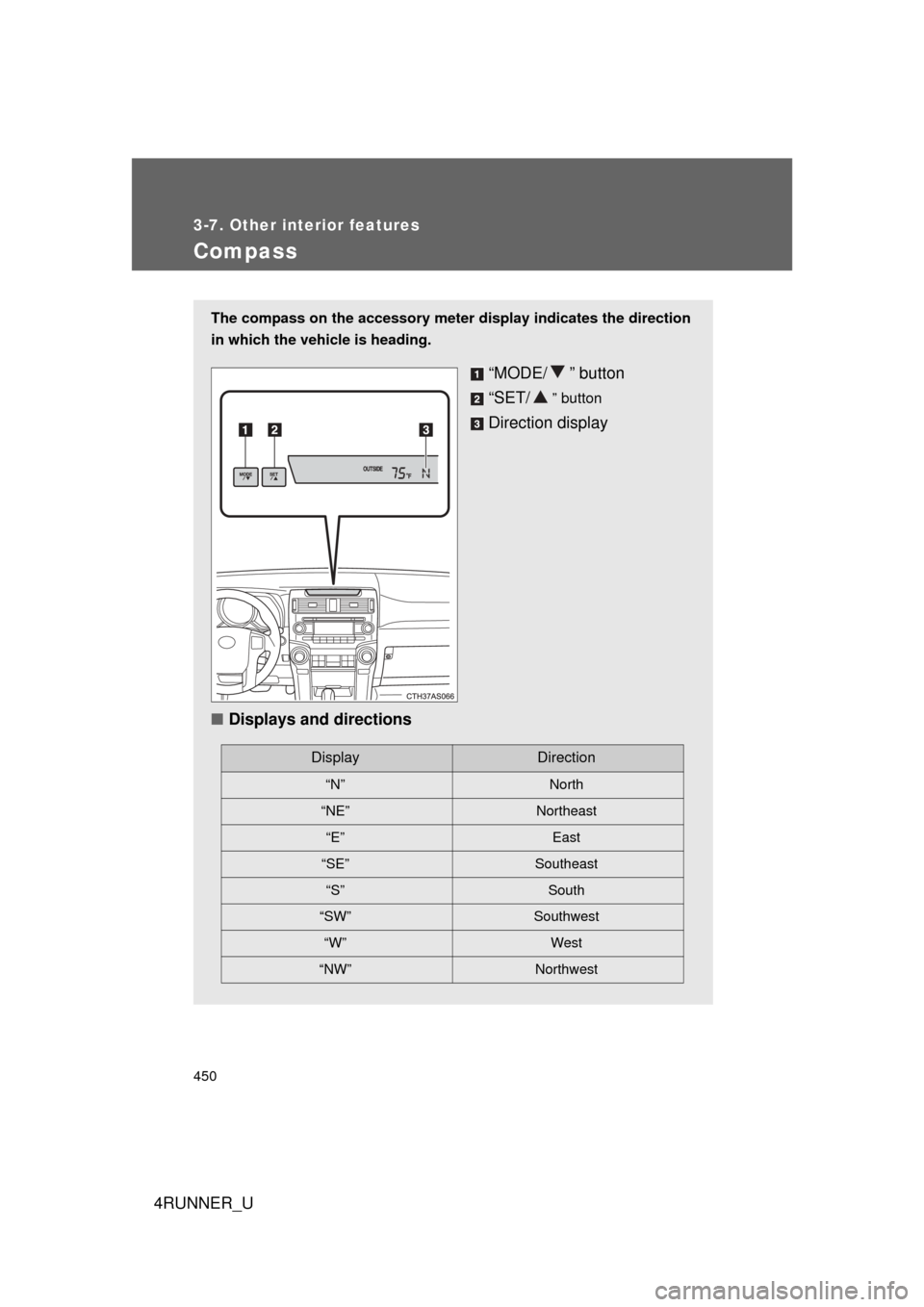

Compass
The compass on the accessory meter display indicates the direction
in which the vehicle is heading.
“MODE/ ” button
“SET/
” button
Direction display
■ Displays and directions
DisplayDirection
“N” North
“NE” Northeast
“E” East
“SE” Southeast
“S” South
“SW” Southwest
“W” West
“NW” Northwest

451
3-7. Other interior features
3
Interior features
4RUNNER_U
Calibrating the compass
The direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amount of deviation varies depending
on the geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the
compass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibra-
tion”.
CTH37AS072Samoa: 5 Guam: 8 Saipan: 8

452 3-7. Other interior features
4RUNNER_U
Deviation calibrationStop the vehicle.
Change the accessory meter display to deviation calibration
mode by doing the following.
Vehicles without Multi-terrain Select
When the parking lights are
turned on:
Press and hold the “MODE/ ”
button.
A number (1 to 15) will appear
on the display.
When the parking lights are off:
In accessory meter light control
mode (P. 196), press and hold
the “MODE/ ” button.
A number (1 to 15) will appear
on the display.
Vehicles with Multi-terrain Select When the parking lights are
turned on:
Press and hold the “MODE/ ”
button.
A number (1 to 15) will appear
on the display.
When the parking lights are off:
In accessory meter light control
mode (P. 196), press and hold
the “MODE/ ” button.
A number (1 to 15) will appear
on the display.
STEP 1
STEP 2

453
3-7. Other interior features
3
Interior features
4RUNNER_U
Referring to the map above, press the “MODE/ ” or “SET/
” button to select the number of the zone you are in.
Press and hold the “SET/ ” button to confirm the number
and to exit deviation calibration mode. (If no buttons are
pressed for more than 6 seco nds, the number will automati-
cally be confirmed and the display returned to normal.)
Circling calibration
If “” appears on the left side of
the direction display, circling cali-
bration needs to be performed.
Stop the vehicle in a place where it is safe to drive in a circle. In deviation calibration mode
( P. 452), press and hold the
“MODE/ ” button to change to
circling calibration mode.
“  ” on the left side of the direction
display will blink.
Drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direc-
tion is displayed.
If there is not enough space to
drive in a circle, drive around the
block until a direction is dis-
played.
STEP 3
STEP 4
STEP 1
STEP 2
STEP 3

454 3-7. Other interior features
4RUNNER_UPress and hold the “SET/ ” butt
on to confirm the direction
and to exit circling calibration mode. (If no buttons are
pressed for several minutes, t he direction will automatically be
confirmed and the display returned to normal.)
Make sure that “ ” on the left side of the direction display has
gone off. If “ ” is illuminated, perform the above procedure
again.
■ Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth's magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the accessory meter display.)
● The battery has been disconnected.
● A door is open.
■ Circling calibration error message ( vehicles with Multi-terrain Select)
STEP 4
STEP 5
In the following situations, an error mes-
sage regarding the circling calibration will
appear on the accessory meter display
for a few seconds:
●The vehicle was driven too fast during
the circling calibration.
● The circling calibration was not com-
pleted successfully within about two
minutes.

455
3-7. Other interior features
3
Interior features
4RUNNER_U
CAUTION
■
While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
■ When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity.
Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal objects near the accessory meter dis-
play.
Doing this may cause the compass sensor to malfunction.
■ To ensure normal operation of the compass
● Do not perform a circling calibration of the compass in a place where the
earth's magnetic field is subject to interference by artificial magnetic fields.
● During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

456
3-7. Other interior features
4RUNNER_U

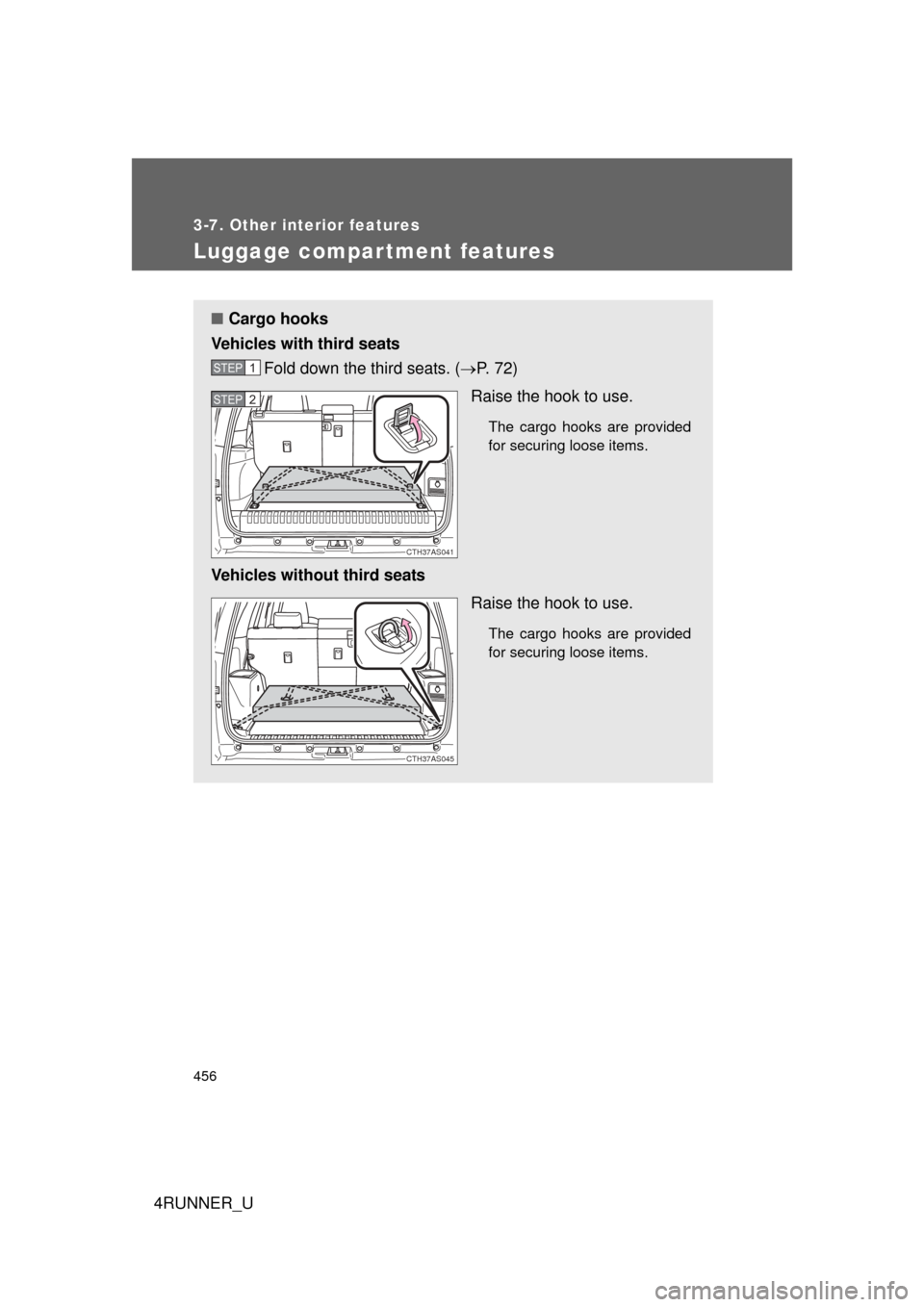

Luggage compartment features
■Cargo hooks
Vehicles with third seats Fold down the third seats. ( P. 72)
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
Vehicles without third seats Raise the hook to use.
The cargo hooks are provided
for securing loose items.
STEP 1
CTH37AS041
STEP 2
CTH37AS045
