2010 TOYOTA 4RUNNER Owners Manual

640 6-2. Customization
4RUNNER_U
Illumination
(P. 413) Time period before
lights turn off
15 seconds7.5 seconds
30 seconds
Vehicles without a
smart key system:
Operation after the
engine switch is turned
to the “LOCK” position
Vehicles with a smart
key system: Operation
after the “ENGINE
START STOP” switch is
turned OFF On Off
Operation when the
doors are unlocked On Off
Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son (When the interior
light switch [ON/DOOR/
OFF] is DOOR) On Off
Footwell lights On Off
Overhead courtesy light On Off
Interior light control On Off
Interior light dimmer
control while driving On Off
ItemFunctionDefault settingCustomized
setting

641
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Outer foot
lights
(if equipped)
(
P. 413) Vehicles with a smart
key system: Operation
when you approach the
vehicle with the elec-
tronic key on your per-
son
On Off
Operation when the
doors are unlocked
using the wireless
remote control, key or
entry function On Off
Operation when the
doors are unlocked
using the door lock
switch On Off
Time period before
lights turn off 15 seconds7.5 seconds
30 seconds
Lighting control On Off
Moon roof
( P. 98) Mechanical key linked
operation
Off On
Mechanical key linked
operation Open and closeOpen only
Close only
Linked operation of
components when door
key is used Slide only Tilt only
Wireless remote control
linked operation (open
only) Off On
Linked operation of
components when wire-
less remote control is
used (open only) Slide only Tilt only
ItemFunctionDefault settingCustomized
setting

642 6-2. Customization
4RUNNER_U
Rear window
wiper and
washer
(P. 207) Wiper operates auto-
matically when washer
is operated
On Off
Drip prevention function On Off
Wiper operation interval 3 seconds 2 seconds
4 seconds
5 seconds
Time elapsed before
the rear wiper storage
function activates 3 seconds4 seconds
5 seconds
6 seconds
Power back
window
( P. 94) Vehicles without a
smart key system:
Close operation linked
to door lock operation
using a key
On
Off
Vehicles without a
smart key system:
Open operation linked
to door unlock opera-
tion using a key On
Off
Vehicles with a smart
key system: Close
operation linked to door
lock operation using the
switch On
Off
Vehicles with a smart
key system: Open oper-
ation linked to door
unlock operation using
the switch On
Off
ItemFunctionDefault settingCustomized
setting

643
6-2. Customization
6
Vehicle specifications
4RUNNER_U
Power back
window
(
P. 94) Vehicles with a smart
key system: Time
required to press and
hold the switch before
the window begins to
open/close
0.8 seconds
1 second
1.2 seconds
1.4 seconds
Intuitive
parking
assist
( P. 213) Buzzer volume
Max. Min. to Max.
Seat belt
reminder
( P. 568) Vehicle speed linked
seat belt reminder
buzzer
On
Off
ItemFunctionDefault settingCustomized
setting

644
4RUNNER_U
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Maintenance data After the maintenance is performed. P. 485
The following item must be initia lized for normal system operation in
cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

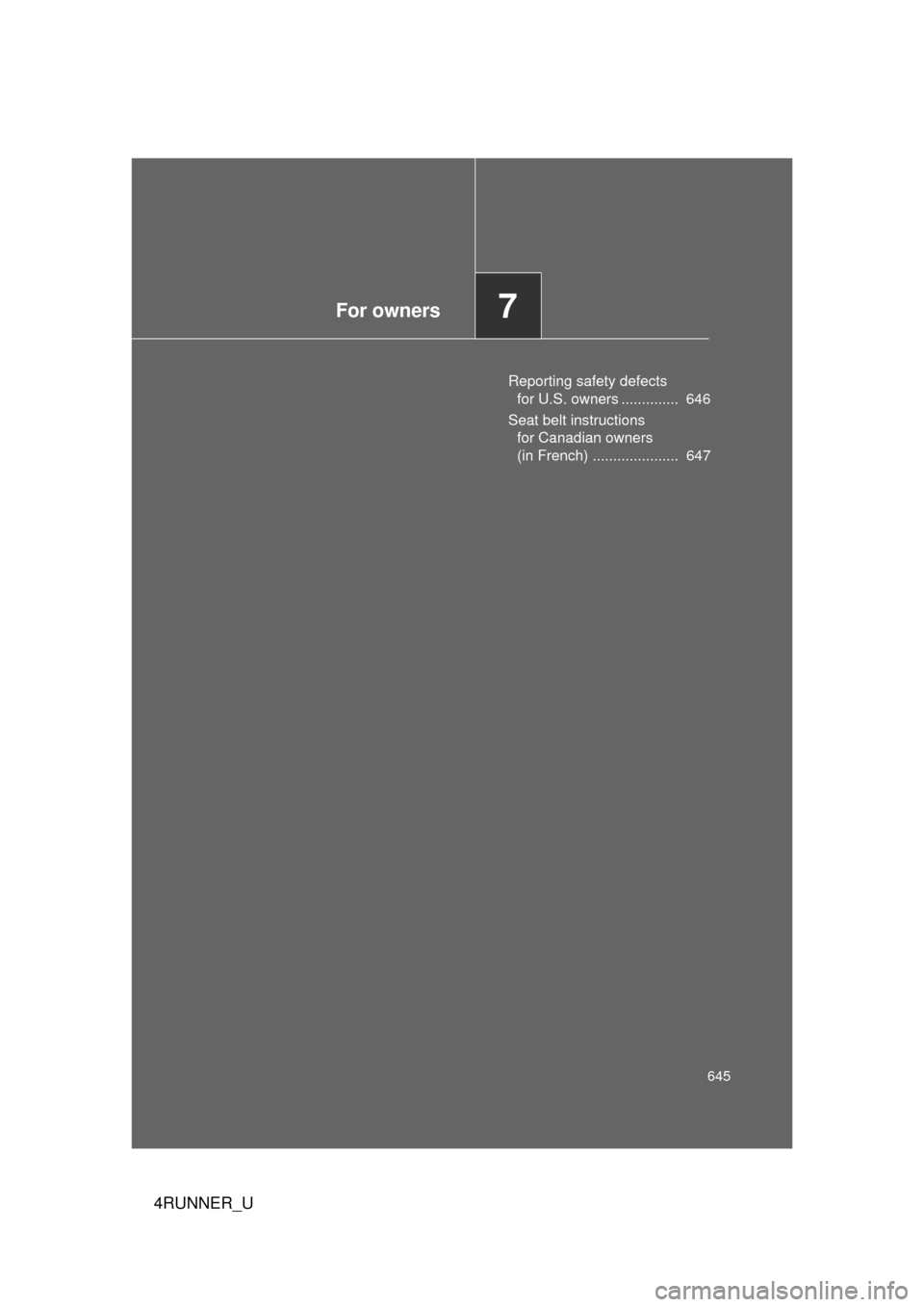

For owners7
645
4RUNNER_U
Reporting safety defects for U.S. owners .............. 646
Seat belt instructions for Canadian owners
(in French) ..................... 647

646
4RUNNER_U

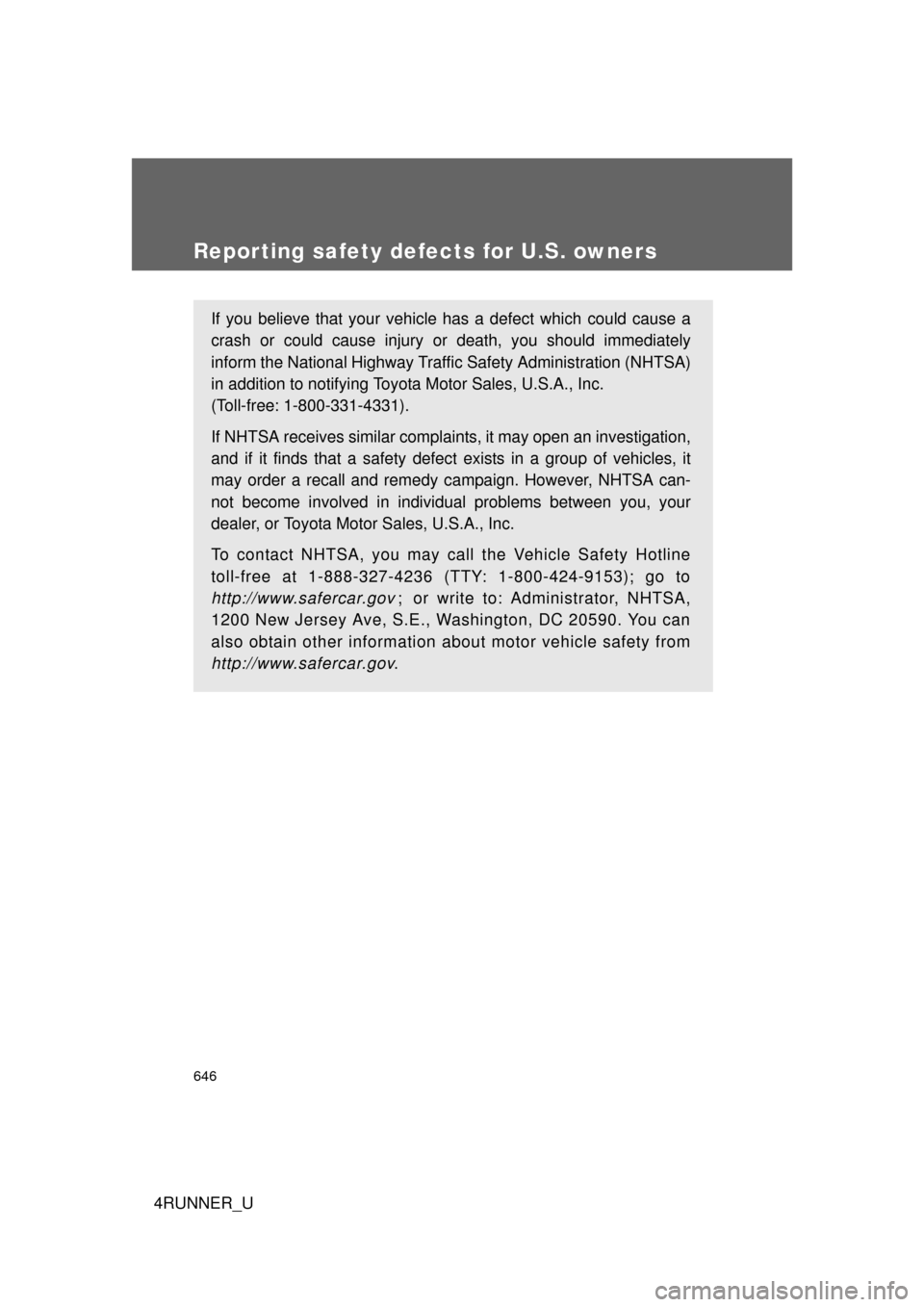

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

647
7
4RUNNER_U
For owners

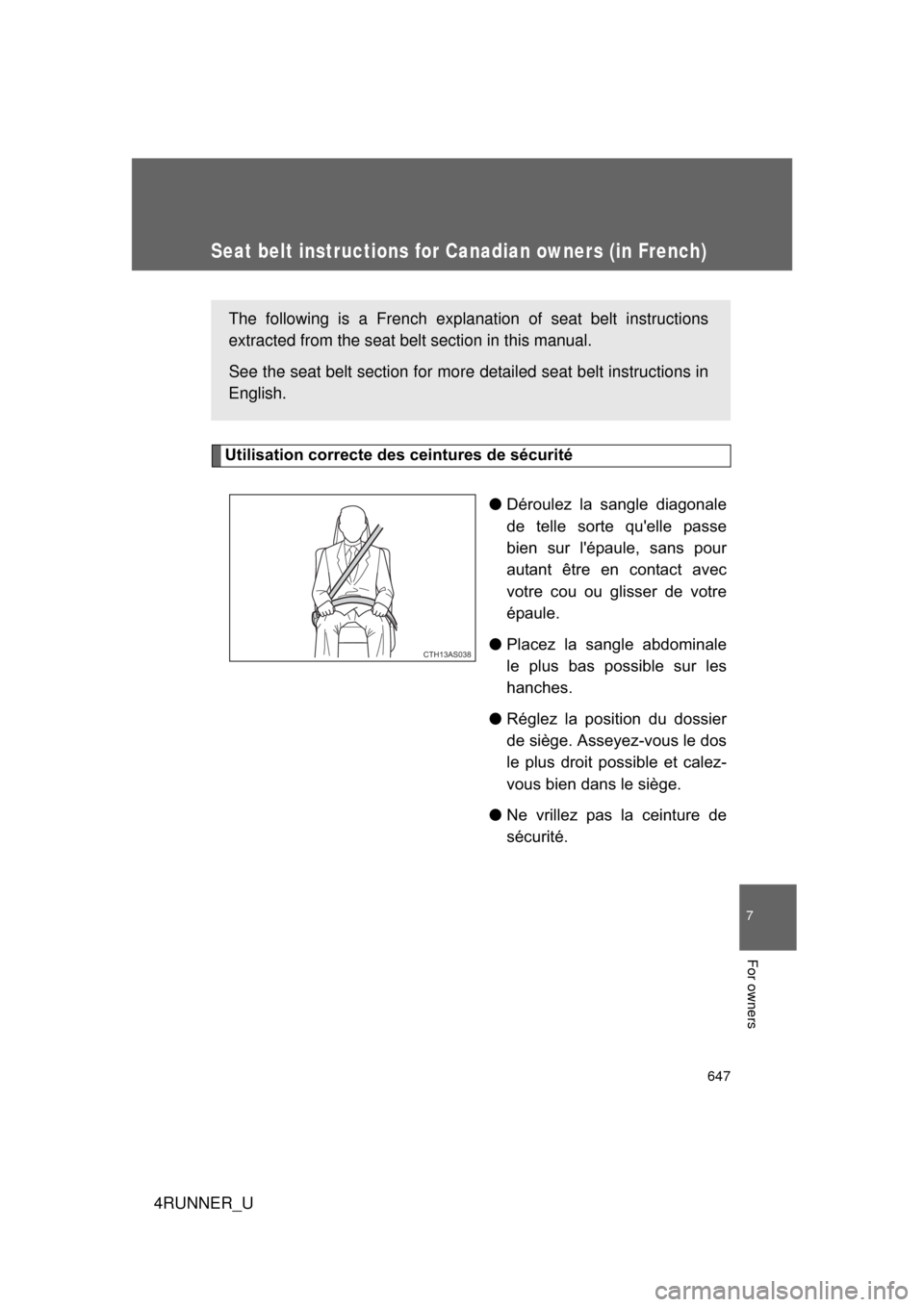

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Déroulez la sangle diagonale
de telle sorte qu'elle passe
bien sur l'épaule, sans pour
autant être en contact avec
votre cou ou glisser de votre
épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.
CTH13AS038
