2010 TOYOTA 4RUNNER Owners Manual

536 4-3. Do-it-yourself maintenance
4RUNNER_U
15H-LP RH-HI10 ARight-hand headlight (high
beam)
16H-LP LH-HI10 ALeft-hand headlight (high
beam)
17HTR50 A
Air conditioning system
18400W INV 80 APower outlets
19ST30 AStarter system
20H-LP HI20 A
H-LP RH-HI, H-LP LH-HI fuses
21ALT-S7.5 A Charging system
22TURN&HAZ15 ATurn signal lights, emergency
flashers
23ETCS10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
24TOWING30 A
Trailer stop/turn lights
25SHORT PIN 
No circuit
26RAD NO.1 10 A Audio system
27AM27.5 A Starter system
28MAYDAY 7.5 ASafety connect
29AMP30 A
Audio system
30ABS NO.150 AABS, VSC
31ABS NO.230 AABS, VSC
32AIR PMP50 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
33DOME10 A
Interior lights, vanity lights
34ECU-B10 AMultiplex communication sys-
tem, meter and gauge
35H-LP RH-LO10 ARight-hand headlight (low
beam)
36H-LP LH-LO10 A
Left-hand headlight (low beam)
37INJ10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
FuseAmpereCircuit

537
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
*: Replace the fuse with one of th
e same ampere rating as the origi-
nal
38EFI NO.27.5 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system
39ALT
120 A* HTR, 400W INV, A/C COMP,
TOWING TAIL, SUB BATT,
MIR HTR, DEF, DEICER,
STOP, PTC HTR NO.1, PTC
HTR NO.2, PTC HTR NO.3,
S/HTR FR, ACC, P/OUTLET,
IG1, ECU-IG NO.1, ECU-IG
NO.2, WIP, WASHER, KDSS,
4WD, BKUP LP, TOWING
BKUP, DOOR P, DOOR RL,
DOOR RR, DOOR D, P/SEAT
FL, P/SEAT FR, DOOR, A/C,
OBD, DOOR BACK, S/ROOF,
PANEL, TAIL, FOG FR, D/L
NO.2 fuses
140 A*
40SPARE10 A

41SPARE15 A
42SPARE20 A
43P/I-B80 A
IG2, EFI, A/F, HORN fuses
44SECURITY10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
45SMART 7.5 A
Smart key system
46STRG LOCK 20 ASteering lock system
47TOWING BRK30 A
Trailer brake controller
FuseAmpereCircuit

538 4-3. Do-it-yourself maintenance
4RUNNER_U■
Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 A Stop/tail lights
2PA N E L7.5 A Instrument panel lights
3GAUGE7.5 A Meter and gauge
4IGN10 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5WASHER20 A Wiper and washer
6WIP30 A Wiper and washer
7S/ROOF 25 A Electric moon roof
8DOOR RR25 A Power windows
9DOOR D25 A Power windows
10DOOR BACK30 A
Multiplex communication sys-
tem
11DOOR P30 A Power windows
12P/SEAT FR 30 A Front passenger's power seat
13S/HTR FR 20 A Seat heater system
14ECU-IG NO.210 AAir conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15IG17.5 A
Turn signal lights, emergency
flashers
16ECU-IG NO.110 AVehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17DOOR7.5 A Power windows

539
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
18DOOR RL25 A Power windows
19AM17.5 A Starter system
20A/C7.5 A Air conditioning system
21OBD7.5 A On-Board diagnosis
22FOG FR 15 A Fog lights
23D/L NO.225 A
Multiplex communication sys-
tem
24P/SEAT FL30 A Front driver’s power seat
254WD 20 A Four wheel drive system
26KDSS 10 AKinetic dynamic suspension
system
27TOWING BKUP10 A Trailer back-up lights
28BKUP LP10 A Back-up lights
29ACC7.5 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system
30P/OUTLET15 A Power outlets
FuseAmpereCircuit

540 4-3. Do-it-yourself maintenance
4RUNNER_U
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 541)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

541
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 622)
■ Removing the engine compartment cover
P. 497
■ Front bulb locations
CTH43AS100
Parking light
and front side
marker light
Fog light
(if equipped) Headlight high beam Headlight low beam
Front turn signal light and
daytime running light

542 4-3. Do-it-yourself maintenance
4RUNNER_U
Replacing light bulbs■ Headlight
Turn the bulb base counterclock-
wise.
High beam (inside)
Low beam (outside)

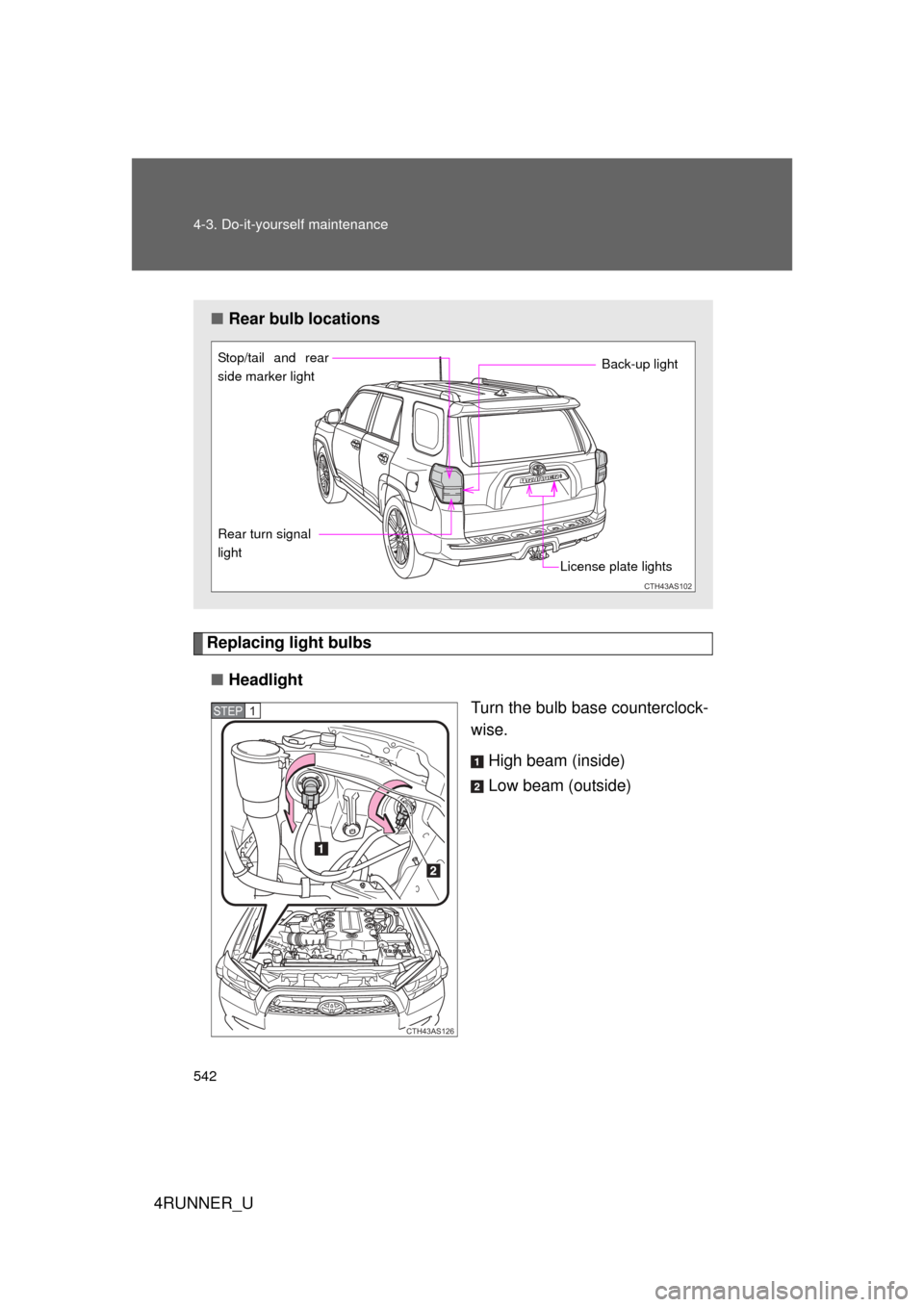

■Rear bulb locations
CTH43AS102
License plate lights
Rear turn signal
light
Back-up light Stop/tail and rear
side marker light
CTH43AS126
STEP 1

543
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

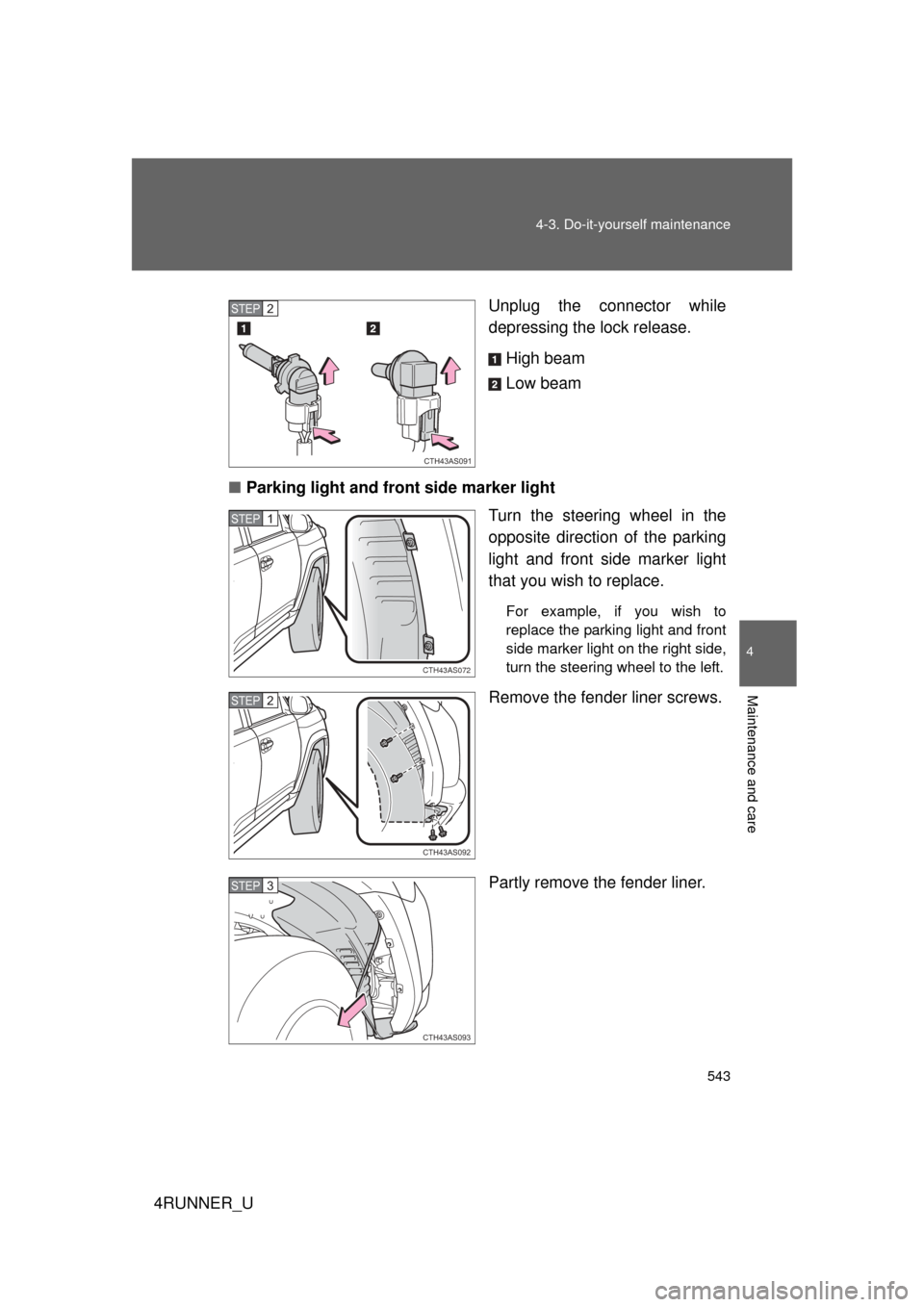

Unplug the connector while
depressing the lock release.
High beam
Low beam
■ Parking light and front side marker light
Turn the steering wheel in the
opposite direction of the parking
light and front side marker light
that you wish to replace.
For example, if you wish to
replace the parking light and front
side marker light on the right side,
turn the steering wheel to the left.
Remove the fender liner screws.
Partly remove the fender liner.
CTH43AS091
STEP 2
CTH43AS072
STEP 1
CTH43AS092
STEP 2
CTH43AS093
STEP 3
