2010 TOYOTA 4RUNNER fold seats

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
Folding down the rear seats (veh icles without third row seats)
■ Before folding down the rear seats
Adjust the head restraints to the
downmost position.
Stow the rear seat belt buckles.
CTH13AS014
CTH13AS070

68 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U■
Folding down the rear seats
Swing the bottom cushions up by
pulling the lock release strap.
When returning the rear seat
cushions to their original posi-
tions, make sure they are locked
securely.
Push the lock release button and
fold down the seatbacks.
To return the rear seatbacks to
their original positions, lift them
up until they lock.
■Folding down rear center seatback only
Pull the center seatback angle
lever behind the seatback and
fold the seatback down.
To return the rear center seatback
to its original position, lift it up
until it locks.
CTH13AS016
CTH13AS065
CTH13AS022

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
Folding down the second row seats (vehicles with third row seats)
■Before folding down the second row seats
Adjust the head restraints to the
downmost position.
Stow the second row seat belt
buckles.
CTH13AS045
STEP 1
CTH13AS071
STEP 2

70 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U■
Folding down the second row seats
Pull the seatback lock release
lever and fold the seatback
down.
To return the second row seat-
backs to their original positions,
lift them up until they lock.
■Folding down the second row center seatback only
Pull the center seatback angle
lever behind the seatback and
fold the seatback down.
To return the second row center
seatback to its original position,
lift it up until it locks.
CTH13AS051
CTH13AS052

71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
Moving a second row seat for access to the third row seats (vehicles
with third row seats)
■Getting in the vehicl e (right side only)
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position.
■ Getting out of the vehicle (right side only)
Lift the lever on the back of the
seatback and fold down the seat-
back. The seat will slide forward.
Move the seat to the front-most
position.
■ After passengers have entered/exited the vehicle
Lift up the seatback and slide th e seat backward until it locks.
CTH13AS057
CTH13AS058

72 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U
Folding down the third row seats (v ehicles with third row seats)
■ Before folding down the third row seats
Pass the seat belts through the
seat belt hangers and secure the
seat belt plates.
This prevents the shoulder belts
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.
■Folding down the third row seats
From inside
Pull the strap to fold down the
head restraint.
Pull the lever up.
The seat cushion will slide back-
ward.
CTH13AS072
CTH13AS025
STEP 1
CTH13AS026
STEP 2

89
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
4RUNNER_U

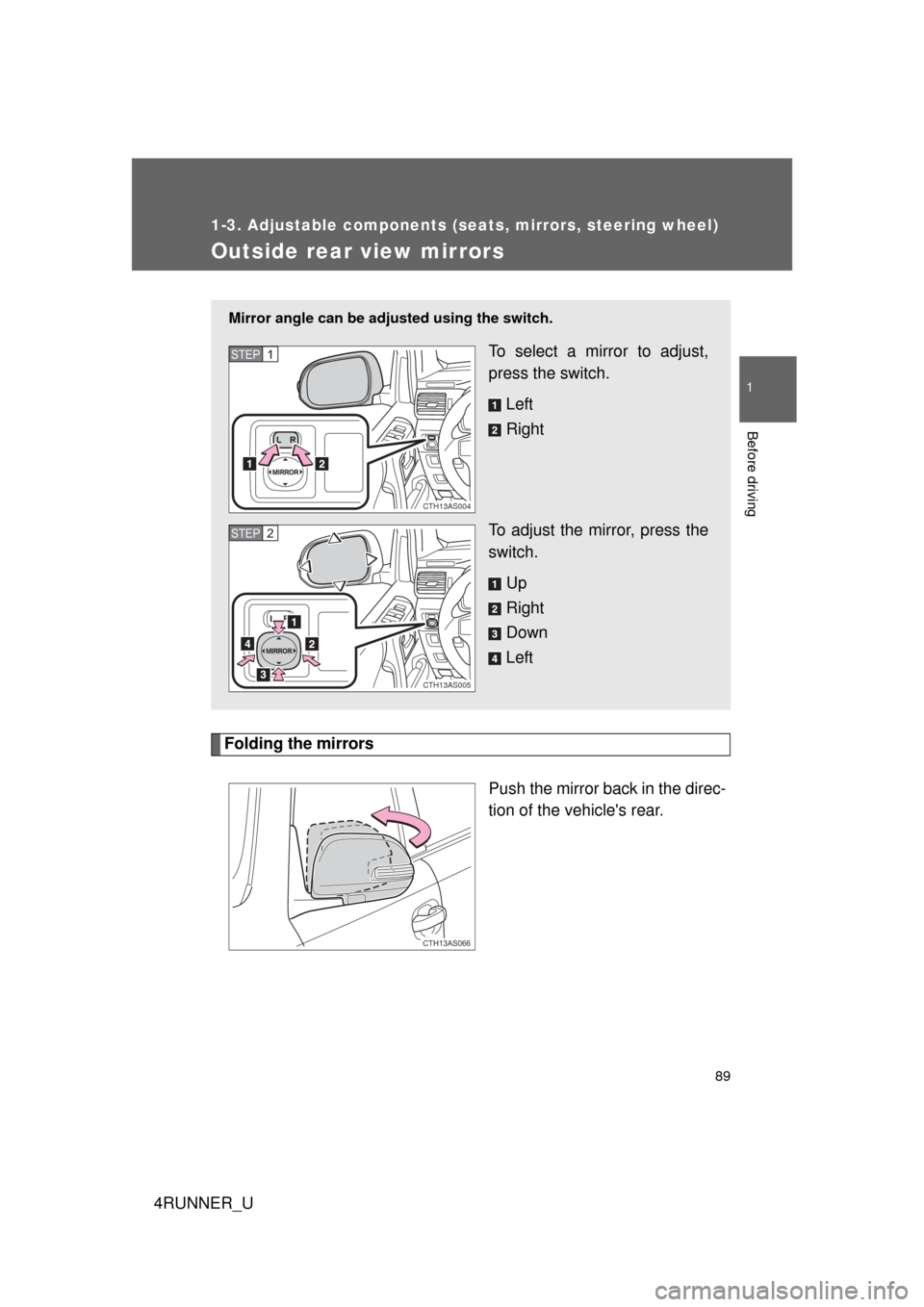

Outside rear view mirrors
Folding the mirrorsPush the mirror back in the direc-
tion of the vehicle's rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
CTH13AS004
STEP 1
CTH13AS005
STEP 2
CTH13AS006CTH13AS066

90 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U
■Mirror angle can be adjusted when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. ( P. 310)
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defo ggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
