Fuses below steering wheel in relay holderPTC fuses
AUX 1 Fuses
AUX 3 Fuses
Fuses in engine compartment above batteryNon-metal fuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list contains all data at the time of going to press,
so it is subject to modifications.
56
Rear window wiper
10
57
Dipped beam headlight (right side)
15
58
Dipped beam headlight (left side)
15
Number
Consumer
Amps
1
Supplementary electrical heating using air
40
2
Supplementary electrical heating using air
40
3
Supplementary electrical heating using air
40
Number
Consumer
Amps
1
Dipped headlight (left side)
15
2
Dipped headlight (right side)
15
3
Headlight washer pump
20
Number
Consumer
Amps
1
Trailer control unit
15
2
Trailer control unit
20
3
Trailer control unit
20
Number
Consumer
Amps
Number
Consumer
Amps
1
ABS unit
25
2
Electroblower climate heater/fan
30
3
Climate fan
5
4
ABS unit
10
5
Electronic control unit
5
6
Injection module
30
Fig. 134 Fuses in engine
compartment
Ibiza_EN.book Seite 215 Mittwoch, 1. September 2010 5:24 17

If and when

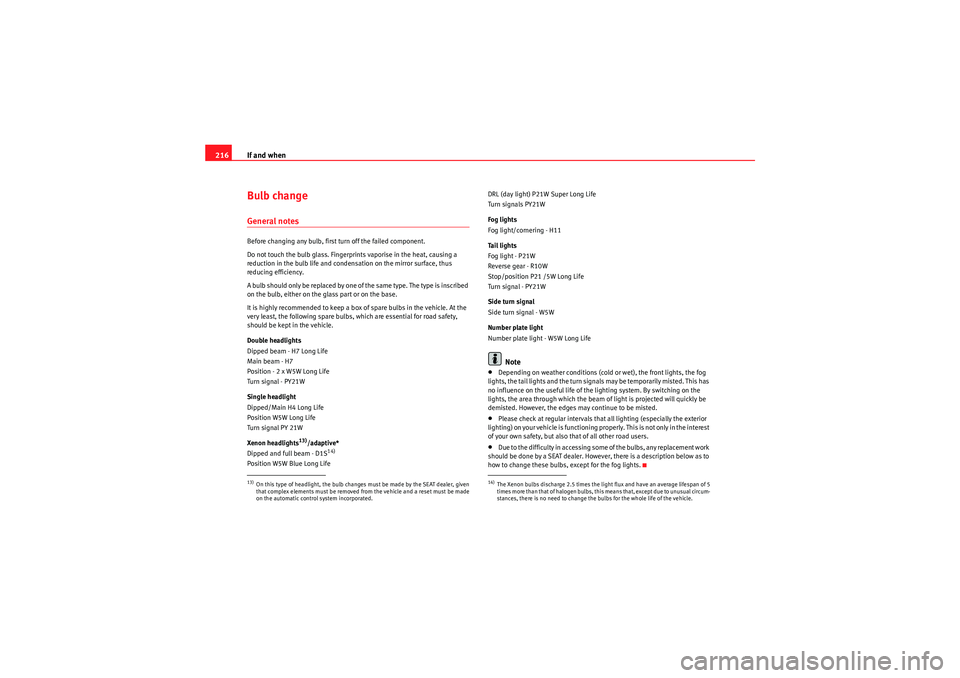

216Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Double headlights
Dipped beam - H7 Long Life
Main beam - H7
Position - 2 x W5W Long Life
Turn signal - PY21W
Single headlight
Dipped/Main H4 Long Life
Position W5W Long Life
Turn signal PY 21W
Xenon headlights
13)/adaptive*
Dipped and full beam - D1S
14)
Position W5W Blue Long Life DRL (day light) P21W Super Long Life
Turn signals PY21W
Fog lights
Fog light/cornering - H11
Ta i l l i g h t s
Fog light - P21W
Reverse gear - R10W
Stop/position P21 /5W Long Life
Turn signal - PY21W
Side turn signal
Side turn signal - W5W
Number plate light
Number plate light - W5W Long Life
Note
•Depending on weather conditions (cold or wet), the front lights, the fog
lights, the tail lights and the turn signals may be temporarily misted. This has
no influence on the useful life of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.•Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the interest
of your own safety, but also that of all other road users.•Due to the difficulty in accessing some of the bulbs, any replacement work
should be done by a SEAT dealer. However, there is a description below as to
how to change these bulbs, except for the fog lights.
13)On this type of headlight, the bulb changes must be made by the SEAT dealer, given that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.
14)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Ibiza_EN.book Seite 216 Mittwoch, 1. September 2010 5:24 17

If and when217
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Double headlight bulbs
Main beam
Side lights
Dipped beam headlights
Side lights
Turn signal
Turn signal bulbs– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 136 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Fig. 135 Double head-
lights
AAABACADAE
Fig. 136 Turn signal
AA
Ibiza_EN.book Seite 217 Mittwoch, 1. September 2010 5:24 17

If and when

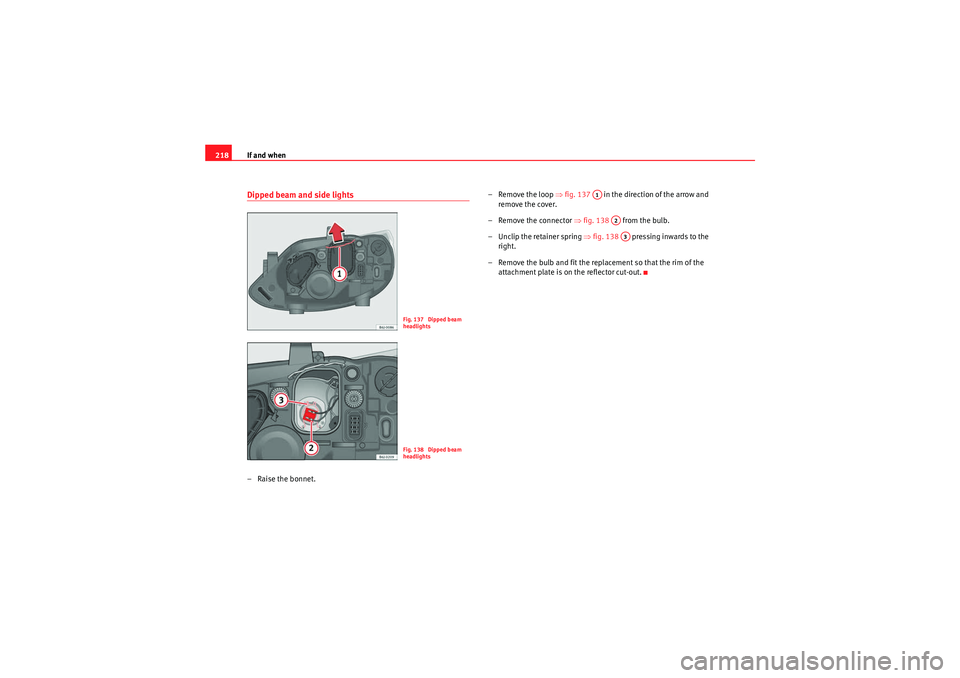

218Dipped beam and side lights– Raise the bonnet. – Remove the loop
⇒fig. 137 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 138 from the bulb.
– Unclip the retainer spring ⇒fig. 138 pressing inwards to the
right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 137 Dipped beam
headlightsFig. 138 Dipped beam
headlights
A1
A2A3
Ibiza_EN.book Seite 218 Mittwoch, 1. September 2010 5:24 17

If and when219
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Main beam and side lights– Raise the bonnet. – Move the loop in the direction of the arrow and remove the
cover ⇒fig. 139 .
– Remove connector ⇒ fig. 140 by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
Single headlight bulbs
Side lights - Dipped beam/main beam.
Turn signal
Fig. 139 Main beam
headlightsFig. 140 Main beam
headlights
A1
A2
Fig. 141 Single headlight
AAAB
Ibiza_EN.book Seite 219 Mittwoch, 1. September 2010 5:24 17

If and when

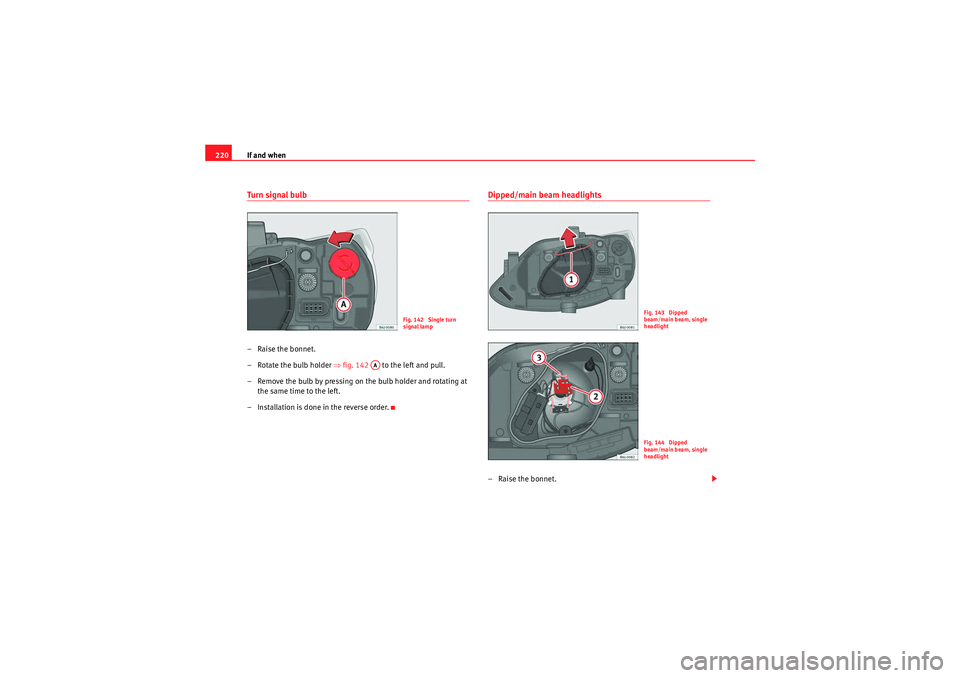

220Turn signal bulb– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 142 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped/main beam headlights – Raise the bonnet.
Fig. 142 Single turn
signal lamp
AA
Fig. 143 Dipped
beam/main beam, single
headlightFig. 144 Dipped
beam/main beam, single
headlight
Ibiza_EN.book Seite 220 Mittwoch, 1. September 2010 5:24 17

If and when221
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Remove the loop ⇒ page 220, fig. 143 in the direction of the
arrow and remove the cover.
– Remove the connector ⇒page 220, fig. 144 from the bulb.
– Unclip the retainer spring ⇒page 220, fig. 144 pressing
inwards to the right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Side lights – Raise the bonnet.
– Remove the loop ⇒ page 220, fig. 143 in the direction of the
arrow and remove the cover. – Remove the bulb holder
⇒fig. 145 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.
Access to rear pilot lights–Open the tailgate.
– Turn the bolt in the direction of the arrow, by hand or with a screwdriver ⇒fig. 146 .
– Remove the pilot light, by pulling it outwards.
A1
A2A3
Fig. 145 Side lights
A1
A4
Fig. 146 Access to tail
lights
Ibiza_EN.book Seite 221 Mittwoch, 1. September 2010 5:24 17

If and when
222Changing bulbs on tail lights– Remove the connector from housing ⇒page 221, fig. 146 .– Remove the bulb holder, separating it from the casing. To do this,
press tabs in the direction of the arrows ⇒fig. 147 .
– When the bulb holder has been removed, press in the direction of the arrow and at the same time, turn in the direction of the
arrow ⇒fig. 148 .
Side turn signals– Press the turn signal to the left or to the right to remove the bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
Fig. 147 Changing bulbs
on tail lightsFig. 148 Changing bulbs
on tail lights
AA
ABA1
A2
Fig. 149 Side turn
signals
