Child seatsCategorisation of child seats into groups
Use only child seats that are officially approved and suitable
for the child.Child seats are subject to the regulation ECE-R 44. ECE-R stands for: Economic
Commission for Europe Regulation
The child seats are grouped into 5 categories:
Group 0 : children up to 10 kg
Group 0+ : children up to 13 kg
Group 1 : from 9 to 18 kg
Group 2 : from 15 to 25 kg
Group 3 : from 22 to 36 kg
Child seats that have been tested and approved under the ECE R44 standard
bear the test mark on the seat (the letter E in a circle with the test number
below it).
Group 0 and 0+ child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Group 0: For babies from about 9 months old and 10 kg in weight the most
suitable seats are those appearing in the illustration ⇒fig. 23 .
Group 0+: For b ab ies f ro m ab o ut 18 m o nth s old a nd 1 3 kg in wei ght th e m ost
suitable seats are those appearing in the illustration ⇒fig. 23 .
Follow the manufacturer’s instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include the manufacturer’s Child Seat instruction
manual together with the on-board documentation.
WARNING
Read and always observe information and warnings concerning the use of
child seats ⇒ in “Safety notes on using child seats” on page 37.
Fig. 23 A group 0 rear-
facing child seat fitted on
the rear seat.
Ibiza_EN.book Seite 39 Mittwoch, 1. September 2010 5:24 17

Child safety
40Group 1 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Child seats using the ISOFIX system or seats in which the child faces the rear
of the vehicle are most appropriate for babies and small children weighing
between 9 and 18 kg.
Follow the manufacturer’s instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include the manufacturer’s Child Seat instruction
manual together with the on-board documentation.
WARNING
Read and always observe information and warnings concerning the use of
child seats ⇒ in “Safety notes on using child seats” on page 37.
Group 2 and 3 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Follow the manufacturer’s instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include the manufacturer’s Child Seat instruction
manual together with the on-board documentation.
Group 2 child seats
Children under 7 years of age weighing between 15 and 25 kg are best
protected by group 2 child seats together with properly adjusted seat belts.
Group 3 child seats
Children over 7 years of age weighing between 22 and 36 kg but less than 1.5
metres tall are best protected by seat cushions with head restraints together
with properly worn seat belts ⇒fig. 25.
Fig. 24 A category 1
forward-facing child seat
fitted on the rear seat.
Fig. 25 Forward-facing
child seat installed on rear
seat.
Ibiza_EN.book Seite 40 Mittwoch, 1. September 2010 5:24 17

Child safety41
Safety First
Operating Instructions
Practical Tips
Technical Specifications
WARNING
•The shoulder part of the seat belt must lie approximately on the centre
of the shoulder, never across the neck or the arm. The seat belt must lie
close to the upper part of the body. The lap belt part must lie across the
pelvis, not across the stomach, and always fit closely. Pull the belt tight if
necessary to take up any slack ⇒page 21, “Seat belts”.•Read and always observe information and warnings concerning the use
of child seats ⇒ in “Safety notes on using child seats” on page 37.
Ibiza_EN.book Seite 41 Mittwoch, 1. September 2010 5:24 17

Child safety
42Securing child seatsWays to secure a child seat
A child seat can be secured differently on the rear seat and on
the front passenger seat.You can secure a child seat to the rear seat or front passenger seat in the
following ways:•Child seats in groups 0 to 3 can be secured with a seat belt.•Child seats for groups 0, 0+ and 1 with the “ISOFIX” system can be
secured, without fastening seat belts, with the “ISOFIX” securing rings
⇒ page 42.
U: Suitable for universal approved restraining systems for use in this age category (universal retention systems are those fitted using the adult
seat belt).
UF Suitable for universal forward-facing retention systems approved for use with this age group.
*: Move the front passenger seat as far back as possible, as high as possible and always deactivate the airbag.
L: Suitable for retention systems using the “ISOFIX” anchors.
X Seat position not suitable for children in this age group.
WARNING
•When travelling, children must be secured in the vehicle with a
restraint system suitable for age, weight and size.•Never install a child seat facing backwards on the front passenger seat
unless the front passenger airbag has been disabled. This could cause fatal
injuries to the child! However, if, in exceptional cases, it is necessary to
transport a child in the front passenger seat, the front passenger airbag
⇒ page 35, “Deactivating airbags*” must always be disabled and the seat
adjusted to its highest position, where possible.•Read and always observe information and warnings concerning the use
of child seats ⇒ in “Safety notes on using child seats” on page 37.
Securing a child seat with the “ISOFIX” system
Child seats can be secured quickly, easily and safely on the
rear outer seats with the “ISOFIX” system.
Category
Weight
Seat locations
Front
passenger
Rear outer
Rear centre
Group 0
<10 kg
U*
U
U
Group 0+
<13 kg
U*
U
U
Group 1
9-18 kg
U*
U/L
U
Group 2 / 3
15-36 kg
X
UF
UF
Fig. 26 ISOFIX securing
rings
Ibiza_EN.book Seite 42 Mittwoch, 1. September 2010 5:24 17

Child safety43
Safety First
Operating Instructions
Practical Tips
Technical Specifications
When removing or fitting the child seat, please be sure to follow the
manufacturer’s instructions.
– Press the child seat onto the “ISOFIX” retaining rings until the
child seat can be heard to engage securely. If the child seat is
fitted with any other anti-rotation system, follow the manufac-
turer instructions carefully.
– Pull on both sides of the child seat to ensure that it is secure.Two ISOFIX retaining rings are fitted on each rear seat. In some vehicles, the
rings are secured to the seat frame and, in others, they are secured to the rear
floor. The access to the “ISOFIX” rings is between the rear seat backrest and
the seat cushioning.
Child seats with “ISOFIX” mountings are available in your Authorised Service
Centres.
WARNING
•The retaining rings are designed to only be used with “ISOFIX” child
seats.•Never secure child seats without the “ISOFIX” system, retaining belts
or objects to the fastening rings – this can result in potentially fatal injuries
to the child.•Ensure that the child seat is secured correctly to the “ISOFIX” anchor
points.
To p Te t h e r r e t a i n e r s t r a p s
Some child restraint seats have a third Top Tether anchoring
point, apart from both “ISOFIX” anchoring points, which
allow better child retention.Child seats with the Top Tether system come with a strap for securing the seat
to the vehicle anchor point, located at the back of the rear backrest.
The retainer strap is used to reduce forwards movements of the safety seat in
a crash, helping reduce the risk of injuries to the head from hitting the inside
of the vehicle.
It is foreseen that an EU Directive will introduce requirements related to the
retention of child restraint systems by means of ISOFIX and Top Tether anchor-
ages (probably compulsory for new types from 2010), which will entail
improved retention of the child restraint seat and less head movement in
case of frontal collisions.
Fig. 27 Position of the
To p Te t h e r r i n g s o n t h e
back of the rear seat
Ibiza_EN.book Seite 43 Mittwoch, 1. September 2010 5:24 17

Child safety
44Use of retainer straps on rear-facing seats
At present there are very few rear-facing child safety seats fitted with a
re ta in er st ra p. P leas e car efull y read an d f ollow t he sa fet y s eat manu fac tur er ’s
instructions for information on how to install the retainer strap properly.
WARNING
An undue installation of the safety seat will increase the risk of injury in the
event of a crash.•Never tie the retainer strap to a hook in the luggage compartment.•Never secure or tie luggage or other items to the lower anchorages
(ISOFIX) or the upper ones (Top Tether).
Fitting the Top Tether child restraint to the anchoring point
Securing the Top Tether child restraint to the anchor point situated
on the rear of the backrest
– Pull out the fastening belt of the child restraint seat according to the manufacturer’s instructions.
– Lead the Top Tether fastening belt under the rear seat head restraint ⇒fig. 28 (lift the head restraint where necessary).
– Slide the belt so that the Top Tether belt of the child restraint seat is correctly secured to the anchor on the back of the rear seat.
– Firmly tighten the Top Tether belt following the child restraint seat manufacturer’s instructions.
Releasing the retaining strap
– Release the retainer strap in line with the instructions given by the child safety seat manufacturer.
– Push the lock and release it from the anchoring support.
WARNING
Read and bear in mind all the WARNINGS ⇒page 43.
Fig. 28 Retainer strap:
correct adjustment and
fitting
Ibiza_EN.book Seite 44 Mittwoch, 1. September 2010 5:24 17

45
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ibiza_EN.book Seite 45 Mittwoch, 1. September 2010 5:24 17

46

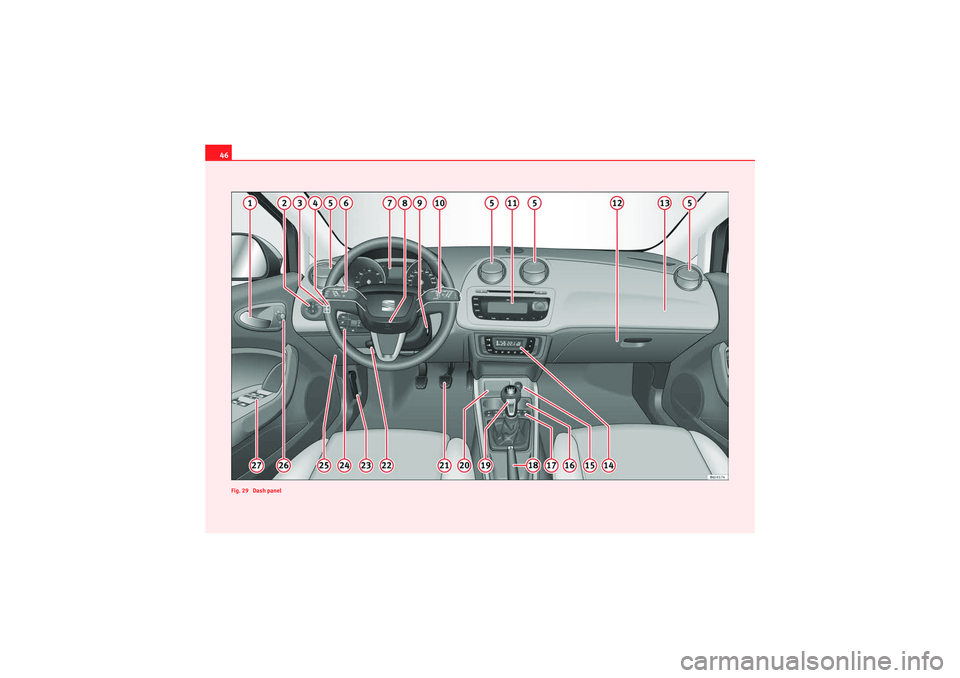

Fig. 29 Dash panelIbiza_EN.book Seite 46 Mittwoch, 1. September 2010 5:24 17
