Cockpit55
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Vehicles with
service intervals dependent on time/distance travelled already
have certain service intervals set.
The intervals are calculated separately in vehicles with LongLife service Te ch-
nical progress has made it possible to considerably reduce servicing require-
ments. With the LongLife System, SEAT ensures that your vehicle only has an
interval service when it is necessary. To calculate this (max. two years), the
conditions under which the vehicle is used and the individual driving style
are also taken into account. The service pre-warning will appear at 20 days or
less prior to the corresponding service. The distance travelled is rounded off
to the nearest 100 km and the time to full days. The current service message
can only be consulted 500 km or more after the last service. Until that time,
only dashes are displayed.
Service warning
A service warning will appear when the ignition is switched on if a service is
due soon.
The instrument panel display will show the “spanner symbol”
 and the
“km” indication, along with a clock symbol with the days remaining until the
date of the next service. The figure indicated is the maximum number of kilo-
metres remaining before the date of the next service. The indication changes
after a few seconds. A “clock symbol” appears and the number of days until
the service appointment should be carried out.
Service
If a service is due, a gong signal will sound and the flashing “spanner”

symbol will be shown along with the fixed text SERVICE.
If no service is carried out following the indication on the instrument panel,
the excess distance travelled and the excess time following the SERVICE
warning will be displayed.
Reading the service message
The current service message can be consulted with the ignition on, the
engine switched off and the vehicle at a standstill:
•Press the button on the instrument panel as often as necessary until
the spanner symbol
 is displayed.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Resetting service interval display
If the service was not performed by a SEAT dealer, the display must be reset
as follows:
•Switch the ignition off.•Press and hold the button.•Switch ignition back on.•Release the button and press the button within 20 seconds.
Do not reset the display between service intervals, as the display will other-
wise be incorrect.
If the display is reset manually, the next service interval will be indicated after
15,000 km or one year and will not be calculated individually.Note
In LongLife Service vehicles, if the battery is disconnected for a long period,
the days remaining until the next service cannot be calculated. Therefore, the
service message indications may be incorrect. In this case, bear in mind the
maximum service intervals permitted in the ⇒Booklet “Service Schedule”.

0.0 / SET
0.0 / SET

Ibiza_EN.book Seite 55 Mittwoch, 1. September 2010 5:24 17

Cockpit

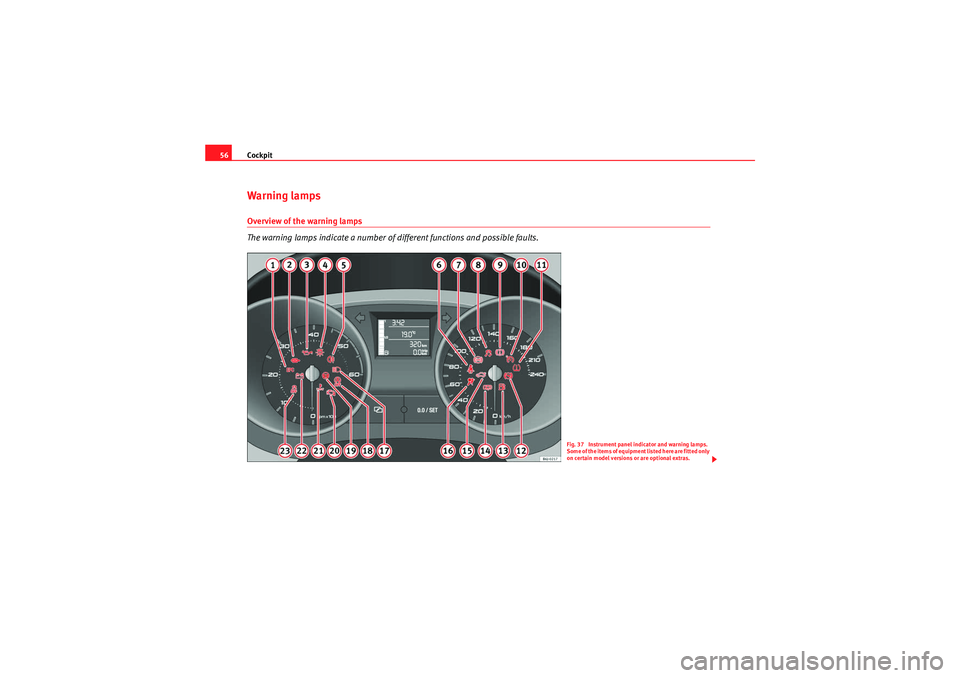

56Warning lampsOverview of the warning lamps
The warning lamps indicate a number of different functions and possible faults.
Fig. 37 Instrument panel indicator and warning lamps.
Some of the items of equipment listed here are fitted only
on certain model versions or are optional extras.
Ibiza_EN.book Seite 56 Mittwoch, 1. September 2010 5:24 17

Cockpit57
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Item
Symbol
Meaning of indicator and
warning lamps
Further
information
%0#
Engine fault (petrol engine)
⇒ page 60
D
Glow plug system for diesel engine
If lit: glow plug system active
If flashing: engine fault
⇒page 60

Soot accumulation in the diesel
engine particulate filter
⇒page 60
E
Red:
Engine oil pressure
⇒ page 60
Yellow:
If flashing: engine oil sensor faulty
If it remains lit: insufficient engine
oil
“
Bulb defective
⇒ page 61


Rear fog light switched on
⇒page 61
h
Seat belt warning lamp*
⇒page 16
J
Anti-lock brake system (ABS) *
⇒page 61

If flashing: Electronic Stability Pro-
gramme (ESP) or the TCS is working
If it remains lit: ESP or TCS faulty
⇒ page 62
⇒ page 62
H
Handbrake applied,
lack of brake fluid level or
serious fault in the brake system
⇒page 63

Cruise control system switched on
⇒page 63
A1A1A2A3A4A5A6A7A8A9A10
~
Tyre pressure
⇒page 63
K
Selector lever lock (automatic gear-
box)
⇒page 64
z
Fuel level / reserve
⇒page 64
o
Doors open
⇒page 64

Tailgate o pe n
⇒page 65
T
Airbag or belt tensioner system fault
or airbag disabled
⇒page 27

Main beam switched on
⇒page 65
›
Start-Stop system switched off
⇒page 134

Electro-hydraulic steering
⇒page 65

Fault in the emission control system
⇒page 65
v
Coolant level / coolant temperature
⇒page 65
F
Alternator fault
⇒page 66
Item
Symbol
Meaning of indicator and
warning lamps
Further
information
A11A12A13A14A15A16A17A18A19A20A21A22
Ibiza_EN.book Seite 57 Mittwoch, 1. September 2010 5:24 17

Cockpit
58
WARNING
•Failure to observe warning lamps and warning messages can result in
serious personal injuries or damage to your vehicle.•The risk of an accident increases if your vehicle breaks down. Use a
warning triangle to draw the attention of other road users in order to
prevent danger to third parties.•The engine compartment is a dangerous area! Before you open the
bonnet to work on the engine or in the engine compartment, you must
switch the engine off and allow it to cool to reduce the risk of scalding or
other injuries. Read and observe the relevant warnings ⇒page 183.Note
•The appropriate warning lamp for a fault will light up in vehicles without
warning or information messages in the display.•In vehicles with warning or information texts on the screen, the appro-
priate warning lamp for a fault will light up and a warning or information
message will also appear on the screen.
Warning symbolsThere are red warning symbols (p riority 1) and yellow warning
symbols (priority 2)Warning reports, Priority 1 (red)
If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings . This is a danger warning. Stop
the vehicle and switch off the engine. Check the fault and correct it. Obtain
professional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time and will continue
until the fault is corrected.
No menus will be shown in the display for the duration of a priority 1 warning
message.
Examples of priority 1 warning messages (red)•Brake system symbol
H with the warning message STOP BRAKE FLUID
SERVICE MANUAL or STOP BRAKE FAULT SERVICE MANUAL .
•Coolant symbol
v with the warning message STOP SEE COOLANT
INSTRUCTION MANUAL .
•Engine oil pressure symbol
E with the warning message STOP ENGINE
OIL PRESSURE LOW! INSTRUCTION MANUAL .
Warning reports, Priority 2 (yellow)
If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning . Check the corresponding function as soon as
possible although the vehicle may be used without risk.
If several priority 2 warning messages are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time. After
a set time, the information text will disappear and the symbol will be shown
as a reminder at the side of the display.
l
If it stays lit: TCS disabled
⇒page 62
⇒ page 62

Turn signals in operation
⇒page 66
SAFE
Electronic immobiliser
⇒page 66
⇒ page 72
Item
Symbol
Meaning of indicator and
warning lamps
Further
information
A23
Ibiza_EN.book Seite 58 Mittwoch, 1. September 2010 5:24 17

Cockpit59
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Priority 2
warning messages will not be shown until all Priority 1 warning
messages have been dealt with!
Examples of priority 2 warning messages (yellow):
4)
•Fuel warning light with the information text PLEASE REFUEL .•Windscreen washer fluid symbol
 with the information text REFILL
WINDSCREEN WASHER FLUID . Top up the washer fluid level.
Information messages displayed on the screen*4)Depending on the model version.Message
a)
Description
SERVICE
The service interval has ended. Take the vehicle to an
authorised service.
IMMOBILISER
Immobiliser system active. The vehicle will not start. Take
the vehicle to an authorised service.
ERROR
Instrument panel faulty. Take the vehicle to an authorised
service.
CLEAN AIR
FILTER
Warning: The air filter must be cleaned
NO KEY
Warning: Correct key cannot be found in the vehicle.
KEY BATTERY
Warning: Key battery low. Change the battery.
CLUTCH
Warning: Press the clutch to start. In vehicles with manual
gearbox and Start/Stop system.
--> P/N
Warning: Place the selector level in P/N to start. Only in
vehicles with automatic gearbox.
--> P
Warning: Place the selector lever in position P to stop the
engine.
STARTING
Warning: The engine starts automatically. Start-Stop sys-
tem activated.
START
MANUALLY
Warning: The engine must be started manually. Start-Stop
system activated.
ERROR START STOP
Warning: Start-Stop system error.
START
STOP
IMPOSSIBLE
Warning: Although the Start-Stop system is switched on,
the engine cannot be stopped automatically. Not all the
necessary conditions are met
START STOP ACTIVE
Warning: Start-Stop system activated. Vehicle in Stop
mode.
SWITCH OFF
Warning: Start-Stop system activated. Switch off the igni-
tion when you leave the vehicle.
STOP
TRANSMISSION
TOO HOT
Warning: Stop the engine. Gearbox overheated.
BRAKE
Warning: To start the engine, press the brake pedal. Only
in vehicles with automatic gearbox.
COASTING FUNCTION
Warning: Coasting mode active. Transmission engaged.
Only in vehicles with automatic gearbox.
CHECK
SAFELOCK
Notification of central locking function activated.
a)These messages may vary according the version of the vehicle model.
Ibiza_EN.book Seite 59 Mittwoch, 1. September 2010 5:24 17

Cockpit

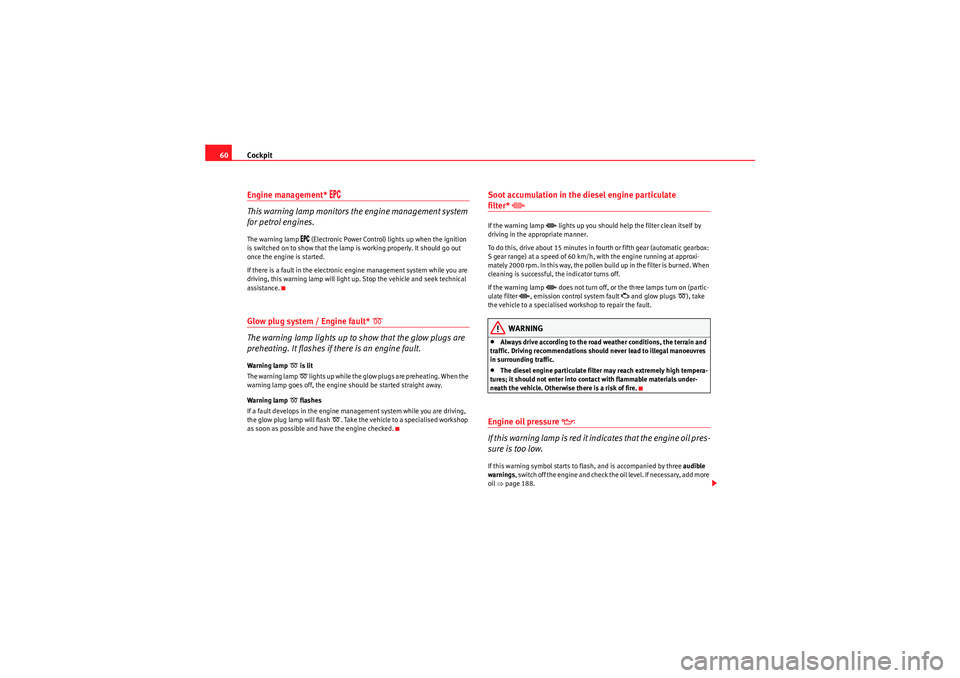

60Engine management*
%0#

This warning lamp monitors the engine management system
for petrol engines.
The warning lamp
%0# (Electronic Power Control) lights up when the ignition
is switched on to show that the lamp is working properly. It should go out
once the engine is started.
If there is a fault in the electronic engine management system while you are
driving, this warning lamp will light up. Stop the vehicle and seek technical
assistance.
Glow plug system / Engine fault*
D
The warning lamp lights up to show that the glow plugs are
preheating. It flashes if there is an engine fault.
Warning lamp
D is lit
The warning lamp D lights up while the glow plugs are preheating. When the
warning lamp goes off, the engine should be started straight away.
Warning lamp
D flashes
If a fault develops in the engine management system while you are driving,
the glow plug lamp will flash
D. Take the vehicle to a specialised workshop
as soon as possible and have the engine checked.
Soot accumulation in the diesel engine particulate filter*

If the warning lamp
 lights up you should help the filter clean itself by
driving in the appropriate manner.
To do this, drive about 15 minutes in fourth or fifth gear (automatic gearbox:
S gear range) at a speed of 60 km/h, with the engine running at approxi-
mately 2000 rpm. In this way, the pollen build up in the filter is burned. When
cleaning is successful, the indicator turns off.
If the warning lamp  does not turn off, or the three lamps turn on (partic-
ulate filter
, emission control system fault
 and glow plugs
D), take
the vehicle to a specialised workshop to repair the fault.
WARNING
•Always drive according to the road weather conditions, the terrain and
traffic. Driving recommendations should never lead to illegal manoeuvres
in surrounding traffic.•The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Otherwise there is a risk of fire.
Engine oil pressure
E
If this warning lamp is red it indicates that the engine oil pres-
sure is too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If necessary, add more
oil ⇒page 188.
Ibiza_EN.book Seite 60 Mittwoch, 1. September 2010 5:24 17

Cockpit61
Safety First
Operating Instructions
Practical Tips
Technical Specifications
If the symbol flashes although the oil level is correct,
do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.
Checking the oil level
E
If the warning lamp is yellow
E the engine oil level should be checked as
soon as possible. Top up the oil ⇒page 188 at the next opportunity.
Oil level sensor faulty*
E
If the
E yellow warning lamp flashes, take the vehicle to a specialised work-
shop to have the oil level sensor checked. Until then it is advisable to check
the oil level every time you refuel.
Bulb defect*
“
The indicator lights up when a bulb is not functioning.The
“ warning lamp lights up when there is a fault on the turn signals, head-
lights, side lights and fog lights.
Rear fog light*


This warning lamp lights up when the rear fog light is switched on

. For
further information see ⇒page 89.
Anti-lock brake system (ABS)*
J
A warning lamp monitors the ABS.
The indicator lamp
J should light up for a few seconds when the ignition is
switched on. It goes out again after the system has run through an automatic
test sequence.
There is a fault in the ABS if:
•The warning lamp
J does not light up when the ignition is switched on.
•The warning lamp does not go out again after a few seconds•The warning lamp lights up when the vehicle is moving
The vehicle can still be braked in the normal way, without the ABS function.
Take the vehicle to a specialised workshop as soon as possible. For further
information on the ABS go to ⇒page 154.
If there is a fault in the ABS, the ESP* and the tyre pressure warning lamp will
also light up.
Brake system fault
If the ABS warning lamp
J lights up together with the brake warning lamp
H, this indicates not only a fault in the ABS function, but also a possible fault
in the brake system ⇒.
WARNING
•Before opening the bonnet, read and observe the warnings on
⇒ page 183, “Working in the engine compartment”.•If the brake warning lamp
H should light up together with the ABS
warning lamp
J, stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒ page 195, “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
Ibiza_EN.book Seite 61 Mittwoch, 1. September 2010 5:24 17

Cockpit
62•If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stability Programme (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
J. Take the
vehicle to a specialised workshop as soon as possible. For further informa-
tion on the EDL see ⇒page 156, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
/l
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThere are two warning lamps for the traction control system:
 and
l. The
warning lamp
 lights up when the ignition is switched on and should turn
off after 2 seconds, which is the time taken for the function check.
The
 lamp has the following function:
•It flashes when the TCS is on, and the vehicle is moving.
If the system is deactivated or if it has any fault, the warning lamp will remain
li t . I t will als o co m e o n i f a fa ul t s hould occur in the A B S b e caus e t he TCS o pe r -
ates in conjunction with the ABS. For further information, see ⇒page 153,
“Brakes” The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the TCS OFF switch.
By pressing again, TCS function is reactivated and the warning lamp switched
off.Electronic Stability Programme (ESP)*
/ l
There are two warning lamps for the electronic stability
programme. The
 lamp provides information concerning
the function and the l provides information on the discon-
nection status
The warning lamp
 lights up when the ignition is switched on and should
turn off after 2 seconds, which is the time taken for the function check.
This programme includes the ABS, EDL and TCS. This also includes the brake
assist system (BAS), automatic cleaning of the brake discs and the trailer
stability programme (TSP).
The warning lamp  has the following functions:
•It flashes when the TCS/ESP is activated when driving.•It will light up continuously if there is a malfunction in the ESP.•It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully func-
tional.
WARNING (continued)
Ibiza_EN.book Seite 62 Mittwoch, 1. September 2010 5:24 17
