2010 Seat Ibiza 5D Owner's manual

Cockpit63
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the
l switch.
Brake system* / handbrake
H
The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
H lights up if
•the handbrake is on.•the brake fluid level is too low ⇒page 195.•there is a fault in the brake system.
This warning lamp can light up together with the ABS system warning lamp.WARNING
•If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 195, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.•If the brake warning lamp
H lights up together with the ABS warning
lamp
J, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Cruise control system*

The warning lamp comes on when the cruise control system
is switched on.The warning lamp
 lights up when the cruise control system is switched on.
For further information on the cruise control system, see ⇒page 148.
Tyre pressure*
~
The tyre warning lamp
5) compares wheel revolutions and with this informa-
tion, the diameter of each wheel using the ESP sensors. If the diameter of a
wheel changes, the tyre warning lamp ~ lights up. The wheel diameter
changes when:
•Tyre pressure is insufficient.5)Depending on the model version
Fig. 38 Centre console:
tyre monitor system
button
Ibiza_EN.book Seite 63 Mittwoch, 1. September 2010 5:24 17

Cockpit

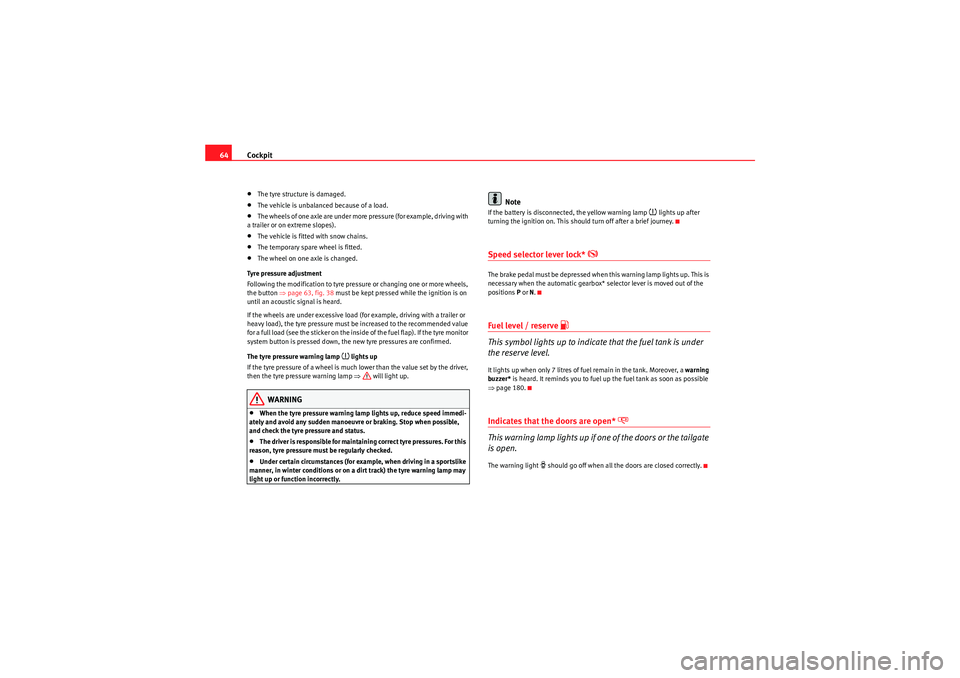

64•The tyre structure is damaged.•The vehicle is unbalanced because of a load.•The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).•The vehicle is fitted with snow chains.•The temporary spare wheel is fitted.•The wheel on one axle is changed.
Tyre pressure adjustment
Following the modification to tyre pressure or changing one or more wheels,
the button ⇒page 63, fig. 38 must be kept pressed while the ignition is on
until an acoustic signal is heard.
If the wheels are under excessive load (for example, driving with a trailer or
heavy load), the tyre pressure must be increased to the recommended value
for a full load (see the sticker on the inside of the fuel flap). If the tyre m onitor
system button is pressed down, the new tyre pressures are confirmed.
The tyre pressure warning lamp
~ lights up
If the tyre pressure of a wheel is much lower than the value set by the driver,
then the tyre pressure warning lamp ⇒ will light up.
WARNING
•When the tyre pressure warning lamp lights up, reduce speed immedi-
ately and avoid any sudden manoeuvre or braking. Stop when possible,
and check the tyre pressure and status.•The driver is responsible for maintaining correct tyre pressures. For this
reason, tyre pressure must be regularly checked.•Under certain circumstances (for example, when driving in a sportslike
manner, in winter conditions or on a dirt track) the tyre warning lamp may
light up or function incorrectly.
Note
If the battery is disconnected, the yellow warning lamp
~ lights up after
turning the ignition on. This should turn off after a brief journey.
Speed selector lever lock*
K
The brake pedal must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.Fuel level / reserve
z
This symbol lights up to indicate that the fuel tank is under
the reserve level.It lights up when only 7 litres of fuel remain in the tank. Moreover, a warning
buzzer* is heard. It reminds you to fuel up the fuel tank as soon as possible
⇒ page 180.Indicates that the doors are open*
o
This warning lamp lights up if one of the doors or the tailgate
is open.The warning light
 should go off when all the doors are closed correctly.
Ibiza_EN.book Seite 64 Mittwoch, 1. September 2010 5:24 17

Cockpit65
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ta i l g a t e o p e n *

The warning lamp
 should switch off when the tailgate is fully closed.
Main beam headlights

The indicator lamp lights up when the main beams are on.The warning lamp
 is switched on once main beams are on or once the
headlight flasher is operating.
For further information see ⇒page 95.
Electro-hydraulic steering*

The level of steering assistance depends on the vehicle speed and on the
steering wheel turning speed.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
There is a fault in the electro-hydraulic steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. Take the vehicle to the
Authorised Service Centre as soon as possible.
Note
When towing the vehicle with the engine stopped or due to a fault in the
power steering, this will not operate. The vehicle can still be steered, but it
will require greater force to turn the steering wheel.
Emission control system*

This warning lamp monitors the exhaust system.
Warning lamp
 flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest specialised workshop to have the
engine checked.
Warning lamp  is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest specialised workshop to have the engine checked.
Coolant level* / temperature
v
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•The warning symbol does not go out again after a few seconds.•The warning lamp lights up or flashes while the vehicle is moving, and
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 212.
Ibiza_EN.book Seite 65 Mittwoch, 1. September 2010 5:24 17

Cockpit

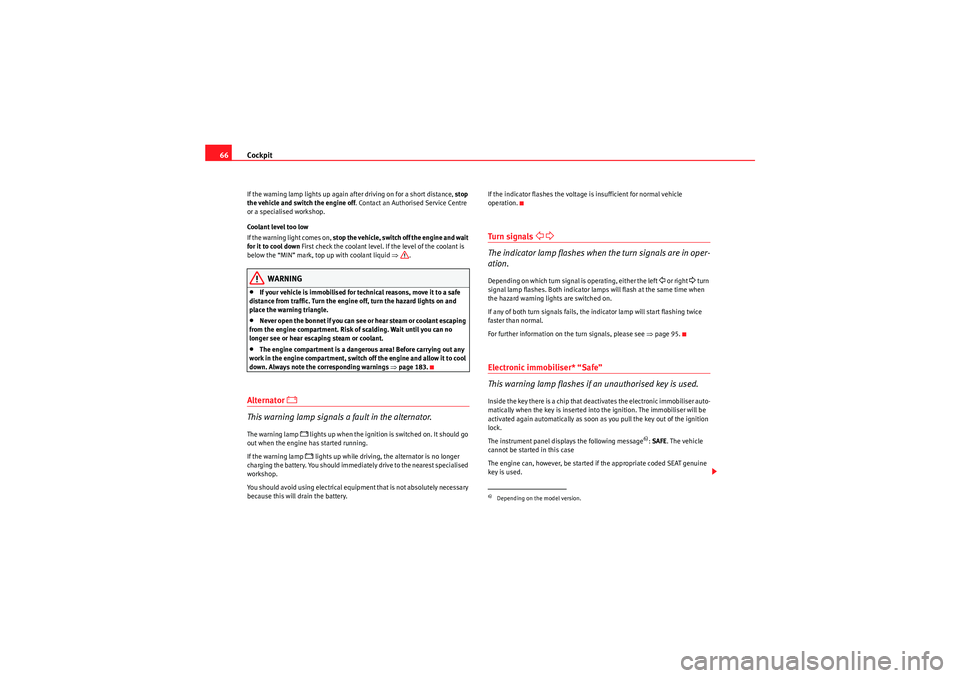

66If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch the engine off . Contact an Authorised Service Centre
or a specialised workshop.
Coolant level too low
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down First check the coolant level. If the level of the coolant is
below the “MIN” mark, top up with coolant liquid ⇒.
WARNING
•If your vehicle is immobilised for technical reasons, move it to a safe
distance from traffic. Turn the engine off, turn the hazard lights on and
place the warning triangle.•Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.•The engine compartment is a danger ous area! Before carrying out any
work in the engine compartment, switch off the engine and allow it to cool
down. Always note the corresponding warnings ⇒page 183.
Alternator
F
This warning lamp signals a fault in the alternator.
The warning lamp
F lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp F lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest specialised
workshop.
You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery. If the indicator flashes the voltage is insufficient for normal vehicle
operation.
Turn signals

The indicator lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operating, either the left
 or right

turn
signal lamp flashes. Both indicator lamps will flash at the same time when
the hazard warning lights are switched on.
If any of both turn signals fails, the indicator lamp will start flashing twice
faster than normal.
For further information on the turn signals, please see ⇒page 95.
Electronic immobiliser* “Safe”
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
The instrument panel displays the following message
6): SAFE . The vehicle
cannot be started in this case
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
6)Depending on the model version.
Ibiza_EN.book Seite 66 Mittwoch, 1. September 2010 5:24 17

Cockpit67
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Note
A perfect operation of the vehicle can only be ensured if genuine SEAT keys
are used.
Ibiza_EN.book Seite 67 Mittwoch, 1. September 2010 5:24 17

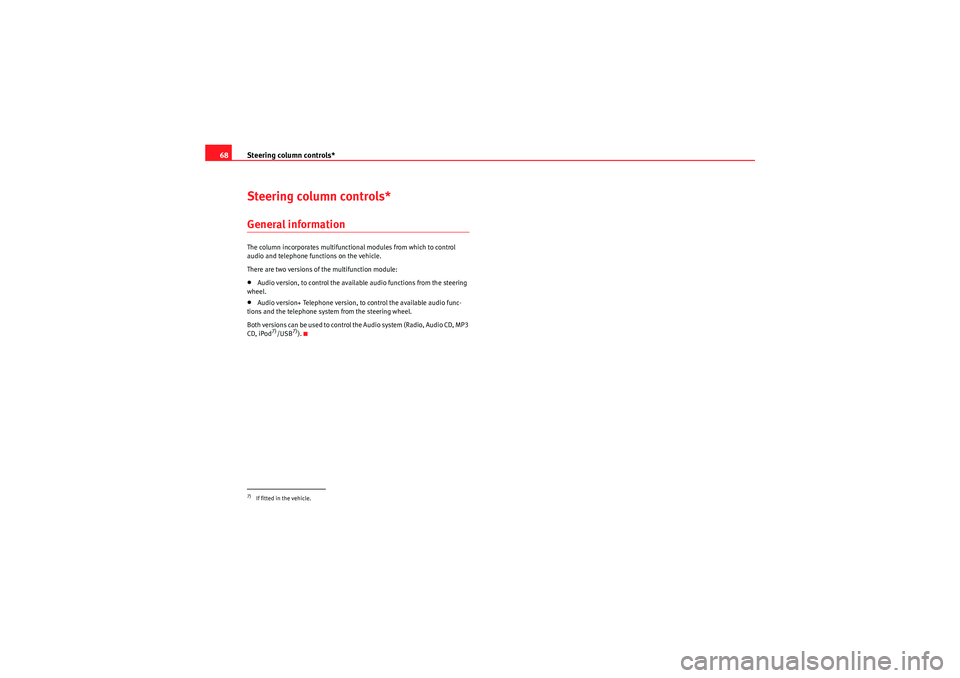

Steering column controls*
68Steering column controls*General informationThe column incorporates multifunctional modules from which to control
audio and telephone functions on the vehicle.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio version+ Telephone version, to control the available audio func-
tions and the telephone system from the steering wheel.
B ot h ve rsio ns ca n b e us e d to co ntr ol th e A ud i o s yste m ( Rad io, A ud io CD, MP 3
CD, iPod
7)/USB
7)).
7)If fitted in the vehicle.
Ibiza_EN.book Seite 68 Mittwoch, 1. September 2010 5:24 17

Steering column controls*69
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Audio Control
Fig. 39 Audio controls
Button Short press
Radio CD Audio
CD MP3/USB/iPod
a)
a)Only for MP3 compatible radios.*
AUX-IN
Vol u m e up
Vol um e d own
Cycle through source FM - AM - CD - FM...
Station search. Higher frequency
…. Next track No function
Station search. Lower frequency †
Previous track No function
Next preset No functionChange folder (forward) No function
Previous preset No functionChange folder (back) No function
AAABACADADAEAF
Ibiza_EN.book Seite 69 Mittwoch, 1. September 2010 5:24 17

Steering column controls*

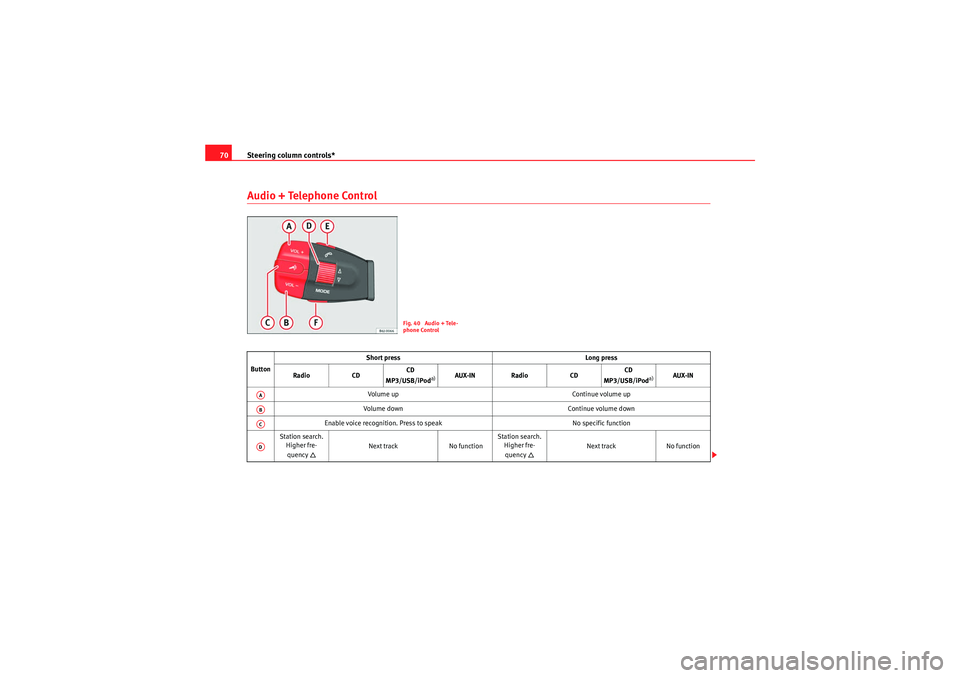

70Audio + Telephone Control
Fig. 40 Audio + Tele-
phone Control
Button Short press
Long press
Radio CDCD
MP3/USB/iPod
a)
AUX-IN Radio CDCD
MP3/USB/iPod
a)
AUX-IN
Volume up Continue volume up
Volume down Continue volume down
Enable voice recognition. Press to speak No specific function
Station search. Higher fre-
quency
…
Next track No functionStation search.
Higher fre-
quency
…
Next track No function
AAABACAD
