2010 Peugeot Boxer Dag Owner's Manual

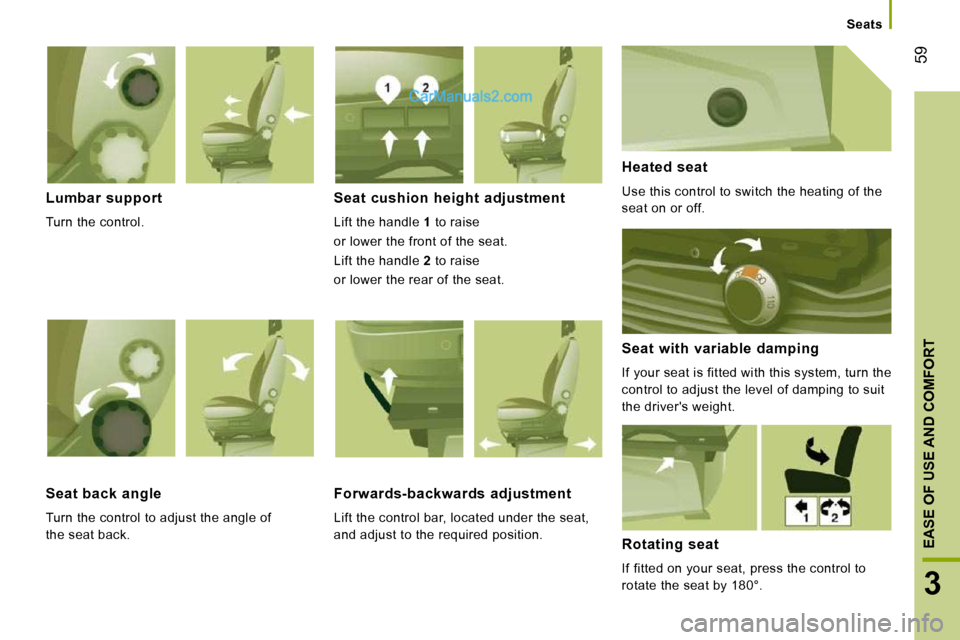

59
3
EASE OF USE AND COMFORT
Seats
Lumbar support
Turn the control.
Seat cushion height adjustment
Lift the handle 1 to raise
or lower the front of the seat.
Lift the handle 2 to raise
or lower the rear of the seat.
Heated seat
Use this control to switch the heating of the
seat on or off.
Seat with variable damping
If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.
Seat back angle
Turn the control to adjust the angle of
the seat back.
Forwards-backwards adjustment
Lift the control bar, located under the seat,
and adjust to the required position.
Rotating seat
If fitted on your seat, press the control to
rotate the seat by 180°.

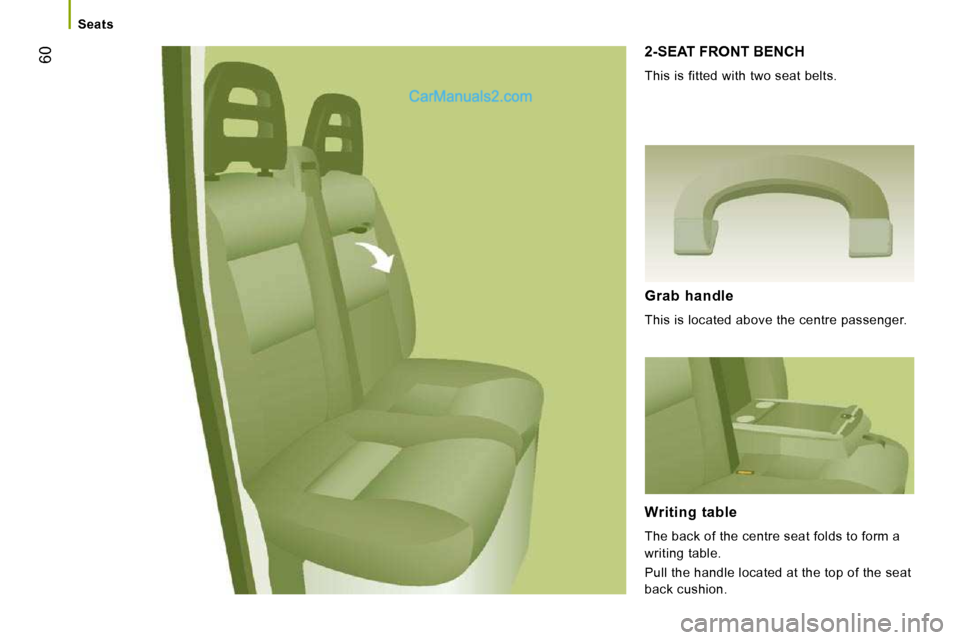

60
Seats
2-SEAT FRONT BENCH
This is fitted with two seat belts.
Grab handle
This is located above the centre passenger.
Writing table
The back of the centre seat folds to form a
writing table.
Pull the handle located at the top of the seat
back cushion.

61
3
EASE OF USE AND COMFORT
Seats
REAR SEATS
Seat back angle
Turn the control to adjust the
angle of the seat back.
Access to the rear seats
To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat back to its initial position,
bring it to the vertical position without
touching the control.
Seat back folded position of the central seat (rows 2 and 3)
The back of the central seat can be folded
fully onto the cushion and used as a cup
holder table.
Lower the head restraint then raise the
control and fold the seat back forwards.
To return the seat back to its initial position,
raise the control again.

62
Seats
REAR BENCH SEATS
Removing the bench seat
At least two people are required to
remove the bench seat.
Fold the seat back onto the cushion as
described above.
Turn the two levers forwards.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position.
Good practice
Following the various operations:
- do not remove a head restraint without storing securely,
- do not travel in row 3 with the row 2 bench seat in the vertical position,
- do not store any kind of object on the folded seat back of row 2,
- check that the seat belts are always accessible and easy for the passenger
to use,
- a passenger must not take their seat without correctly adjusting their seat's
head restraint and adjusting and
fastening their seat belt. Access to the rear seats
Lower the head restraints then raise the
control and tilt the seat back forwards.
Seat back folded position
Remove the head restraints then tilt the seat
back as described above.
With your right hand, raise the lever then tilt
the seat back 5° towards the rear.
With your left hand, tilt the seat back
forwards onto the cushion. Turn the two levers upwards.
Raise the bench seat and remove it.

63
3
EASE OF USE AND COMFORT
Seats
CREW CAB
Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.
Each seat of the bench is fitted with an
inertia reel seat belt.
Refer to section 5 to read the "Good
practice" recommendations.
Access to the box under the bench seat
From the cab
Tilt the seat cushion forwards to gain access
to the large box.
From the load space
Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.
Good pratice
Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Do not install child seats, booster cushions or
carrycots on the rear seats of the crew cab.
In the rear, the load space is intended for
the transportation of goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.

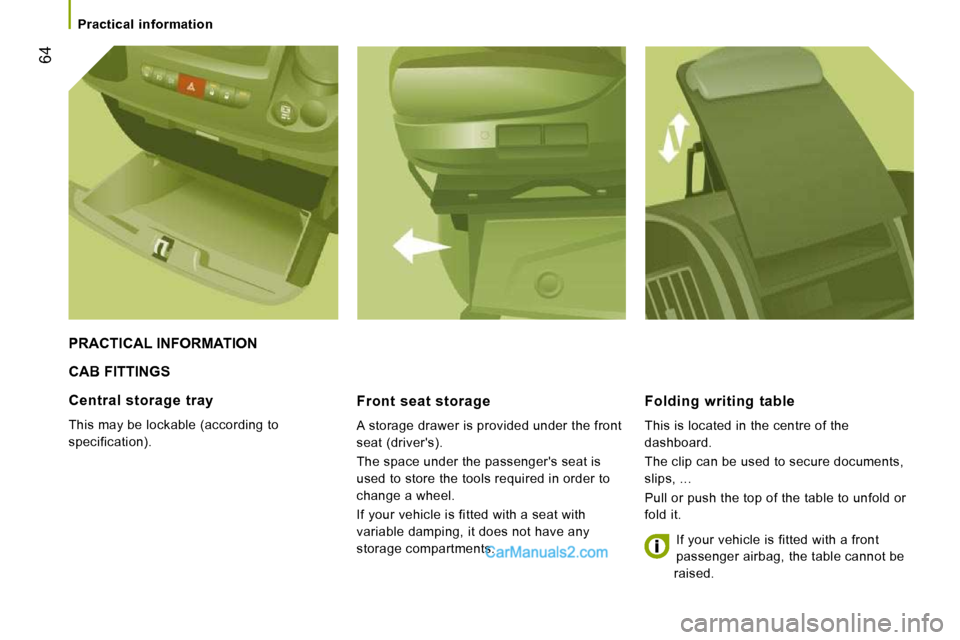

64
Practical information
CAB FITTINGS
Front seat storage
A storage drawer is provided under the front
seat (driver's).
The space under the passenger's seat is
used to store the tools required in order to
change a wheel.
If your vehicle is fitted with a seat with
variable damping, it does not have any
storage compartments.
Folding writing table
This is located in the centre of the
dashboard.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.
PRACTICAL INFORMATION
Central storage tray
This may be lockable (according to
specification). If your vehicle is fitted with a front
passenger airbag, the table cannot be
raised.

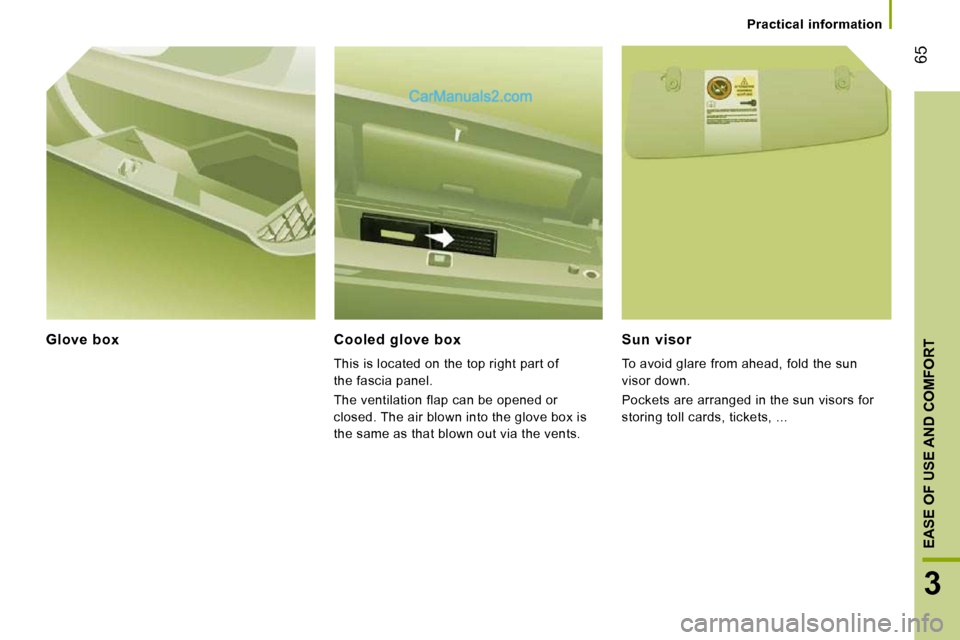

65
3
EASE OF USE AND COMFORT
Practical information
Glove box Cooled glove box
This is located on the top right part of
the fascia panel.
The ventilation flap can be opened or
closed. The air blown into the glove box is
the same as that blown out via the vents.
Sun visor
To avoid glare from ahead, fold the sun
visor down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...

66
Practical information
Cigar lighter/12 volt socket
Press and wait a few moments until
the lighter pops out automatically.
When used as a socket: 180 W max.
Portable ashtray
After opening, pull upwards then empty
the ashtray into a bin.
Overhead storage compartment
This is located above the sun visors.
Maximum load: approximately 20 kg.
