2010 Peugeot Boxer Dag Owner's Manual

136
Changing a wheel

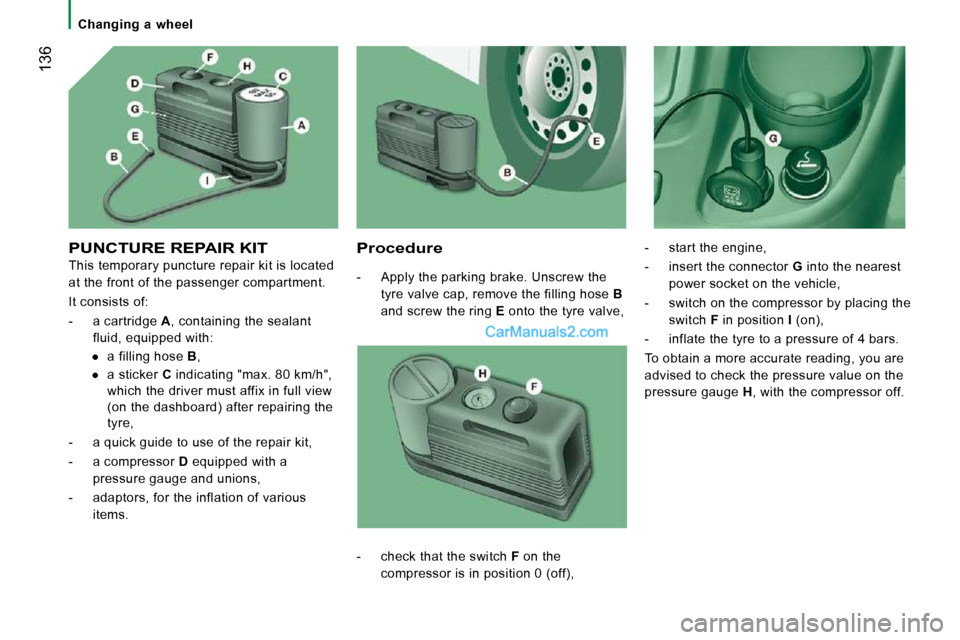

PUNCTURE REPAIR KIT
This temporary puncture repair kit is located
at the front of the passenger compartment.
It consists of:
- a cartridge A , containing the sealant
fluid, equipped with:

137
QUICK HELP
8
Changing a wheel

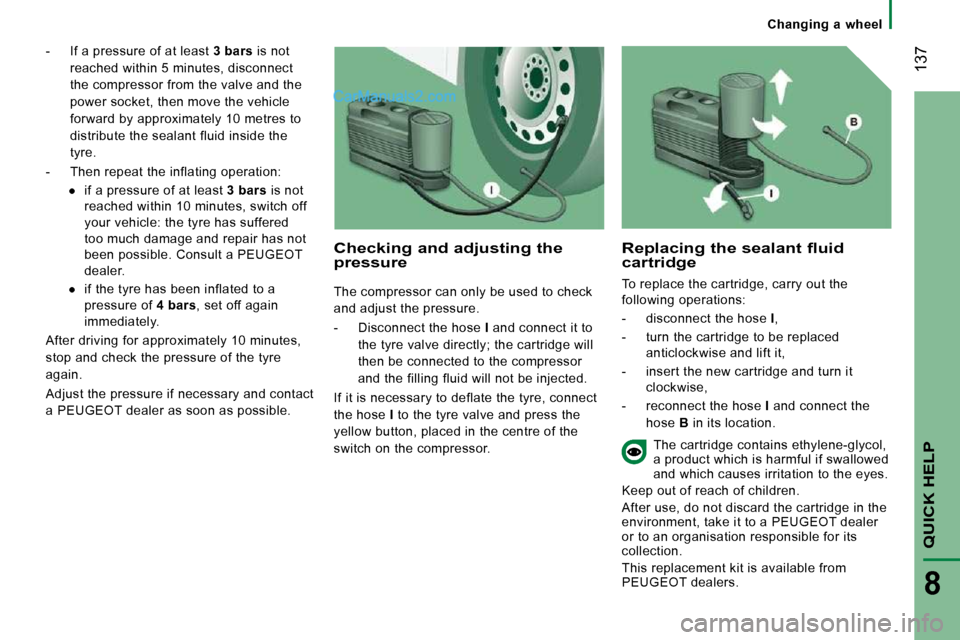

- If a pressure of at least 3 bars is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the sealant fluid inside the
tyre.
- Then repeat the inflating operation:

138
Changing a bulb
TYPES OF BULB
Various types of bulb are installed on your
vehicle. To remove them:
CHANGING A BULB

Type A Entirely glass bulb: pull gently
as it is fitted by pressure.

Type B Bayonet bulb: press on the bulb
then turn it anticlockwise.

Type C Cylindrical bulb: move aside the
contacts.

Type D - E Halogen bulb: release the
retaining spring from its
housing.
FRONT LAMPS
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.

139
QUICK HELP
8
Changing a bulb
1 - Dipped beam headlamp

Type D , H7 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the lamp. 3 - Main beam headlamp

Type E , H1 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the groove on the lamp.
2 - Sidelamp

Type A , W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Remove the bulb holder fitted by pressure.
- Change the bulb. 4 - Direction indicators

Type B , PY 21 W - 21 W
- Turn the bulb holder a quarter turn anticlockwise. - Remove the bulb by pressing it lightly
while turning it anticlockwise.
- Change the bulb.
5 - Foglamps

Type D , H1 - 55 W
- Turn the steering fully to the left.
- Unscrew the screw located in the wheel arch then open the flap.
- Remove the cover.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the lamp.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not
touch the bulb directly with your fingers,
use lint-free cloths.
When each operation has been completed,
check the operation of the lamps.
When using a high pressure washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their edges to
avoid damaging their varnish and seals.

140
Changing a bulb
DIRECTION INDICATOR SIDE REPEATER

Type A , W 16 W F - 16 W
- Move the mirror glass to access the screws.
- Unscrew the two screws using the screwdriver supplied.
- Pull the bulb holder to release it from the dog points.
- Pull the bulb then change it.
Front/Rear
COURTESY LAMPS

Type C , 12 V 10 W - 10 W
- Press the points, indicated by the arrows, then remove the courtesy lamp.
- Open the protective flap.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy lamp in its housing and ensure that it is secured correctly.
SIDE MARKER LAMPS

Type A , W 5 W - 5 W
- If your vehicle is fitted with these lamps (van type L4), unscrew the two screws
using the screwdriver supplied.
- Pull the bulb holder to release it from the lugs.
- Pull the bulb then change it.

QUICK HELP
8
Changing a bulb
REAR LAMPS
For more information on the bulbs, refer to
the table "Types of bulb". - Remove the two fixing nuts.
- Pull the lens block from the outside.
- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

1. Brake/
sidelamps

Type B, P 21/5 W - 5 W
THIRD BRAKE LAMP

Type B , P21 W - 21 W
- Unscrew the two screws.
- Remove the lamp.
- Remove the bulb holder moving aside the two tabs.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

2. Direction indicators

Type B, PY 21 W - 21 W

3. Reversing
lamps

Type B, P 21 W - 21 W

4. Foglamps

Type B, P 21 W - 21 W
- Identify the faulty bulb then open the rear doors.
- Disconnect the electrical connector.

Type A , C 5 W - 5 W
- Press the point, indicated by the arrow, then remove the plastic lens.
- Change the bulb by moving aside the two contacts. - Ensure that the new bulbs are secured
correctly between the two contacts.
- Replace the plastic lens and press on it.

142

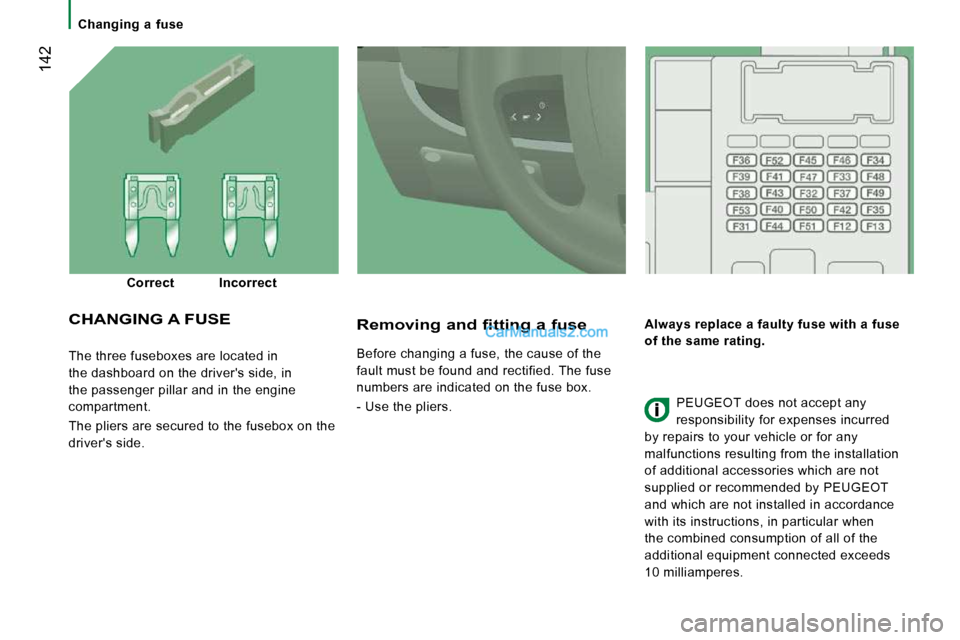

Changing a fuse
The three fuseboxes are located in
the dashboard on the driver's side, in
the passenger pillar and in the engine
compartment.
The pliers are secured to the fusebox on the
driver's side.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
CHANGING A FUSE
PEUGEOT does not accept any
responsibility for expenses incurred
by repairs to your vehicle or for any
malfunctions resulting from the installation
of additional accessories which are not
supplied or recommended by PEUGEOT
and which are not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.

Correct Incorrect

143
QUICK HELP
8
Changing a fuse

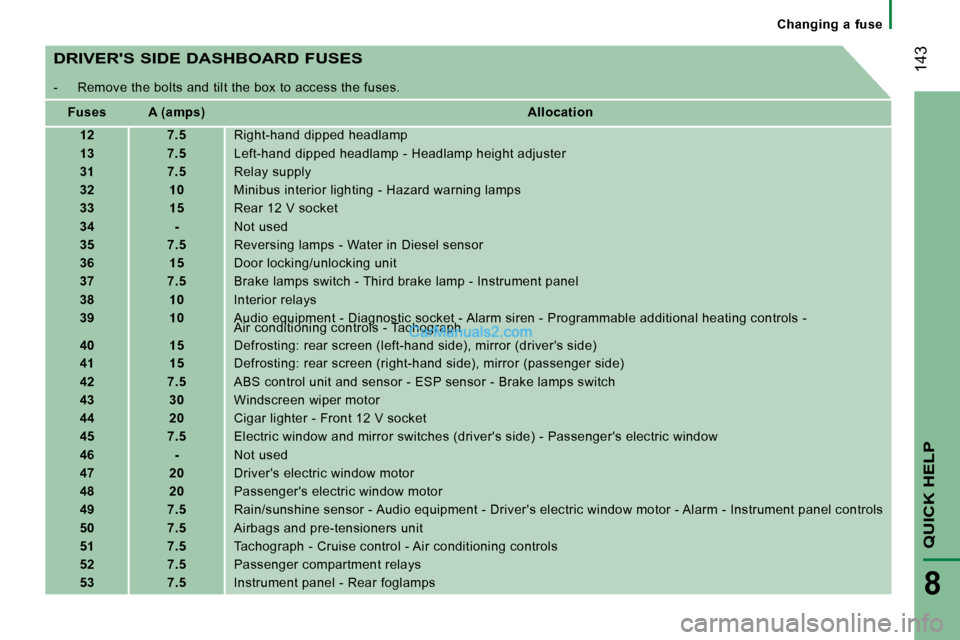

DRIVER'S SIDE DASHBOARD FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation

12 7.5 Right-hand dipped headlamp

13 7.5 Left-hand dipped headlamp - Headlamp height adj uster

31 7.5 Relay supply

32 10 Minibus interior lighting - Hazard warning lamp s

33 15 Rear 12 V socket

34 - Not used

35 7.5 Reversing lamps - Water in Diesel sensor

36 15 Door locking/unlocking unit

37 7.5 Brake lamps switch - Third brake lamp - Instrum ent panel

38 10 Interior relays

39 10 Audio equipment - Diagnostic socket - Alarm sir en - Programmable additional heating controls -
Air conditioning controls - Tachograph

40 15 Defrosting: rear screen (left-hand side), mirro r (driver's side)

41 15 Defrosting: rear screen (right-hand side), mirr or (passenger side)

42 7.5 ABS control unit and sensor - ESP sensor - Brak e lamps switch

43 30 Windscreen wiper motor

44 20 Cigar lighter - Front 12 V socket

45 7.5 Electric window and mirror switches (driver's s ide) - Passenger's electric window

46 - Not used

47 20 Driver's electric window motor

48 20 Passenger's electric window motor

49 7.5 Rain/sunshine sensor - Audio equipment - Driver 's electric window motor - Alarm - Instrument panel controls

50 7.5 Airbags and pre-tensioners unit

51 7.5 Tachograph - Cruise control - Air conditioning controls

52 7.5 Passenger compartment relays

53 7.5 Instrument panel - Rear foglamps
