Instruments and controls
28

Warning
lamp is indicates Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition, allow the system
to cool.
Visually check the level.
on H in the red
zone. a coolant temperature. Refer to the "Levels" section of chapter 7. Consul
t a
PEUGEOT dealer.
Engine oil
pressure on while driving. that the pressure is too low.
Park and switch off the ignition, allow the lubric
ation
system to cool in order to check its level. Refer t o the
"Levels" section of chapter 7.
continuously on,
even though the
level is correct. a major fault. Consult a PEUGEOT dealer.
flashing, for a
few seconds,
with a message
on the screen. that a service will soon be due.
Refer to the list of checks in the servicing bookl
et then
carry out the PEUGEOT service.
Battery charge on.
a fault in the charging circuit. Check the battery terminals… Refer to the "Battery
"
section of chapter 8.
continuously on,
fixed or flashing
in spite of the
checks. a circuit fault, an ignition or
injection malfunction.
Consult a PEUGEOT dealer.
Door or bonnet
open detection on. that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors
and
the bonnet are closed.

29
2
READY TO SET OFF

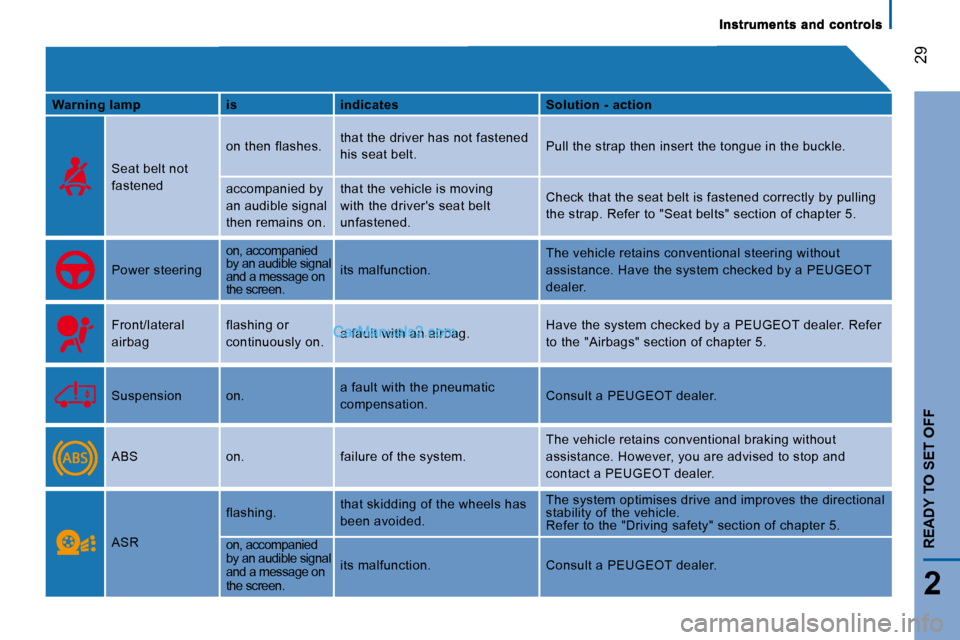

Warning
lamp is indicates Solution - action
Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckl
e.
accompanied by
an audible signal
then remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by
pulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering on, accompanied
by an audible signal
and a message on
the screen. its malfunction.
The vehicle retains conventional steering without
assistance. Have the system checked by a PEUGEOT
dealer.
Front/lateral
airbag flashing or
continuously on.
a fault with an airbag. Have the system checked by a PEUGEOT dealer. Refer
to the "Airbags" section of chapter 5.
Suspension on. a fault with the pneumatic
compensation. Consult a PEUGEOT dealer.
ABS on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer.
ASR flashing.
that skidding of the wheels has
been avoided. The system optimises drive and improves the direct
ional
stability of the vehicle.
Refer to the "Driving safety" section of chapter 5 .
on, accompanied
by an audible signal
and a message on
the screen.

its malfunction. Consult a PEUGEOT dealer.

Instruments and controls
30

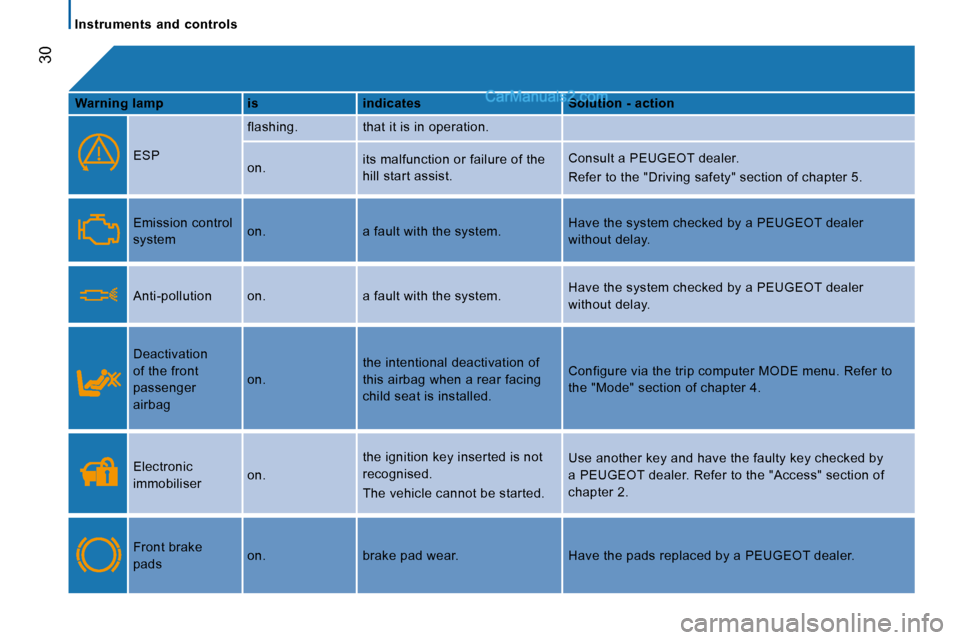

Warning
lamp is indicates Solution - action
ESP flashing.
that it is in operation.
on. its malfunction or failure of the
hill start assist. Consult a PEUGEOT dealer.
Refer to the "Driving safety" section of chapter 5.

Emission control
system on.
a fault with the system. Have the system checked by a PEUGEOT dealer
without delay.
Anti-pollution on. a fault with the system. Have the system checked by a PEUGEOT dealer
without delay.
Deactivation
of the front
passenger
airbag on.
the intentional deactivation of
this airbag when a rear facing
child seat is installed. Configure via the trip computer MODE menu. Refer t
o
the "Mode" section of chapter 4.
Electronic
immobiliser on. the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key checked by
a PEUGEOT dealer. Refer to the "Access" section of
chapter 2.
Front brake
pads on.
brake pad wear. Have the pads replaced by a PEUGE OT dealer.

Instruments and controls
31
2
READY TO SET OFF

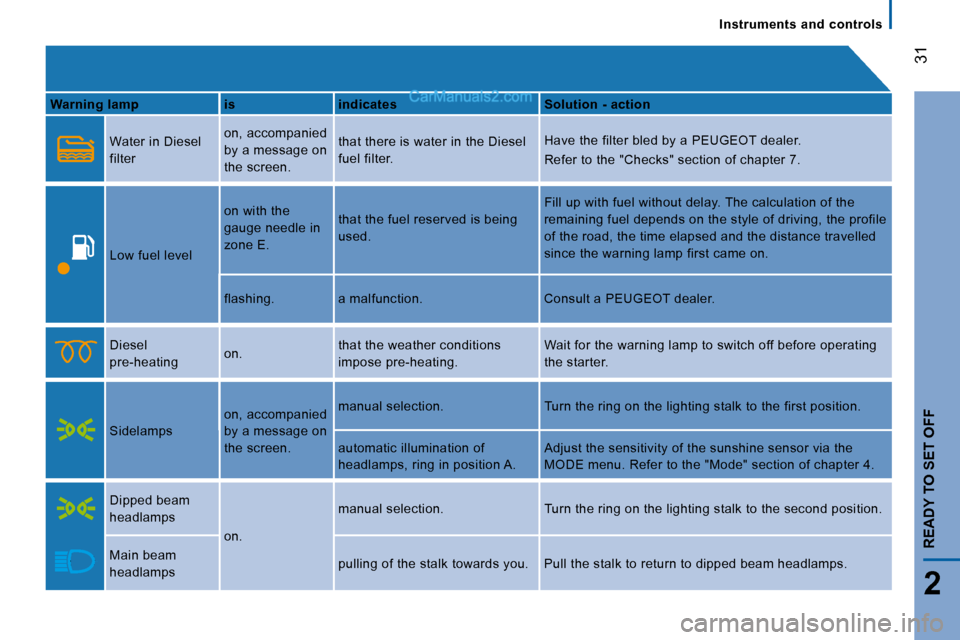

Warning
lamp is indicates Solution - action
Water in Diesel
filter on, accompanied
by a message on
the screen. that there is water in the Diesel
fuel filter.
Have the filter bled by a PEUGEOT dealer.
Refer to the "Checks" section of chapter 7.
Low fuel level on with the
gauge needle in
zone E.
that the fuel reserved is being
used. Fill up with fuel without delay. The calculation o
f the
remaining fuel depends on the style of driving, the profile
of the road, the time elapsed and the distance trav elled
since the warning lamp first came on.
flashing. a malfunction. Consult a PEUGEOT deale r.
Diesel
pre-heating on. that the weather conditions
impose pre-heating. Wait for the warning lamp to switch off before ope
rating
the starter.
Sidelamps on, accompanied
by a message on
the screen. manual selection.
Turn the ring on the lighting stalk to the first p osition.
automatic illumination of
headlamps, ring in position A. Adjust the sensitivity of the sunshine sensor via
the
MODE menu. Refer to the "Mode" section of chapter 4 .
Dipped beam
headlamps on. manual selection.
Turn the ring on the lighting stalk to the second position.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk
to return to dipped beam headlamps.

Instruments and controls
32

Warning
lamp is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lighting stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front foglamps on. that the button on the centre
console has been pressed. Manual selection.
The foglamps only operate if the sidelamps or dippe
d
beam headlamps are on.
Rear foglamps on. that the button on the centre
console has been pressed. Manual selection. The foglamps only operate if the

sidelamps or dipped beam headlamps are on. When
visibility is normal, please switch the foglamps of f.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering mounted controls" section of

chapter 3.
Faulty bulb on accompanied
by a message
on the screen. that one or more bulbs have
blown. Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a PEUGEOT dealer.
Rear parking
sensors on.
failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT dealer
without delay.

Instruments and controls
33
2
READY TO SET OFF

Screen displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the screen. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.

Refer to the "Driving Safely" section of chapter 5" .
Date 11:00:00 a setting:
Date. Time. a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4.
Headlamp beam
height a headlamp
height setting. A position from 0 to 3
depending on the load carried Adjust using the control on the dashboard. Refer t
o the
"Steering mounted controls" section of chapter 3.
Service spanner a service
spanner which
remains on. that a service will soon be due.
Refer to the list of checks in the servicing bookl
et. Have
the service carried out by a PEUGEOT dealer.

Instruments and controls
34
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- F (Full): the fuel tank is full,
approximately 90 litres.
- E (Empty): the reserve is now being
used, the warning lamp comes on
continuously.
The reserve when the warning first comes
on is approximately 11 litres.
Fuel tanks of different capacities (60 and
125 litres) are available as an option.
COOLANT TEMPERATURE

The needle is positioned between
C (Cold) and H (Hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations. - wait for the engine to cool down in
order to check the level and top it up if
necessary. Follow this advice:
the cooling system is pressurised. In order to avoid any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.
Refer to the "Levels" section of chapter 7.
Refer to the "Fuel" section of chapter 7.
What you should do if the needle enters the
red zone, or if the warning
lamp
comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for
a certain time up to approximately
10 minutes.
EMISSION CONTROL
EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles, detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
Therefore, the driver is warned of any
malfunction of this emission control
system by the lighting of this specifi c
warning lamp on the instrument panel.
There is a risk of damage to the catalytic
converter. Have it checked by a PEUGEOT
dealer.

Instruments and controls
35
2
READY TO SET OFF
SERVICE INDICATOR
For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
LIGHTING RHEOSTAT
The rheostat is active when the lighting is on.
After a few seconds, the display returns to
its usual functions.
Use these controls to adjust the
brightness of the instrument panel.
There are 8 levels.
A long press returns you to the main menu.
Refer to "Mode" section of chapter 4.
Deterioration of the engine oil (100 and 120 bhp engines)
The "Oil Life" function determines the
service interval, between 20,000 miles
(30,000 km) and 30,000 miles (45,000 km),
depending on the wear of the engine oil.
The engine control unit tests the degree of
wear of the engine oil. Refer to the list of checks in the
servicing booklet which was given to
you on handover of the vehicle.
Reminder of servicing information
At any time, to access the service indicator,
press briefly on the MODE button.
Use the up/down arrows to see the
scheduling and engine oil wear information.
Pressing the MODE button again allows you
to return to the various display menus.
Menu... Choose...
Allows you
to...

12
Service Service
(Miles/km
before oil
change) Display the
distance
remaining
before the
next oil
change.
Oil Display the
oil level.
Resetting to zero
The stopping of the permanent flashing of
the indicator is carried out by an authorised
repairer with a diagnostic tool.
In this case, your vehicle must be serviced
as soon as possible (within approximately
600 miles/1 000 km).
The function must be reset to zero every
time the engine oil is changed.
You are warned by the flashing of
the engine oil pressure warning
lamp and a message on the
instrument panel every time you
start the engine, if your vehicle is fitted with
this function.
