2010 Peugeot Boxer Dag Owner's Manual

75
4
TECHNOLOGY ON BOARD
Mode

Menu… Press... Sub-menu… Press... Select…
Confirm
and exit
Enables you to...

8 Measurement
unit (Unit) Distance
Km
Select the distance display unit.
Miles
Fuel
onsumption km/l
Select the fuel consumption
display unit.
l/100 km

9 Languages List of
languages
available Select the display language.

10 Volume of
announcements
(Buzz) Increase Increase/decrease the volume
of the announcements or of the
audible warning.
Decrease

11 Volume of
the buttons Increase
Increase/decrease the volume of
the buttons.
Decrease

12 Service Service
(Miles/km before
oil change) Display the miles/kilometres
remaining before the next oil
change.
Oil Display the oil level.

13 Passenger
airbag
(BAG P) ON
Yes
Activate the passenger airbag.
No
OFF Yes
Deactivate the passenger
airbag.
No

14 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

kmC I T Y
Parking assistance
76
AUDIBLE REAR PARKING SENSORS
If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.
They detect any obstacle: person, vehicle,
tree, fence, behind the vehicle during the
manoeuvre.
However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors. Examples: stake,
roadworks cone or pavement post. Engage reverse gear
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
The system cannot, in any circumstances, take
the place of the vigilance and responsibility of
the driver.
Stop the assistance
Change to neutral.
Operating fault
If this warning lamp comes on on
the instrument panel, contact a
PEUGEOT dealer. If your vehicle is fitted
with this screen, a
message appears.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

77
4
TECHNOLOGY ON BOARD
Reversing camera

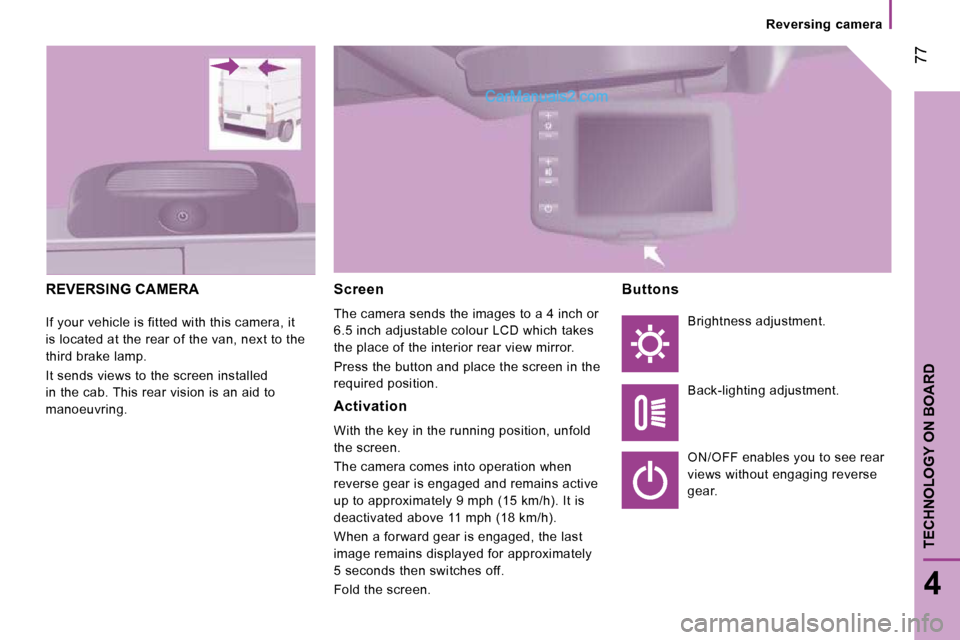

REVERSING CAMERA
If your vehicle is fitted with this camera, it
is located at the rear of the van, next to the
third brake lamp.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.
Screen
The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior rear view mirror.
Press the button and place the screen in the
required position.
Activation
With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen.
Buttons
Brightness adjustment.
Back-lighting adjustment.
ON/OFF enables you to see rear
views without engaging reverse
gear.

Reversing camera
78 Initial settings With reverse gear not engaged,
press and hold the ON/OFF button
for approximately 3 seconds. The
button fl ashes twice to confi rm the
reinitialisation.
Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:
- each time reverse gear is engaged, a message appears before the first view is
transmitted,
- at 11 mph (18 km/h) in reverse gear, the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).
Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored. Good practice
When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately 3 m
long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a PEUGEOT dealer to have the
screen repaired.

79
4
TECHNOLOGY ON BOARD
Pneumatic suspension

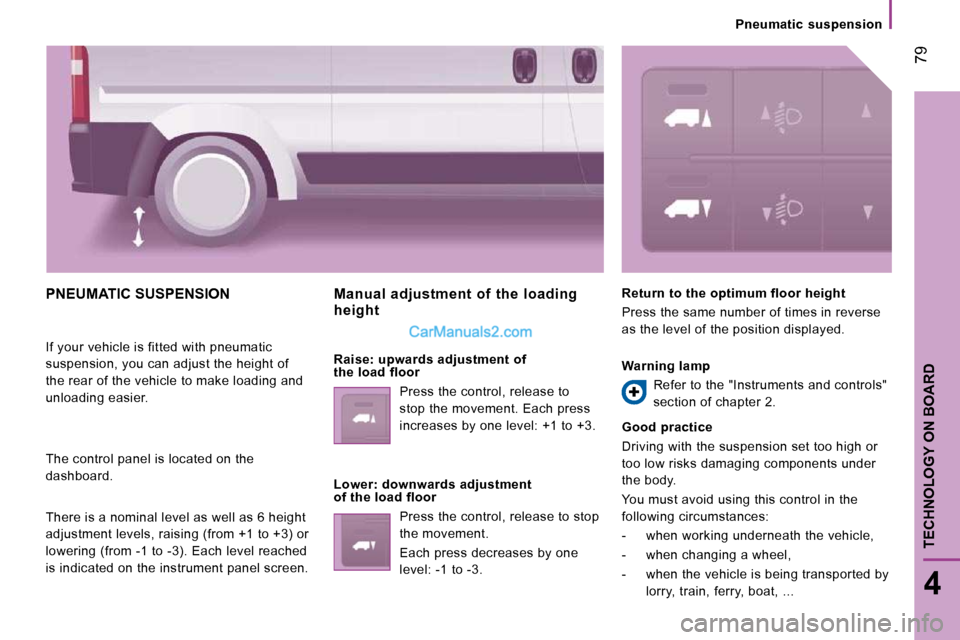

PNEUMATIC SUSPENSION
If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.
The control panel is located on the
dashboard.
There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel screen.
Manual adjustment of the loading height
Raise: upwards adjustment of
the load floor Press the control, release to
stop the movement. Each press
increases by one level: +1 to +3.
Lower: downwards adjustment
of the load floor Press the control, release to stop
the movement.
Each press decreases by one
level: -1 to -3. Return to the optimum floor height
Press the same number of times in reverse
as the level of the position displayed.
Warning lamp
Refer to the "Instruments and controls"
section of chapter 2.

Good practice
Driving with the suspension set too high or
too low risks damaging components under
the body.
You must avoid using this control in the
following circumstances:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ...

Tachograph
80

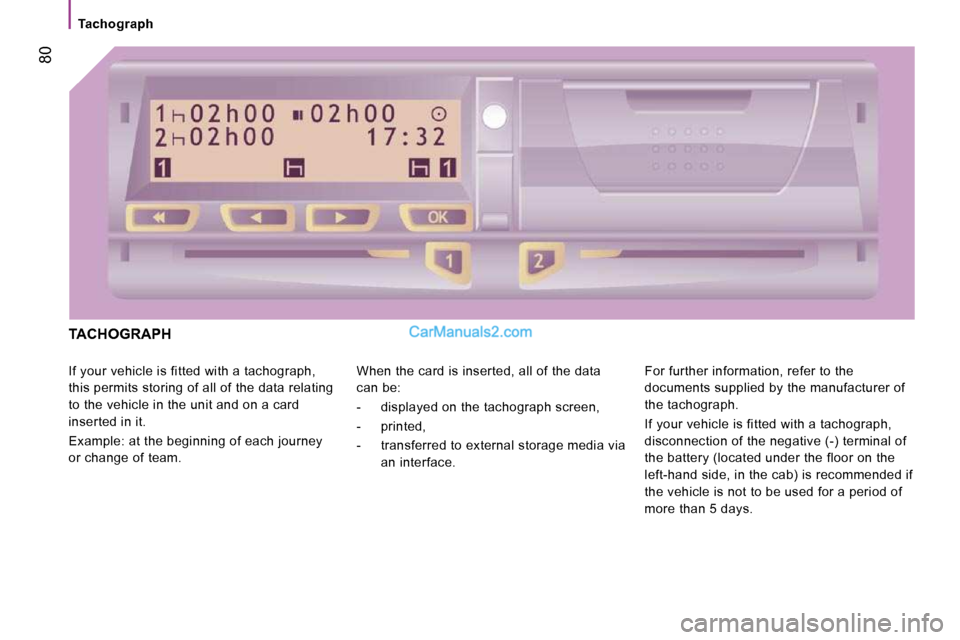

TACHOGRAPH
If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
Example: at the beginning of each journey
or change of team. When the card is inserted, all of the data
can be:
- displayed on the tachograph screen,
- printed,
- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a tachograph,
disconnection of the negative (-) terminal of
the battery (located under the floor on the
left-hand side, in the cab) is recommended if
the vehicle is not to be used for a period of
more than 5 days.

FM
MUTE CD
AM
AS
81
4
TECHNOLOGY ON BOARD
Audio equipment
01 FIRST STEPS
Selection of wavebands FM1, FM2, FMt.
Automatic storing of stations (autostore).
1/2/3/4/5/6: selection of the stored station. Storing of a station.
Access to the menu.
Scanning of the stored stations. Manual search for a
lower/higher radio frequency.
Selection of the REG programmes.
Previous/next menu function settings.
Next/previous CD/ MP3CD track.
Fast backwards/forwards playing of the current CD/ MP3CD track.
Automatic search
for a higher/lower radio frequency.
Higher/lower audio settings.
Next/previous menu function.
CD eject.
Selection of AM wavebands.
Setting of the audio options: bass, treble, fader
(front/rear), balance (left/right).
Loudness.
Volume adjustment.
On.
Off.
Selection of the source:
radio, CD,
MP3CD.
Mute.
Requires a long press.

Audio equipment
82

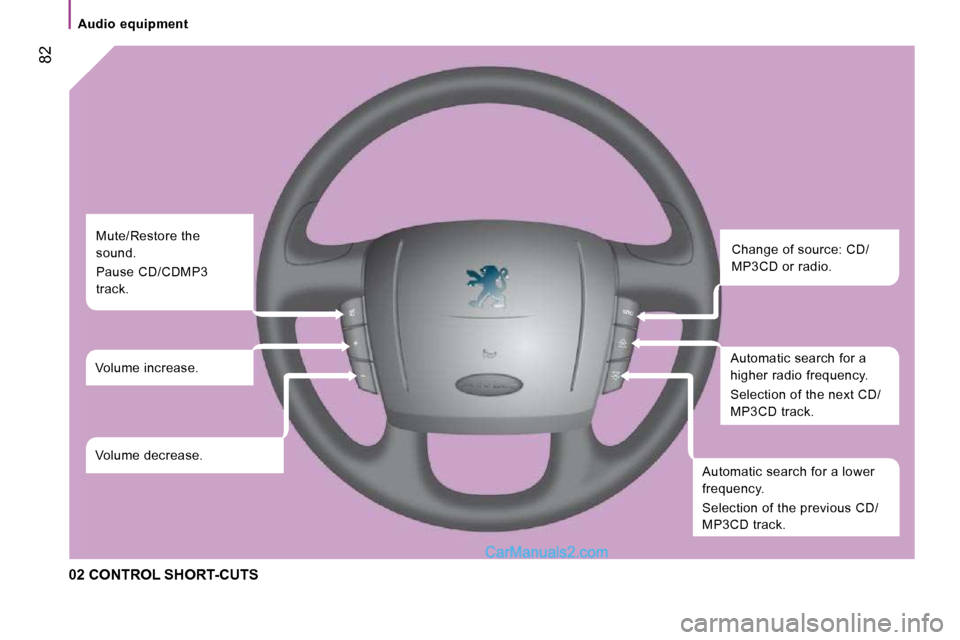

02 CONTROL SHORT-CUTS
Change of source: CD/
MP3CD or radio.
Automatic search for a
higher radio frequency.
Selection of the next CD/
MP3CD track.
Automatic search for a lower
frequency.
Selection of the previous CD/
MP3CD track.
Mute/Restore the
sound.
Pause CD/CDMP3
track.
Volume increase.
Volume decrease.
