2010 Peugeot 407 Owner's Manual

FAMILIARISATION
Front seat belt

1. Fastening.

2. Height adjustment.
1. Stop position.

2. Ignition position.

3. Starting position.

 67
Electric window controls

1. Driver’s electric window switch.

2. Passenger electric window switch.

3. Rear right electric window switch.

4. Rear left electric window switch.
Ignition switch

 88
Also...

5. Deactivation of the electric
window switches located in
the rear (child safety).
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.

FAMILIARISATION
Lights
Ring B
Windscreen wipers with intermittent wipe

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Park.



Single wipe.
Wipers
Rear wiper (SW)
Front fog lamps (one press).
Rear fog lamps (two presses). Park.
Intermittent wipe.
Wash-wipe.

 74

 77
 78
Automatic windscreen wipers

2 Fast wipe.

1 Normal wipe.

AUTO Automatic wipe.

0 Park.



Single wipe.
Ring A
Lights off
Automatic switching on of the
lights.
Side lights
Dipped/Main beam headlamps Windscreen wipers with intermittent
and automatic wipe

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Park.

 77
Automatic wipe then single
wipe.

FAMILIARISATION
Automatic air conditioning (monozone)
1. Automatic programme (comfort).

2. Temperature adjustment.

3. Air fl ow adjustment.

 36 Automatic air conditioning (dual zone)

1. Driver and passenger automatic programme (comfort).

2. Driver’s side temperature adjustment.
Passenger’s side temperature adjustment.

3. Air fl ow adjustment.

 40
Ventilation off.

4. Air distribution adjustment.

5. Front visibility control.

6. Rear screen demisting.

7. Intake of exterior air.
Recirculation of interior air. Ventilation off.

4. Driver’s air distribution adjustment.

5. Passenger’s air distribution adjustment.

6. Front visibility control.

7. Rear screen demisting.

8. Intake of exterior air.
Recirculation of interior air.

FAMILIARISATION
Instrument panel

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, its as-
sociated low level warning light
should switch off.

C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low. Lighting of the indicator light indicates
the status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.

 18

 20
 104

A. Audible front/rear parking
assistance off.

B. Central locking.

C. Interior protection alarm off.

D. Hazard warning lights.

E. Selection of the electroni-
cally controlled suspension.

F. Electronic stability pro-
gramme ESP off.
 62

 65
 86
 97

 86
Warning lights Controls bar

FAMILIARISATION

1. Insertion of the key.

2. Selection of the "OFF" position

3. Removal of the key keeping the
switch in this position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if a front
occupant has not fastened his seat belt
and if the vehicle speed is below 12 mph
(20 km/h) , you are warned by the seat belt
warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat belt
warning light which fl ashes, an audible
signal and a message on the multifunction
display locating the seat belt(s) left unfas-
tened.
Detection of fastening of the
front seat belts

 91

 88
 64
Front passenger air bag
Electric child lock

FAMILIARISATION

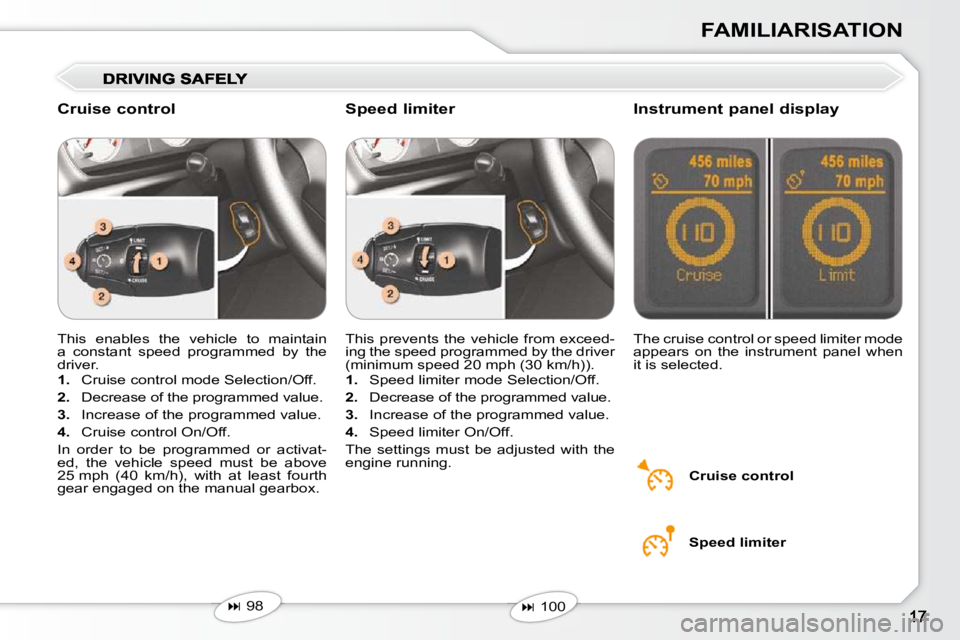

This enables the vehicle to maintain
a constant speed programmed by the
driver.

1. Cruise control mode Selection/Off.

2. Decrease of the programmed value.

3. Increase of the programmed value.

4. Cruise control On/Off.
In order to be programmed or activat-
ed, the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).

1. Speed limiter mode Selection/Off.

2. Decrease of the programmed value.

3. Increase of the programmed value.

4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control

 98

 100
Cruise control
Instrument panel display
Speed limiter

1
18

1
19

1. Coolant temperature gauge.

2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.

3. Rev counter dial.

4. Warning lamps:
seat belts not fastened in the front.
fuel level.
left direction indicator.

5. Fuel level gauge.
PETROL-DIESEL MANUAL AND AUTOMATICGEARBOX INSTRUMENT PANELS

10. CHECK and trip recorder zero
reset and service display button.

11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.

12. Instrument panel lighting rheostat.

6. Warning lamps:
parking brake applied or brake fl uid level or electronic brake force
distribution fault.
right direction indicator.

7. Speedometer.

8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).

9. Engine oil temperature gauge.
