CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.

With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- an excessive drop in the brake fl u- id level, in this case linked with the

STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the

STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-
ted on the instrument panel
screen in the case of the last
2 faults.

Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* Suivant destination.

1
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.

With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- an excessive drop in the brake fl u- id level, in this case linked with the

STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the

STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-
ted on the instrument panel
screen in the case of the last
2 faults.

Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* Suivant destination.

1
21

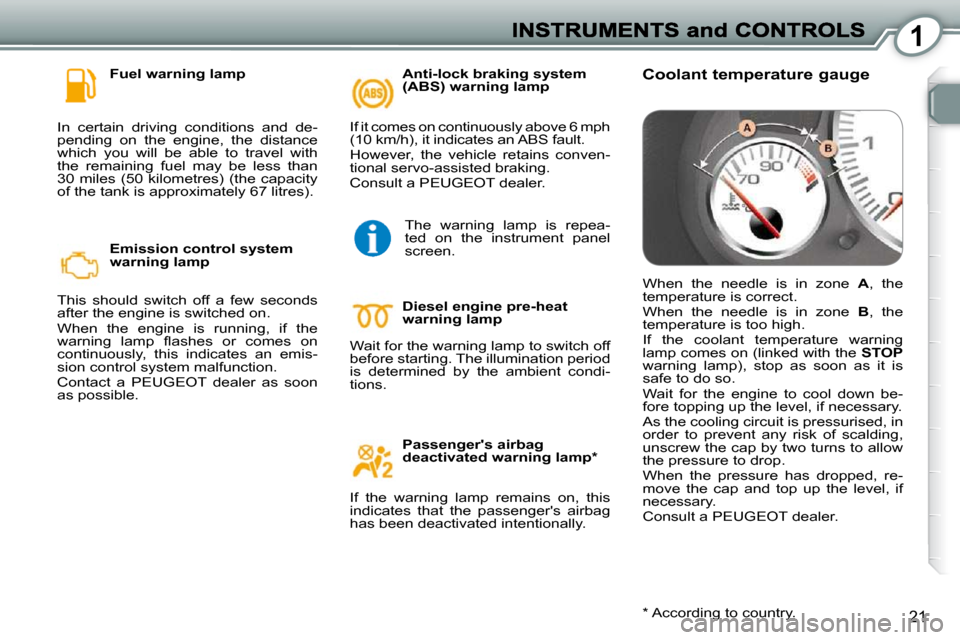

Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning lamp fl ashes or comes on
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient condi-
tions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen. Coolant temperature gauge
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.

1
21
Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning lamp fl ashes or comes on
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient condi-
tions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen. Coolant temperature gauge
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.

1
22
Battery charge warning
lamp
When the engine is running, this in-
dicates a charging circuit malfunction
(battery terminals, alternator belt).
Consult a PEUGEOT dealer. Tyre under-infl ation warning
lamp
This indicates that the tyre pressure is
too low.
A message on the multifunction screen
indicates the wheel(s) concerned.
Refer to the information label affi xed
to the central pillar of the driver's door.
For your safety, check the tyre pres-
sures as soon as possible.
Electronic stability control system
(ESP) warning lamps Activation warning lamp
Operation warning lamp
Deactivation warning lamp
Malfunction warning lamp
Power steering warning
lamp
This indicates a power steering fault.
It is linked with the STOP warning
lamp.
Consult a PEUGEOT dealer. Parking brake warning lamp
This indicates that the parking brake is
still applied or has not been released
correctly.
It is linked with the braking system
warning lamp. Low screenwash and
headlamp wash fl uid level
warning lamp
When the wipers are switched on, this
indicates that the fl uid level is too low.
Fill the screenwash and headlamp
wash fl uid reservoir.
Engine oil level warning
lamp
This indicates that the engine oil level
is too low.
WARNING LAMPS IN THE INSTRUMENT PANEL SCREEN
These warning lamps are displayed
on the instrument panel screen.
STOP warning lamp
When this is displayed alone, it indi-
cates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, bra-
king system or punctured tyre warning
lamps.

Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Punctured tyre warning lamp
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction screen
identifi es the wheel(s) concerned.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Stop as soon as it is safe to do so.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.

1
23
Tyre under-infl ation detection
system warning lamp
This indicates the absence or malfunc-
tion of one or more tyre pressure sen-
sors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning lamp
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pad wear
warning lamp
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel fi ller cap warning lamp
(according to version)
With the engine running, this indicates
that the fuel fi ller cap is incorrectly fi t-
ted or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
Water in diesel fi lter
warning lamp
This indicates the presence of water in
the diesel fi lter. There is a risk of da-
mage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
lamp
With the engine running, this indicates
that an opening has not been closed
correctly.
An illustration on the multifunction
screen identifi es the opening(s) con-
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Airbag warning lamp
This indicates an airbag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
lamp
This indicates that the automatic head-
lamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
lamp
This indicates that the engine oil pres-
sure is too low.
It is linked with the STOP warning
lamp.

Stop as soon as it is safe to do so if it
comes on while the engine is running.
If the engine oil level is low, top up the
oil and contact a PEUGEOT dealer as
soon as possible.

1
24
Particle emission fi lter
saturation warning lamp
(Diesel engine)
With the engine running, this indi-
cates that the particle emission fi lter
is star-ting to become saturated (ex-
ceptionally prolonged urban driving
type conditions: low speed, long traffi c
jams...) or a low diesel additive reser-
voir level.
In order to regenerate the fi lter, you are
advised to drive, as soon as possible
when the traffi c conditions permit, at a
speed of 40 mph (60 km/h) or above
for at least fi ve minutes (until the war-
ning lamp is switched off).
If the warning lamp remains on, con-
tact a PEUGEOT dealer.
Following prolonged use of the vehi-
cle at very low speeds or at idle, you
may, exceptionally, notice an emission
of water vapour at the exhaust during
acceleration. This does not affect the
performance of the vehicle or the en-
vironment.
Service warning lamp
This is displayed to indicate an engine
management system fault.
Contact a PEUGEOT dealer as soon
as possible. Automatic gearbox fault
warning lamp
This indicates an automatic gearbox
fault.
The gearbox will operate in down-
graded mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
Electronically controlled
suspension fault warning
lamp
This indicates an electronically con-
trolled suspension malfunction.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible. Parking sensor system
warning lamp
In reverse gear, this indicates a park-
ing sensor system fault.
Consult a PEUGEOT dealer. Electronically controlled
suspension indicator lamps
This comes on when the SPORT func-
tion is activated. This comes on when the SPORT
function is deactivated.
Automatic illumination of
headlamps indicator lamp
Automatic illumination of
headlamps deactivation
indicator lamp
Automatic rain sensitive
wipers indicator lamp
Automatic rain sensitive
wipers deactivation
indicator lamp
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.

1
25
This indicates an automatic
gearbox programme fault.
Automatic gearbox lever position indicators
This indicates an automatic
gearbox malfunction.

4 or 6 speed automatic gearbox
"Park" indicator
"Reverse" indicator
"Neutral" indicator
"Drive" indicator
The letter S or the symbol  associat-
ed with the gate lever position indicator
comes on, corresponds to the Sport or
Snow programme selected intentionally.
These correspond to the manual con-
trol of the gearbox, four or six speed.
When the engine speed is too low or
too high in relation for gear engaged,
the gear selected fl ashes for a few
seconds, then the actual gear is dis-
played, the auto-adaptive programme
having taken control temporarily.
Engine oil temperature gauge
When the ignition is switched on or
while the vehicle is moving, this indi-
cates the engine oil temperature.
When the needle is in zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature. Manual indicator
