2010 Peugeot 407 Dag Owner's Manual

FAMILIARISATION
Front seat belt

1. Fastening.

2. Height adjustment.
1. Stop position.

2. Ignition position.

3. Starting position.

 67
Electric window controls

1. Driver's electric window switch.

2. Passenger electric window switch.

3. Rear right electric window switch.

4. Rear left electric window switch.
Ignition switch

 88
Also...

5. Deactivation of the electric
window switches located in
the rear (child safety).
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.

FAMILIARISATION
Lighting
Ring B Windscreen wipers with intermittent
wipe

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Park.

 Single wipe.
Wipers
Rear wiper (SW)
Front foglamps (turn once).
Rear foglamps (turn twice). Park.
Intermittent wipe.
Wash-wipe.

 74

 77
 78
Automatic rain sensitive windscreen
wipers

2 Fast wipe.

1 Normal wipe.

AUTO Automatic wipe.

0 Park.

 Single wipe.
Ring A
Lighting off
Automatic illumination of head-
lamps
Sidelamps
Dipped/main beam headlamps Windscreen wipers with intermittent
and automatic wipe

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Park.

 77
Automatic wipe then single wipe.

FAMILIARISATION

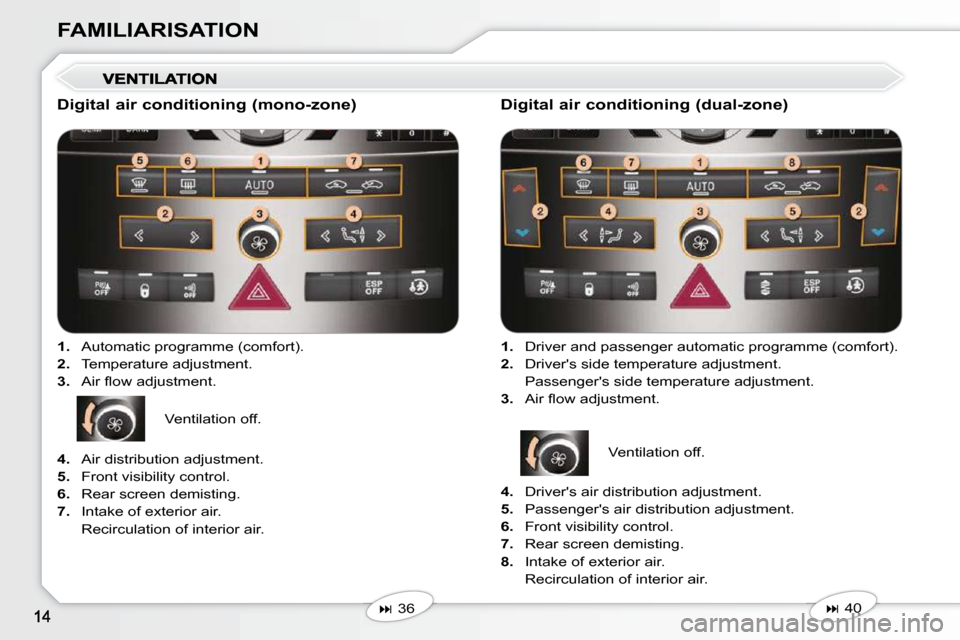

Digital air conditioning (mono-zone)
1. Automatic programme (comfort).

2. Temperature adjustment.

3. Air fl ow adjustment.

 36 Digital air conditioning (dual-zone)

1. Driver and passenger automatic programme (comfort).

2. Driver's side temperature adjustment.
Passenger's side temperature adjustment.

3. Air fl ow adjustment.

 40
Ventilation off.

4. Air distribution adjustment.

5. Front visibility control.

6. Rear screen demisting.

7. Intake of exterior air.
Recirculation of interior air. Ventilation off.

4. Driver's air distribution adjustment.

5. Passenger's air distribution adjustment.

6. Front visibility control.

7. Rear screen demisting.

8. Intake of exterior air.
Recirculation of interior air.

FAMILIARISATION
Instrument panel

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, its as-
sociated low level warning lamp
should switch off.

C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator lamp indicates
the status of the corresponding function. When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should switch off.
If any warning lamp remains on, refer to
the page concerned.

 18

 20
 104

A. Audible front/rear parking
sensors off.

B. Central locking.

C. Alarm interior volumetric
protection off.

D. Hazard warning lamps.

E.
Selection of the electroni-
cally controlled suspension.

F. Electronic stability pro-
gramme ESP off.
 62

 65

 86

 97

 86
Warning lamps Switch panel

FAMILIARISATION

1. Insertion the key.

2. Select the "OFF" position

3. Removal the key keeping the switch
in the new position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion screen.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if
a front occupant has not fastened their
seat belt and if the vehicle speed is be-
low 12 mph (20 km/h) , you are warned
by the seat belt warning lamp which
comes on.
The warning lamp switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat
belt warning lamp which fl ashes, an
audible signal and a message on the
multifunction screen identifying the seat
belt(s) left unfastened.
Detection of front seat belt
fastening

 91

 88
 64
Front passenger's airbag
Electric child lock

FAMILIARISATION
This enables the vehicle to maintain
a constant speed programmed by the
driver.

1. Cruise control mode Selection/Off.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above 25 mph
(40 km/h), with at least fourth gear en-
gaged on the manual gearbox.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected. This prevents the vehicle from exceeding
the speed programmed by the driver (mini-
mum speed 20 mph (30 km/h)).

1. Speed limiter mode Selection/Off.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control

 98

 100
Cruise control
Instrument panel screen
Speed limiter

1
18

1
19

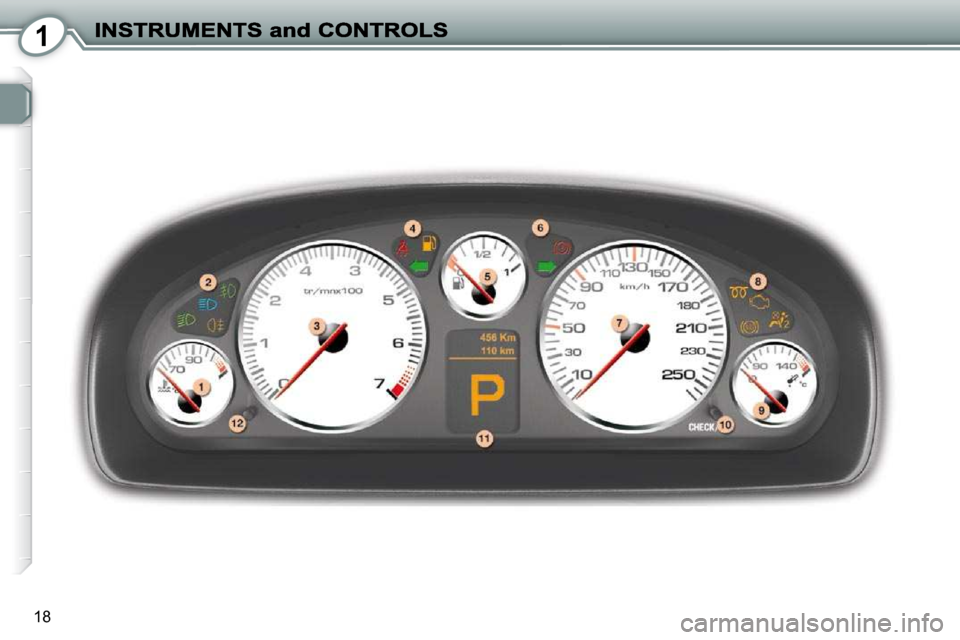

1. Coolant temperature gauge.

2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.

3. Rev counter dial.

4. Warning lamps:
seat belts not fastened in the front.
fuel level.
left direction indicator.

5. Fuel level gauge.
PETROL-DIESEL MANUAL AND AUTOMATICGEARBOX INSTRUMENT PANELS

10. CHECK and trip recorder zero
reset and service display button.

11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.

12. Instrument panel lighting rheostat.

6. Warning lamps:
parking brake applied or brake fl uid level or electronic brake force
distribution fault.
right direction indicator.

7. Speedometer.

8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).

9. Engine oil temperature gauge.
