2010 Peugeot 407 Dag Owner's Manual

FAMILIARISATION Sunroof (Saloon)
This roof improves the ventilation and
light in the passenger compartment.
 70
 68

 103

 102
Tyre under-inflation detection
This system checks the pressure of the
tyres while driving and warns you if a
malfunction occurs. Rear screen (SW)
This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.
Visual and audible front and
rear parking sensors
This system warns you if an obstacle
is detected in front of or behind the
vehicle in forward or reverse gear.

FAMILIARISATION
Remote control key

A. Unfolding/folding the key.

B. Unlocking the vehicle
(brief press).

C. Unlocking and partial opening of the
boot (saloon) or of the rear screen
(SW)
(long press).

Also...

D. Normal locking
(a single press)
or
deadlocking of the vehicle

(two presses in succession).
Fuel tank

1. Opening the fuel fi ller fl ap.

2. Opening and hooking the fuel fi ller
cap.
Tank capacity: approximately 67 litres.

A. Interior release lever

B. Exterior safety catch.

 61

 72  106
Bonnet

FAMILIARISATION

 Press the button and raise the boot
lid.

 68

 68
With the rear screen closed, to open the

boot , pull the handle A then raise the
tailgate.
Boot (SW) Rear screen (SW) Panoramic sunroof (SW)

 71

1. Opening the blind.

2. Closing the blind.
Boot (Saloon)
With the tailgate closed, to open the

rear screen , pull the handle B then
raise the rear screen.

The tailgate and the rear
screen cannot both be open
at the same time.

FAMILIARISATION
Digital air conditioning
This automatic air conditioning system
ensures comfort and adequate circulation
of air in the passenger compartment.
Cruise control/Speed limiter
The cruise control system automatically
maintains the speed of the vehicle at the
value programmed by the driver, without
any action on the accelerator pedal.
The speed limiter system prevents the
vehicle from exceeding the programmed
speed. Audio and communication
systems
These systems benefi t from the lat-
est technology: MP3 compatible audio
equipment, Bluetooth hands-free tele-
phone, colour screen, audio system,
auxiliary sockets.
4 or 6-speed automatic gearbox
This system provides driving in auto-
adaptive mode together with a choice
of modes to suit the dynamic driving
conditions.

 36

 98
 137

 95
INTERIOR

FAMILIARISATION INSTRUMENTS AND CONTROLS
1. Steering wheel height and reach
adjustment.

2. Lighting/Direction indicator control
stalk.

3. Instrument panel.

4. Wiper/Wash-wipe/Trip computer
control stalk.

5. Air diffuser vent grille.

6. Speakers (tweeters).

7. Passenger-operated electric
window control.

8. Cooled glove box.

9. Audio equipment steering mounted
controls.

10. Steering lock and ignition.

11. Cruise control/speed limiter
controls.

12. Storage compartment
(driver's side).
Fusebox.

13. Headlamp height adjustment.

14. Bonnet release.

FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Multifunction screen.

2. Audio and telematics system.

3. Automatic air conditioning controls.

4. Deactivation of the audible parking
sensors.
Central locking from the inside.
Alarm control.
Hazard warning lamps.
SPORT suspension control.
Deactivation of the ESP system.

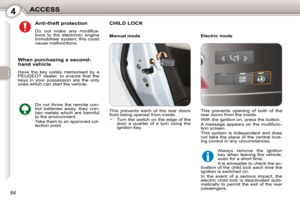

Child lock.

5. Ashtray/Front cigar lighter
(100 W max).

6. Gear lever.

7. Parking brake.

8. Retractable cup holder.

9. Armrest with storage compartment
and USB port.

10. 12 volt accessories socket
(100 W max).

11. Rear ashtray.
 139

 213
Peugeot Connect Media
Peugeot Connect Navigation
 184
Peugeot Connect Sound

FAMILIARISATION

 50
Forwards-backwards Height and angle of the driver'
s seat
cushion Seat back angle
Front seat adjustments

FAMILIARISATION

1. Mirror adjustment.
When stationary, unlock the steering
wheel adjustment by pushing the control
forwards then lock by pulling the control
fully.

 48

 48
Door mirror adjustment

A. Selection of the mirror.

B.
Adjustment of the position of the mirror.

Also...
To ensure optimum visibility
when manoeuvring, the mirror
lightens automatically when re-
verse gear is engaged.
Steering wheel adjustment
Automatic day/night rear view
mirror adjustment

 49

Also...

C. Folding/Unfolding.
