1010PRACTICAL INFORMATION
119
CHANGING A FUSE
The fuseboxes are placed in the lower
dashboard (driver's side) and in the
engine compartment (left-hand side). Dashboard fuses
To access the fuses, open the cover of the storage compartment on
the driver's
side. Tilt the fusebox downwards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi ed. The fuse numbers are indicated
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fusebox,
this support also contains the replace-
ment fuses.
Fuse N°
Rating

(A)
Functions

F1 15 Rear wiper.

F2 30 Central locking/deadlocking.

F3 5 Airbags.

F4 10 ESP dual function sensor, diagnostic socket,
sunroof (Saloon), steering wheel angle sensor.

F5 30 Front one-touch electric windows, sunroof
(Saloon), panoramic sunroof blind (407SW).

F6 30 Rear one-touch electric windows.

F7 5 Glove box lamp, side repeaters, front and rear
courtesy lamps, map reading lamps, courtesy
mirror.

F8 20 Multifunction screen, audio equipment, steering
mounted control, trailer fusebox, alarm control
unit, navigation-telematics (according to
country).

1010PRACTICAL INFORMATION
120

Fuse N°
Rating

(A)
Functions

F9 30 Cigar lighter, telematics (according to country), rear 12V acces sories socket (100 W max.).

F10 15 Tyre under-infl ation detection unit.

F11 15 Diagnostic socket, ignition switch.

F12 30 Bluetooth system, trailer socket, trailer fusebox, audible rear pa
rking sensors, passenger
electric seat, rain and sunshine sensor, alarm.

F13 5 Engine fusebox, windscreen wipers relay control.

F14 15 Driver's electric seat, instrument panel, air conditioning co ntrol panel, airbag control unit.

F15 15 Electric child lock, deadlocking of the rear doors.

F17 40 Heated rear screen.

FS1 - PARC shunt.

1010PRACTICAL INFORMATION
121

Fuse N°
Rating

(A)
Functions

G29 5 Telematics (according to country).

G30 30 Driver's electric seat.

G31 30 Passenger's electric seat.

G32 15 Rear 12V accessories socket (100 W max.).

G33 - Not used.

G34 - Not used.

G35 - Not used.

G36 - Not used.

G37 15 Six-speed automatic gearbox supply.

G38 30 Right and left heated seats.

G39 - Trailer fusebox (accessory).

G40 30 Hi-Fi audio assembly.

1010PRACTICAL INFORMATION
123

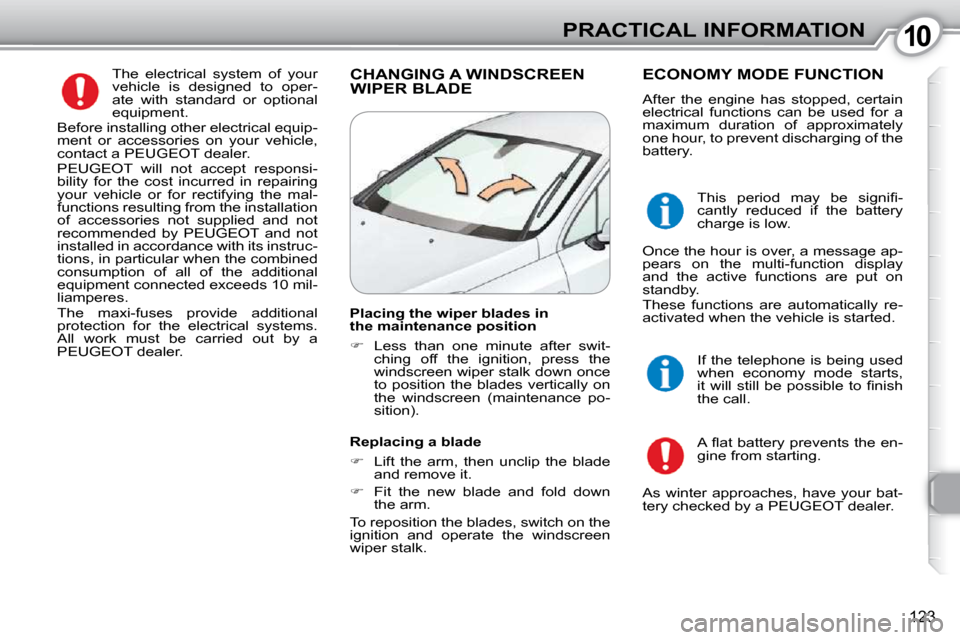

The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position

 Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade

 Lift the arm, then unclip the blade
and remove it.

 Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

1010PRACTICAL INFORMATION
122
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fusebox cover.
Close the fusebox cover carefully and
refi t the battery cover when you have
fi nished.
Fuse N°
Rating

(A)
Functions

1 20 Engine management control unit.

2 15 Horn.

3 10 Front and rear wash-wipe.

4 20 Headlamp wash.

5 15 Engine management actuators (fuel pump,
purge canister electrovalves, ...).

6 10 Automatic gearbox control unit.

7 10 Switching and protection unit, intake air
fl ow sensor, clutch switch, six-speed
automatic gearbox switch, STOP switches,
electrochromatic mirror, panoramic sunroof blind
controls (407SW).

8 20 Starter coil.

9 10 Xenon bulb electronics supply, STOP switch,
power steering electropump, four-speed
automatic gearbox control unit, automatic
gearbox locking relay.

10 30 Engine management actuators (ignition coil,
electrovalves, oxygen sensors).

11 40 Air conditioning blower or not used.

12 30 Windscreen wipers.

13 40 Built-in systems interface supply (ignition
positive).

14 30 Air pump.

1010PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position

 Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade

 Lift the arm, then unclip the blade
and remove it.

 Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

1010PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position

 Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade

 Lift the arm, then unclip the blade
and remove it.

 Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

1010PRACTICAL INFORMATION
124
To start the vehicle from another
battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) ter-
minal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.

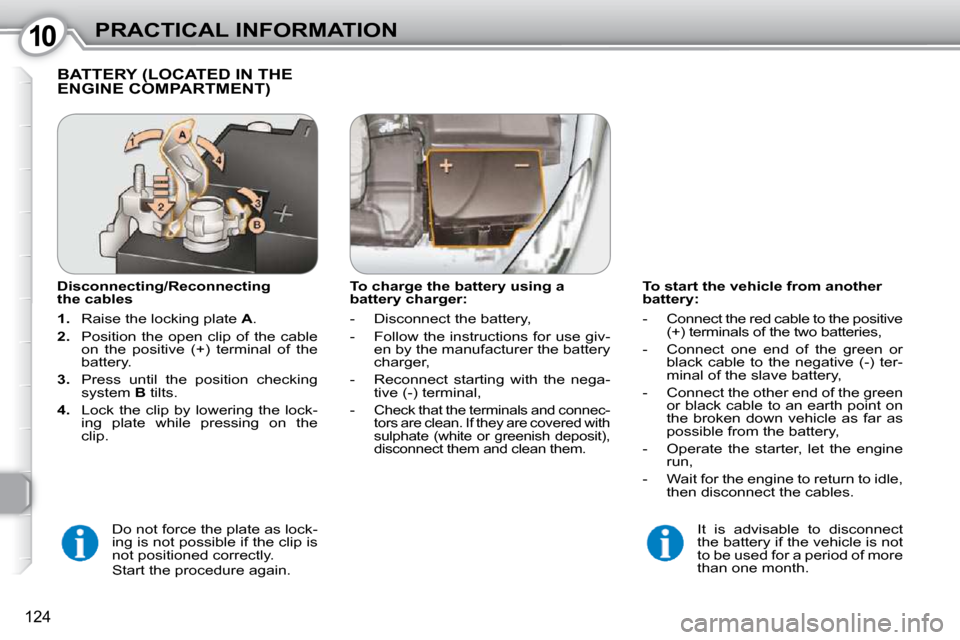

BATTERY (LOCATED IN THE ENGINE COMPARTMENT)
Disconnecting/Reconnecting
the cables

1. Raise the locking plate A .

2. Position the open clip of the cable
on the positive (+) terminal of the
battery.

3. Press until the position checking
system B tilts.

4. Lock the clip by lowering the lock-
ing plate while pressing on the
clip.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use giv-
en by the manufacturer the battery
charger,
- Reconnect starting with the nega- tive (-) terminal,
-
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.
Start the procedure again.
