2010 NISSAN TIIDA valve

EC-62
< FUNCTION DIAGNOSIS >[HR16DE]
COOLING FAN CONTROL
Component Parts Location
INFOID:0000000005398267
1. Ignition coil (with power transistor) and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB2939E
Revision: January 20102010 Versa

COOLING FAN CONTROLEC-63
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Mass air flow sensor
(with intake air temperature sensor) 2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control solenoid valve
Vehicle front
PBIB2940E
Revision: January 20102010 Versa

EC-64
< FUNCTION DIAGNOSIS >[HR16DE]
COOLING FAN CONTROL

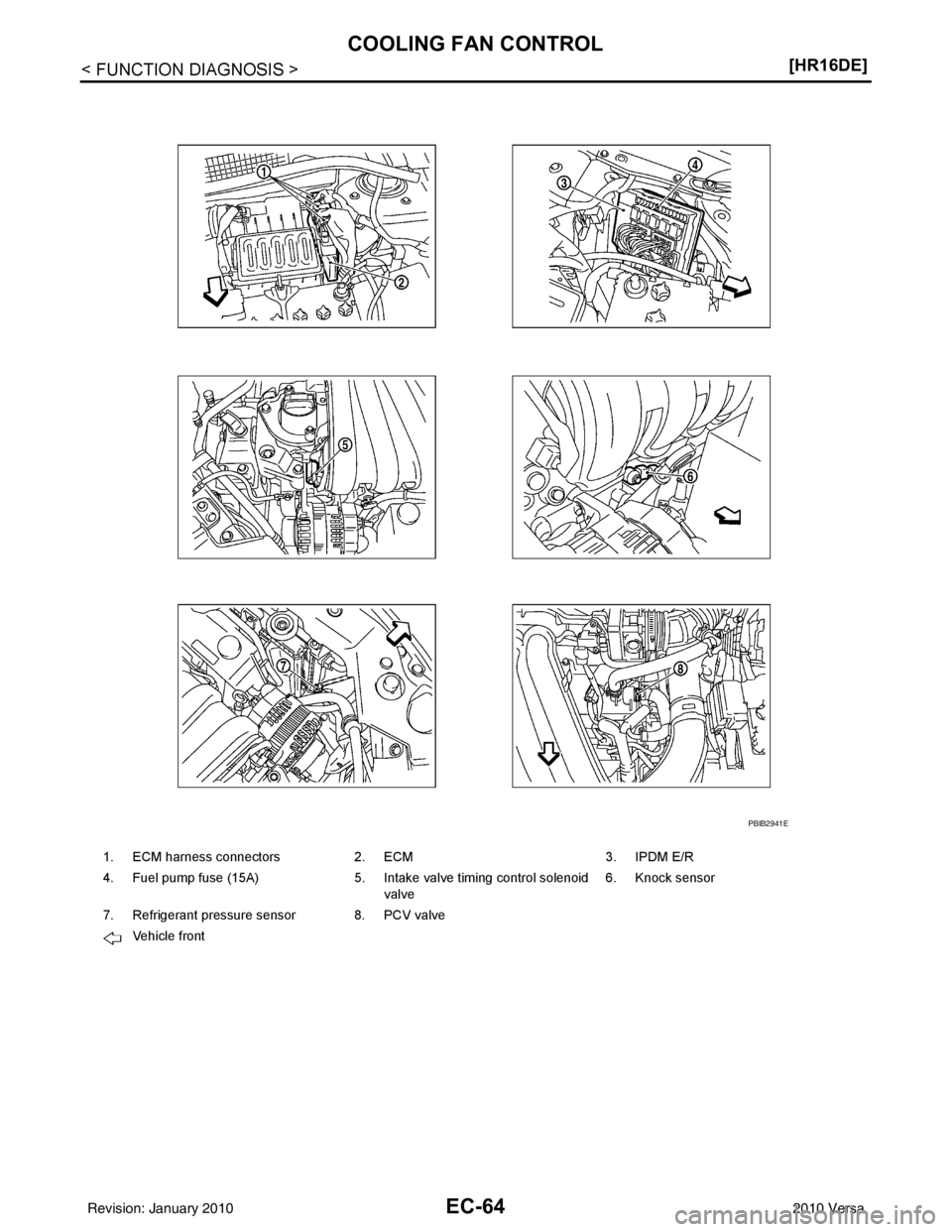

1. ECM harness connectors
2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve 6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve Vehicle front
PBIB2941E
Revision: January 20102010 Versa

EC-68
< FUNCTION DIAGNOSIS >[HR16DE]
EVAPORATIVE EMISSION SYSTEM
EVAPORATIVE EMISSION SYSTEM
System DiagramINFOID:0000000005398269
System DescriptionINFOID:0000000005398270
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM via the CAN communication line.
JMBIA2197GB
Sensor
Input signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge vol-
ume control solenoid valve
Mass air flow sensor
Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery Battery voltage*
1
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Air fuel ratio (A/F) sensor 1 Density of oxygen in exhaust gas
(Mixture ratio fe
edback signal)
Fuel tank temperature sensor Fuel temperature in fuel tank
EVAP control system pressure sensor Pressure in purge line
ABS actuator and electric unit (control unit) Vehicle speed*
2
Combination meter
Revision: January 20102010 Versa

EVAPORATIVE EMISSION SYSTEMEC-69
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accompli shed by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not oper ating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve al so shuts off the vapor purge line during decelerating.

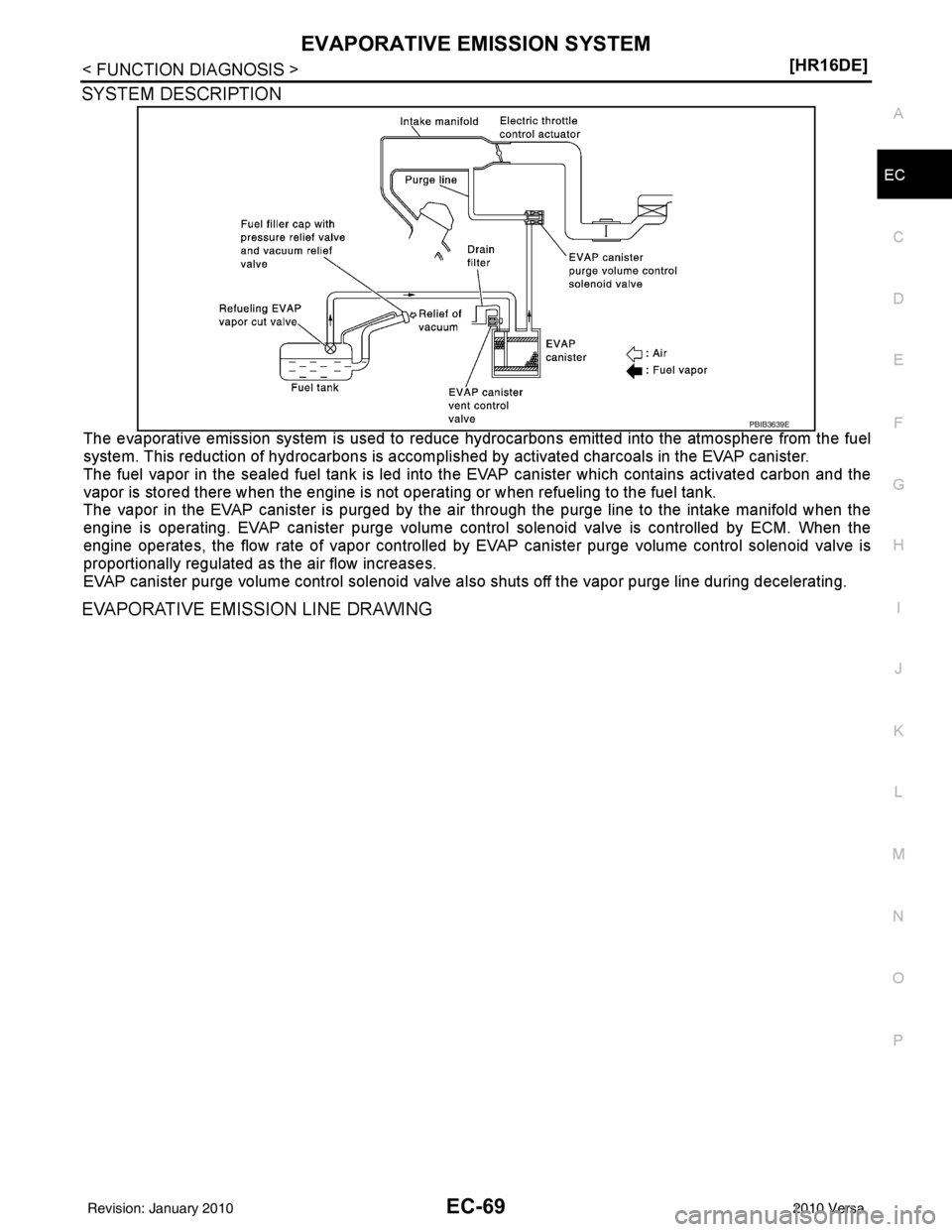

EVAPORATIVE EMISSION LINE DRAWING
PBIB3639E
Revision: January 20102010 Versa

EC-70
< FUNCTION DIAGNOSIS >[HR16DE]
EVAPORATIVE EMISSION SYSTEM

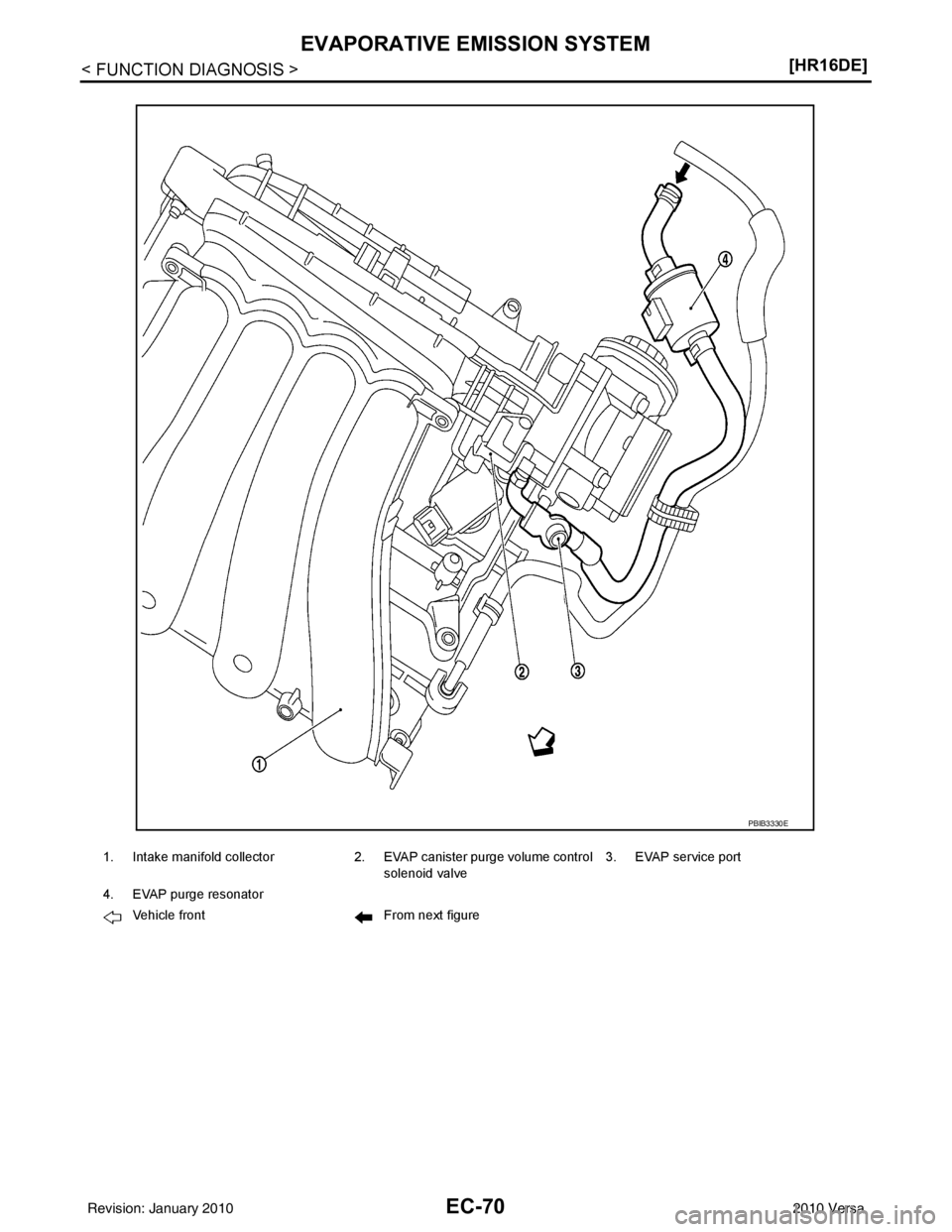

1. Intake manifold collector
2. EVAP canister purge volume control
solenoid valve 3. EVAP service port
4. EVAP purge resonator Vehicle front From next figure
PBIB3330E
Revision: January 20102010 Versa

EVAPORATIVE EMISSION SYSTEMEC-71
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
1. EVAP control system pressure sensor 2. EVAP
canister 3. EVAP canister vent control valve
A. To previous figure
BBIA0692E
Revision: January 20102010 Versa

EC-72
< FUNCTION DIAGNOSIS >[HR16DE]
EVAPORATIVE EMISSION SYSTEM
Component Parts Location
INFOID:0000000005398271
1. Ignition coil (with power transistor) and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB2939E
Revision: January 20102010 Versa
