SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.
NOTE
When leaving the vehicle unattended, be sure to close the
sunroof and without the ignition key.
Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).
Do not sit on or place heavy luggage on the sunroof or
roof opening edge.
Do not apply any force that may cause damage to the sun-
roof.
Release the switch when the sunroof has reached a com-
pletely open or completely closed position.
If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.
Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.
Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.
Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.
After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.
Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
CAUTION
!
Do not attempt to close the sunshade when the sun-
roof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0103001US.book 73 ページ 2009年8月20日 木曜日 午前10時45分
Page 176 of 658
![MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-81
3 Ignition switch
N00512400628
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.- MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-81
3 Ignition switch
N00512400628
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-](/manual-img/19/7499/w960_7499-175.png)
Features and controls
3-81
3 Ignition switch
N00512400628
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Ignition switch” on page
3-24.
[Except for vehicles equipped with the F.A.S.T.-key]LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off.
ON The engine runs and all accessories can be used. START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-4.)
Manual transaxle CVT or Twin Clutch SST
BK0103001US.book 81 ページ 2009年8月20日 木曜日 午前10時45分
Page 177 of 658

3-82 Features and controls
3
ACC power auto-cutout function
N00539600061
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
The time until the power cuts out can be changed to
about 60 minutes.
The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
To remove the key
N00550900168
For vehicles equipped with a manual transaxle, when removing
the key, push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position, and
remove.Manual transaxle
BK0103001US.book 82 ページ 2009年8月20日 木曜日 午前10時45分
Page 178 of 658

Features and controls
3-83
3

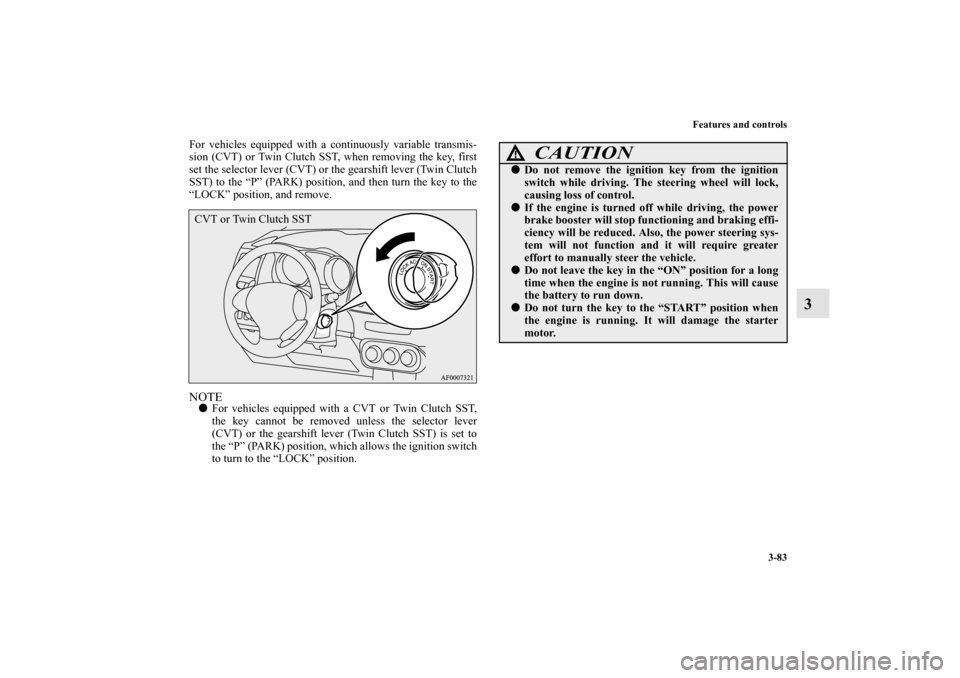

For vehicles equipped with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, when removing the key, first
set the selector lever (CVT) or the gearshift lever (Twin Clutch
SST) to the “P” (PARK) position, and then turn the key to the
“LOCK” position, and remove.NOTE
For vehicles equipped with a CVT or Twin Clutch SST,
the key cannot be removed unless the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position, which allows the ignition switch
to turn to the “LOCK” position.
CVT or Twin Clutch SST
CAUTION
!
Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0103001US.book 83 ページ 2009年8月20日 木曜日 午前10時45分
Page 179 of 658
3-84 Features and controls

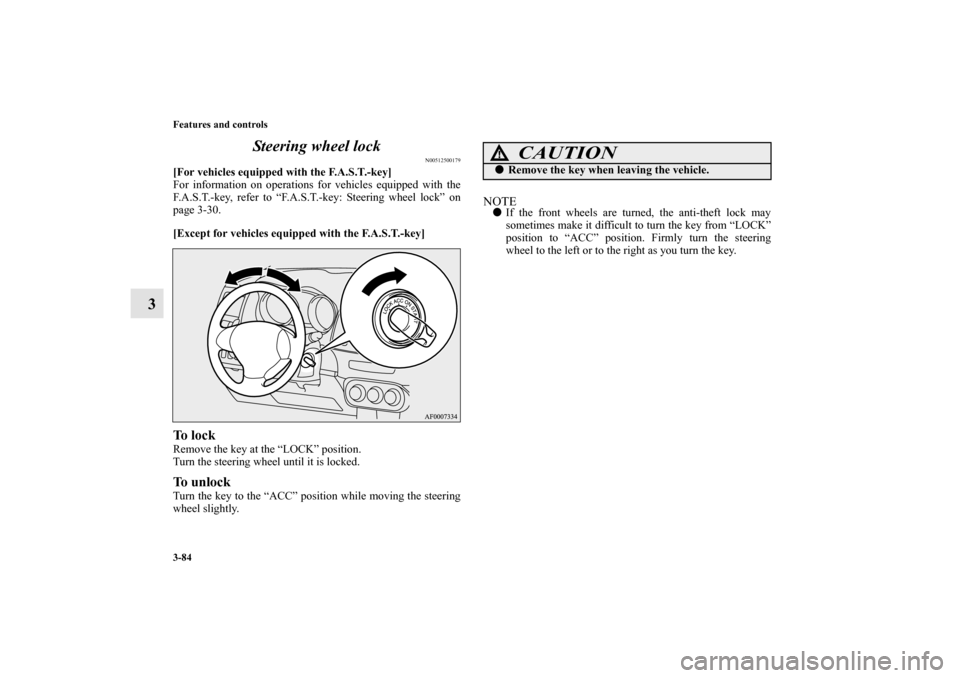

3Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Steering wheel lock” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the key to the “ACC” position while moving the steering
wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
position to “ACC” position. Firmly turn the steering
wheel to the left or to the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
BK0103001US.book 84 ページ 2009年8月20日 木曜日 午前10時45分
Page 181 of 658
![MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-86 Features and controls
3
Starting the engine
N00542200045
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-86 Features and controls
3
Starting the engine
N00542200045
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S](/manual-img/19/7499/w960_7499-180.png)
3-86 Features and controls
3
Starting the engine
N00542200045
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Starting the engine” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]
Your vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine. Normal conditionTo start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Insert the ignition key.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT) or Twin Clutch SST, make sure the selec-
tor lever (CVT) or the gearshift lever (Twin Clutch SST)
is in the “P” (PARK) position.
NOTE
On vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
On vehicles equipped with Twin Clutch SST, the starter
will not operate unless the gearshift lever is in the “P”
(PARK) position or the gearshift lever is in the “N”
(NEUTRAL) position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
6. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
7. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
BK0103001US.book 86 ページ 2009年8月20日 木曜日 午前10時45分
Page 182 of 658

Features and controls
3-87
3
At extremely cold ambient temperatureIf the engine won’t start, press the accelerator pedal all the way
down while cranking the engine. Release the accelerator pedal
when the engine starts.
Startability of continuously variable transmission
(CVT) vehicles or Twin Clutch SST vehicles at
extremely cold ambient temperatureWhen the ambient temperature is -4 °F (-20 °C) or lower on
vehicles equipped with CVT, -22 °F (-30 °C) or lower on vehi-
cles equipped with Twin Clutch SST, it may not be possible to
start from a stand-still even with the selector lever (CVT) or
the gearshift lever (Twin Clutch SST) in the “D” (DRIVE)
position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
CAUTION
!
When starting the engine, make sure that you hold
the brake pedal down. If you start the engine with
your foot on the accelerator pedal, switch to the
brake pedal as soon as the engine has started.
BK0103001US.book 87 ページ 2009年8月20日 木曜日 午前10時45分
Page 189 of 658

3-94 Features and controls
3

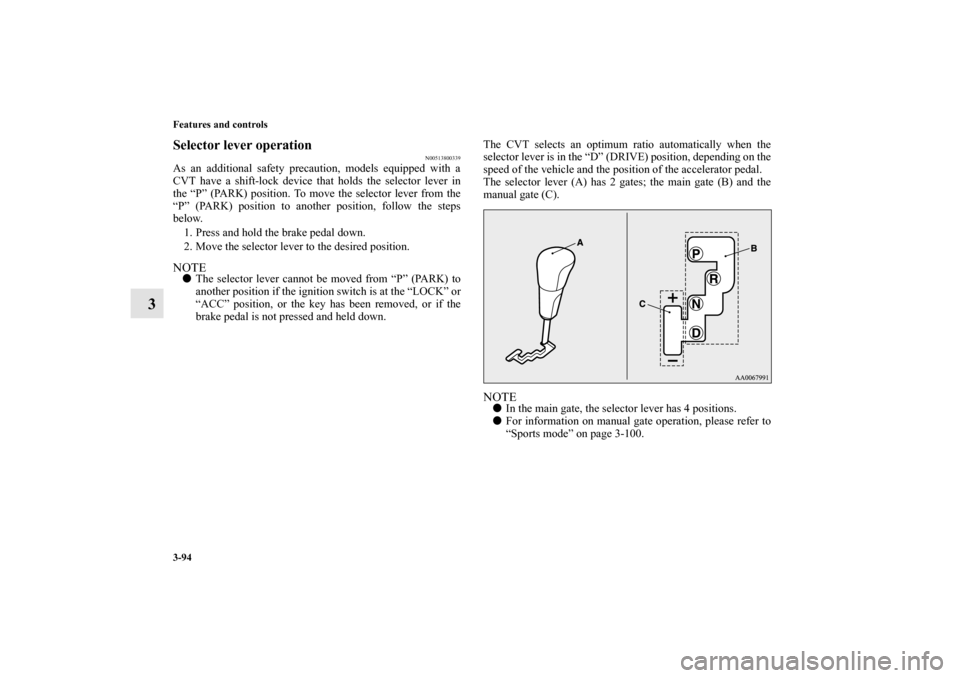

Selector lever operation
N00513800339
As an additional safety precaution, models equipped with a
CVT have a shift-lock device that holds the selector lever in
the “P” (PARK) position. To move the selector lever from the
“P” (PARK) position to another position, follow the steps
below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.The CVT selects an optimum ratio automatically when the
selector lever is in the “D” (DRIVE) position, depending on the
speed of the vehicle and the position of the accelerator pedal.
The selector lever (A) has 2 gates; the main gate (B) and the
manual gate (C).
NOTE
In the main gate, the selector lever has 4 positions.
For information on manual gate operation, please refer to
“Sports mode” on page 3-100.
BK0103001US.book 94 ページ 2009年8月20日 木曜日 午前10時45分
