3-214 Features and controls
3Indicators
N00519900156
Turn signal indicators/Hazard warning lights
N00520000229
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE

If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.
High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200218
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Warning lights
N00520300147
Brake warning light
N00520400366
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes out a few seconds later.
A warning is also displayed in the multi-information display.
The warning light also illuminates after starting the engine
under the following conditions:

When the parking brake is still applied.


When the brake fluid level is low.


When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
CAUTION
!

If the brake warning light and the anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions. When the brake warning light does not go out even
when the parking brake is released.
 When the brake warning light stays on while driv-
ing.
 If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
BK0103001US.book 214 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-217

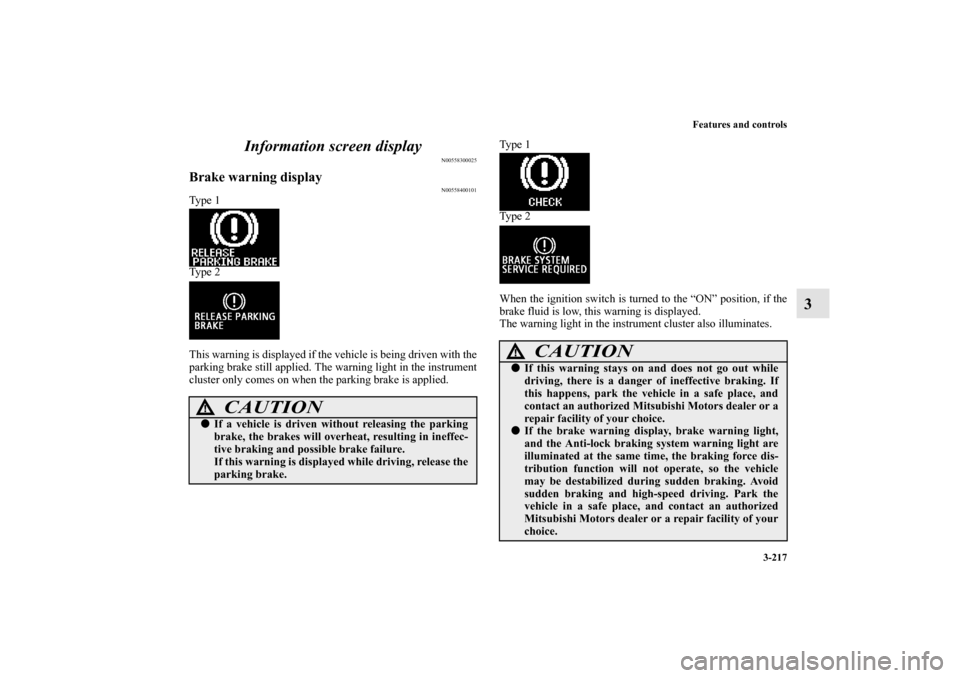

3 Information screen display
N00558300025
Brake warning display
N00558400101
Ty p e 1
Ty p e 2
This warning is displayed if the vehicle is being driven with the
parking brake still applied. The warning light in the instrument
cluster only comes on when the parking brake is applied.Ty p e 1
Ty p e 2
When the ignition switch is turned to the “ON” position, if the
brake fluid is low, this warning is displayed.
The warning light in the instrument cluster also illuminates.
CAUTION
!

If a vehicle is driven without releasing the parking
brake, the brakes will overheat, resulting in ineffec-
tive braking and possible brake failure.
If this warning is displayed while driving, release the
parking brake.
CAUTION
!

If this warning stays on and does not go out while
driving, there is a danger of ineffective braking. If
this happens, park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.


If the brake warning display, brake warning light,
and the Anti-lock braking system warning light are
illuminated at the same time, the braking force dis-
tribution function will not operate, so the vehicle
may be destabilized during sudden braking. Avoid
sudden braking and high-speed driving. Park the
vehicle in a safe place, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
BK0103001US.book 217 ページ ２００９年８月２０日　木曜日　午前１０時４５分

For emergencies
6-3
6

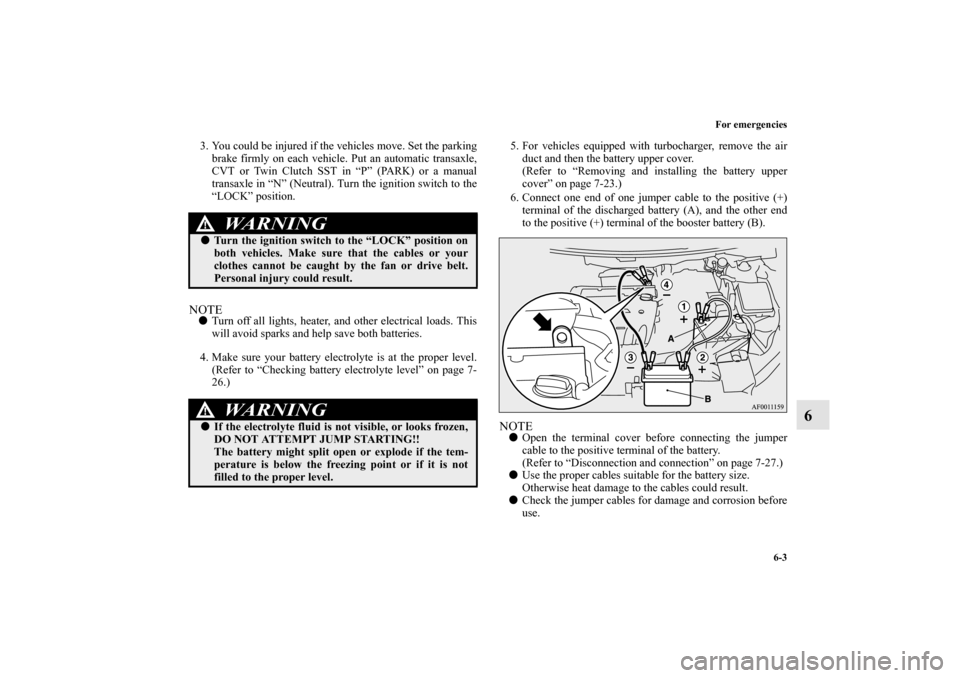

3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle,
CVT or Twin Clutch SST in “P” (PARK) or a manual
transaxle in “N” (Neutral). Turn the ignition switch to the
“LOCK” position. NOTE

Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries.
4. Make sure your battery electrolyte is at the proper level.
(Refer to “Checking battery electrolyte level” on page 7-
26.)5. For vehicles equipped with turbocharger, remove the air
duct and then the battery upper cover.
(Refer to “Removing and installing the battery upper
cover” on page 7-23.)
6. Connect one end of one jumper cable to the positive (+)
terminal of the discharged battery (A), and the other end
to the positive (+) terminal of the booster battery (B).
NOTE

Open the terminal cover before connecting the jumper
cable to the positive terminal of the battery.
(Refer to “Disconnection and connection” on page 7-27.)


Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.


Check the jumper cables for damage and corrosion before
use.
WA R N I N G
!

Turn the ignition switch to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result. WA R N I N G
!

If the electrolyte fluid is not visible, or looks frozen,
DO NOT ATTEMPT JUMP STARTING!!
The battery might split open or explode if the tem-
perature is below the freezing point or if it is not
filled to the proper level.
BK0103001US.book 3 ページ ２００９年８月２０日　木曜日　午前１０時４５分

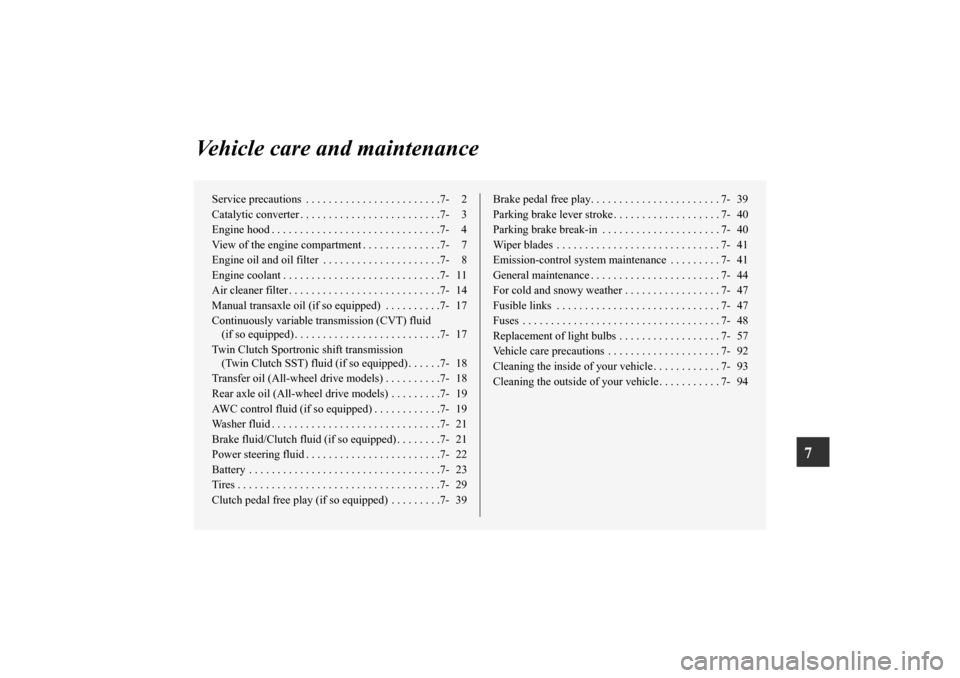

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 17
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid (if so equipped) . . . . . .7- 18
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 18
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 19
AWC control fluid (if so equipped) . . . . . . . . . . . .7- 19
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 21
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 22
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Clutch pedal free play (if so equipped) . . . . . . . . .7- 39Brake pedal free play. . . . . . . . . . . . . . . . . . . . . . . 7- 39
Parking brake lever stroke . . . . . . . . . . . . . . . . . . . 7- 40
Parking brake break-in . . . . . . . . . . . . . . . . . . . . . 7- 40
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 41
Emission-control system maintenance . . . . . . . . . 7- 41
General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 44
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 47
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 47
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 48
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 57
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 92
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 93
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 94
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-7

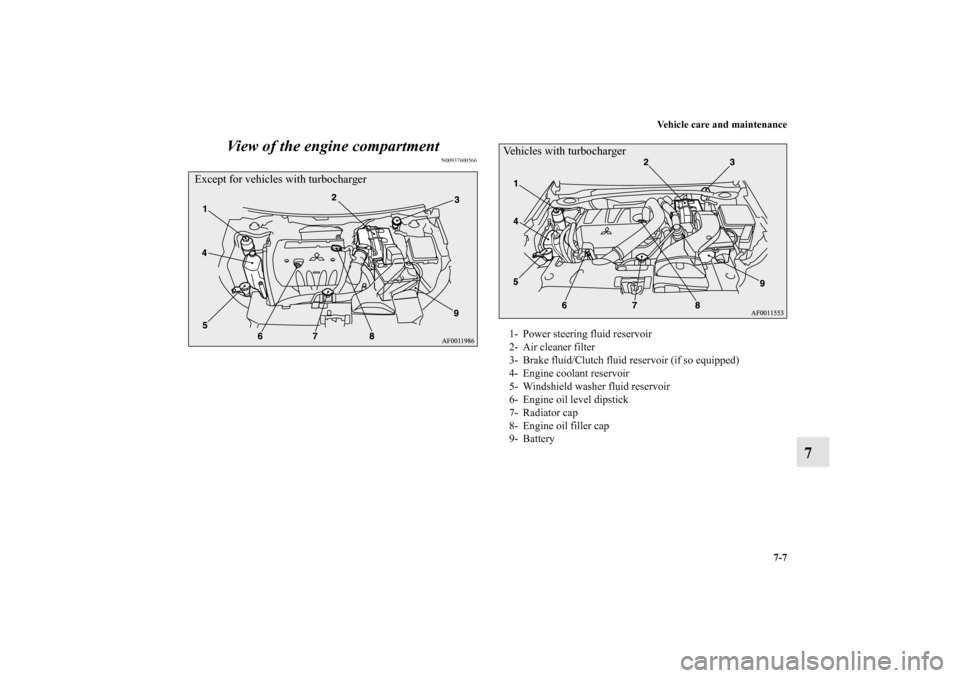

7 View of the engine compartment
N00937600566
Except for vehicles with turbocharger
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid/Clutch fluid reservoir (if so equipped)
4- Engine coolant reservoir
5- Windshield washer fluid reservoir
6- Engine oil level dipstick
7- Radiator cap
8- Engine oil filler cap
9- Battery Vehicles with turbocharger
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-21
7 Wa s h e r f l u i d
N00938600273
The windshield washer fluid reservoir is in the engine compart-
ment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the fluid level with the dip-
stick.During cold weatherWhen freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid/Clutch fluid
(if so equipped)
N00938700216
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
MAX
MIN
BK0103001US.book 21 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-22 Vehicle care and maintenance
7
Fluid typeUse brake fluid conforming to DOT 3 or DOT 4. The reservoir
cap must be tightly sealed to keep dirt and water out.
Power steering fluid
N00939000287
To check the fluid levelCheck the fluid level in the reservoir while the engine is idling.
Check to make certain that the power steering fluid level is
always between the “MAX” and “MIN” level markings on the
fluid reservoir and refill the fluid, if necessary.Fluid type
CAUTION
!

Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.


Be careful when handling brake fluid. It can damage
painted surfaces.


Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.


Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
Lubricant Genuine Mitsubishi Power Steering Fluid
BK0103001US.book 22 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-97
7
Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400065
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
Aluminum wheels
N00946500200
1. Remove dirt using a wet sponge.
2. Use a mild detergent on any dirt that cannot be removed
easily with water.
Rinse off the detergent after washing the wheel.
3. Dry the wheel thoroughly using a chamois leather or a soft
cloth.Window glass
N00946600067
The window glass can usually be cleaned using only a sponge
and water. Glass cleaner can be used to remove wax, oil,
grease, dead insects, etc. After washing the glass, wipe it dry
with a clean, dry, soft cloth.
CAUTION
!

Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.


Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.


Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
CAUTION
!

Do not use a brush or other hard implement on the
wheels.
Doing so could scratch the wheels.


Do not use any cleaner that contains an abrasive
substance or is acidic or alkaline. Doing so could
cause the coating on the wheels to peel or become
discolored or stained.


Do not directly apply hot water using a steam
cleaner or by any other means.


Contact with seawater or road salt used for de-icing
can cause corrosion. Rinse off such substances as
soon as possible.
BK0103001US.book 97 ページ ２００９年８月２０日　木曜日　午前１０時４５分
