2010 MITSUBISHI LANCER SPORTBACK brake fluid

9-10 Specifications

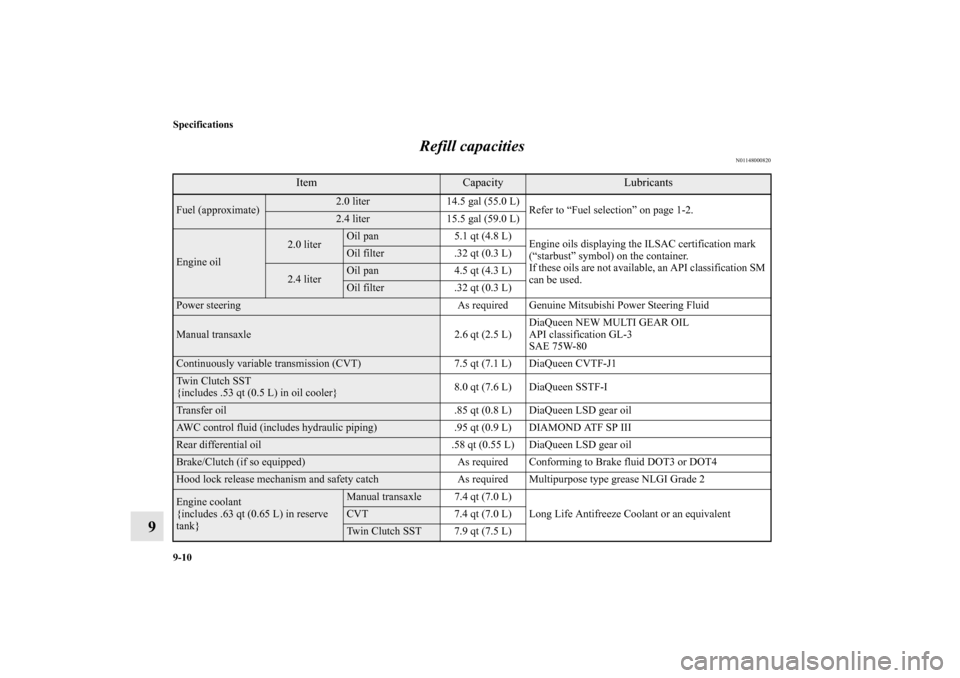

9Refill capacities
N01148000820
Item
Capacity
Lubricants
Fuel (approximate)
2.0 liter 14.5 gal (55.0 L)
Refer to “Fuel selection” on page 1-2.2.4 liter 15.5 gal (59.0 L)
Engine oil
2.0 liter
Oil pan 5.1 qt (4.8 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification SM
can be used.Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Tw i n C l u t c h S S T
{includes .53 qt (0.5 L) in oil cooler}8.0 qt (7.6 L) DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid (includes hydraulic piping) .95 qt (0.9 L) DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{includes .63 qt (0.65 L) in reserve
tank}
Manual transaxle 7.4 qt (7.0 L)
Long Life Antifreeze Coolant or an equivalentCVT 7.4 qt (7.0 L)Twin Clutch SST 7.9 qt (7.5 L)
BK0103001US.book 10 ページ ２００９年８月２０日　木曜日　午前１０時４５分

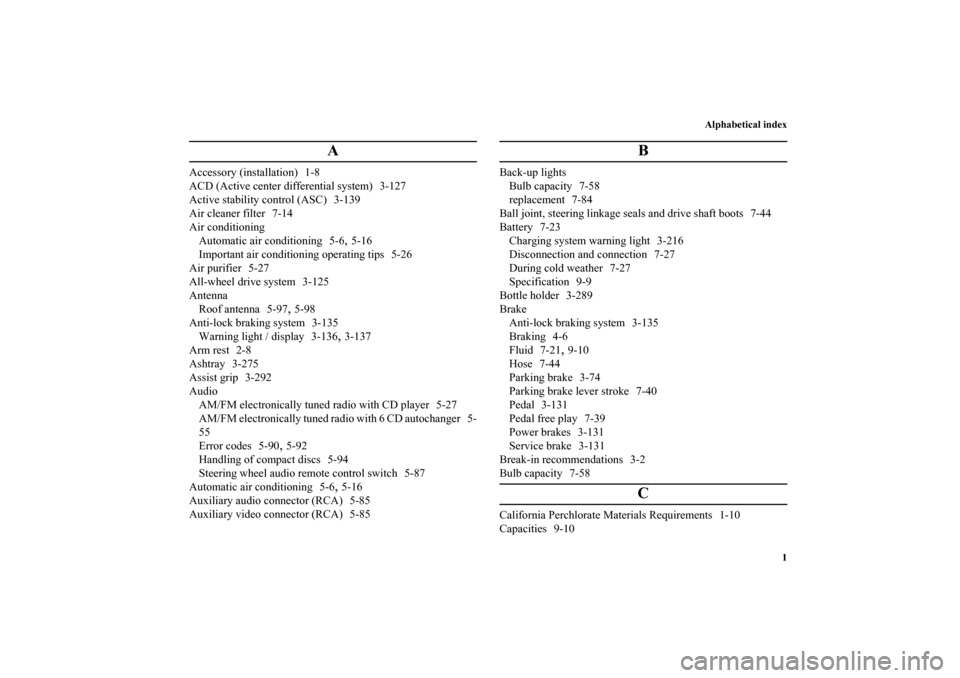

Alphabetical index
1
A
Accessory (installation) 1-8
ACD (Active center differential system) 3-127
Active stability control (ASC) 3-139
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-6
,5-16
Important air conditioning operating tips 5-26
Air purifier 5-27
All-wheel drive system 3-125
Antenna
Roof antenna 5-97
,5-98
Anti-lock braking system 3-135
Warning light / display 3-136
,3-137
Arm rest 2-8
Ashtray 3-275
Assist grip 3-292
Audio
AM/FM electronically tuned radio with CD player 5-27
AM/FM electronically tuned radio with 6 CD autochanger 5-
55
Error codes 5-90
,5-92
Handling of compact discs 5-94
Steering wheel audio remote control switch 5-87
Automatic air conditioning 5-6
,5-16
Auxiliary audio connector (RCA) 5-85
Auxiliary video connector (RCA) 5-85
B
Back-up lights
Bulb capacity 7-58
replacement 7-84
Ball joint, steering linkage seals and drive shaft boots 7-44
Battery 7-23
Charging system warning light 3-216
Disconnection and connection 7-27
During cold weather 7-27
Specification 9-9
Bottle holder 3-289
Brake
Anti-lock braking system 3-135
Braking 4-6
Fluid 7-21
,9-10
Hose 7-44
Parking brake 3-74
Parking brake lever stroke 7-40
Pedal 3-131
Pedal free play 7-39
Power brakes 3-131
Service brake 3-131
Break-in recommendations 3-2
Bulb capacity 7-58
C
California Perchlorate Materials Requirements 1-10
Capacities 9-10
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
2Card holder 3-274
Cargo floor boxes 3-288
Cargo loads 4-12
Cargo room light
Bulb capacity 7-61
Replacement 7-91
Switch 3-283
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-216
Chassis number 9-3
Child restraint 2-25
Child safety locks for rear door 3-58
Cigarette lighter 3-276
Cleaning
Inside of your vehicle 7-93
Outside of your vehicle 7-94
Clutch
Fluid 7-21
,9-10
Pedal free play 7-39
Coat hooks 3-293
Combination headlights and dimmer switch 3-220
Consumer information 8-2
Continuously variable transmission (CVT) 3-93
Fluid 7-17,9-10
Selector lever operation 3-94
Sports mode 3-100
Coolant (engine) 7-11
,9-10
Cruise control 3-144Cup holder 3-288
D
Daytime running lights
Bulb capacity 7-58
Replacement 7-66
Defogger (rear window) 3-240
Defrosting or defogging (windshield, door windows) 5-14
,5-
24
Digital clock 5-99
Dimensions 9-6
Dimmer (high/low beam change) 3-224
Disc brake pads 7-44
Dome light (rear)
Bulb capacity 7-61
Replacement 7-90
Switch 3-281
Dome light/Reading lights
Bulb capacity 7-61
Replacement 7-88
Switch 3-279
Doors
Lock 3-53
Power door locks 3-56
Drive belt 7-45
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
Dual height adjustable cargo floor board 3-291
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
3
E
Electric rear window defogger switch 3-240
Electronic immobilizer (Anti-theft starting system) 3-4
,3-42
Emission-control system maintenance 7-41
Engine
Compartment 7-7
Coolant 7-11
,9-10
Hood 7-4
Oil and oil filter 7-8
,9-10
Overheating 6-5
Serial number 9-4
Specifications 9-8
Engine coolant temperature display 3-177
Exhaust system 7-46
External audio input connector 5-85
F
Filling the fuel tank 1-4
Floor console box 3-287
Fluid 9-10
AWC control fluid 7-19
,9-10
Brake fluid 7-21
,9-10
Clutch fluid 7-21,9-10
Continuously variable transmission (CVT) fluid 7-17
,9-10
Engine coolant 7-11
,9-10
Power steering fluid 7-22
,9-10
Twin clutch SST fluid 7-18,9-10
Washer fluid 9-10Fluid capacities and lubricants 9-10
Fog lights
Bulb capacity 7-58
Indicator 3-214
Replacement 7-75
,7-78
Switch 3-230
Free-hand advanced security transmitter (F.A.S.T.-key) 3-16
Front console boxes 3-286
Front seats 2-3
Front side-marker and parking light
Bulb capacity 7-58
Replacement 7-69,7-71
Front turn signal lights
Bulb capacity 7-58
Replacement 7-73
Fuel
Fuel economy 4-2
Fuel hoses 7-43
Modification/alterations to the electrical or fuel systems 1-9
Tank capacity 1-5,9-10
Fuel selection 1-2
Fuses 7-48
Fusible links 7-47
G
General maintenance 7-44
General vehicle data 9-6
Genuine parts 1-9
Glove compartment 3-285
BK0103001US.book 3 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
5
Inside day/night rearview mirror 3-77
Outside rearview mirrors 3-79
Modification of your vehicle 1-7
Multi-information display 3-164
O
Oil
Engine oil 7-8
,9-10
Manual transaxle oil 7-17
,9-10
Rear axle oil 7-19
,9-10
Transfer oil 7-18
,9-10
Operation under adverse driving conditions 6-20
Outside rearview mirrors 3-79
Overheating 6-5
P
Parking 4-6
Parking brake 3-74
Parking brake break-in 7-40
Parking brake lever stroke 7-40
Polishing 7-96
Power brakes 3-131
Power door locks 3-56
Power outlet 3-277
Power steering
Fluid 7-22
,9-10
System 3-139
Power windows 3-66
Puncture (Tire changing) 6-8
R
Radiator cap 7-13
Radio
AM/FM electronically tuned radio with CD player 5-27
AM/FM electronically tuned radio with 6 CD autochanger 5-
55
General information about your radio 5-100
Rear hatch 3-59
Inside rear hatch release 3-61
Rear shelf panel 3-290
Rear side-marker lights
Bulb capacity 7-58
Replacement 7-82
Rear turn signal lights
Bulb capacity 7-58
Replacement 7-82
Rear window defogger switch 3-240
Rearview mirror
Inside 3-77
Outside 3-79
Refrigerant (air conditioning) 9-10
Replacement of light bulbs 7-57
Replacing tires and wheels 7-34
Reporting Safety Defects 8-3
Roof antenna 5-97
,5-98
S
Safe driving techniques 4-4
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

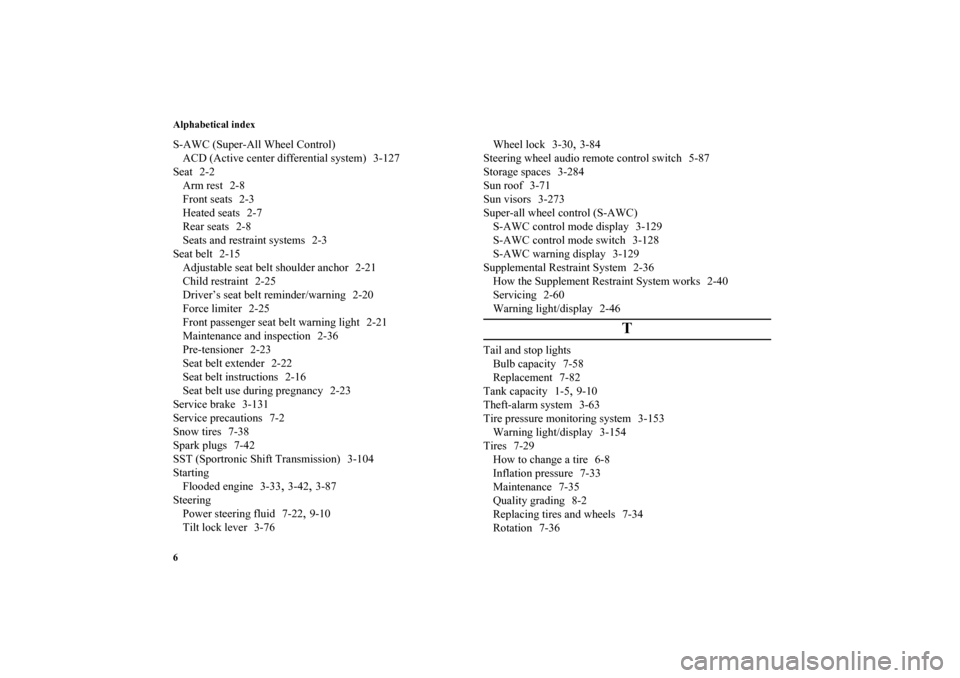

Alphabetical index
6S-AWC (Super-All Wheel Control)
ACD (Active center differential system) 3-127
Seat 2-2
Arm rest 2-8
Front seats 2-3
Heated seats 2-7
Rear seats 2-8
Seats and restraint systems 2-3
Seat belt 2-15
Adjustable seat belt shoulder anchor 2-21
Child restraint 2-25
Driver’s seat belt reminder/warning 2-20
Force limiter 2-25
Front passenger seat belt warning light 2-21
Maintenance and inspection 2-36
Pre-tensioner 2-23
Seat belt extender 2-22
Seat belt instructions 2-16
Seat belt use during pregnancy 2-23
Service brake 3-131
Service precautions 7-2
Snow tires 7-38
Spark plugs 7-42
SST (Sportronic Shift Transmission) 3-104
Starting
Flooded engine 3-33
,3-42
,3-87
Steering
Power steering fluid 7-22
,9-10
Tilt lock lever 3-76Wheel lock 3-30
,3-84
Steering wheel audio remote control switch 5-87
Storage spaces 3-284
Sun roof 3-71
Sun visors 3-273
Super-all wheel control (S-AWC)
S-AWC control mode display 3-129
S-AWC control mode switch 3-128
S-AWC warning display 3-129
Supplemental Restraint System 2-36
How the Supplement Restraint System works 2-40
Servicing 2-60
Warning light/display 2-46
T
Tail and stop lights
Bulb capacity 7-58
Replacement 7-82
Tank capacity 1-5
,9-10
Theft-alarm system 3-63
Tire pressure monitoring system 3-153
Warning light/display 3-154
Tires 7-29
How to change a tire 6-8
Inflation pressure 7-33
Maintenance 7-35
Quality grading 8-2
Replacing tires and wheels 7-34
Rotation 7-36
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分
