2010 Lexus IS250C Owner's Manual

472
5-2. Steps to take in an emergency
10_IS250C/350C_U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
MessageDetails
(Flashing)
Indicates an abnormal engine oil pressure. The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turns on again after performing the follow-
ing actions, contact your Lexus dealer.

5
When trouble arises
473
5-2. Steps to take in an emergency
10_IS250C/350C_U
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a message is shown. Failure to investigate the cause
of the following messages may lead to the system operating abnormally
and possibly cause an accident. Have the vehicle inspected by your
Lexus dealer immediately.
MessageDetails
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates a malfunction in the pre-collision system.
(If equipped)
Indicates intuitive parking assist malfunction. The malfunctioning assist-sensor is shown flashing on
the display.

474
5-2. Steps to take in an emergency
10_IS250C/350C_U
MessageDetails
(Flashing)
(If equipped)
Indicates a malfunction in the radar cruise control
system.
Indicates a malfunction in the retractable hardtop
system.

5
When trouble arises
475
5-2. Steps to take in an emergency
10_IS250C/350C_U
Follow the correction procedures.A buzzer sounds and a message is shown. After taking the specified
steps to correct the suspected problem, check that the message goes off.
MessageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed. The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
Indicates that the hood is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

476
5-2. Steps to take in an emergency
10_IS250C/350C_U
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
The vehicle was driven
with the retractable hard-
top partially open.
When the vehicle speed
exceeds 1.6 mph
(3 km/h), flashes
and a buzzer will sound.
Stop the vehicle in a safe
place and open or close
the retractable hardtop
completely. ( →P. 8 1 )
(Flashing)
The “ENGINE START
STOP” switch was turned
off while the retractable
hardtop was partially
open.
Open or close the retract-
able hardtop completely.
(→ P. 8 1 )
MessageDetailsCorrection procedure

5
When trouble arises

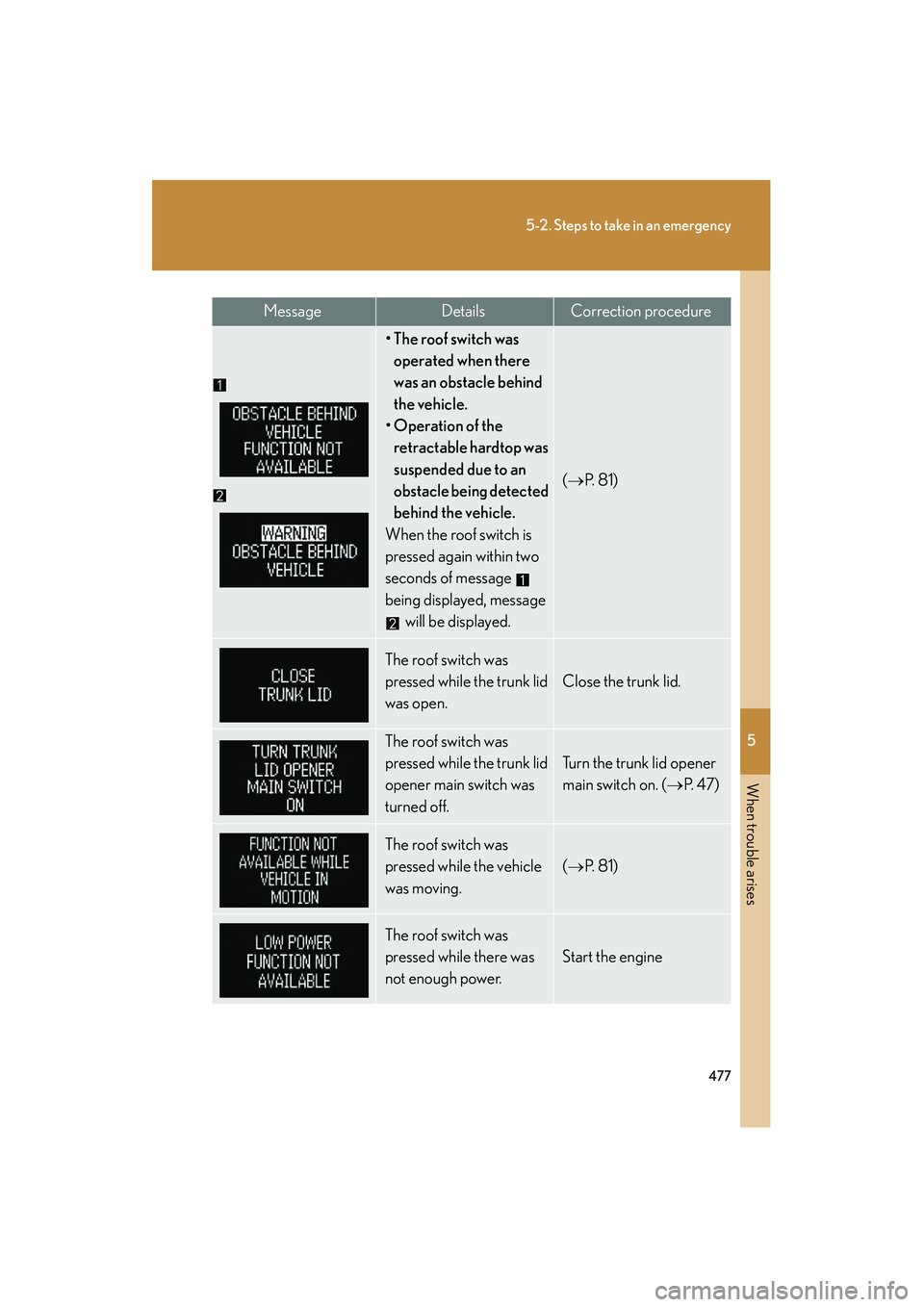

477
5-2. Steps to take in an emergency
10_IS250C/350C_U
• The roof switch was operated when there
was an obstacle behind
the vehicle.
•Operation of the retractable hardtop was
suspended due to an
obstacle being detected
behind the vehicle.
When the roof switch is
pressed again within two
seconds of message
being displayed, message will be displayed.
(→ P. 8 1 )
The roof switch was
pressed while the trunk lid
was open.
Close the trunk lid.
The roof switch was
pressed while the trunk lid
opener main switch was
turned off.
Turn the trunk lid opener
main switch on. ( →P. 4 7 )
The roof switch was
pressed while the vehicle
was moving.
(→ P. 8 1 )
The roof switch was
pressed while there was
not enough power.
Start the engine
MessageDetailsCorrection procedure

478
5-2. Steps to take in an emergency
10_IS250C/350C_U
The roof switch was
pressed while the lug-
gage cover was not in the
correct position.
(→ P. 8 1 )
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
Indicates that the washer
fluid level is low.Add washer fluid.
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.
MessageDetailsCorrection procedure

5
When trouble arises
479
5-2. Steps to take in an emergency
10_IS250C/350C_U
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil should be changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
(Flashing)
(If equipped)
Indicates that the pre-
collision system is not
currently functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
MessageDetailsCorrection procedure
