2010 Lexus IS250C Owner's Manual

88
1-4. Opening and closing the windows and retractable hardtop
10_IS250C/350C_U
CAUTION
■When opening or closing the retractable hardtop
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Keep hands away from the hinges and rail parts of the retractable hardtop as well
as any other part of the hardtop linkage mechanism.
●Do not operate the retractable hardtop in strong winds.
●Do not disconnect the battery when the retractable hardtop is partially open.
■While the vehicle is moving
●The vehicle should never be driven with the retractable hardtop partially open.
●Do not allow passengers to stand on seats, sit on the package tray or lean over
the vehicle.
■When children are in the vehicle
Do not allow children to operate the retractable hardtop.
Doing so may cause the child or another person to become caught in the retract-
able hardtop mechanism, resulting in death or serious injury.
●Check to make sure that all passengers do
not have any part of their body in a position
where it could be caught when a retract-
able hardtop is being operated. If someone
becomes caught in the mechanism, release
the switch immediately to stop operation.
●As parts of the trunk move, ensure that no
one is near the vehicle while the retractable
hardtop is operating.

89
1-4. Opening and closing the windows and retractable hardtop
1
Before driving
10_IS250C/350C_U

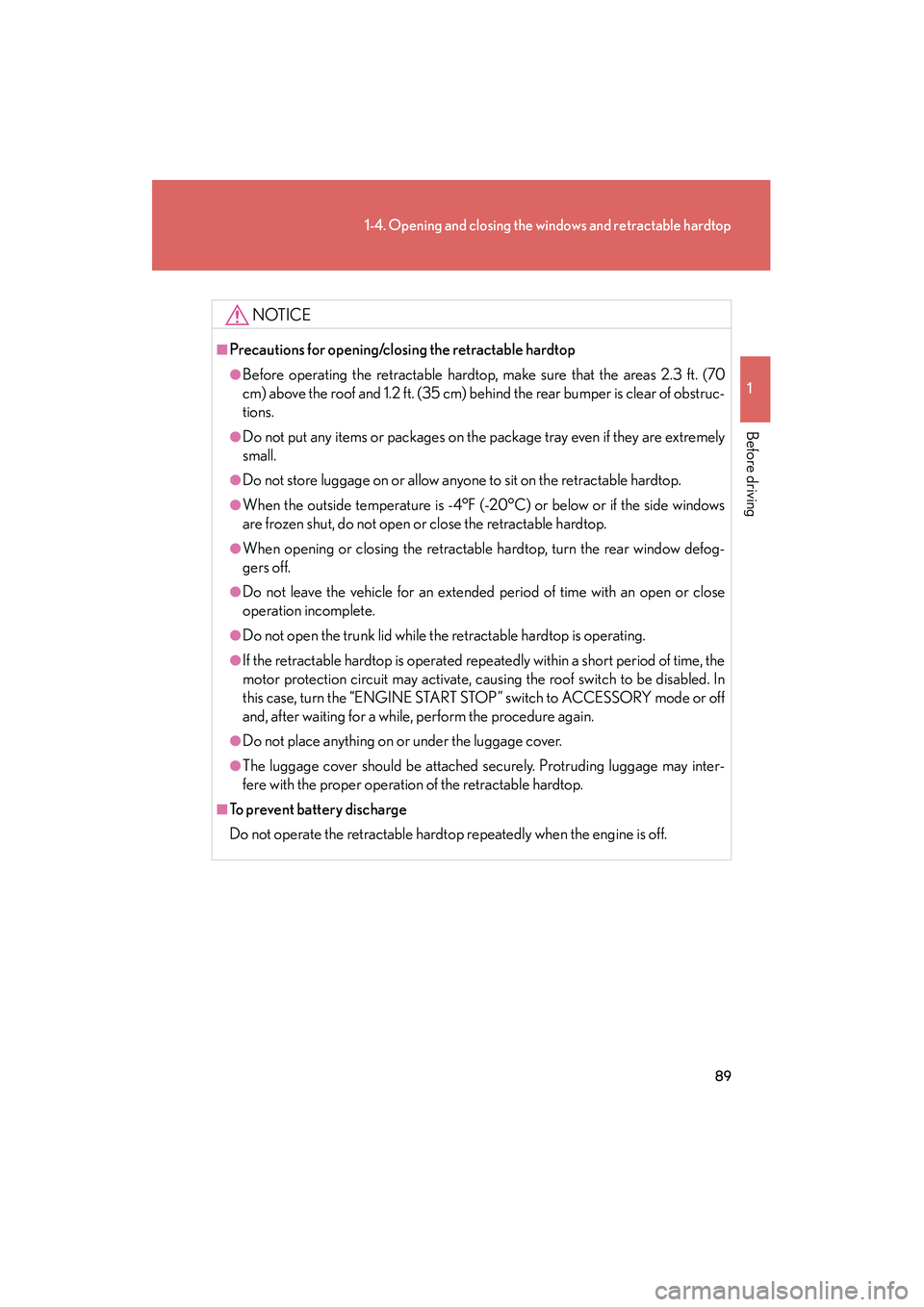

NOTICE
■Precautions for opening/closing the retractable hardtop
●Before operating the retractable hardtop, make sure that the areas 2.3 ft. (70
cm) above the roof and 1.2 ft. (35 cm) behind the rear bumper is clear of obstruc-
tions.
●Do not put any items or packages on the package tray even if they are extremely
small.
●Do not store luggage on or allow anyone to sit on the retractable hardtop.
●When the outside temperature is -4°F (-20°C) or below or if the side windows
are frozen shut, do not open or close the retractable hardtop.
●When opening or closing the retractable hardtop, turn the rear window defog-
gers off.
●Do not leave the vehicle for an extended period of time with an open or close
operation incomplete.
●Do not open the trunk lid while the retractable hardtop is operating.
●If the retractable hardtop is operated repeatedly within a short period of time, the
motor protection circuit may activate, causing the roof switch to be disabled. In
this case, turn the “ENGINE START STOP” switch to ACCESSORY mode or off
and, after waiting for a while, perform the procedure again.
●Do not place anything on or under the luggage cover.
●The luggage cover should be attached securely. Protruding luggage may inter-
fere with the proper operation of the retractable hardtop.
■To prevent battery discharge
Do not operate the retractable hardtop repeatedly when the engine is off.

90
10_IS250C/350C_U
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “ENGINE START STOP” switch OFF and ensure that both
side doors and windows are closed.
■ Opening the fuel tank cap
Press the opener switch.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

91
1-5. Refueling
1
Before driving
10_IS250C/350C_U
Closing the fuel tank capWhen replacing the fuel tank cap,
turn it until a clicking sound is
heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
■Fuel types
Use unleaded gasoline. (Octane rating 91 [Research Octane Number 96] or
higher)
■Fuel tank capacity (reference)
17.2 gal. (65 L, 14.3 Imp. gal.)
■When the fuel filler door opener is inoperableThe lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch because the battery is
discharged or for any other reason.

92
1-5. Refueling
10_IS250C/350C_U
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.

93
1
Before driving
10_IS250C/350C_U
1-6. Theft deterrent system
Engine immobilizer system
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.

94
1-6. Theft deterrent system
10_IS250C/350C_U
■Certifications for the engine immobilizer system For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est suscepti-
ble de compromettre le fonctionnement du dispositif.
CAUTION
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
NOTICE
■To prevent damage to the key
Do not modify, remove or disable the engine immobilizer system. If any unautho-
rized changes or modifications are made, the proper operation of the system can-
not be guaranteed.

95
1
1-6. Theft deterrent system
Before driving
10_IS250C/350C_U
Alarm
The system sounds the alarm and flashes the lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than using the entry function, wireless remote door lock function
or mechanical key with the alarm being set.
● The hood is opened with the alarm being set.
■ Setting the alarm system
If the retractable hardtop is
open, close it.
Close the doors, trunk and
hood, and lock both side doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk using the entry function, wireless
remote door lock functi on or mechanical key.
● Turn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)
