P1817 ACTUATOR MOTORDLN-41
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O PWithout CONSULT-III1. Start engine.
2. Check voltage between transfer control unit harness connector terminal and ground.
Are the inspection results normal?
YES >> GO TO 7.
NO >> GO TO 2.
2.CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay.
SHIFT ACT2 • Vehicle stopped
• Engine running
• A/T selector lever N position
• Brake pedal depressed 4WD shift switch:
4LO to 4H (Wait func-
tion is operating.)
ON
Except the above OFF
SHIFT AC
MON2 • Vehicle stopped
• Engine running
• A/T selector lever N position
• Brake pedal depressed 4WD shift switch:
4LO to 4H (Wait func-
tion is operating.)
ON
Except the above OFF
Connector Terminal ConditionVoltage
(Approx.)
E142 4 -
Ground • Vehicle stopped
• Engine running
• A/T selector lever
N position
• Brake pedal de- pressed 4WD shift switch: 4H to
4LO (Wait function is
operating.)
Battery
voltage
Except the above 0V
13 -
Ground • Vehicle stopped
• Engine running
• A/T selector lever
N position
• Brake pedal de- pressed 4WD shift switch: 4LO
to 4H (Wait function is
operating.)
Battery
voltage
Except the above 0V
E143 33 -
Ground • Vehicle stopped
• Engine running
• A/T selector lever
N position
• Brake pedal de-
pressed 4WD shift switch: 4H to
4LO (Wait function is
operating.)
Battery
voltage
Except the above 0V
42 -
Ground • Vehicle stopped
• Engine running
• A/T selector lever
N position
• Brake pedal de- pressed 4WD shift switch: 4LO
to 4H (Wait function is
operating.)
Battery
voltage
Except the above 0V
Monitored
item Condition Display
value
SDIA2705E
Revision: April 20092010 QX56

DLN-42
< COMPONENT DIAGNOSIS >[ATX14B]
P1817 ACTUATOR MOTOR
3. Check voltage between transfer shift high relay harness connec-
tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
4. Turn ignition switch ON. (Do not start engine.)
5. Check voltage between transfer shift high relay harness connec- tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
Are the inspection results normal?
YES >> GO TO 3.
NO >> Check the following. If any items are damaged, repair or replace damaged parts. • 20A fuse (No. 57, located in the fuse and relay box).
• Harness for short or open between battery, transfe r shift high relay harness connector terminal 5
and transfer shift low relay harness connector terminal 5.
3.CHECK ACTUATOR MOTOR GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay. Refer to DLN-16, "
Component Parts Loca-
tion".
3. Check continuity between transfer shift high relay harness con- nector E46 terminals 2, 4 (A) and transfer shift low relay harness
connector E47 terminals 2, 4 (B) and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK TRANSFER SHIFT RELAY
1. Turn ignition switch OFF.
2. Remove transfer shift high relay and transfer shift low relay. Refer to DLN-16, "
Component Parts Loca-
tion".
3. Apply 12V direct current between transfer shift relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 4, 3 and 5.
Connector Terminal Voltage (Approx.)
A: E46 5 - Ground
Battery voltage
B: E47 5 - Ground
WDIA0310E
Connector Terminal Voltage (Approx.)
A: E46 5 - Ground
Battery voltage
B: E47 5 - Ground
WDIA0311E
Continuity should exist.
WDIA0312E
Terminal ConditionContinuity
3 - 4 12V direct current supply between terminals 1 and 2 No
OFF
Yes
3 - 5 12V direct current supply between terminals 1 and 2 Yes
OFF
No
WIIA0291E
Revision: April 20092010 QX56

DLN-44
< COMPONENT DIAGNOSIS >[ATX14B]
P1817 ACTUATOR MOTOR

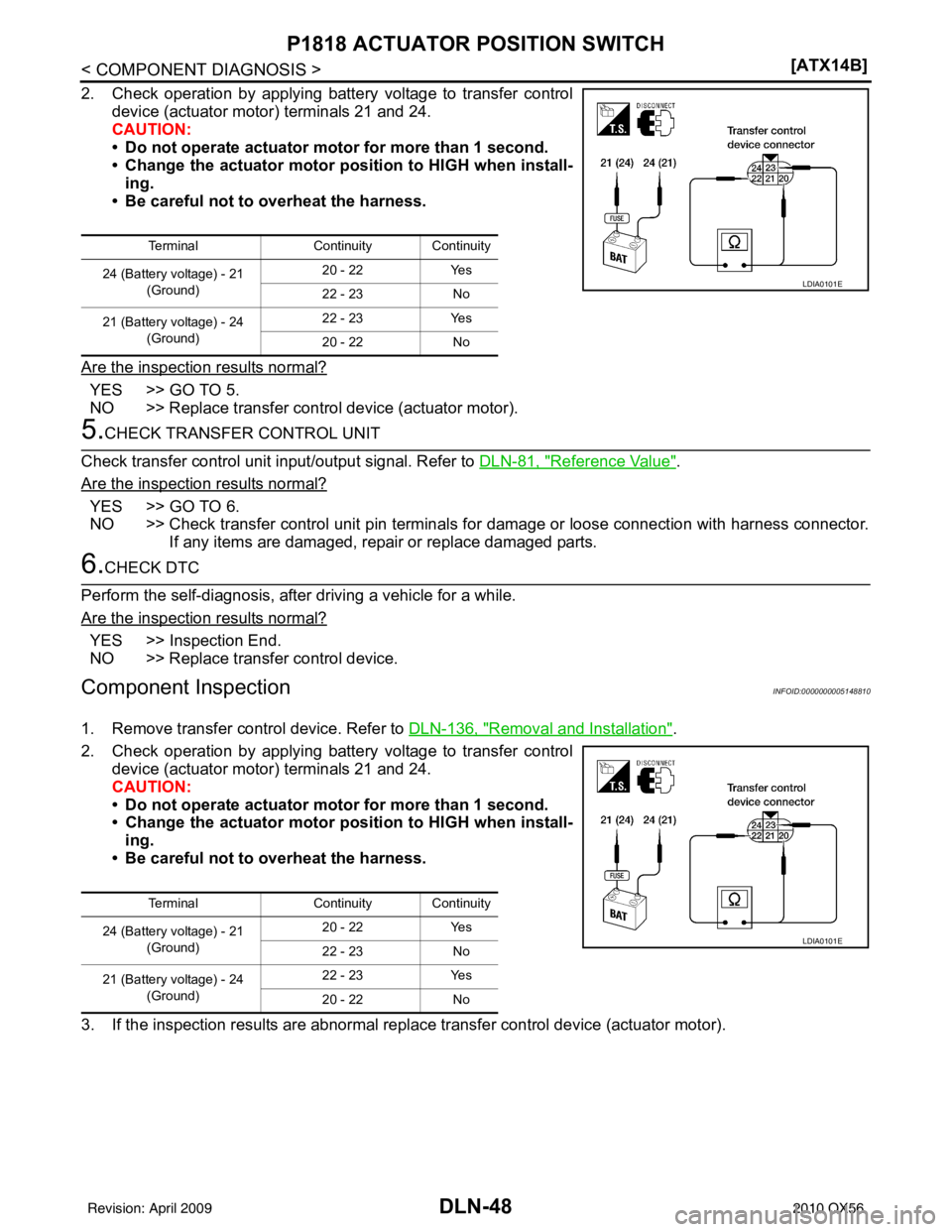

2. Check operation by applying battery voltage to transfer control
device (actuator motor) terminals 21 and 24.
CAUTION:
• Do not operate actuator motor for more than 1 second.
• Change the actuator motor posi tion to HIGH when install-
ing.
• Be careful not to overheat the harness.
3. Check resistance between transfer control device (actuator motor) terminals 21 and 24.
Are the inspection results normal?
YES >> GO TO 7.
NO >> Replace transfer control device (actuator motor).
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-81, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 8.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control unit. Refer to DLN-130, "
Removal and Installation".
Component InspectionINFOID:0000000005148806
TRANSFER SHIFT RELAY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay. Refer to DLN-16, "
Component Parts Loca-
tion".
3. Apply 12V direct current between transfer shift relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 4, 3 and 5.
5. If NG, replace transfer shift relay.
TRANSFER CONTROL DEVICE
1. Remove transfer control device. Refer to DLN-136, "Removal and Installation".
TerminalActuator motor
21 (Battery voltage) - 24 (Ground) Clockwise rotation
24 (Battery voltage) - 21 (Ground) Counterclockwise rotation
21 - 24 : Approx. 0.2 Ω
WDIA0224E
SDIA2726E
Terminal ConditionContinuity
3 - 4 12V direct current supply between terminals 1 and 2 No
OFF
Yes
3 - 5 12V direct current supply between terminals 1 and 2 Yes
OFF
No
WIIA0291E
Revision: April 20092010 QX56

P1817 ACTUATOR MOTORDLN-45
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
CAUTION:
• Do not operate actuator moto r for more than 1 second.
• Change the actuator motor posi tion to HIGH when install-
ing.
• Be careful not to overheat the harness.
3. Check resistance between transfer control device (actuator motor) terminals 21 and 24.
4. If NG, replace transfer control device (actuator motor).
Terminal Actuator motor
21 (Battery voltage) - 24 (Ground) Clockwise rotate
24 (Battery voltage) - 21 (G round) Counterclockwise rotate
WDIA0224E
21 - 24 : Approx. 0.2 Ω
SDIA2726E
Revision: April 20092010 QX56

P1818 ACTUATOR POSITION SWITCHDLN-47
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
2. Check voltage between transfer control unit harness connector terminal and ground.
Are the inspection results normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK HARNESS BETWEEN TRAN SFER CONTROL UNIT AND ACTUATOR POSITION SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the transfer control device (actuator position
switch) harness connector.
3. Check continuity between the following terminals.
- Transfer control unit harness connector E143 terminal 27 and transfer control device (actuator position switch) harness con-
nector F58 terminal 23.
- Transfer control unit harness connector E143 terminal 44 and
transfer control device (actuator position switch) harness con-
nector F58 terminal 20.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control device (act uator position switch) harness connector.
3. Check continuity between transfer control device (actuator posi- tion switch) harness connector F58 terminal 22 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK ACTUATOR POSITION SWITCH
1. Remove transfer control device. Refer to DLN-136, "
Removal and Installation".
Connector TerminalConditionVoltage
(Approx.)
E143 27 -
Ground • Vehicle stopped
• Engine running
• A/T selector le-
ver N position
• Brake pedal de- pressed 4WD shift switch: 4H,
AUTO or 2WD
0V
4WD shift switch: 4LO Battery
voltage
44 -
Ground • Vehicle stopped
• Engine running
• A/T selector le-
ver N position
• Brake pedal de- pressed 4WD shift switch: 4LO 0V
4WD shift switch:
2WD, AUTO or 4H
Battery
voltage
SDIA2715E
Continuity should exist.
SDIA2716E
Continuity should exist.
SDIA2717E
Revision: April 20092010 QX56

DLN-48
< COMPONENT DIAGNOSIS >[ATX14B]
P1818 ACTUATOR POSITION SWITCH
2. Check operation by applying battery voltage to transfer control
device (actuator motor) terminals 21 and 24.
CAUTION:
• Do not operate actuator motor for more than 1 second.
• Change the actuator motor posi tion to HIGH when install-
ing.
• Be careful not to overheat the harness.
Are the inspection results normal?
YES >> GO TO 5.
NO >> Replace transfer control device (actuator motor).
5.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to DLN-81, "
Reference Value".
Are the inspection results normal?
YES >> GO TO 6.
NO >> Check transfer control unit pin terminals fo r damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
6.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
Are the inspection results normal?
YES >> Inspection End.
NO >> Replace transfer control device.
Component InspectionINFOID:0000000005148810
1. Remove transfer control device. Refer to DLN-136, "Removal and Installation".
2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
CAUTION:
• Do not operate actuator motor for more than 1 second.
• Change the actuator motor posi tion to HIGH when install-
ing.
• Be careful not to overheat the harness.
3. If the inspection results are abnormal replace transfer control device (actuator motor).
Terminal Continuity Continuity
24 (Battery voltage) - 21 (Ground) 20 - 22
Yes
22 - 23 No
21 (Battery voltage) - 24 (Ground) 22 - 23
Yes
20 - 22 No
LDIA0101E
Terminal Continuity Continuity
24 (Battery voltage) - 21 (Ground) 20 - 22
Yes
22 - 23 No
21 (Battery voltage) - 24 (Ground) 22 - 23
Yes
20 - 22 No
LDIA0101E
Revision: April 20092010 QX56

P1819 TRANSFER CONTROL DEVICEDLN-49
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
P1819 TRANSFER CONTROL DEVICE
DescriptionINFOID:0000000005148811
The transfer control device integrates the actuator motor and actuator position switch. DTC P1819 will set if
either of the following conditions exist:
• Malfunction occurs in transfer control device actuator circuit.
• Malfunction is detected in the transfer shut off relay.
DTC LogicINFOID:0000000005148812
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Perform self-diagnosis.
Is DTC P1819 detected?
YES >> Perform diagnosis procedure. Refer to DLN-49, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000005148813
Regarding Wiring Diagram information, refer to DLN-89, "Wiring Diagram - ALL-MODE 4WD SYSTEM -".
1.CHECK POWER SUPPLY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector terminal and ground.
DTC CONSULT-III Diagnostic item is detected when... Reference
[P1819] SHIFT ACT CIR • Transfer control device actuator circuit
is shorted or open. (Malfunctions are
detected when transfer shift relay cir-
cuit is open/shorted or relay monitor
circuit is open/shorted.)
• Malfunction occurs in transfer control device drive circuit.
• Malfunction is detected in transfer shut off relay. Refer to DLN-49
.
Connector
Terminal Voltage (Approx.)
E142 16 - Ground
0V
22 - Ground
E143 30 - Ground Battery voltage
SDIA2834E
Revision: April 20092010 QX56

DLN-50
< COMPONENT DIAGNOSIS >[ATX14B]
P1819 TRANSFER CONTROL DEVICE
4. Turn ignition switch ON. (Do not start engine.)
5. Check voltage between transfer control unit harness connector
terminals and ground.
Are the inspection results normal?
YES >> GO TO 2.
NO >> Check the following. If any items are damaged, repair or replace damaged parts. • 10A fuse (No. 26 located in the fuse and fusible link box).
• Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 1.
• Harness for short or open between transfer shut off relay harness connector E69 terminal 2 and
transfer control unit harness connector E143 terminal 30.
• Harness for short or open between battery and transfer shut off relay harness connector E69 terminal 5.
• Harness for short or open between transfer shut off relay harness connector E69 terminal 3 and transfer control unit harness connector E142 terminal 22.
• Transfer shut off relay. Refer to DLN-23, "
Component Inspection".
2.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector.
3. Check continuity between transfer control unit harness connec- tor E142 terminals 3, 6, E143 terminal 45 and ground.
Also check harness for short to ground and short to power.
Are the inspection results normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay. Refer to DLN-16, "
Component Parts Loca-
tion".
3. Check voltage between transfer shift high relay harness connec- tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
Connector Terminal Voltage (Approx.)
E142 16 - Ground
Battery voltage
22 - Ground
E143 30 - Ground 0V
SDIA2835E
Continuity should exist.
SDIA2691E
ConnectorTerminal Voltage (Approx.)
A: E46 5 - Ground
Battery voltage
B: E47 5 - Ground
WDIA0310E
Revision: April 20092010 QX56
