2010 INFINITI QX56 upper

CHG
GENERATORCHG-21
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
J
K L
B A
O P
N
ON-VEHICLE REPAIR
GENERATOR
Removal and InstallationINFOID:0000000005146567
REMOVAL
1. Disconnect the negative battery terminal. Refer to
PG-74, "Removal and Installation".
2. Remove the fan shroud. Refer to CO-15, "
Removal and Installation".
3. Remove the drive belt. Refer to EM-13, "
Removal and Installation".
4. Remove lower bracket, using power tools.
5. Remove the generator upper bolt, using power tools.
6. Disconnect the generator harness connectors.
7. Remove the generator.
INSTALLATION
Installation is in the reverse order of removal.
• Install the generator and check the t ension of the drive belt. Refer to EM-13, "
Checking Drive Belts".
CAUTION:
Tighten terminal nut carefully.
WKIA1390E
Terminal nut : 10.8 N·m (1.1 kg-m, 8 ft-lb)
Revision: April 20092010 QX56

RADIATORCO-15
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
J
K L
M A
CO
NP
O
ON-VEHICLE REPAIR
RADIATOR
Exploded ViewINFOID:0000000005149044
Removal and InstallationINFOID:0000000005149045
WARNING:
Never remove the radiator cap when the engine is hot.
Serious burns could occur from high-pressure
engine coolant escaping from the radiator.
REMOVAL
CAUTION:
Perform when the engine is cold.
1. Drain engine coolant from the radiator. Refer to CO-11, "
Changing Engine Coolant".
2. Remove engine room cover. Refer to EM-24, "
Removal and Installation".
3. Remove air cleaner and air duct assembly. Refer to EM-25, "
Removal and Installation".
4. Disconnect A/T fluid cooler hoses. • Install blind plug to avoid leakage of A/T fluid.
1. Radiator 2. Bolt 3. Mounting rubber
4. A/T fluid cooler hose 5. Radiator hose (lower) 6. Flaps
7. Radiator shroud (upper) 8. Radiator shroud (lower) 9. Drain plug
10. Radiator hose (upper) 11. Reservoir tank hose 12. By-pass hose
13. Reservoir tank 14. Reservoir tank cap A. To radiator fill neck
B. To A/T cooler tube C. To water suction pipe D. To thermostat housing
WBIA0694E
Revision: April 20092010 QX56

CO-16
< ON-VEHICLE REPAIR >
RADIATOR
5. Disconnect the radiator lower hose from the radiator.CAUTION:
Do not allow coolant to contact drive belts.
6. Remove the lower radiator shroud. • Release the tabs, pull lower radiator shroud rearwards anddown to remove.
7. Disconnect the radiator upper hose and the coolant reservoir hose from the radiator. CAUTION:
Do not allow coolant to contact drive belt.
8. Remove the radiator shroud upper bolts and remove the radiator shroud upper (A).
9. Remove the upper radiator mounting bolts and rubbers.
10. Remove the A/C condenser bolts and brackets. NOTE:
Lift A/C condenser up and forward to remove from radiator.
11. Remove A/T oil cooler bolts and oil cooler from radiator and position aside.
WBIA0407E
WBIA0695E
WBIA0395E
WBIA0396E
Revision: April 20092010 QX56

CO-18
< ON-VEHICLE REPAIR >
ENGINE COOLING FAN
ENGINE COOLING FAN
Exploded ViewINFOID:0000000005149046
Crankshaft Driven Type
Removal and Installation (Crankshaft Driven Type)INFOID:0000000005149047
REMOVAL
1. Partially drain engine coolant from the radiator. Refer to CO-11, "Changing Engine Coolant".
2. Remove the lower and upper radiator shrouds. Refer to CO-15, "
Exploded View".
3. Remove the drive belt. Refer to EM-13, "
Removal and Installation".
4. Remove the cooling fan.
5. Remove the fan bracket, if necessary.
INSPECTION AFTER REMOVAL
Fan Coupling
• Inspect fan coupling for oil leakage and bimetal conditions.
• If there are any unusual concerns, replace the fan coupling.
Fan Bracket
• Visually check that there is no significant looseness in the fan bracket shaft, and that it turns smoothly by hand.
• If there are any unusual concerns, replace the fan bracket.
Cooling Fan Pulley
• Inspect cooling fan pulley.
• If there are any unusual concerns, replace the cooling fan pulley.
AWBIA0812GB
1. Cooling fan 2. Fan coupling3. Fan bracket
4. Cooling fan pulley A. Front mark Engine front
SLC072
WBIA0418E
Revision: April 20092010 QX56

DLK-106
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY BATTERY AND FUNCTION
INTELLIGENT KEY BATTERY AND FUNCTION
DescriptionINFOID:0000000005146975
The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Back door open
Remote control entry function and panic alarm functi
on are available when operating the remote buttons.
Component Function CheckINFOID:0000000005146976
1.CHECK FUNCTION
With CONSULT-III
Check remote keyless entry receiver "RKE OPE COUN1" in DATA MONITOR mode with CONSULT-III.
Is the inspection result normal?
YES >> Intelligent Key is OK.
NO >> Refer to DLK-106, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146977
1.CHECK INTELLIGENT KEY FUNCTION
Check keyfob function using Remote Keyless Entry Tester J-43241.
Does the test pass?
YES >> Intelligent Key is OK.
NO >> GO TO 2
2. CHECK INTELLIGENT KEY COMPONENTS
1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.
2. Insert a flat-blade screwdriver (A) wrapped with a cloth into the slit of the corner and twist it to separate the upper part from the
lower part.
CAUTION:
• Do not touch the circuit board or battery terminal.
• The keyfob is water-resistant. However, if it does get wet,
immediately wipe it dry.
3. Remove the Intelligent Key battery.
CAUTION:
• Keep dirt, grease, and other fo reign materials off the elec-
trode contact area.
4. Visually inspect keyfob internal components.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning parts.
3.CHECK INTELLIGENT KEY BATTERY
Monitor item Condition
RKE OPE COUN1 Check that the numerical value is changing while operating the Intelligent Key.
LEL946A
PIIB6221E
Revision: April 20092010 QX56

INTELLIGENT KEY BATTERY AND FUNCTIONDLK-107
< COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Check by connecting a resistance (approximately 300 Ω) so that the
current value becomes about 10 mA.
Is the measurement val ue within specification?
YES >> Intelligent Key battery is OK. Check remote keyless
entry receiver. Refer to DLK-103,
"ComponentFunctionCheck".
NO >> GO TO 4
4. REPLACE INTELLIGENT KEY BATTERY
1. Replace the Intelligent Key battery.
2. Align the tips of the upper and lower parts, and then push them together until it is securely closed.
CAUTION:
• When replacing battery, keep dirt, grease, and other for-eign materials off the electrode contact area.
3. After replacing the battery, check that all Intelligent Key func- tions work properly.
Is the inspection result normal?
YES >> Intelligent Key is OK.
NO >> Check remote keyless entry receiver. Refer to DLK-103,
"ComponentFunctionCheck".
Standard : Approx. 2.5 - 3.0V
OCC0607D
PIIB6222E
Revision: April 20092010 QX56

HOOD
DLK-235
< ON-VEHICLE REPAIR > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

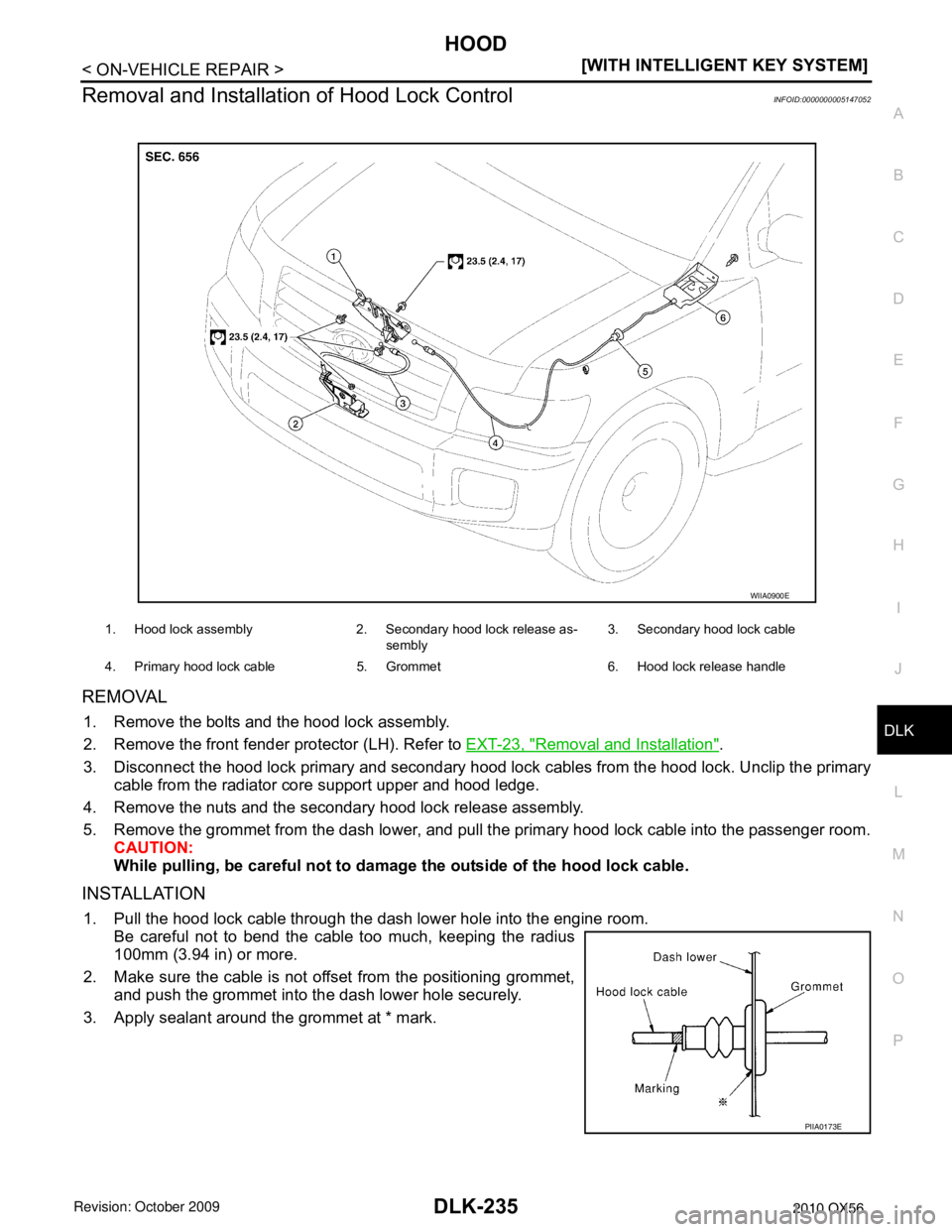

Removal and Installation of Hood Lock ControlINFOID:0000000005147052
REMOVAL
1. Remove the bolts and the hood lock assembly.
2. Remove the front fender protector (LH). Refer to EXT-23, "
Removal and Installation".
3. Disconnect the hood lock primary and secondary hood lock cables from the hood lock. Unclip the primary
cable from the radiator core support upper and hood ledge.
4. Remove the nuts and the secondary hood lock release assembly.
5. Remove the grommet from the dash lower, and pull the primary hood lock cable into the passenger room. CAUTION:
While pulling, be careful not to dama ge the outside of the hood lock cable.
INSTALLATION
1. Pull the hood lock cable through the dash lower hole into the engine room.
Be careful not to bend the cable too much, keeping the radius
100mm (3.94 in) or more.
2. Make sure the cable is not of fset from the positioning grommet,
and push the grommet into the dash lower hole securely.
3. Apply sealant around the grommet at * mark.
1. Hood lock assembly 2. Secondary hood lock release as-
sembly 3. Secondary hood lock cable
4. Primary hood lock cable 5. Grommet6. Hood lock release handle
WIIA0900E
PIIA0173E
Revision: April 20092010 QX56

BACK DOOR LOCKDLK-247
< ON-VEHICLE REPAIR > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

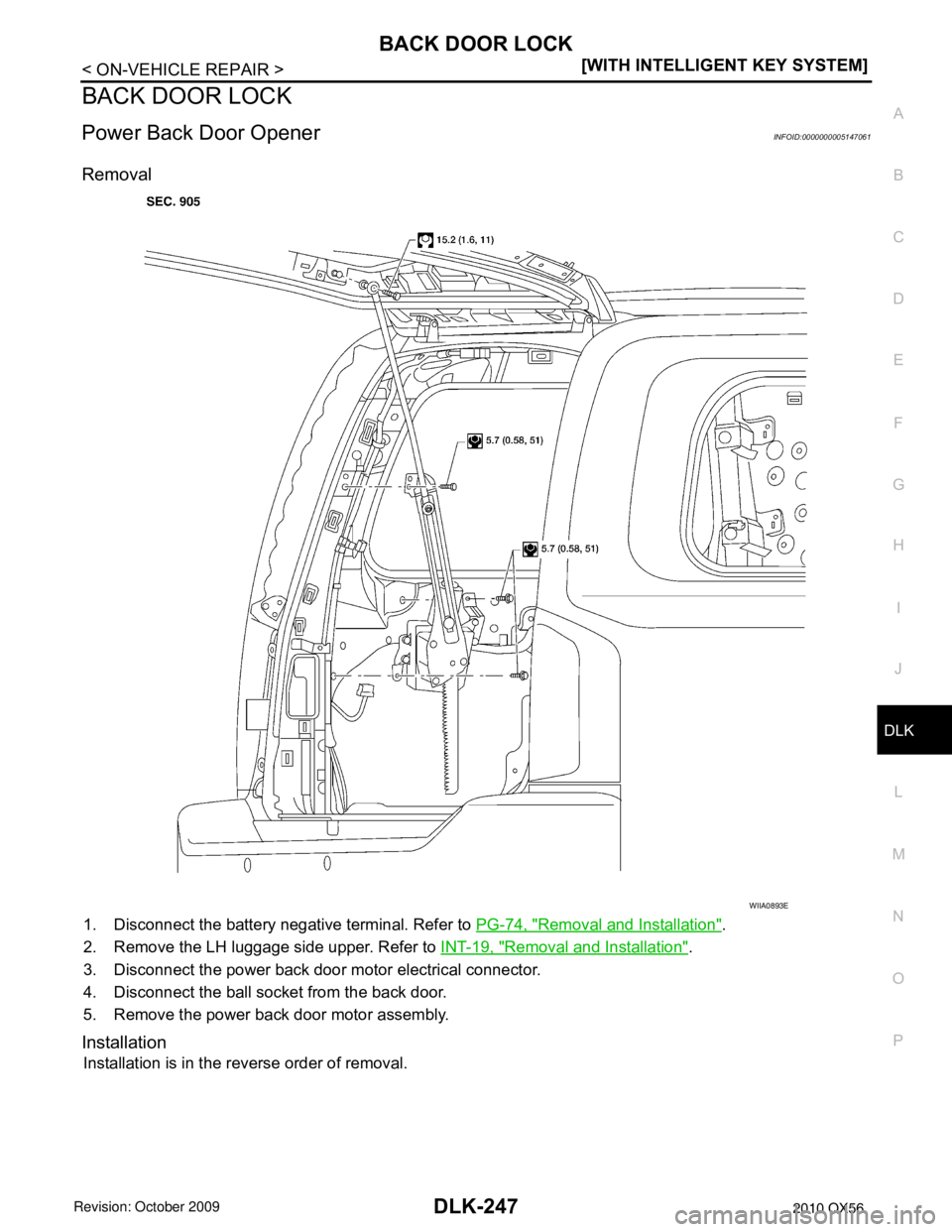

BACK DOOR LOCK
Power Back Door OpenerINFOID:0000000005147061
Removal
1. Disconnect the battery negative terminal. Refer to PG-74, "Removal and Installation".
2. Remove the LH luggage side upper. Refer to INT-19, "
Removal and Installation".
3. Disconnect the power back door motor electrical connector.
4. Disconnect the ball socket from the back door.
5. Remove the power back door motor assembly.
Installation
Installation is in the reverse order of removal.
WIIA0893E
Revision: April 20092010 QX56
