REMOVAL AND INSTALLATION
INSIDE MIRROR

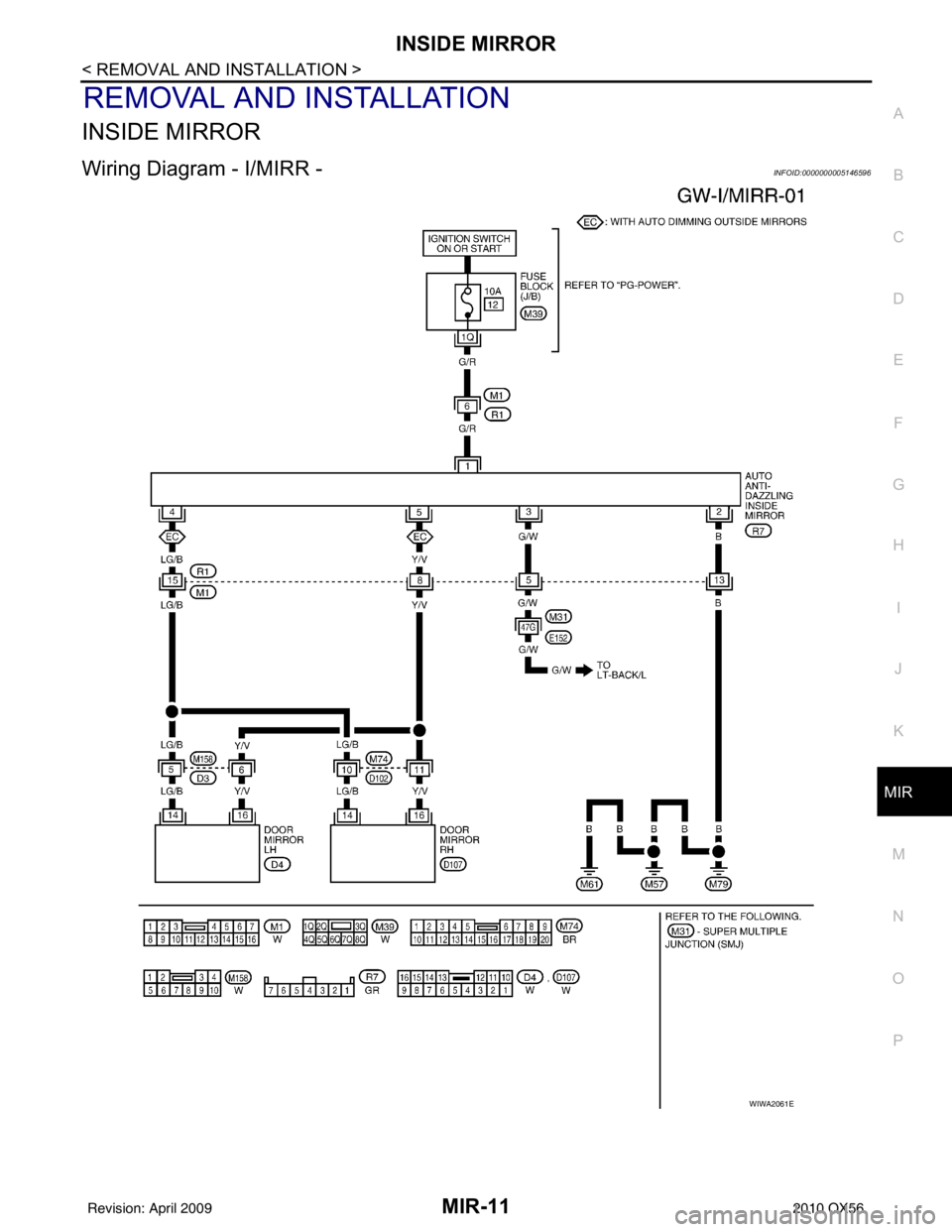

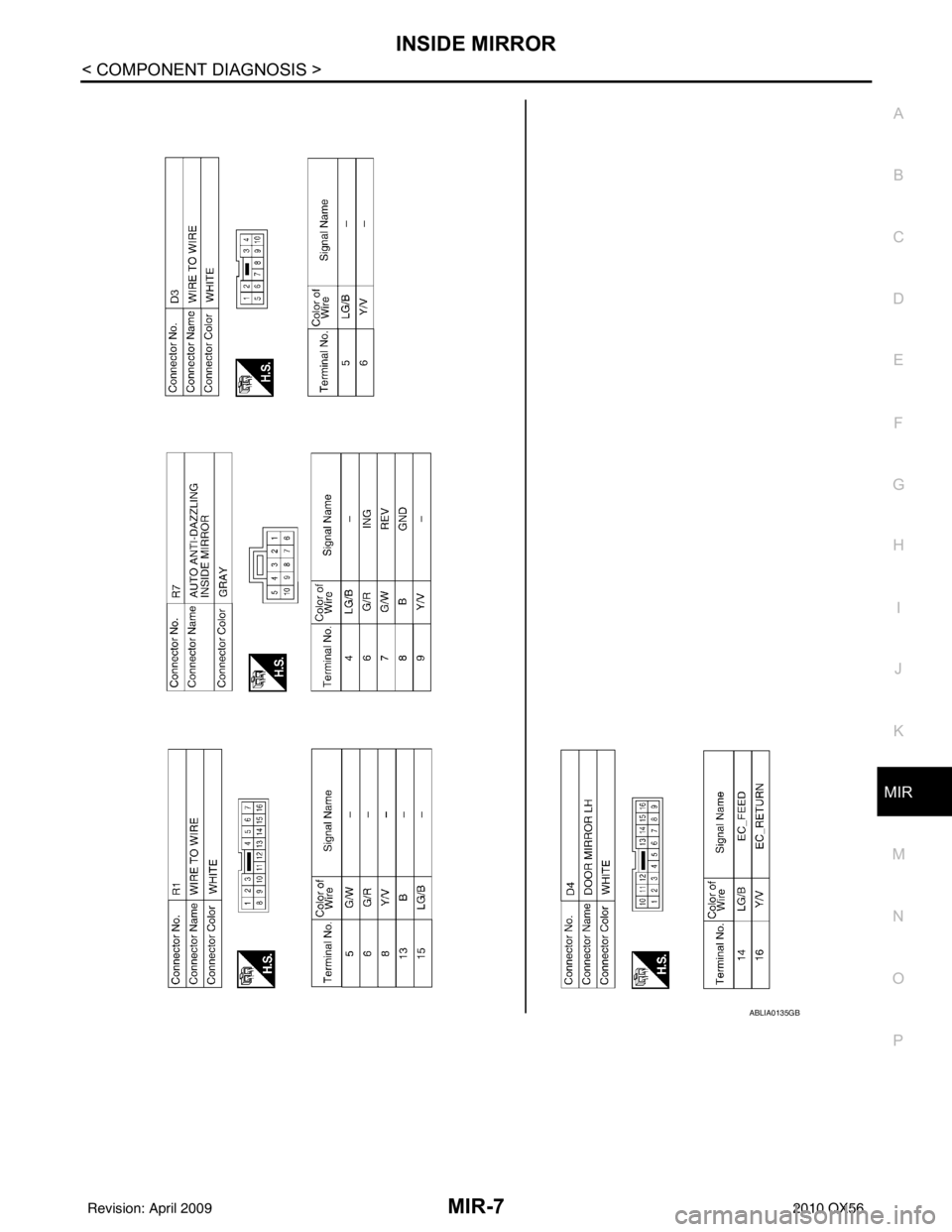

Wiring Diagram - I/MIRR -INFOID:0000000005146596
WIWA2061E
Revision: April 20092010 QX56

MIR-12
< REMOVAL AND INSTALLATION >
INSIDE MIRROR
Removal and Installation
INFOID:0000000005146597
1. Remove inside mirror finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.
Installation is in the reverse order of removal.
1. Inside mirror 2. Inside mirror finisher
LIIA0277E
Revision: April 20092010 QX56

DOOR MIRRORMIR-13
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
DOOR MIRROR

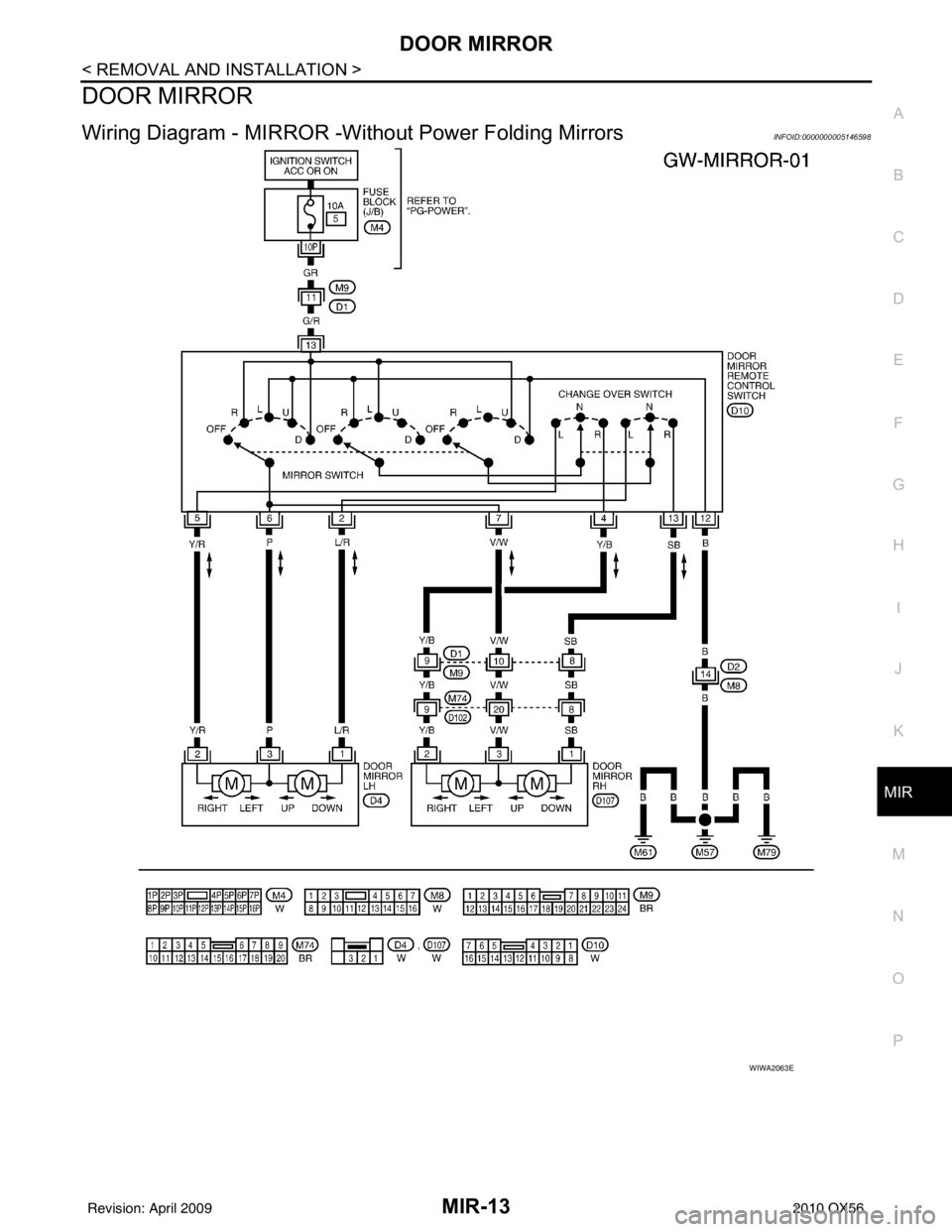

Wiring Diagram - MIRROR -Wit hout Power Folding MirrorsINFOID:0000000005146598
WIWA2063E
Revision: April 20092010 QX56

MIR-14
< REMOVAL AND INSTALLATION >
DOOR MIRROR

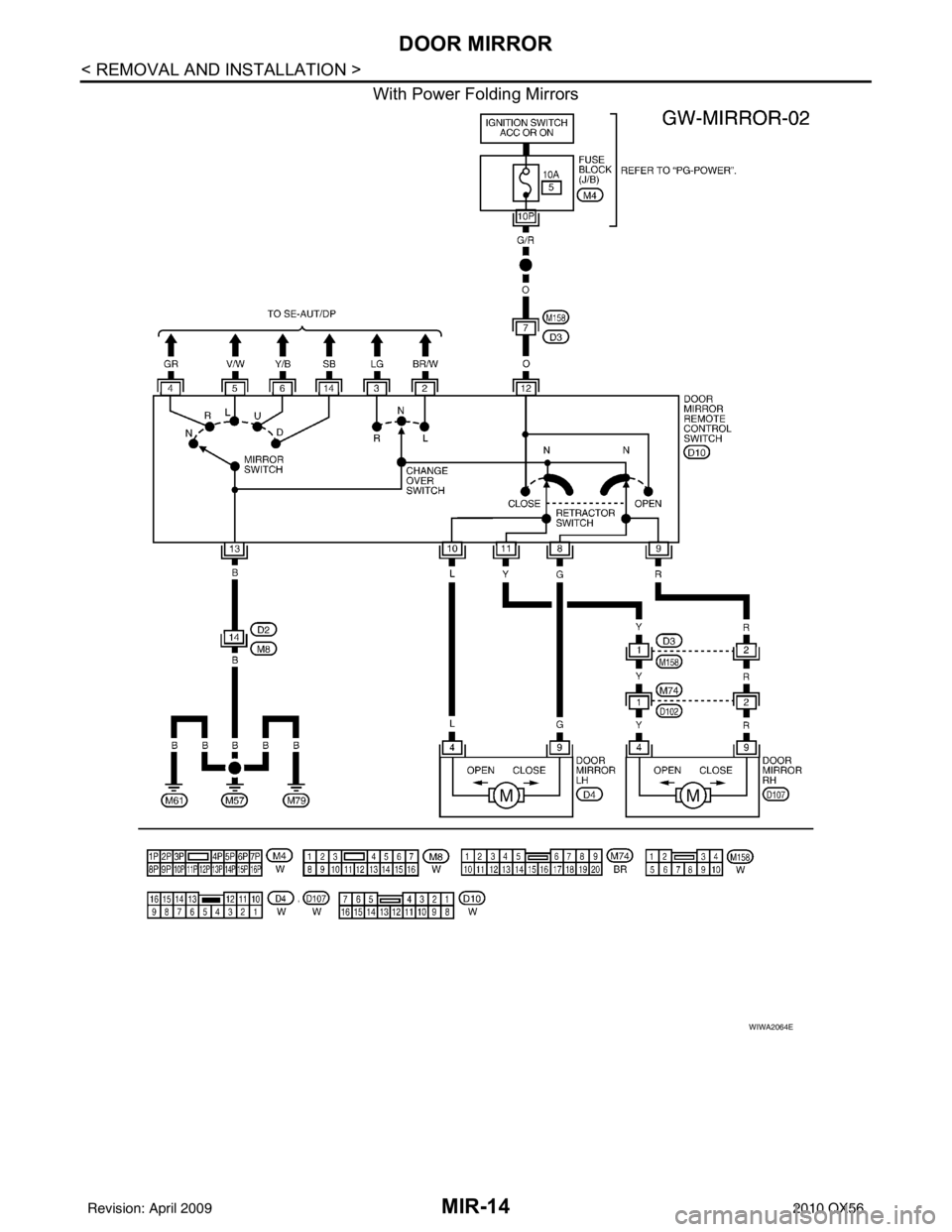

With Power Folding Mirrors
WIWA2064E
Revision: April 20092010 QX56

DOOR MIRRORMIR-15
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P

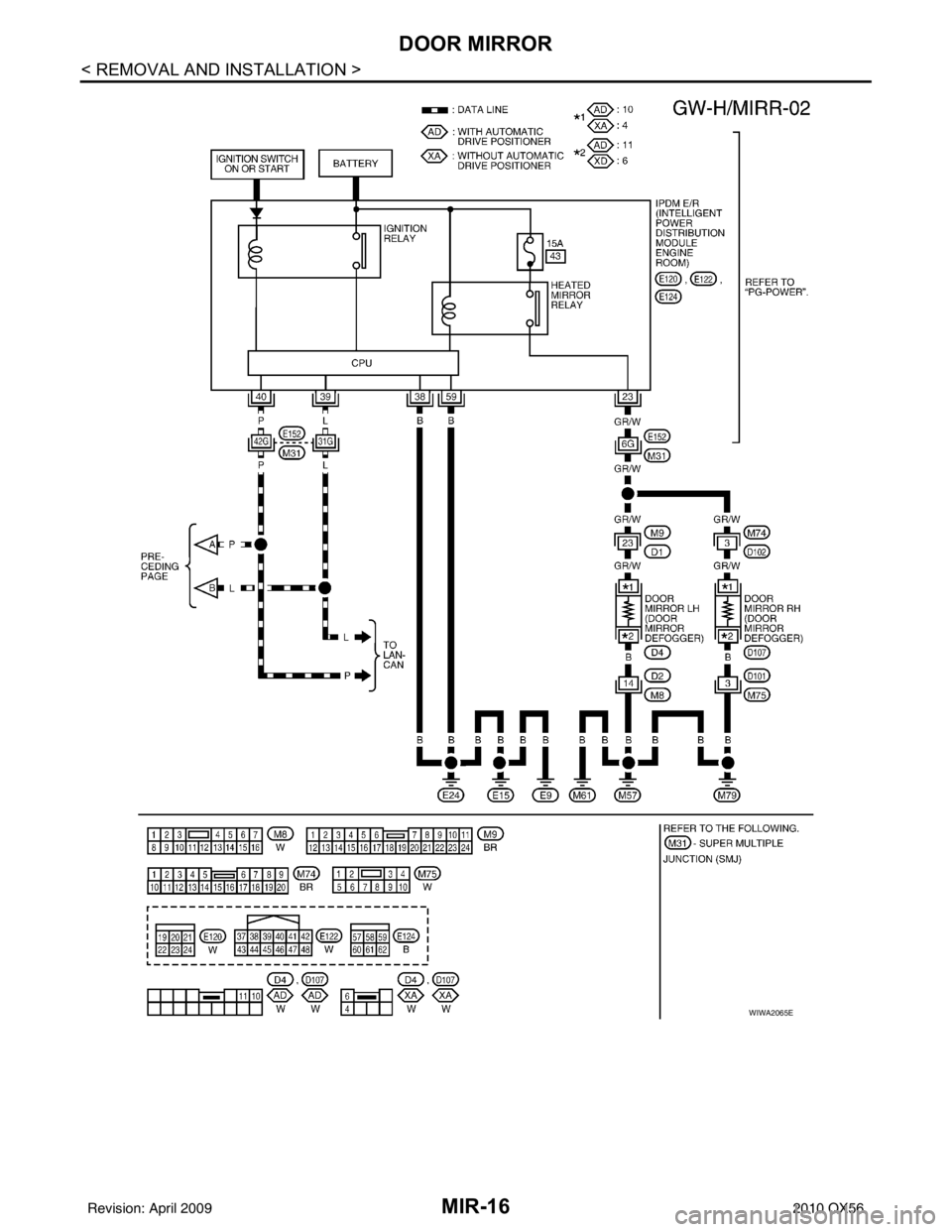

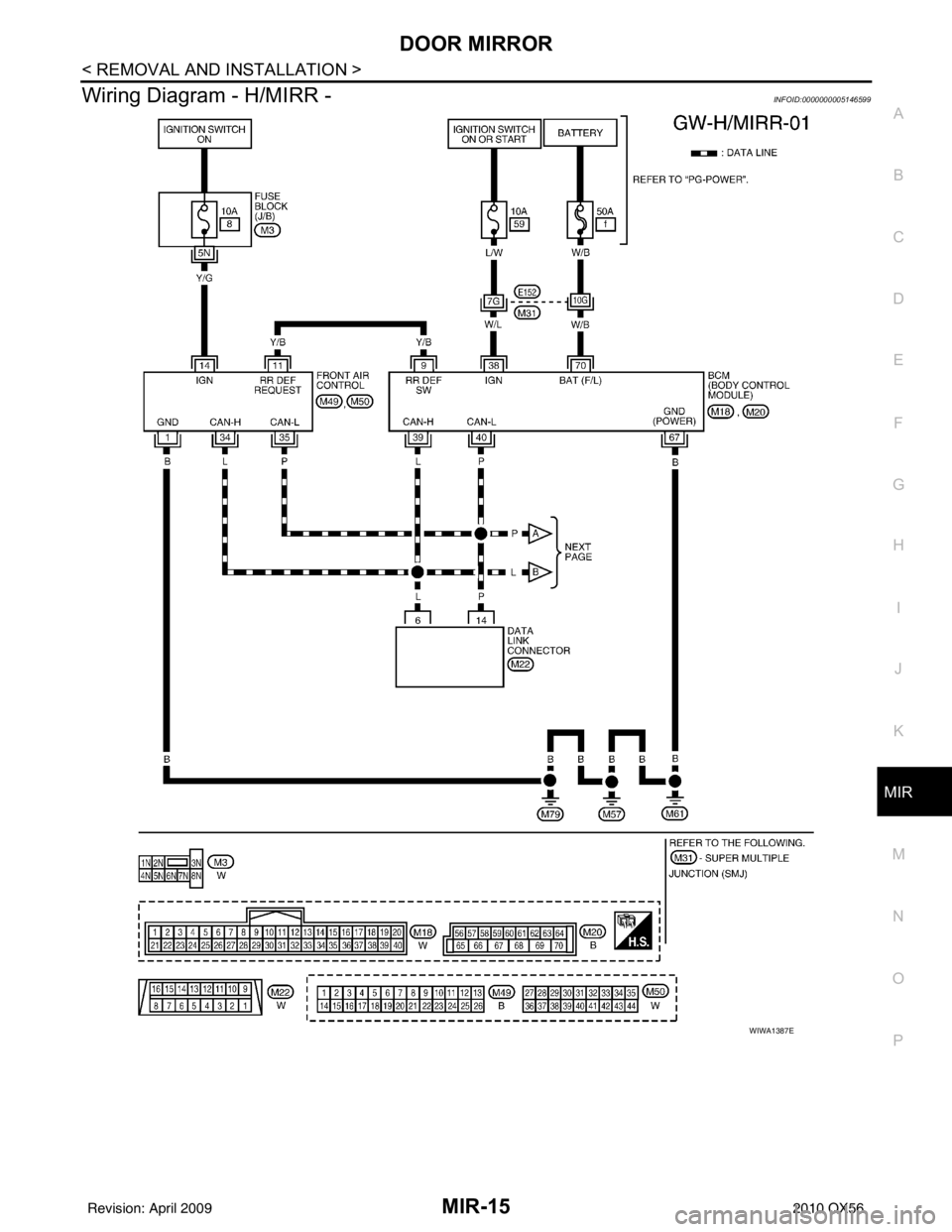

Wiring Diagram - H/MIRR -INFOID:0000000005146599
WIWA1387E
Revision: April 20092010 QX56

MIR-16
< REMOVAL AND INSTALLATION >
DOOR MIRROR
WIWA2065E
Revision: April 20092010 QX56

DOOR MIRRORMIR-17
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
Door Mirror AssemblyINFOID:0000000005146600
STANDARD MIRROR
Removal
1. Remove the front door finisher. Refer to INT-11, "Removal and Installation" .
2. Disconnect the mirror connector.
3. Remove the door mirror assembly.
Installation
Installation is in the reverse order of removal.
Door Mirror GlassINFOID:0000000005146601
REMOVAL
1. Set mirror assembly mirror glass upward.
2. Apply protective tape to mirror housing.

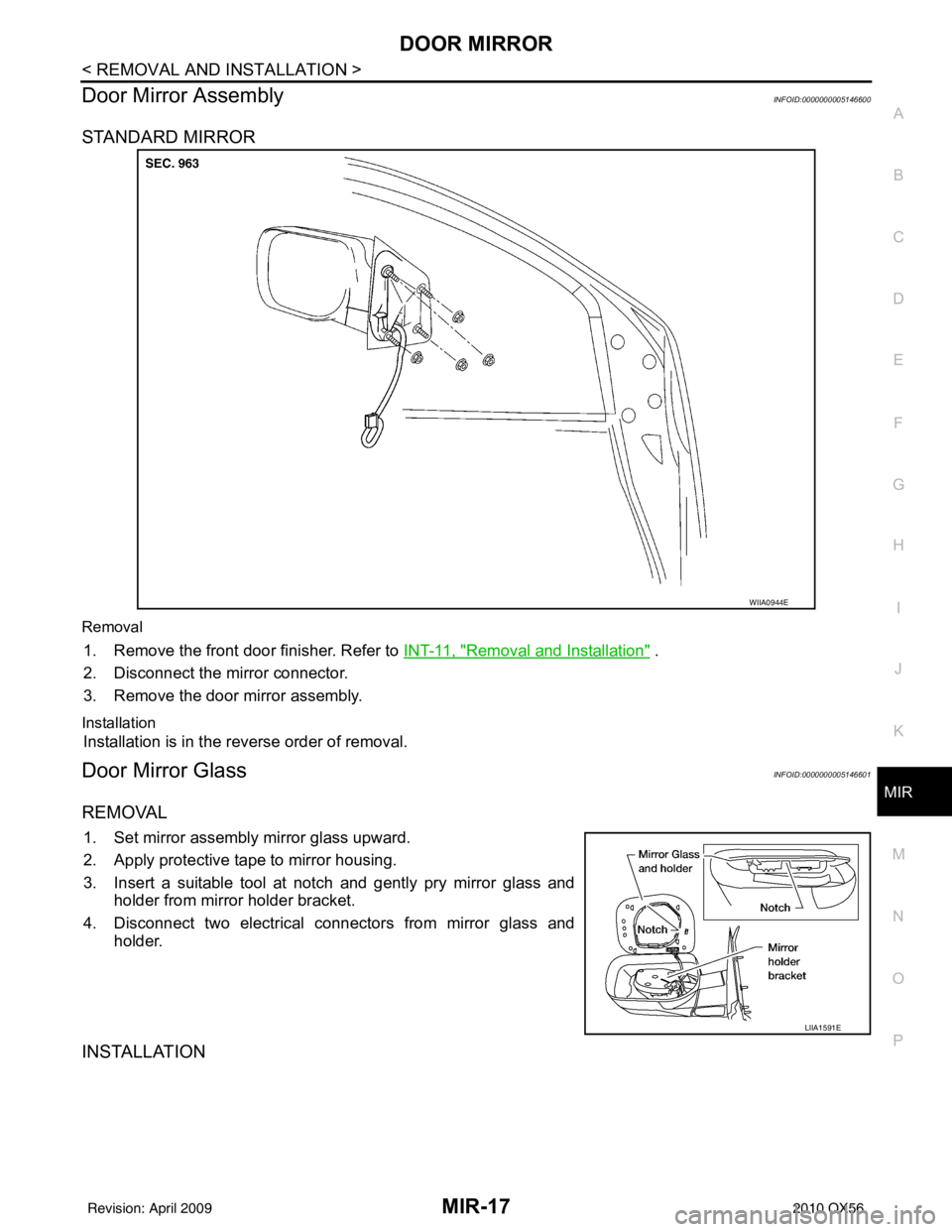

3. Insert a suitable tool at notch and gently pry mirror glass and holder from mirror holder bracket.
4. Disconnect two electrical connectors from mirror glass and holder.
INSTALLATION
WIIA0944E
LIIA1591E
