2010 INFINITI QX56 mirror

INL-78
< ON-VEHICLE REPAIR >
INTERIOR ROOM LAMP
1. Using a suitable tool (A), release the tabs and remove the vanitymirror lamp lens (1).
: Pawl
2. Release one side of the bulb (2) from the tab, then pull straight out to remove.
CAUTION:
Wrap a cloth around tool to protect the housing and lens.
GLOVE BOX LAMP
Removal
1. Remove instrument lower panel RH and glove box. Refer to IP-17, "Removal and Installation".
2. Rotate glove box lamp socket and rotate counterclockwise to release from steering member.
Installation
Installation is in the reverse order of removal.
Bulb Replacement
1. Remove instrument lower panel RH and glove box. Refer to IP-17, "Removal and Installation".
2. Pull bulb (2) straight out from glove box lamp socket (1) to remove.
STEP LAMP
Removal
Vanity mirror lamp bulb : 12V - 1.8W
ALLIA0320ZZ
Glove box lamp bulb : 12V - 3.4W
ALLIA0321ZZ
Revision: April 20092010 QX56

BULB SPECIFICATIONSINL-83
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
BULB SPECIFICATIONS
Interior Lamp/IlluminationINFOID:0000000005146756
*: Always check with the Parts Department for the latest parts information. Item
Wattage (W)*
Map Lamp 8
Vanity mirror lamp 1.32
Glove box lamp 3.4
Step lamp 3.8
Personal lamp 6
Footwell lamp 3.4
Cargo lamp 8
Console illumination lamp -
Revision: April 20092010 QX56

MIR-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION MIR
A
B
MIR
N
O P
CONTENTS
MIRRORS
COMPONENT DIAGNOSIS ..........................2
DOOR MIRROR .............................................. .....2
Wiring Diagram ................................................... ......2
INSIDE MIRROR .................................................5
Wiring Diagram ................................................... ......5
PRECAUTION ...............................................8
PRECAUTIONS .............................................. .....8
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
8
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
8
Handling for Adhesive and Primer ............................9
PREPARATION ...........................................10
PREPARATION .............................................. ....10
Special Service Tool ............................................ ....10
Commercial Service Tool ........................................10
REMOVAL AND INSTALLATION ...............11
INSIDE MIRROR ...............................................11
Wiring Diagram - I/MIRR - ................................... ....11
Removal and Installation .........................................12
DOOR MIRROR ................................................13
Wiring Diagram - MIRROR -Without Power Fold-
ing Mirrors ................................................................
13
Wiring Diagram - H/MIRR - ......................................15
Door Mirror Assembly ..............................................17
Door Mirror Glass ....................................................17
DISASSEMBLY AND ASSEMBLY ..............19
DOOR MIRROR ................................................19
Mirror Actuator ..................................................... ....19
Revision: April 20092010 QX56

MIR-2
< COMPONENT DIAGNOSIS >
DOOR MIRROR
COMPONENT DIAGNOSIS
DOOR MIRROR

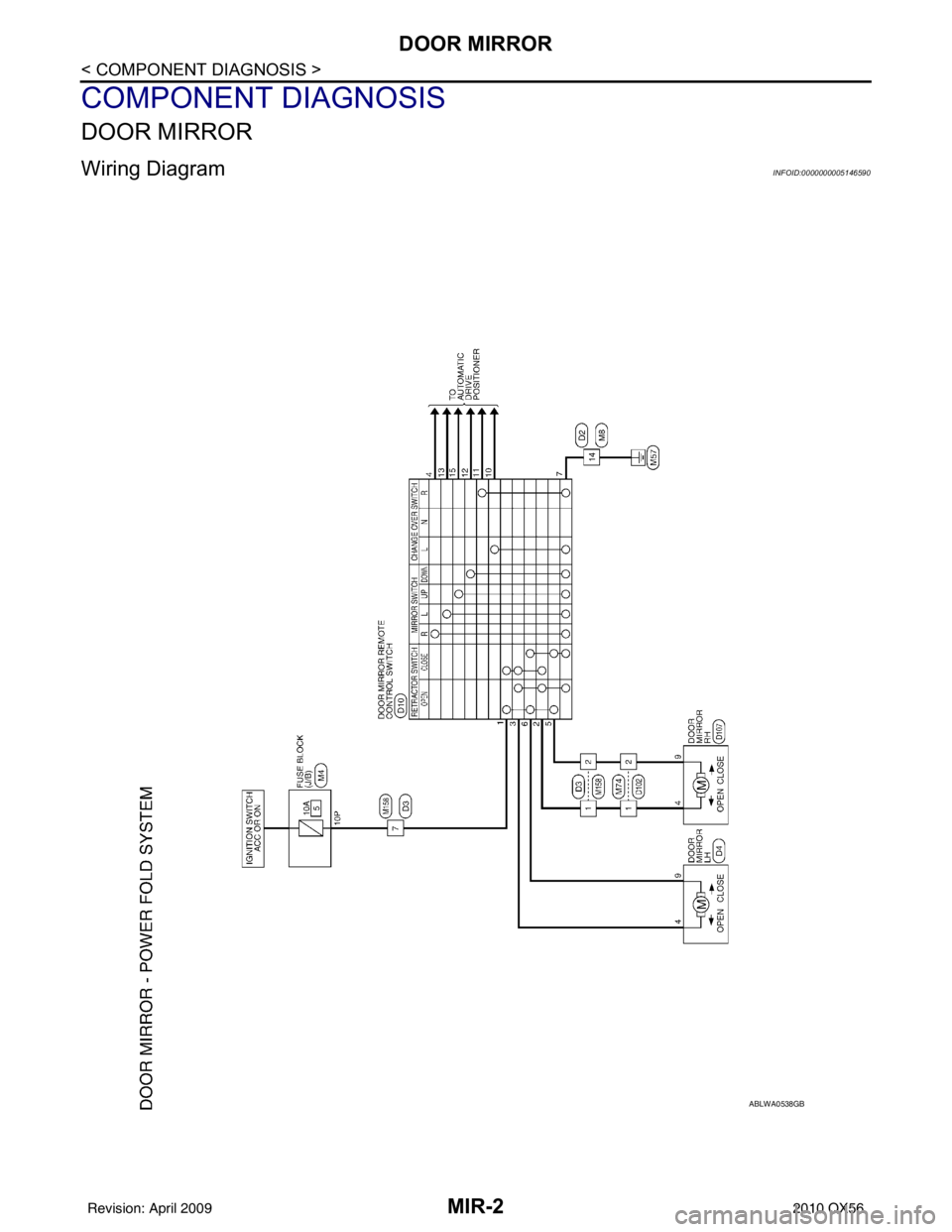

Wiring DiagramINFOID:0000000005146590
ABLWA0538GB
Revision: April 20092010 QX56

DOOR MIRRORMIR-3
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P

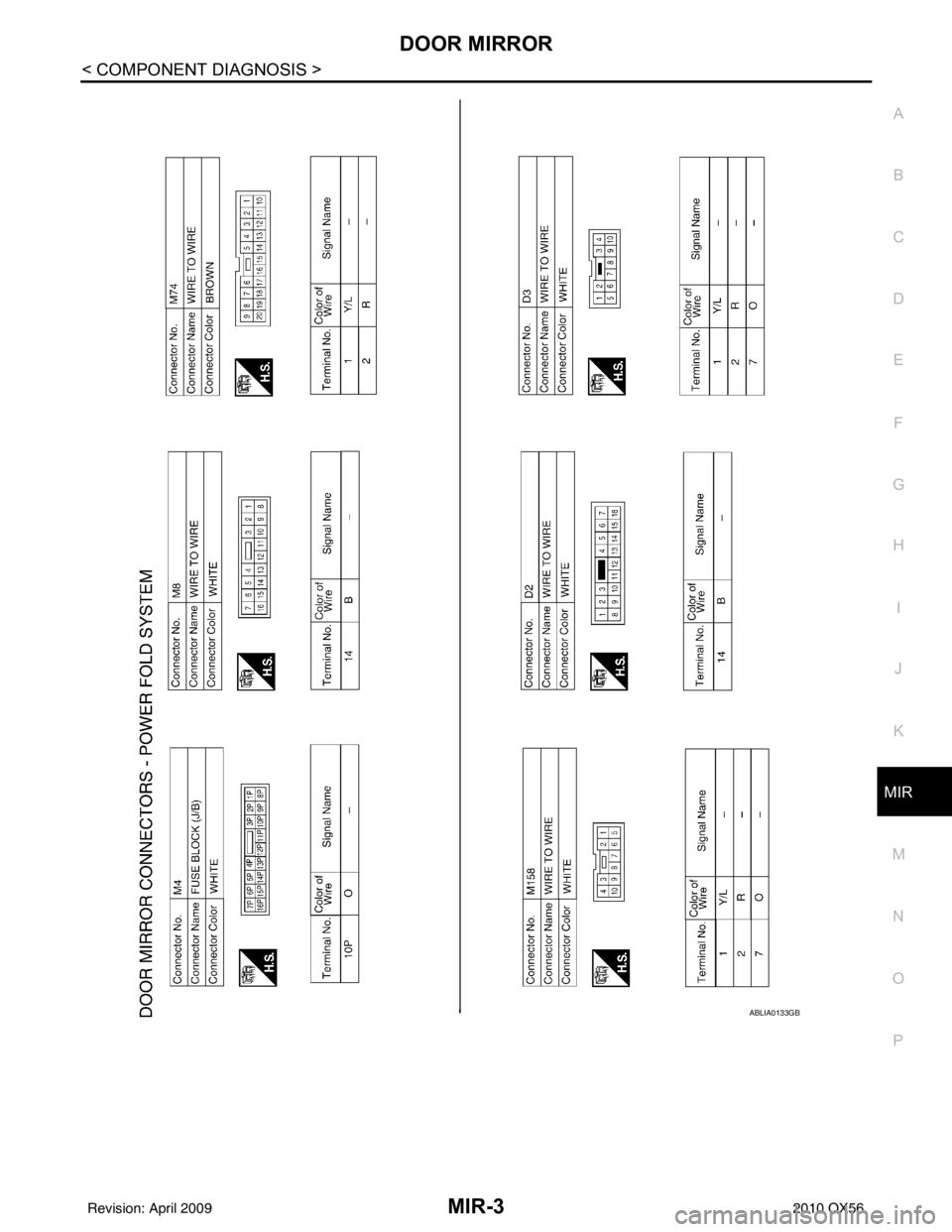

ABLIA0133GB
Revision: April 20092010 QX56

MIR-4
< COMPONENT DIAGNOSIS >
DOOR MIRROR

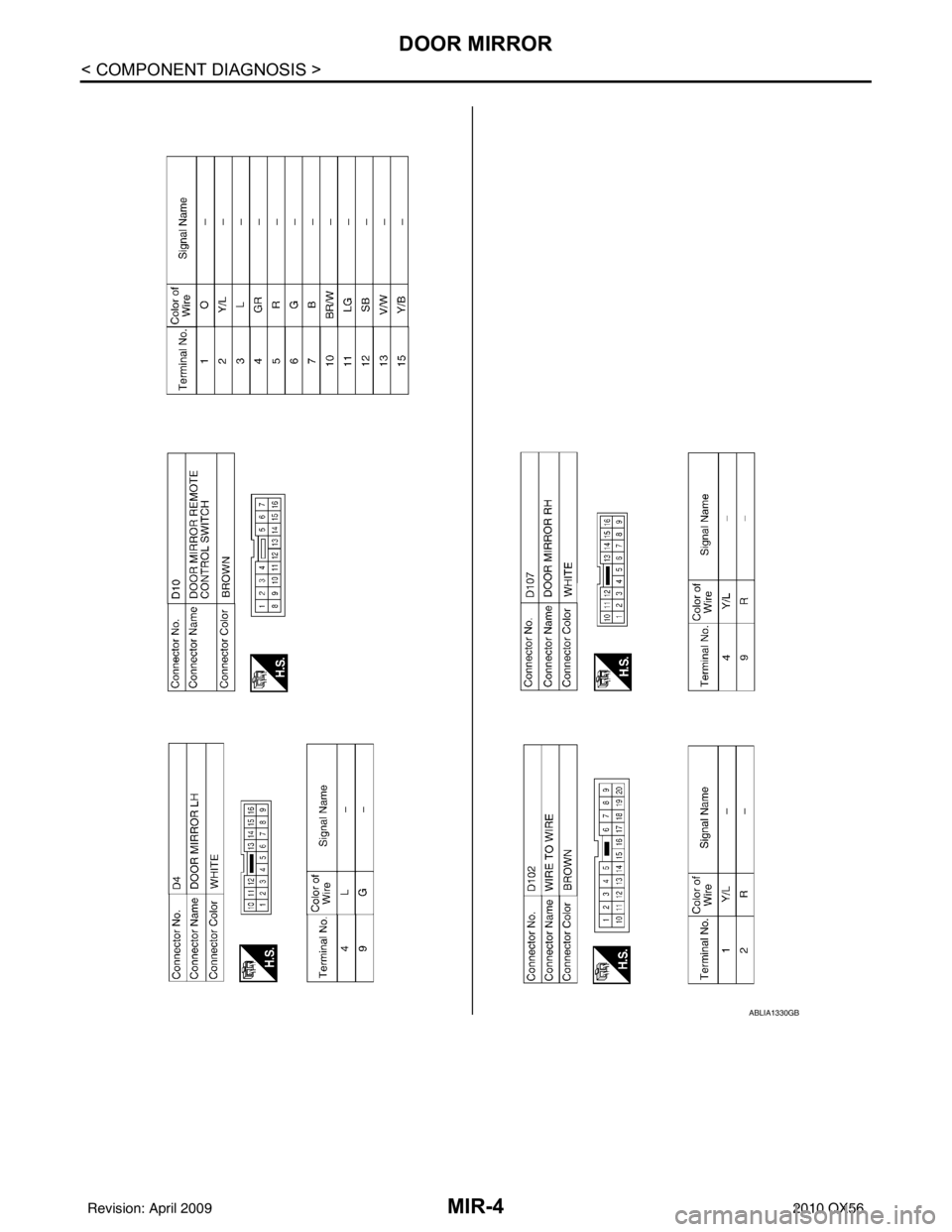

ABLIA1330GB
Revision: April 20092010 QX56

INSIDE MIRRORMIR-5
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
INSIDE MIRROR

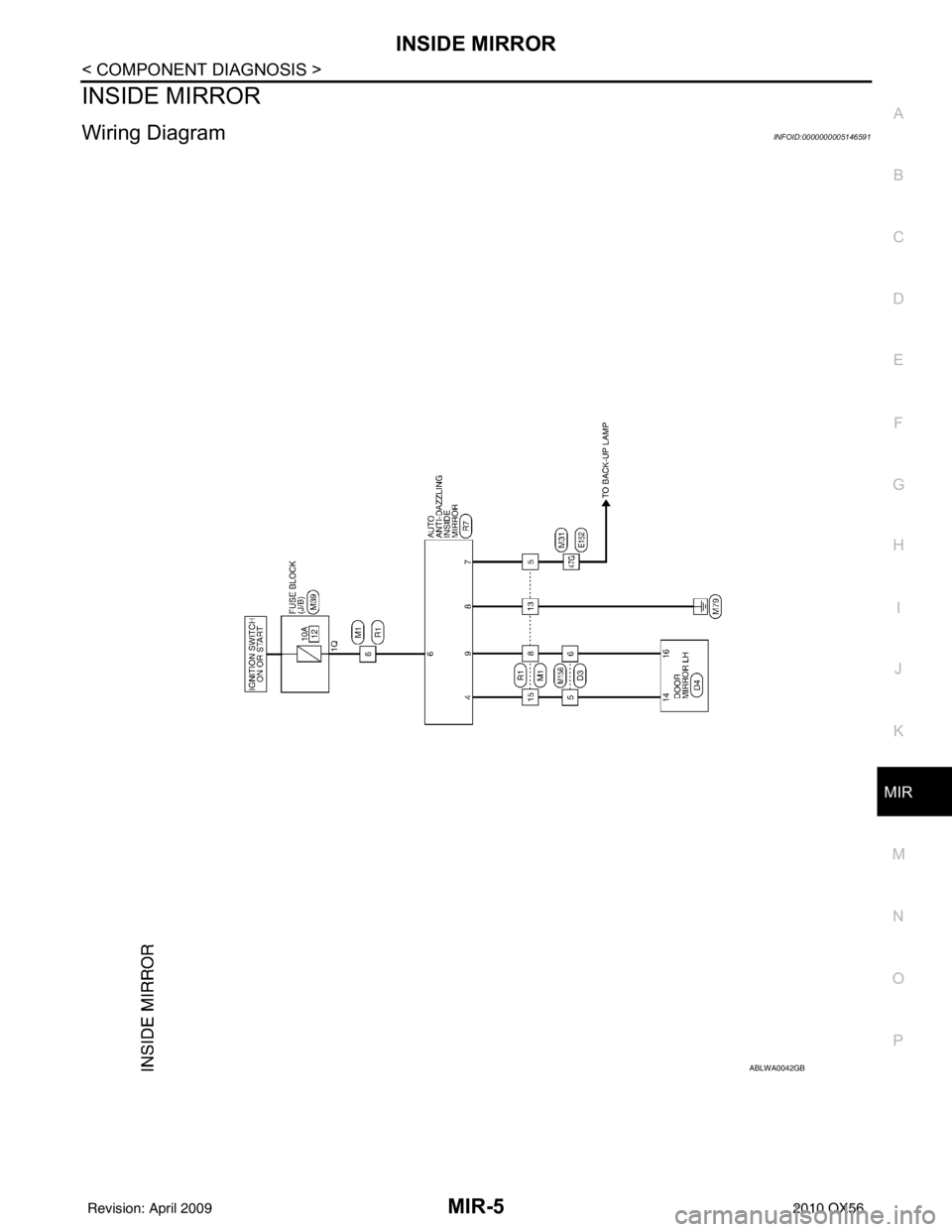

Wiring DiagramINFOID:0000000005146591
ABLWA0042GB
Revision: April 20092010 QX56

MIR-6
< COMPONENT DIAGNOSIS >
INSIDE MIRROR

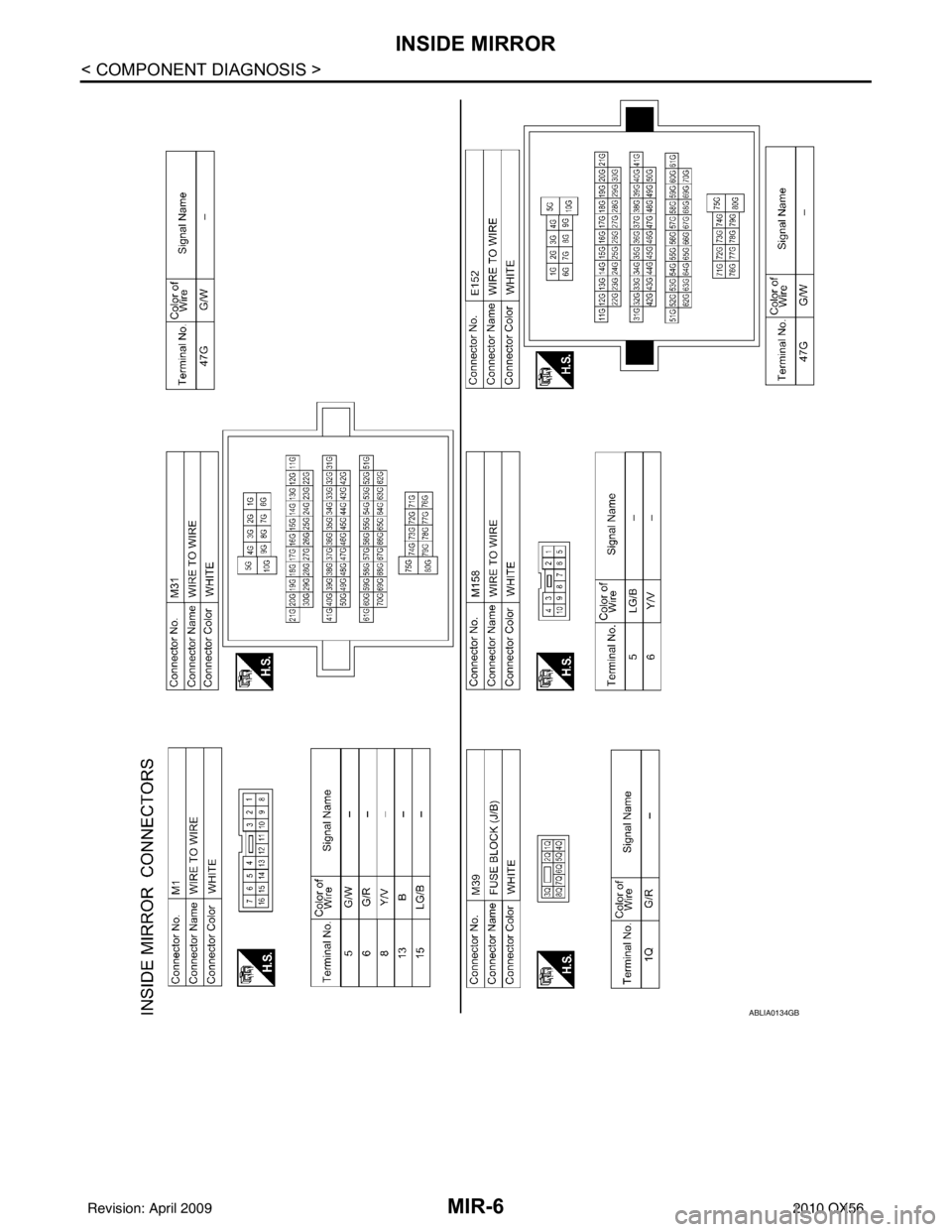

ABLIA0134GB
Revision: April 20092010 QX56
