2010 HONDA PILOT Owners Manual

CONT INUED
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
f ront passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-f acing child seat.
Many states, Canadian provinces and
territories allow a child one year of
age or older who also meets the
minimum size and weight
requirements to transition f rom a
rear-facing child seat to a forward
f acing seat. Know the requirements
where you are driving and follow the
child seat instructions. Many experts
recommend use of a rear-f acing seat
up to age two, if the child’s height
and weight are appropriate f or a
rear-facing seat.
Of the different seats available, we
recommend those that have a f ive-
point harness system as shown.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
Protecting Inf ants and Small Children
Protecting Small Children
Child Seat T ype
Driver and Passenger Saf ety
45
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
collision.
Always place a rear-facing child
seat in the back seat, not the
front.
——
y
y
(/
yy
2010 Pilot

We strongly recommend placing a
forward-facing child seat in a back
seat, not the f ront.
If it is necessary to put a f orward-
f acing child seat in the f ront, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
f irmly secured to the vehicle and the
child is properly strapped in the seat.
If the vehicle seat is too
f ar f orward, or the child’s head is
thrown f orward during a collision, an
inf lating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the saf est
place f or a small child.
36
Protecting Inf ants and Small Children
Child Seat Placement
Placing a f orward-f acing child seat in
the f ront seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
46
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
——
y
y
(/
y
y
2010 Pilot

When buying a child seat, you need
to choose either a conventional child
seat, or one designed f or use with
the Lower Anchors and Tethers f or
CHildren (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the rear seating
positions.
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look f or FMVSS 213 or CMVSS
213 on the box.
Rear-facing for infants, forward-
f acing f or small children.
Bef ore purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specif ic
vehicle seating position or positions
where the seat will be used.
Selecting a Child Seat
T he child seat should meet
Federal Mot or Vehicle Saf et y
St andard 213 or Canadian Mot or
Vehicle Saf et y St andard 213.
T he child seat should be of the
proper type and size to f it the child.
T he child seat should f it the
vehicle seat ing posit ion (or
posit ions) where it will be used.
1.
2.
3.
Driver and Passenger Saf ety
47
——
y
y
(/
yy
2010 Pilot

Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers f or CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.Properly secure t he child seat t o
the vehicle.
Make sure t he child seat is f irmly
secured.
Secure the child in the child seat.
1.
2.
3.
Installing a Child Seat
48
——
y
y
(/
yy
2010 Pilot

CONT INUED
To install a LATCH-compatible child
seat in either outer second row seat:
Move the seat belt buckle or
tongue away f rom the lower
anchors.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers f or CHildren) at each of the
second row seats and the passenger’s
side third row seat.
When you install a child seat in the
second row seating position, use the
loweranchorsasshowninthe
illustration. You can install up to
three child seats at a time with
LATCH.
Do not attach two child seat
connectors to a single lower anchor
at a time.
You can f ind lower anchors in the
slits in the seat-backs.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
1.
2.
Installing a Child Seat with
LATCH
Installing a Child Seat
Using t he Out er L A T CH
Driver and Passenger Saf ety
49
LOWER ANCHORS
MARKS
——
y

y
(/
yy
2010 Pilot

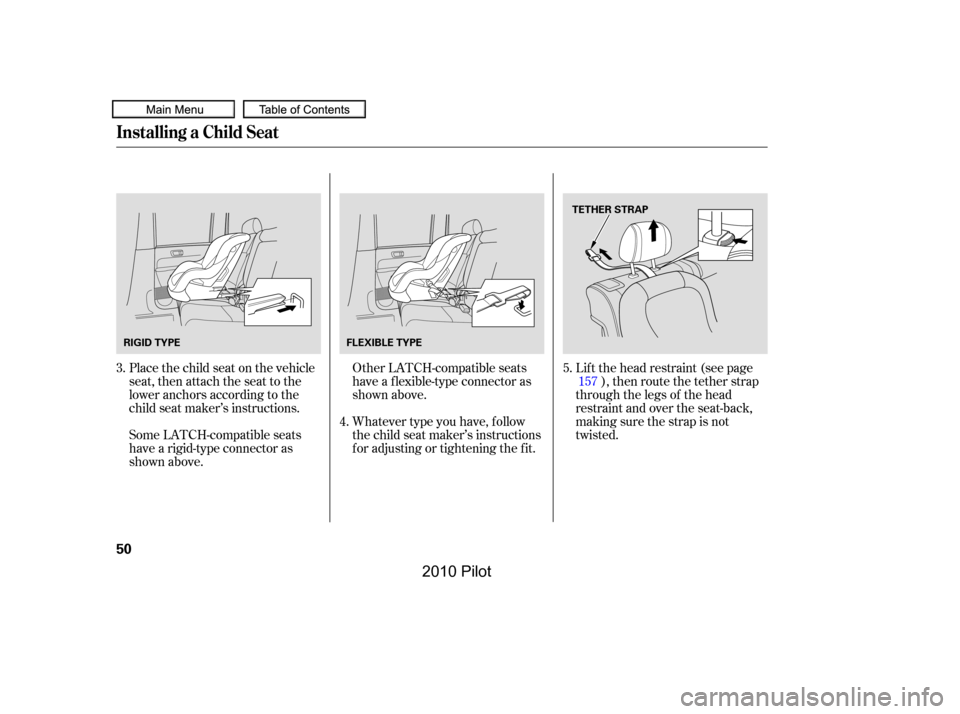

Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
Lif t the head restraint (see page
), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted.
Other LATCH-compatible seats
have a f lexible-type connector as
shown above.
3.
4.
5.
157
Installing a Child Seat
50
RIGID TYPEFLEXIBLE TYPE
TETHER STRAP
——
y

y
(/
yy
2010 Pilot

Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
To install a LATCH-compatible child
seat in the center seating position on
the second row seat, use the center
lower anchors as shown above.
Follow step 1 through 4 as
described previously to secure the
child seat.
Lower the head restraint f irst.
Route the tether strap over the
head restraint and seat-back, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
Unlatch the detachable seat belt
anchor latch and retract the seat
belt all the way into the ceiling.
Place the latch plate and anchor
latch in their holding slots (see
page ).
6.
7.
2.
3.
4.
1.
162
CONT INUED
Using t he Cent er L A T CH
Installing a Child Seat
Driver and Passenger Saf ety
51
——
y
y
(/
yy
2010 Pilot

The location of each lower anchor is
indicated by a small button above the
anchor point.
To install a LATCH-compatible child
seat in the passenger’s side seating
position of the third row:
Unlatch the detachable seat belt
anchor latch and retract the seat
belt all the way into the passenger’s
side panel. Place the latch plate
and anchor latch in their holding
slots (see page ).
Followsteps1through4of the
second row installation on pages
and .
You can f ind lower anchors in the
slits in the seat-backs.
Lower the head restraint f irst.
Route the tether strap over the
head restraint and seat-back, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
1.
2.
3.
4.
163
4950
Installing a Child Seat
52
LOWER ANCHORS
——
y
y
(/
yy
2010 Pilot
