Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure/TPMS indicator in the
instrumental panel and the
appropriate tire position indicator on
thetirepressuremonitoronthe
multi-inf ormation display (see page)tocomeon. Refer to page for tire inflation
guidelines.
If there is a problem with the TPMS,
this indicator begins to f lash. It stops
flashing after approximately 1
minute, then stays on. You will also
see a ‘‘CHECK TPMS SYSTEM’’
message on the multi-information
display (see page ). For example, if you check and f ill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than
measured and could be underinflated
and cause the low tire pressure/
TPMS indicator to come on. Or, if
youcheckandadjustyourtire
pressure in cooler conditions, and
drive into extremely hot conditions,
the tire may become overinf lated.
However, the low tire pressure/
TPMS indicator will not come on if
the tires are overinflated.
When the low tire pressure/TPMS
indicator is on, one or more of your
tires is signif icantly underinf lated.
The multi-inf ormation display also
shows a ‘‘CHECK TIRE PRESSURE’’
message (see page ). You should
stop and check your tires as soon as
possible, and inflate them to the
proper pressure as indicated on the
vehicle’s tire inf ormation placard.
Driving on a signif icantly under
inf lated tire causes the tire to
overheat and can lead to tire failure.
Underinf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure/TPMS
indicator may come on unexpectedly.
401 401
450
402
CONT INUED
Low Tire Pressure/
TPMS Indicator
Tire Pressure Monitoring System (TPMS) Touring models
Driving
399
——
y
y
(yy
2010 Odyssey

µ
Although your tire pressure is
monitored, you must manually check
thetirepressuresmonthly.
Each tire, including the spare, should
be checked monthly when the
vehicle is cold, and set to the
recommended inf lation pressure as
specif ied on the vehicle placard and
intheowner’smanual(seepage).
If the tire is f lat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire (see page ). If you think you can saf ely drive a
short distance to a service station,
proceed slowly to the station, then
inflate the tire to the recommended
pressure. If you have a f lat tire, the low tire
pressure/TPMS and tire monitor
indicators will come on. Replace the
indicated f lat tire with the compact
sparetire(seepage ).
After the flat tire is replaced with the
spare tire, the low tire pressure/
TPMS indicator stays on while
driving. Af ter several miles
(kilometers) driving, this indicator
begins to f lash, then stays on again.
You will also see a ‘‘CHECK TPMS
SYSTEM’’ message on the multi-
inf ormation display. This is normal;
the system cannot monitor the spare
tire pressure. Manually check the
spare tire pressure to be sure it is
correct.
This indicator and the warning
message on the multi-inf ormation
display will go of f , af ter several miles
(kilometers) driving, when the spare
tire is replaced with the specifiedregular tire equipped with the tire
pressure monitor sensor.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
a qualif ied technician.
451
462 463
Changing a T ire with T PMS
Tire Pressure Monitoring System (TPMS) Touring models
400
——
y
y
(yy
2010 Odyssey

µ
When any of the tires have low
pressure, the low tire pressure/
TPMS indicator on the instrument
panel comes on, and the multi-
inf ormation display also interrupts
the current display and shows a
‘‘CHECK TIRE PRESSURE’’
message. You can see one or more of
the low pressure tire positions
highlighted in the display along with
this message.
To display the tire pressure monitor,
press the INFO button until it
appears on the multi-inf ormation
display.
When all tire pressures are normal,
the tire pressure monitor will show a
‘‘TIRE PRESS. OK SYSTEM FUNC
NORMAL’’ message.
When the TPMS is functioning
normally, you can see the tire
pressure readings of each tire in psi
(U.S. models) or kPa (Canadian
models) by pressing the SEL/
RESET button while the multi-
inf ormation display shows the tire
pressure monitor.
CONT INUED
On Touring models
Tire Pressure Monitor
Tire Pressure Monitoring System (TPMS) Touring models
Driving
401
——
y
y
(yy
2010 Odyssey

µ
It is possible that the pressures
shown on the multi-inf ormation
display and the pressures you
manually measure are slightly
dif f erent.
If the dif f erence is signif icant or you
cannot make the low tire pressure/
TPMS indicator and message on the
multi-inf ormation display go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.If you see this message, the system
may not be able to detect or signal
low tire pressure as intended. Also,
the tire pressure readings will not be
displayed. Have your vehicle
checked by a dealer as soon as
possible.

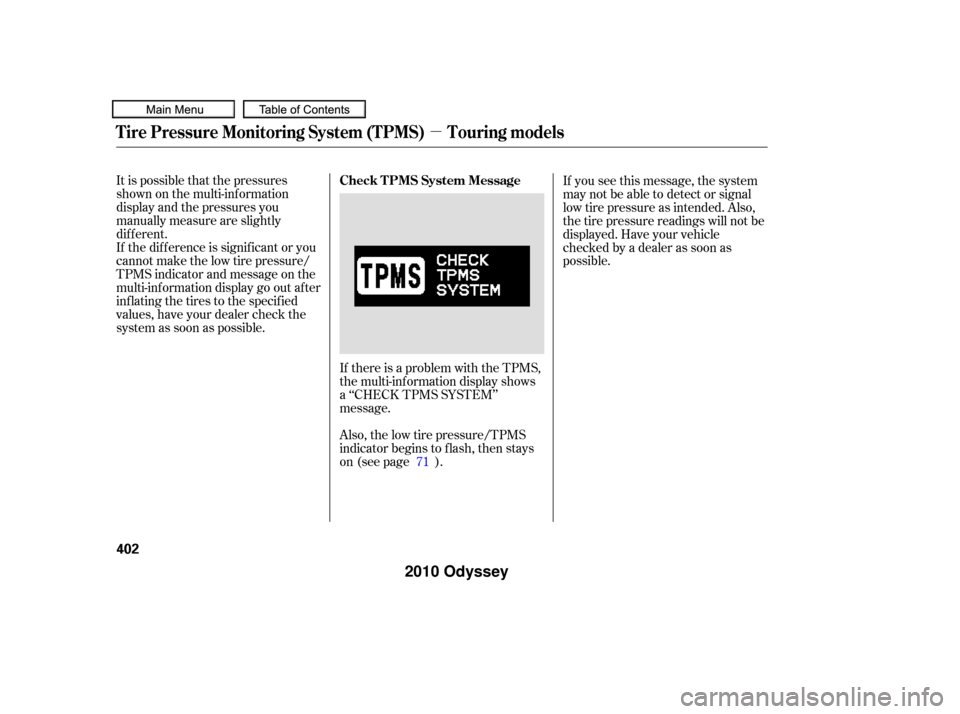

If there is a problem with the TPMS,
the multi-information display shows
a ‘‘CHECK TPMS SYSTEM’’
message.
Also, the low tire pressure/TPMS
indicator begins to f lash, then stays
on (see page ). 71
Tire Pressure Monitoring System (TPMS) Touring models
Check T PMS System Message
402
——
y

y
(yy
2010 Odyssey

µ
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.If the low tire pressure/TPMS
indicator comes on, or the multi-
inf ormation display shows a
‘‘CHECK TPMS SYSTEM’’ message,
the VSA system automatically turns
on even when the VSA system is
turned of f by pressing the VSA OFF
switch (see page ). If this
happens, you cannot turn the VSA
system of f by pressing the VSA OFF
switch again. When you restart the vehicle with
thecompactsparetire,theTPMS
system message will also be
displayed on the multi-inf ormation
display af ter several miles
(kilometers) driving.
395
Tire Pressure Monitoring System (TPMS) Touring models
Driving
403
——
y
y
(yy
2010 Odyssey

This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
the inf ormation display or multi-
inf ormation display (depending on
models), and instructions f or simple
maintenance tasks you may want to
take care of yourself .
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.......................
Maintenance Saf ety .414
....................
Maintenance Minder . 415
..............................
Fluid Locations .425
........................
Adding Engine Oil .426
Changing the Engine Oil and ...........................................
Filter .428
..............................
Engine Coolant .430
....................
Windshield Washers .432
....
Automatic Transmission Fluid . 433
....................................
Brake Fluid .435
....................
Power Steering Fluid . 436
....................................
Timing Belt .436
.............................................
Lights .437
................
Cleaning the Seat Belts . 444
.....................................
Floor Mats .444
..................
Dust and Pollen Filter . 444
.................................
Wiper Blades .445
...........................................
Wheels .450
...............................................
Tires .450
...................
Checking the Battery . 458
.............................
Vehicle Storage .459
511
Maintenance
Maint enance
413
——
y
y
(y
y
2010 Odyssey

CONT INUED
If the oil lif e is 15 percent or less,
you will see the oil lif e indicator
everytimeyouturntheignition
switch to the ON (II) position. This
indicator stays on until you cancel it
by pressing the select/reset knob.
The maintenance minder indicator
will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil lif e indicator.
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and push and release
the select/reset knob on the
instrument panel repeatedly, until
the engine oil lif e is displayed.
Your vehicle displays engine oil lif e
and maintenance service items on
the information display (LX, EX,
EX-L and Canadian DX models), or
on the multi-information display
(Touring models), to show you when
you should have your dealer perf orm
engine oil replacement and indicated
maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage.
On LX, EX, EX-L and Canadian DX
models
Maintenance Minder
Engine Oil L if e Indicator
Maint enance
415
MAINTENANCE ITEM CODE ENGINE OIL LIFE
INDICATOR
MAINTENANCE MINDER
INDICATOR
——
y
y
(yy
2010 Odyssey

You can change the display to the
odometer, the trip meter, or the
outside temperature by pushing the
select/reset knob on the instrument
panel.
When the remaining engine oil lif e is
less than 5 percent, you will see a
‘‘CHANGE OIL’’ message on the
inf ormation display, along with the
same maintenance item code(s),
everytimeyouturntheignition
switch to the ON (II) position. When the remaining engine oil lif e is
0 percent, you will see the above
display. In this display, the remaining
oil lif e indicator will be blinking. This
display comes on and stays on every
time you turn the ignition switch to
the ON (II) position. When you see
this message, have the indicated
maintenance perf ormed by your
dealer as soon as possible.
