2010 HONDA ODYSSEY high beam

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
LX, EX, EX-L and Canadian DX models
65
HIGH BEAM
INDICATOR
IMMOBILIZER
SYSTEM
INDICATOR
POWER SLIDING
DOOR INDICATOR
DOOR AND
TAILGATE OPEN
INDICATOR
CHARGING
SYSTEM
INDICATOR FUEL ECONOMY
INDICATOR
MALFUNCTION
INDICATOR
LAMP LOW TIRE PRESSURE
INDICATOR
LIGHTS ON INDICATOR CRUISE MAIN INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
CRUISE CONTROL
INDICATOR
LOW FUEL INDICATOR
SEAT BELT REMINDER
INDICATOR SIDE AIRBAG OFF
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR SECURITY
SYSTEM
INDICATOR
(P.70)
(P.75)
(P.76) (P.34,
67)
(P.75)(P.76)
(P.21,
68)
(P.35,
68)
(P.
74) (P.
75)
(P.75)
(P.75)
(P.73)
(P.73)TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR
(P.73)
MAINTENANCE MINDER
INDICATOR DAYTIME RUNNING LIGHTS
(DRL) INDICATOR VSA ACTIVATION
INDICATOR
POWER TAILGATE OPEN
INDICATOR
(P.74)
(P.70,
394)
LOW OIL PRESSURE
INDICATOR (P.70,
394)
(P.71,396)
(P.72, 397)
(P.69,392)
(P.67, 477)
(P.67, 478)
(P.67, 477)
(P.69,479)
——
y
y
(yy
2010 Odyssey

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

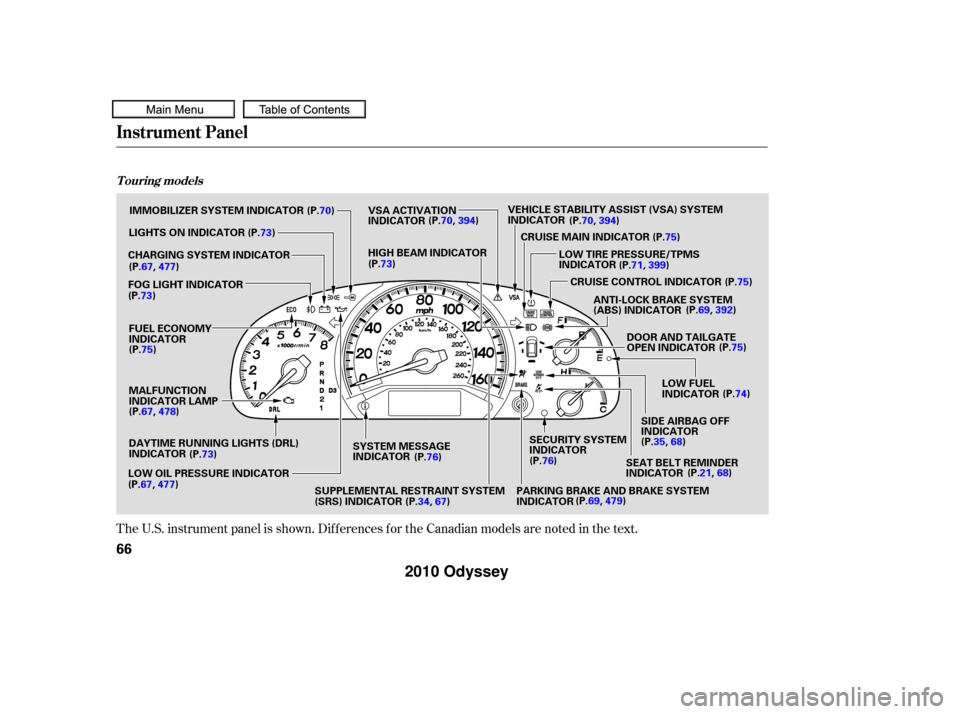

Instrument Panel
T ouring models
66
SEAT BELT REMINDER
INDICATORDOOR AND TAILGATE
OPEN INDICATOR
SECURITY SYSTEM
INDICATOR SIDE AIRBAG OFF
INDICATOR
(P. 76)
(P.21,68)
(P.35,
68) (P.75)
(P.
75)
(P.70)
(P.76)
FUEL ECONOMY
INDICATOR
(P.75)
MALFUNCTION
INDICATOR LAMP LIGHTS ON INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
CRUISE CONTROL INDICATOR
CRUISE MAIN INDICATOR (P.75)
CHARGING SYSTEM INDICATOR
FOG LIGHT INDICATOR IMMOBILIZER SYSTEM INDICATOR
HIGH BEAM INDICATOR
SYSTEM MESSAGE
INDICATOR
LOW OIL PRESSURE INDICATOR LOW FUEL
INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR (P.
74)
(P.34, 67)
(P.73)
(P.73)
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR (P.73) (P.73)
LOW TIRE PRESSURE/TPMS
INDICATOR
VSA ACTIVATION
INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM
INDICATOR
(P.70, 394)
(P.70,394)
(P.71, 399)
(P.69,392)
(P.67,
477)
(P.67, 478)
(P.67, 477)
(P.69,479)
——y


y
(y
y
2010 Odyssey

This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
On Touring models, this indicator
also comes on when the light switch
is in AUTO and the lights turn on
automatically. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked (see page ).
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when you
turn on the fog lights. See page
f or inf ormation on f og light
operation. 89
136
138
138
On Touring models
On Touring models
Instrument Panel Indicators
Daytime Running L ights
Indicator Fog L ight Indicator
Lights On Indicator
High Beam Indicator
Inst rument s and Cont rols
73
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR
——
y

y
(yy
2010 Odyssey

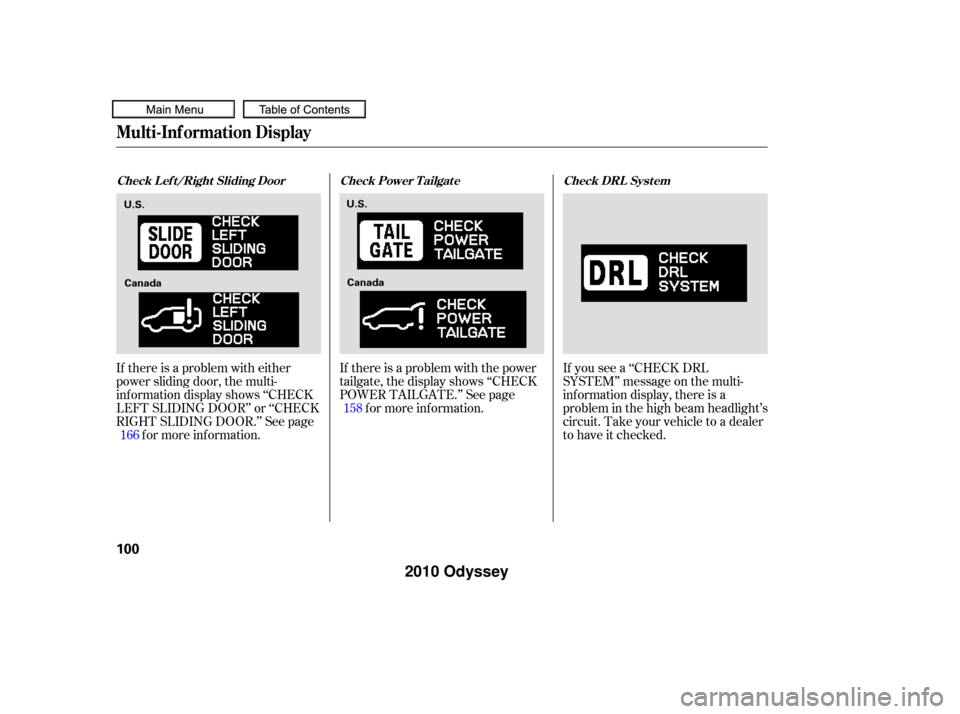

If there is a problem with the power
tailgate, the display shows ‘‘CHECK
POWER TAILGATE.’’ See pagef or more inf ormation.
If there is a problem with either
power sliding door, the multi-
inf ormation display shows ‘‘CHECK
LEFT SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR.’’ See page
f or more inf ormation. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked.
166 158
Check DRL Syst em
Check Power Tailgate
Check L ef t /Right Sliding Door
Multi-Inf ormation Display
100
U.S.
Canada
U.S.
Canada
——
y


y
(y
y
2010 Odyssey

µµ
To turn on the rear window wiper,
rotate the switch clockwise to ON.
It operates intermittently.
OFF Hold past ON to turn the window
wiper on and the window washer
on. When you shif t the transmission to
the reverse position with the f ront
windshield wipers activated, the rear
window wiper operates automatically.
When the wiper control lever is
positioned as f ollows:
The rear window wiper
operates intermittently.
The rear window wiper
operates continuously.
Rotate the switch
counterclockwise to spray the
window washer. Turn signal
Of f
Parking and indicator lights
AUTO (Touring models)
Headlights on
High beams
Flashhighbeams
Fog lights of f (Touring models)
Fog lights on (Touring models)
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
7.
8.

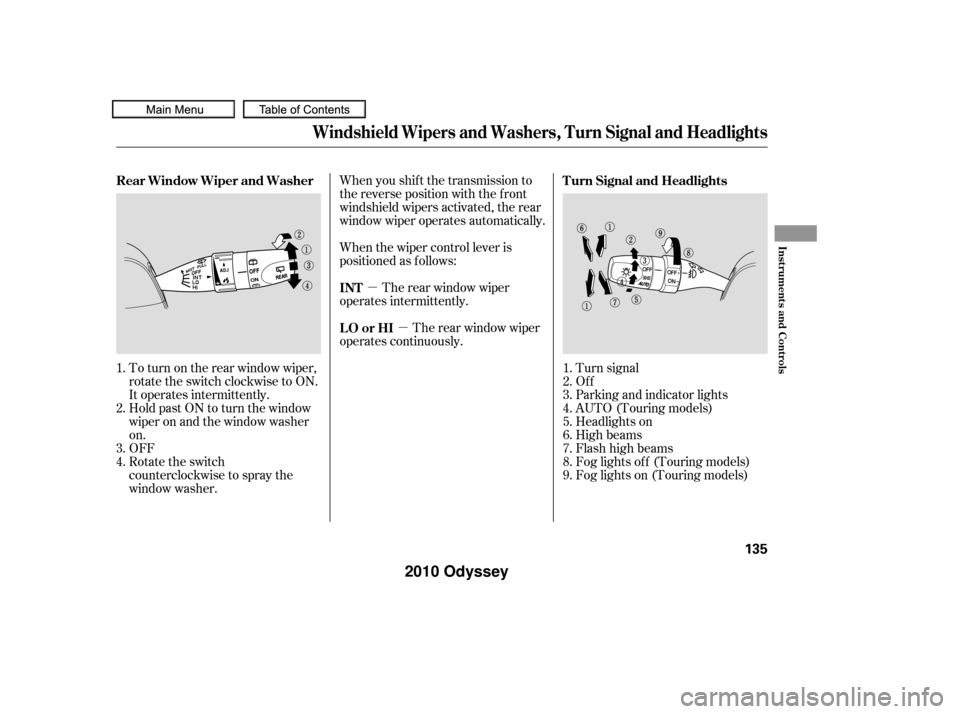

9. Turn Signal and Headlights
Rear Window Wiper and Washer
INT
LO or HI
Windshield Wipers and Washers, Turn Signal and Headlights
Inst rument s and Cont rols
135
——
y

y
(y
y
2010 Odyssey

µµµ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. The rotating switch
on the lef t lever controls the lights.
Turning this switch to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position. To switch f rom low
beams to high beams, push the lef t
lever f orward until you hear a click.
The high beam indicator will come
on (see page ). Pull it back to
return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back. 73
Turn Signal
Headlights
High Beams
Turn Signal, Headlights
136
——
y

y
(y

y
2010 Odyssey

Î
Î
ÎIf you unlock the door, but do not
open it within 15 seconds, the lights
go of f . With the driver’s door open,
you will hear a lights-on reminder
chime. The lights turn on again when you
unlock or open the driver’s door.
On the Touring models, this time is
changeable. See page f or how to
select and set the time.
Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when the headlights
are turned of f .
With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch. This turns of f the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key f rom
the ignition switch and closing the
driver’s door.
This feature activates if you leave
the headlight switch in the or
position, remove the key, then
open and close the driver’s door.
If you remove the key f rom the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights turn off after
10 minutes. 118
On Touring models
On EX, EX-L and Touring models only
Automatic Lighting Of f Feature
Fog Lights
Daytime Running L ights
Headlights
138
——
y

y
(y
y
2010 Odyssey

Your vehicle has halogen headlight
bulbs, two on each side. When
replacing a bulb, handle it by its base
and protect the glass from contact
with your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.The high beam headlight bulb and
the low beam headlight bulb are
replaced the same way.Open the hood. To change the
high beam headlight bulb on the
passenger’s side, remove the
power steering f luid reservoir
f rom its holder by pulling it
straight up.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or other qualif ied technician.
1.
CONT INUED
Lights
Headlight A imingReplacing a Headlight Bulb
Maint enance
437
POWER
STEERING
FLUID
RESERVOIR
Passenger’s side
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
——
y
y
(yy
