2010 FIAT DOBLO COMBI Owner handbook (in English)

64
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Each movement of the lever will correspond to a slight re-
duction in speed of about 1 km/h, while keeping the lever
held downwards will correspond to a continuous speed
reduction.
Switching the device off
The device can be switched off by the driver in the fol-
lowing ways:
❒turning the twist switch A to the OFF position;
❒switching off the engine.
Deactivating the function
The device can be de-activated by the driver in the fol-
lowing ways:
❒pressing the brake pedal when the device is adjusting
the speed;
❒pressing the clutch pedal when the device is adjusting
the speed;
❒pressing the button B – fig. 48 when the device is ad-
justing the speed (for versions/markets, where pro-
vided);
❒pressing the accelerator pedal; in this case, the sys-
tem is not really de-activated but the request for ac-
celeration takes priority. The cruise control is, how-
ever, active and you do not need to press button B -
fig. 48 to restore the previous conditions after accel-
erating. Restoring the memorized speed
If the device has been switched off, for example by press-
ing the brake or clutch pedal, the memorized speed can
be restored as follows:
❒accelerate gradually until reaching a speed approaching
the memorised speed;
❒engage the gear selected at the time of speed memo-
rizing;
❒press button B-fig. 48.
Increasing the memorized speed
This can be done in two ways:
❒by pressing the accelerator and then memorizing the
new speed reached;
or
❒by moving the lever upwards (+).
Each operation of the lever will correspond to a slight in-
crease in speed of about 1 km/h, while keeping the lever
upwards will correspond to a continuous speed increase.
Reducing the memorized speed
This can be done in two ways:
❒by turning the device off and then memorizing a new
speed;
or
❒by moving the lever downwards (–) until reaching the
new speed, which will be memorized automatically.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 64

65
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0055mfig. 49
COURTESY LIGHTS
FRONT COURTESY LIGHT WITH MOVABLE
LENS
The light fades up or reaches full brightness immediately
if pushed at the sides.
On the Doblò Cargo versions, it is only connected to the
front doors.
On the Doblò/Doblò Combi people carrier versions, it
is connected to the front doors and the sliding side doors. The device turns off automatically in the following cases:
❒if the ABS or ESC systems cut in;
❒with vehicle speed below the set limit;
❒if there is a system failure.
While travelling with the device engaged,
do not put the gear lever into neutral.
WARNING
In case of malfunctioning or if the device
fails, turn twist switch A to OFF and con-
tact the Fiat Service Network.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 65

66
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0056mfig. 50F0V0057mfig. 51
WARNING Before getting out of the vehicle, make sure
both switches are in the middle position; when the doors
are closed, the lights switch off to prevent the battery from
being run down. In any case, if the switch is left in the on
position, the courtesy light switches off automatically 15
minutes after the engine is switched off.
REAR COURTESY LIGHT WITH MOVABLE
LENS
(Doblò/Doblò Combi versions)
The light comes on automatically when a front door or
sliding side door is opened and goes out when it is closed.
Press the left side of the lens A-fig. 51, as shown in the
diagram, to switch the light on/off when the doors are
closed. FRONT COURTESY LIGHT WITH SPOT
LIGHTS fig. 50
(for versions/markets where provided)
On the Doblò Cargo versions, it is only connected to the
front doors.
On the Doblò/Doblò Combi people carrier versions, it
is connected to the front doors and the sliding side doors.
Switch A switches the courtesy lights on/off. With switch
A in the middle position, lights C and D go on/off when
the doors are opened/closed.
With switch A pressed to the left, lights C and D are al-
ways off.
With switch A pressed to the right, lights C and D are
always on.
The lights switch on/off progressively.
Switch B controls the spot light function; when the cour-
tesy light is off, it switches on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 66

67
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0171mfig. 52
REAR COURTESY LIGHT WITH MOVABLE
LENS
(Cargo versions without fixed window)
This is located on the rear panel of the load compartment.
The light comes on automatically when you open the slid-
ing side doors (for versions/markets where provided) and
the rear swing doors/tailgate (for versions/markets where
provided), and goes out when you close them.
Press the left or right side of the movable lens A, as shown
in fig. 52, to switch the light on/off when the doors are
closed.REAR COURTESY LIGHT WITH MOVABLE
LENS
(additional for Cargo long wheelbase versions)
It is located on the right side of the load compartment.
The light comes on automatically when the sliding side
doors and the rear swing door/tailgate are opened and it
goes out when they are closed.
Press the left side of the lens A-fig. 52, as shown in the
diagram, to switch the light on/off when the doors are
closed.
LUGGAGE COMPARTMENT COURTESY
LIGHT
(Doblò/Doblò Combi version)
The light fig. 53 comes on automatically when the swing
doors or tailgate (for versions/markets where provided)
are opened and goes out when they are closed.
F0V0172mfig. 53
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 67

68
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX


F0V0174mfig. 55
To switch the light on/off when the doors are closed press
the switch A-fig.54.
Switch A can have three different positions:
❒with the switch in central position the light comes on
when a rear door is opened;
❒with the switch pushed up (position 1), the light is al-
ways on;
❒with the switch pushed down (position 2 - AUTO
OFF), the light is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of the load compartment.
It has a removable electric torch.
To use the removable torch A-fig. 55, push button B and
remove the torch in the direction shown by the arrow.
Then press switch C to switch the light on/off. REAR COURTESY LIGHT WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The removable roof light is not connected to the doors ,
it switches on/off only manually pressing switch A-fig. 54,
with key on MAR-ON.
Switch A can assume three different positions:❒with the switch in the middle, the light is always off;
❒with the switch pushed up (position 1), the light is al-
ways on;
❒with the switch pushed down (position 2 – AUTO
OFF), the light is always off.
For Cargo versions with fixed window
The light comes on automatically when you open the slid-
ing side doors and the rear swing doors/tailgate; then, it
goes out when you close them.
F0V0173mfig. 54
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 68

69
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

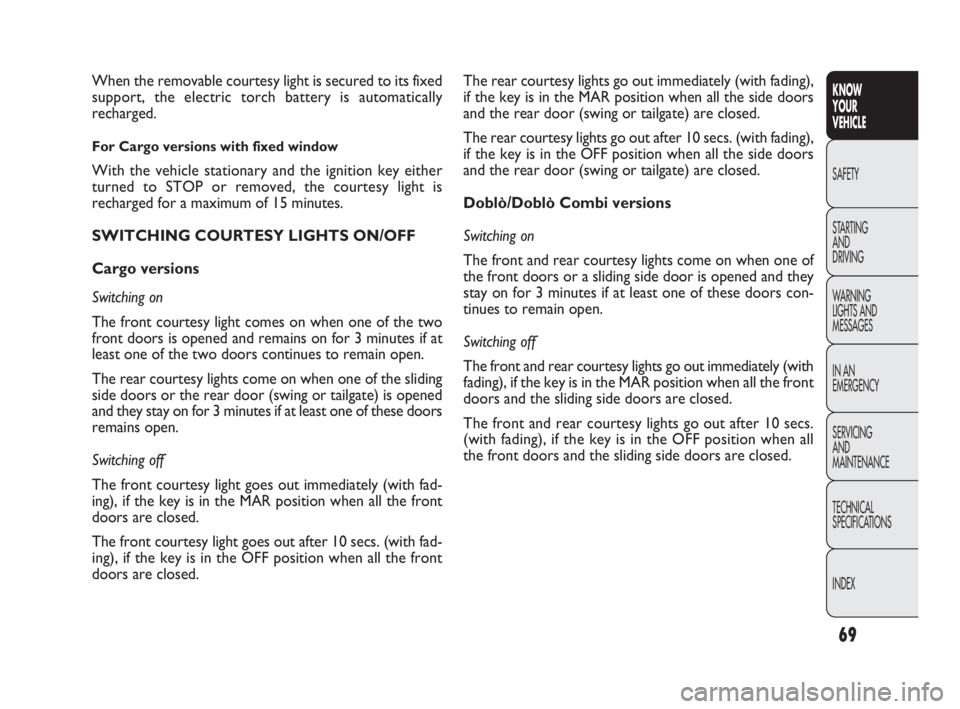

The rear courtesy lights go out immediately (with fading),
if the key is in the MAR position when all the side doors
and the rear door (swing or tailgate) are closed.
The rear courtesy lights go out after 10 secs. (with fading),
if the key is in the OFF position when all the side doors
and the rear door (swing or tailgate) are closed.
Doblò/Doblò Combi versions
Switching on
The front and rear courtesy lights come on when one of
the front doors or a sliding side door is opened and they
stay on for 3 minutes if at least one of these doors con-
tinues to remain open.
Switching off
The front and rear courtesy lights go out immediately (with
fading), if the key is in the MAR position when all the front
doors and the sliding side doors are closed.
The front and rear courtesy lights go out after 10 secs.
(with fading), if the key is in the OFF position when all
the front doors and the sliding side doors are closed. When the removable courtesy light is secured to its fixed
support, the electric torch battery is automatically
recharged.
For Cargo versions with fixed window
With the vehicle stationary and the ignition key either
turned to STOP or removed, the courtesy light is
recharged for a maximum of 15 minutes.
SWITCHING COURTESY LIGHTS ON/OFF
Cargo versions
Switching on
The front courtesy light comes on when one of the two
front doors is opened and remains on for 3 minutes if at
least one of the two doors continues to remain open.
The rear courtesy lights come on when one of the sliding
side doors or the rear door (swing or tailgate) is opened
and they stay on for 3 minutes if at least one of these doors
remains open.
Switching off
The front courtesy light goes out immediately (with fad-
ing), if the key is in the MAR position when all the front
doors are closed.
The front courtesy light goes out after 10 secs. (with fad-
ing), if the key is in the OFF position when all the front
doors are closed.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 69

F0V0019mfig. 56
FRONT FOG LIGHTS fig. 56
(for versions/markets where provided)
Press button 5to switch them on. The warning light 5
in the instrument panel will come on.
When the fog lights are on, the side lights also come on,
while the daytime running lights go off irrespective of the
position of the twist switch.
Press the button again to turn the lights off.
REAR FOG LAMPS fig. 56
Press button
4to switch them on when the dipped head-
lamps or front fog lamps are on. The warning light
4in the
instrument panel will come on.
Press the button again to turn the lights off, or turn off the
dipped headlamps and/or the front fog lamps (where pro-
vided).
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒doors automatically unlocked;
❒switching on of all interior lights.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed on some versions.
Check carefully for fuel leaks, for instance in the engine
compartment, under the vehicle or near the tank area.
After a crash, turn the ignition key to STOP to avoid drain-
ing the battery.
CONTROLS
HAZARD WARNING LIGHTS
They are turned on by pressing switch A-fig. 56, regard-
less of the ignition key position. With the device on, warn-
ing lights
Îand¥light up in the instrument panel. Press
switch A again to turn the lights off.
WARNING The use of hazard warning lights is governed
by the highway code of the country you are in. Keep to
the rules.
Emergency braking
(for versions/markets where provided)
During emergency braking, the hazard warning lights come
on automatically and warning lights
Îand¥light up in the
panel at the same time. They go out automatically as soon
as the emergency braking is over. This function complies
with the relevant legal regulations currently in force.
70
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 70

71
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INTERIOR FITTINGS
DRIVER SIDE ARMREST fig. 57
(for versions/markets where provided)
On some versions, the driver’s side front seat has an arm-
rest.
Lift or lower the armrest as shown by the arrows.
STORAGE COMPARTMENT
fig. 58
This is located in front of the passenger’s side front seat.
GLOVE COMPARTMENT
To open the glove compartment, operate handle
A-fig. 59.
Turn the key clockwise/anticlockwise to lock/unlock the glove
compartment (for versions/markets where provided).
The following procedure should be carried out to restore
the correct operation of the vehicle:
❒turn the ignition key to MAR;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fuel or notice
leaks from the fuel system, do not reacti-
vate the system to avoid the risk of fire.
WARNING
F0V0058mfig. 57
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 71
