2010 FIAT DOBLO COMBI Owner handbook (in English)

224
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Modifications or repairs to the fuel supply system that are not carried out properly or do not take
the system’s technical specifications into account can cause malfunctions leading to the risk of
fire.
Sequential, phased,
Multipoint
electronic injection,
returnless systemCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercoolerCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercoolerCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercooler
Five or six gears (according to version) + reverse
Self-adjusting with no free travel pedal
Front
FUEL SUPPLY
1.4 1.3 Multijet 1.6 Multijet 2.0 Multijet
Fuel supply
TRANSMISSION
1.4 - 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Gearbox
Clutch
Drive
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 224

225
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Rack and pinion with hydraulic power steering
11.2 (*)/12.5 (
❑)
self-ventilated discs
drum
controlled by hand lever, acting on rear brakes
Independent McPherson type
Multi-link independent, coil springs, telescopic shock absorbers
and anti-roll bar (according to version)
BRAKES
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Service brakes: front
rear
Parking brake
IMPORTANT Water, ice and salt on the roads may deposit on the brake discs, reducing braking efficiency the first time the
brakes are applied.
SUSPENSION
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Front
Rear
STEERING
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Type
Turning circle
(kerb to kerb)
(*) Short wheelbase (
❑) Long wheelbase
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 225

226
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
WHEELS
RIMS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass tyres.
All approved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the in-
formation provided in this Owner Handbook and the Log
Book, the latter takes precedence.
To ensure driving safety, ensure that tyres of the same
make and type are fitted on all wheels.
IMPORTANT Do not use inner tubes with tubeless tyres.
F0V0162mfig. 193
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard tyre.
WHEEL GEOMETRY
Total front toe in: – 1 ± 1 mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE fig. 193
Example: 185/65 R 15 88H
185 = Nominal width (S, distance in mm between side-
walls).
65 = Height/width ratio (H/S) as a percentage.
R = Radial tyre.
15 = Wheel diameter in inches (Ø).
88 = Load index.
H = Maximum speed index.
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 226

227
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres
Load indexRIM PROTECTOR TYRES fig. 193a
If the car has integral cups fixed (by springs) to the
sheet rim and it has after-sale tyres “Rim Protec-
tor” (fig. 193a) are used, DO NOT fit wheel cups. The use
of unsuitable tyres and wheel cups could cause a sudden
pressure loss of the tyre.
WARNING
F0V0217mfig. 193a
CORRECT READING OF THE WHEEL
Example: 6J x 15 ET43
6 = wheel width in inches 1.
J = rim drop centre outline (side projection
where the tyre bead rests)
2.
15 = fitting diameter in inches (corresponds to
diameter of the tyre to be fitted)
3= Ø.
ET43: = wheel camber (distance between the
disc/wheel support plane and the wheel
centre line).
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 227

228
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Versions Wheels Tyres SPARE WHEEL
(for versions/markets, where provided)
Standard Snow Wheel Tyre
1.4 T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
1.3 Multijet Cargo6Jx15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6JX15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Combi (N1)6JX15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
1.6 Multijet Cargo6JX15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6Jx15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
Combi (N1)6Jx15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6Jx15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
2.0 Multijet T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
(*) Alternatively
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 228

229
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
COLD TYRE PRESSURES (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
Size STANDARD TYRES
Medium load Full load SPARE
WHEEL
Front Rear Front Rear(for versions/
marketswhere provided)
185/65 R15 88T 2.5 2.5 2.9 2.9
185/65 R15 92T 2.5 2.6 2.9 3
195/65 R15 95T 2.4 2.4 Doblò (M1) 2.6 2.6 Doblò (M1)
2.4 Doblò Cargo 2.7 Doblò Cargo
3.0 Doblò Combi (N1)3.2 Doblò Combi (N1)
195/60 R16C 99 2.7 2.7 2.7 2.8 Doblò 5P (M1)
3.3 Doblò Cargo
3.6 Doblò 7P (M1)/
Doblò Combi (N1)/
Doblò Cargo Maxi
PERFORMANCE
Maximum speeds after initial period of use (km/h).
1.4 1.3 Multijet 1.6 Multijet 2.0 Multijet
161158 (Euro 5)
164 179
156 (Euro 4)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 229

230
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

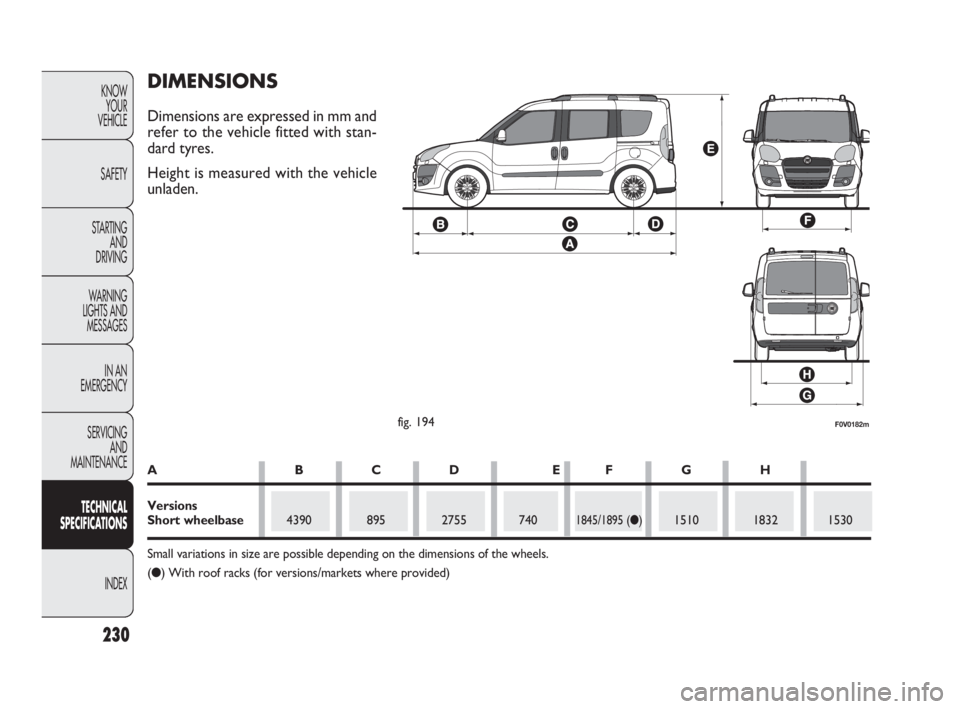

F0V0182mfig. 194
DIMENSIONS
Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCDEFGH
Versions
Short wheelbase4390 895 2755 7401845/1895 (●)1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
(●) With roof racks (for versions/markets where provided)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 230

231
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0183mfig. 195
Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCDEFGH
Versions
Long wheelbase4740 895 3105 740 1880/1927 (●) 1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
(●) With roof bars (for versions/markets, where provided)
