2010 DODGE VIPER Owners Manual

6. On the passenger side of the vehicle, clip the tab under
the trunk lid stop and on the outer edge of the quarter
panel flange.7. Push downward on the boot cover pocket to engage
the inboard tab.
Attaching Passenger Side Tab
Engaging Passenger Side Tab
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

8. On the driver side of the vehicle, clip the tab under the
trunk lid stop and on the outer edge of the quarter panel
flange.
9. Push downward on the boot cover pocket to engage
the inboard tab.10. Push downward on the boot cover behind driver seat
to lock down the boot cover.
Attaching Driver Side Tab
Engaging Driver Side Tab
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

11. Stretch and smooth out the boot cover from the rear
of vehicle.
12. Close the trunk.
13. Ensure that the forward edge of the boot cover is
tucked in fully.
Convertible Top Boot Cover Removal and
Storage
1. Open the trunk.
2. On the driver side of the vehicle, pull upward on the
boot cover to disengage the inboard tab.
Locking Boot Cover
Disengaging Driver Side Tab
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

3. Unclip the tab under the trunk lid stop and on the
outer edge of the quarter panel flange.
4. On the passenger side of the vehicle, pull upward on
the boot cover to disengage the inboard tab.5. Unclip the tab under the trunk lid stop and on the
outer edge of the quarter panel flange.
Tab Under Trunk Lid Stop
Disengaging Passenger Side Tab
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Slide the boot cover pockets off the front corners of the
convertible top.7. Fold the outer edges of the boot cover inward.
Tab Under Trunk Lid Stop
Folding Outer Edges
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

8. Fold the boot cover again.
9. Place the boot cover into the bag and store it in the
trunk or a secure dry area.
10. Close the trunk.MIRRORS
Inside Day/Night Mirror
Adjust the mirror to center on the view through the rear
window. A pivot system allows for horizontal and verti-
cal mirror adjustment.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Folding Boot Cover
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.

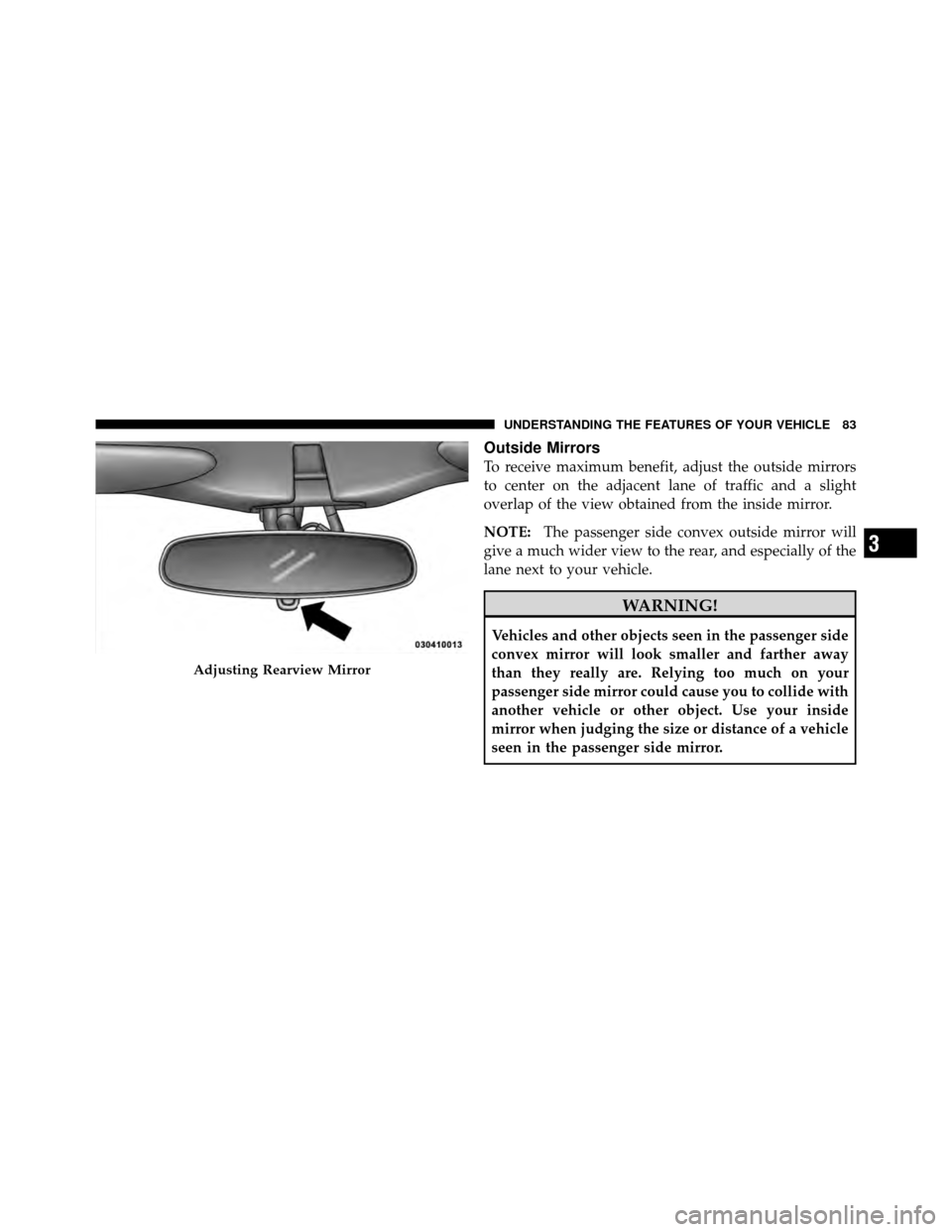

Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

Power Mirrors
The power mirror switch is located on the driver’s door
trim panel below the door handle. Press the button
marked L (left) to select the driver-side outside mirror or
the button marked R (right) to select the passenger’s
outside mirror. After selecting a mirror, either press on
the top, bottom, left, or right side of the directional switch
and the mirror will move in the direction that the arrow
is pointing. To return the power mirror switch to the
neutral (off) position, press lightly on the push button not
previously pressed until the opposite push button pops
outward.NOTE:When not in use, return the power mirror switch
to the neutral (off) position to prevent accidental mirror
movement.
Power Mirror Controls
