2010 DODGE VIPER Owners Manual

Press the SEEK button to move to the next randomly
selected track.
Press TUNE FF to fast forward through the tracks. Press
the FF button a second time to stop the fast forward
feature. If TUNE RW is pressed, the current track will
reverse to the beginning of the track and begin playing.
Press the RND button a second time to stop Random
Play.
CD/DVD Changer Operation
Press the MODE button to select between the CD player
and the optional remote CD/DVD changer.
Time
Press the TIME button to change the display from
elapsed CD or DVD playing time to time of day.
Notes On Playing MP3 Files
The radio can play MP3 files, however, acceptable MP3
file recording media and formats are limited. When
writing MP3 files, pay attention to the following restric-
tions.
Supported Media (Disc Types)
The MP3 file recording media supported by the radio are
CD-ROM, CD-R and CD-RW.
Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
files properly and may be unable to play the file nor-
mally. UDF and Apple HFS formats are not supported.
The radio uses the following limits for file systems:
•Maximum number of directory levels: 15
4
UNDERSTANDING YOUR INSTRUMENT PANEL 125

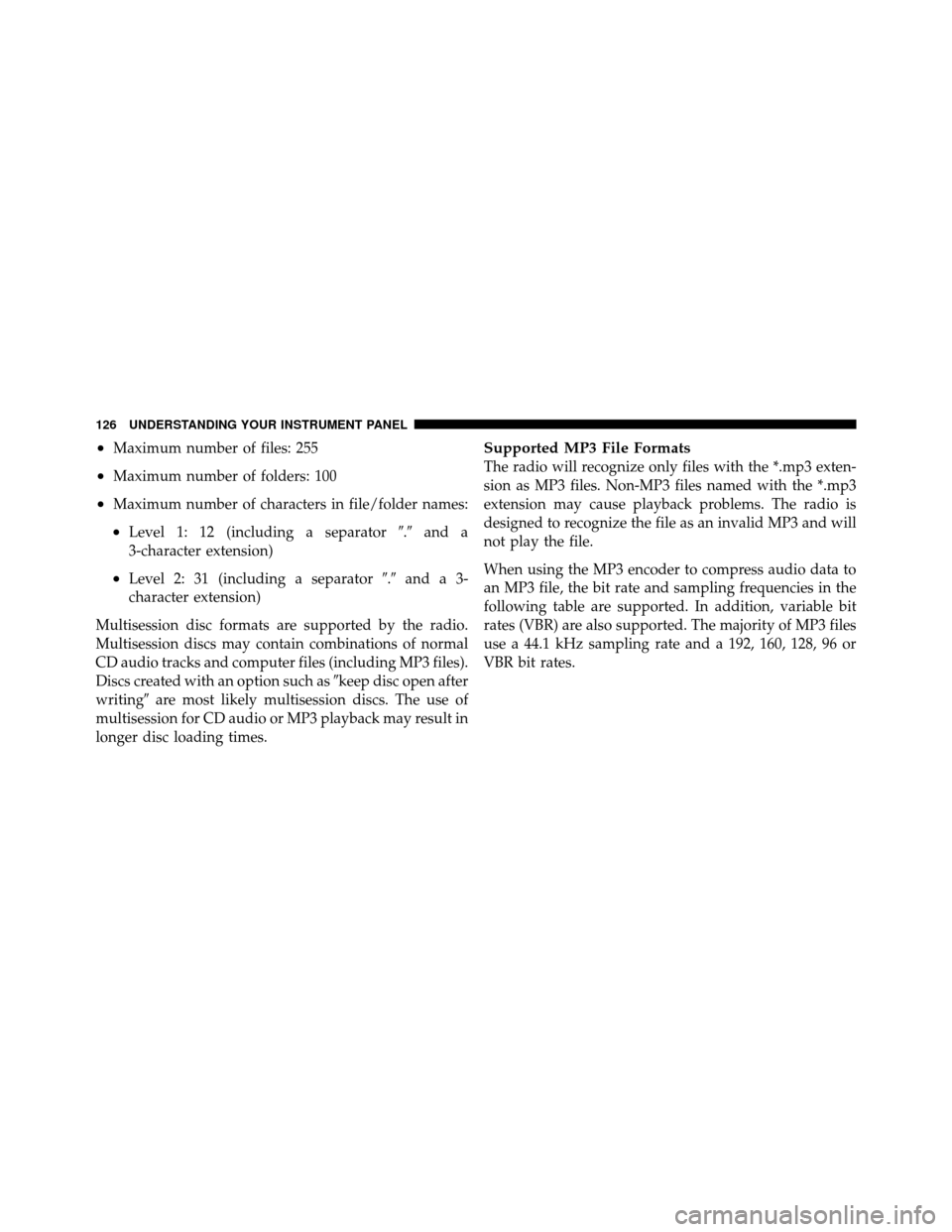

•Maximum number of files: 255
•Maximum number of folders: 100
•Maximum number of characters in file/folder names:
•Level 1: 12 (including a separator.and a
3-character extension)
•Level 2: 31 (including a separator .anda3-
character extension)
Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
CD audio tracks and computer files (including MP3 files).
Discs created with an option such as keep disc open after
writing are most likely multisession discs. The use of
multisession for CD audio or MP3 playback may result in
longer disc loading times.
Supported MP3 File Formats
The radio will recognize only files with the *.mp3 exten-
sion as MP3 files. Non-MP3 files named with the *.mp3
extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
not play the file.
When using the MP3 encoder to compress audio data to
an MP3 file, the bit rate and sampling frequencies in the
following table are supported. In addition, variable bit
rates (VBR) are also supported. The majority of MP3 files
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or
VBR bit rates.
126 UNDERSTANDING YOUR INSTRUMENT PANEL

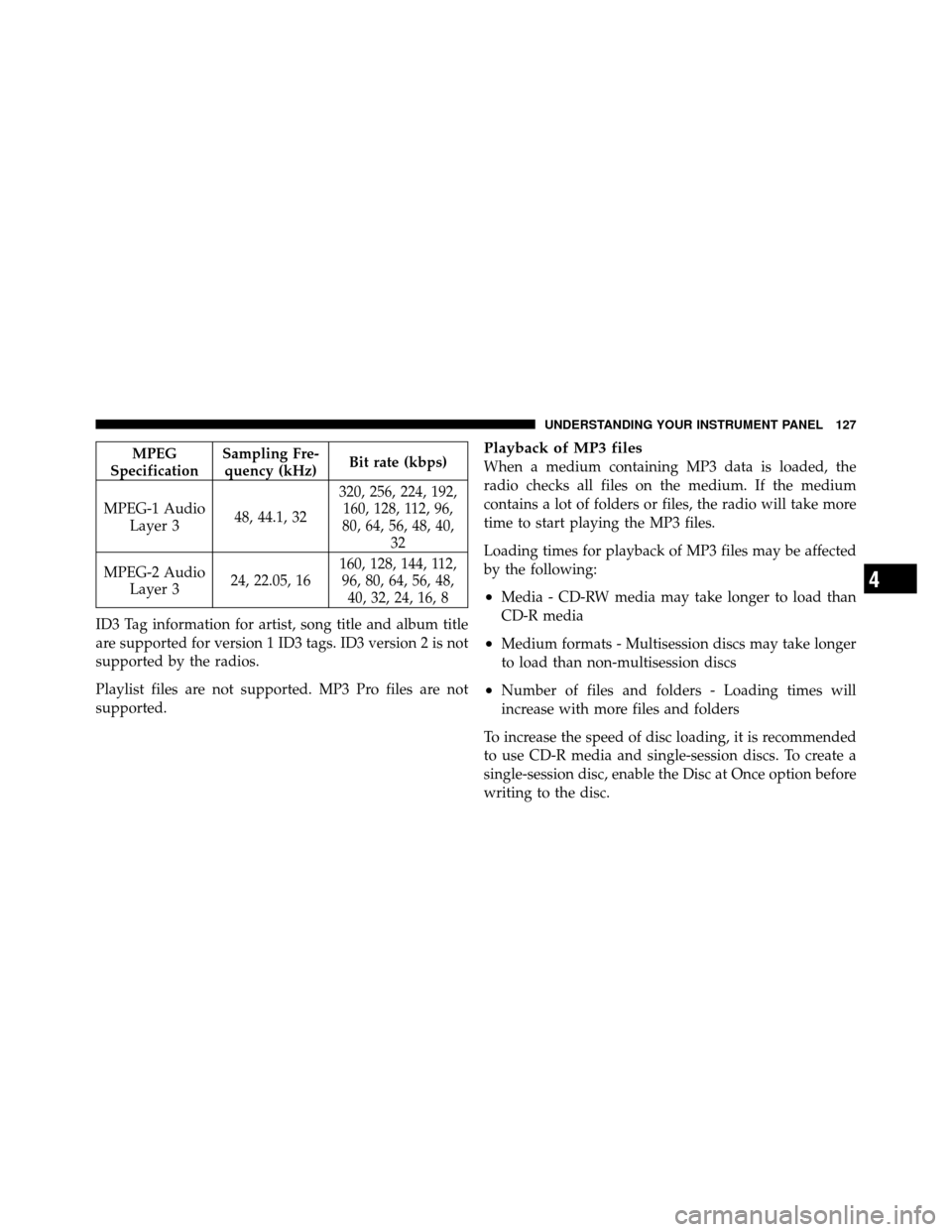

MPEG
Specification Sampling Fre-
quency (kHz) Bit rate (kbps)
MPEG-1 Audio Layer 3 48, 44.1, 32320, 256, 224, 192,
160, 128, 112, 96,
80, 64, 56, 48, 40, 32
MPEG-2 Audio Layer 3 24, 22.05, 16 160, 128, 144, 112,
96, 80, 64, 56, 48, 40, 32, 24, 16, 8
ID3 Tag information for artist, song title and album title
are supported for version 1 ID3 tags. ID3 version 2 is not
supported by the radios.
Playlist files are not supported. MP3 Pro files are not
supported.Playback of MP3 files
When a medium containing MP3 data is loaded, the
radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3 files.
Loading times for playback of MP3 files may be affected
by the following:
•Media - CD-RW media may take longer to load than
CD-R media
•Medium formats - Multisession discs may take longer
to load than non-multisession discs
•Number of files and folders - Loading times will
increase with more files and folders
To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the Disc at Once option before
writing to the disc.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 127

Operation Instructions -
(CD Mode For MP3 Audio Play)
SEEK Button (CD Mode For MP3 Play)
Pressing the SEEK + button plays the next MP3 File.
Pressing the SEEKbutton plays the beginning of the
MP3 file. Pressing the button within the first ten seconds
plays the previous file.
INFO Button (CD Mode for MP3 Play)
Press the INFO button while playing MP3 disc, and the
radio will scroll through the following TAG information:
Song Title, Artist, File Name, and Folder Name (if avail-
able).
Press the INFO button once more to return to elapsed
time priority mode.
RW/FF (CD Mode for MP3 Play)
Press the FF side of the button to move forward through
the MP3 selection. Press the RW side of the button to
move back through the MP3 selection.
AM/FM Button (CD Mode for MP3 Play)
Switches the Radio into the AM or FM Radio mode.
RND Button (CD Mode for MP3 Play)
Pressing this button plays files randomly.
DIR Button (CD Mode for MP3 Play)
Press the DIR Button to display folders, when playing an
MP3 discs that have a file/folder structure. Press DISC
up (button 1) or DISC down (button 5) to move through
the folders. Press the SET button to select a folder.
Operating Instructions - Uconnect™ Phone
(If Equipped)
Refer to Uconnect™ Phone section of the Owner’s
Manual.
128 UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Instructions - Uconnect™ Multimedia
(Satellite Radio) Mode — (If Equipped)
Refer to the Uconnect™ Multimedia (Satellite Radio)
section of the Owner’s Manual.
Operating Instructions - Video Entertainment
System (VES)™ (If Equipped)
Refer to “Video Entertainment System (VES)™” in the
Uconnect™ User Manual located on the DVD for further
details.
Uconnect™ Multimedia (SATELLITE RADIO) —
IF EQUIPPED
Satellite radio uses direct satellite to receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius Satellite
Radio. This service offers up to 100 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.
System Activation
Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of
SIRIUS audio service that is included with the factory-
installed satellite radio system in your vehicle. Sirius will
supply a welcome kit that contains general information,
including how to setup your on-line listening account.
For further information, call the toll-free number 888-539-
7474, or visit the Sirius web site at www.sirius.com, or at
www.siriuscanada.ca for Canadian residents. Please have
the following information available when changing your
subscription:
1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).
2. Your Vehicle Identification Number (VIN).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 129

Electronic Serial Number/Sirius Identification
Number (ESN/SID)
The Electronic Serial Number/Sirius Identification Num-
ber is needed to activate your Sirius Satellite Radio
system. To access the ESN/SID, refer to the following
steps:
ESN/SID Access with RBB, RAH, REV and RBK
Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the Tape Eject or CD “EJT” button
(depending on the radio type) and TIME buttons simul-
taneously for three seconds. The first four digits of the
twelve-digit ESN/SID number will be displayed. Press
the SEEK UP (+) button to display the next four digits.
Continue to press the SEEK UP (+) button until all twelve
ESN/SID digits have been displayed. The SEEK DOWN
(-) will page down until the first four digits are displayed.
The radio will exit the ESN/SID mode when any otherbutton is pushed, the ignition is turned OFF, or five
minutes has passed since any button was pushed.
ESN/SID Access with RBP, RBU, RAZ, RB1 and
RBQ Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the CD Eject and TIME buttons
simultaneously for three seconds. All twelve ESN/SID
numbers will be displayed. The radio will exit the
ESN/SID mode when any other button is pushed, the
ignition is turned OFF, or five minutes has passed since
any button was pushed.
Selecting Uconnect™ Multimedia (Satellite) Mode
in RBB, RAH, REV and RBK Radios
Press the MODE button repeatedly until
SAappears in
the display. A CD or tape may remain in the radio while
in the Satellite radio mode.
130 UNDERSTANDING YOUR INSTRUMENT PANEL

Selecting Uconnect™ Multimedia (Satellite) Mode
in RBP, RBU, RAZ, RB1 and RBQ Radios
Press the MODE button repeatedly until the word
SIRIUSappears in the display. These radios will also
display the following:
•After three seconds, the current channel name and
channel number will be displayed for five seconds.
•The current program type and channel number will
then be displayed for five seconds.
•The current channel number will then be displayed
until an action occurs.
A CD or tape may remain in the radio while in the
Satellite radio mode.
Selecting a Channel
Press and release the SEEK or TUNE buttons to search for
the next channel. Press the top of the button to search up and the bottom of the button to search down. Holding the
TUNE button causes the radio to bypass channels until
the button is released.
Press and release the SCAN button (if equipped) to
automatically change channels every seven seconds. The
radio will pause on each channel for seven seconds
before moving on to the next channel. The word
SCAN
will appear in the display between each channel change.
Press the SCAN button a second time to stop the search.
NOTE: Channels that may contain objectionable content
can be blocked. Contact Sirius Customer Care at 888-539-
7474 to discuss options for channel blocking or unblock-
ing. Please have your ESN/SID information available.
Storing and Selecting Pre-Set Channels
In addition to the 10 AM and 10 FM pre-set stations, you
may also commit 10 satellite stations to pushbutton
memory. These satellite channel pre-set stations will not
4
UNDERSTANDING YOUR INSTRUMENT PANEL 131

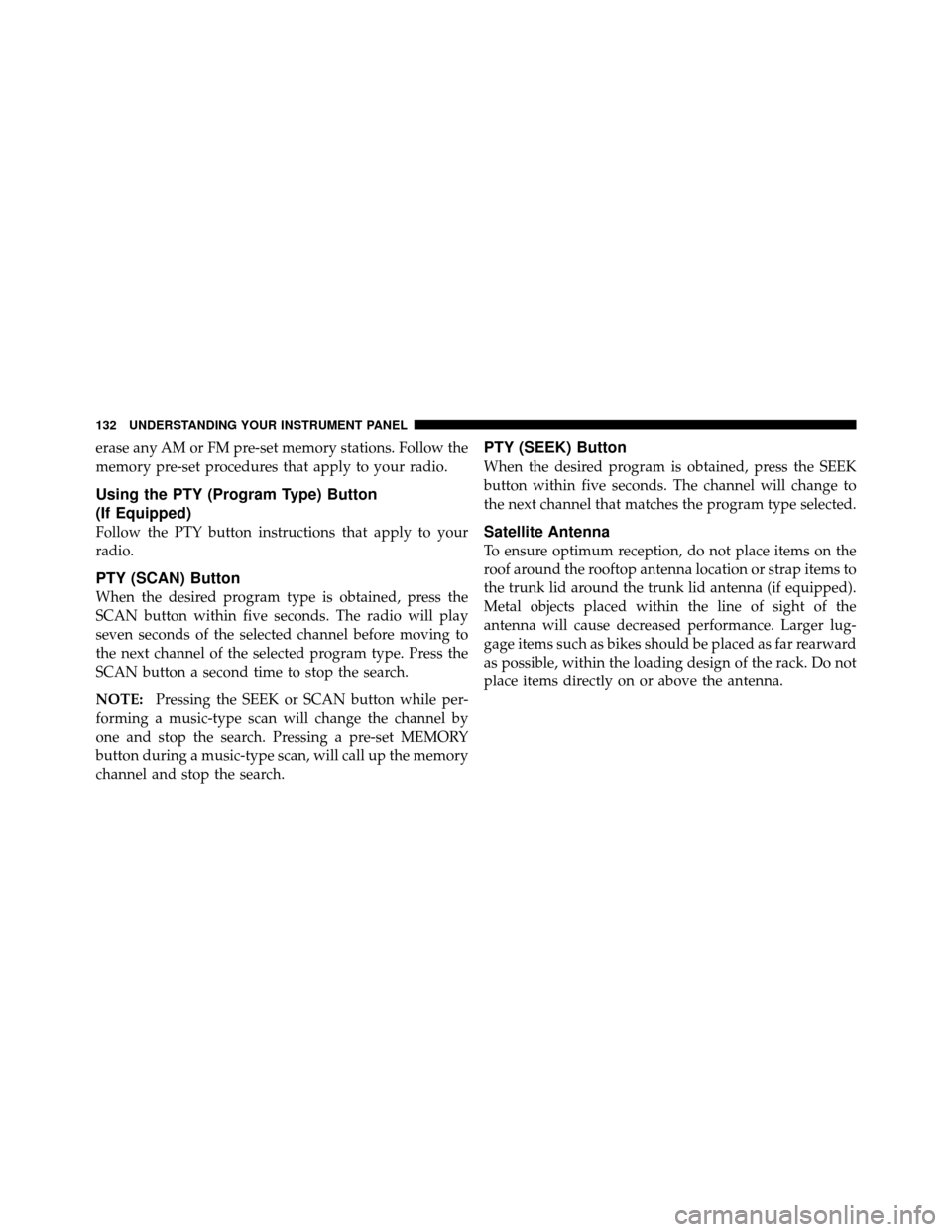

erase any AM or FM pre-set memory stations. Follow the
memory pre-set procedures that apply to your radio.
Using the PTY (Program Type) Button
(If Equipped)
Follow the PTY button instructions that apply to your
radio.
PTY (SCAN) Button
When the desired program type is obtained, press the
SCAN button within five seconds. The radio will play
seven seconds of the selected channel before moving to
the next channel of the selected program type. Press the
SCAN button a second time to stop the search.
NOTE:Pressing the SEEK or SCAN button while per-
forming a music-type scan will change the channel by
one and stop the search. Pressing a pre-set MEMORY
button during a music-type scan, will call up the memory
channel and stop the search.
PTY (SEEK) Button
When the desired program is obtained, press the SEEK
button within five seconds. The channel will change to
the next channel that matches the program type selected.
Satellite Antenna
To ensure optimum reception, do not place items on the
roof around the rooftop antenna location or strap items to
the trunk lid around the trunk lid antenna (if equipped).
Metal objects placed within the line of sight of the
antenna will cause decreased performance. Larger lug-
gage items such as bikes should be placed as far rearward
as possible, within the loading design of the rack. Do not
place items directly on or above the antenna.
132 UNDERSTANDING YOUR INSTRUMENT PANEL
