2010 CADILLAC ESCALADE Owners Manual

Address Book
The address book entry method lets you select adestination by selecting an address that has beenstored in the address book.
gAddress Book:Touch to access the Address Bookscreen. From this screen an address that already existscan be selected as the destination.
To use the address book entry method:
1. Press the DEST hard key.
2. Select thegscreen button.
A list of the address book addresses display.
3. Select the Go screen button next to thedestination. The map screen, with the destinationmarked displays.
4. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
5. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
See“Adding Destinations to the Address Book”later in this section.
5-29

Previous Destination
The previous destination entry method lets you select adestination from a list of previous destination points.
/Previous Destination:Touch to access the PreviousDestination screen. The system stores up to 20 pointsthat have been previously entered. As new destinationsare entered, the system automatically deletes the oldestdestinations and adds the new destinations.
To use the previous destination entry method:
1. Press the DEST hard key.
2. Select the/screen button.
3. Select a previous destination from the list. Use thearrow to the right of the destination to view theentire destination name as necessary. Use thescroll arrows to the left to scroll through the list.
4. Select the Go screen button next to thedestination. The map screen, with the destinationmarked displays.
5. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
6. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
5-30

From Map
This destination entry method allows you to select adestination by scrolling on the map.
)From Map:Touch to enter the From Map destinationentry method.
To use this destination entry method:
1. Press the DEST hard key.
2. Select the)screen button. A map screen displays
with the scrolling symbol.
3. Use the0/1screen buttons and touch on the
map to find the area that you would like to selectas your destination.
Pressing/holding and dragging your finger on themap activates fast scrolling.
4. Press/touch once on the area that you would liketo set as your destination.
The map screen displays the address information.
5. Select the Go screen button. The map screen, withthe destination marked displays.
6. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
7. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
5-31

Map Coordinates
The coordinates destination entry method lets youselect a destination by entering latitude and longitudecoordinates.
Map Coordinates :Touch to access the CoordinatesEntry screen.
To use the coordinates destination entry method:
1. Press the DEST hard key.
2. Select the From Map screen button.
3. Select the Map Coordinates screen button.
4. Select Latitude and select either N (north) orS (south) to enter the direction of the latitudecoordinate. Enter the numeric portion of thelatitude coordinate.
5. Select Longitude and select either E (east) orW (west) next to enter the direction of the longitudecoordinate. Enter the numeric portion of thelongitude coordinate.
6. Once both coordinates are entered, select theGo screen button. The map screen, with thedestination marked displays.
7. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
8. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
5-32

Preset Destination
The preset destination entry method lets you set adestination by selecting from one of five previouslystored destinations. Besides voice tagged destinations,these are the only destinations available to set while thevehicle is moving. If a destination is not set for one ofthe screen buttons, the button is dimmed and notavailable for use. See“Adding or Changing PresetDestinations”later in this section for information on howto add a preset destination.
To use the preset destination entry method:
1. Press the DEST hard key.
2. Select the desired preset destination screenbutton. The screen buttons are labeled with thename that was selected for the destination when itwas stored. The map screen, with the destinationmarked displays.
3. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
4. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
5-33

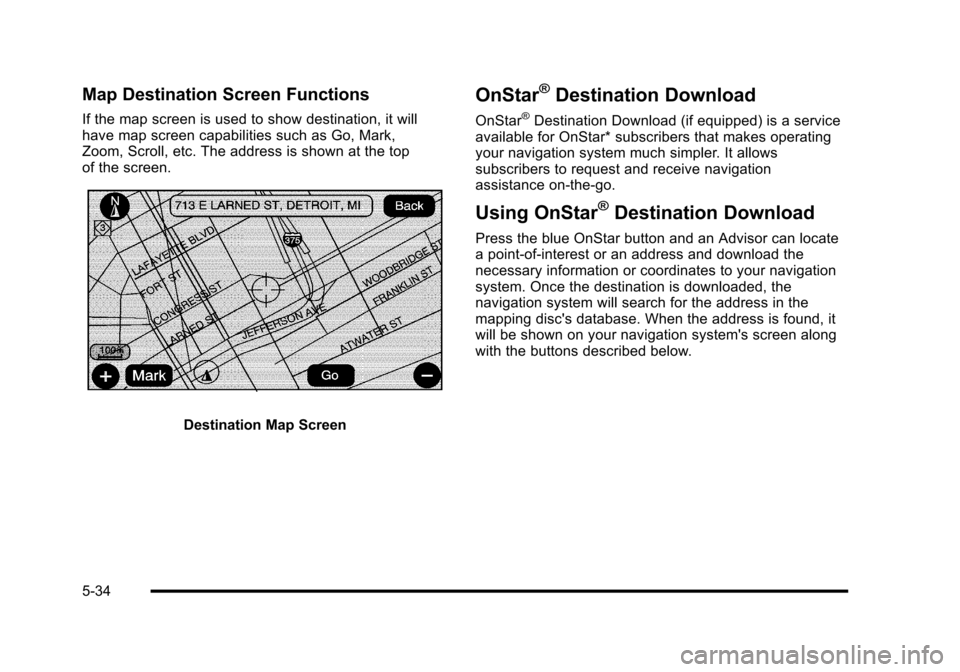

Map Destination Screen Functions
If the map screen is used to show destination, it willhave map screen capabilities such as Go, Mark,Zoom, Scroll, etc. The address is shown at the topof the screen.
Destination Map Screen
OnStar®Destination Download
OnStar®Destination Download (if equipped) is a serviceavailable for OnStar* subscribers that makes operatingyour navigation system much simpler. It allowssubscribers to request and receive navigationassistance on-the-go.
Using OnStar®Destination Download
Press the blue OnStar button and an Advisor can locatea point-of-interest or an address and download thenecessary information or coordinates to your navigationsystem. Once the destination is downloaded, thenavigation system will search for the address in themapping disc's database. When the address is found, itwill be shown on your navigation system's screen alongwith the buttons described below.
5-34

OnStar Download Screen
.Select Go, the navigation system calculatesroute(s). Select a route (i.e. Shortest Route), andStart Guidance.
.Select Map, the navigation system displays theDestination Map Screen.
.Select Call, the navigation system initiates a callto your destination with your Bluetooth phone(if available) or OnStar Hands-Free Calling(if minutes are available).
.Select Add to Address Book, the navigationsystem copies the downloaded destination tothe address book and displays the new addressbook entry.
.Select Back, the navigation system cancels yourOnStar Destination Download and returns to theprevious screen. The downloaded address will notbe added to the previous destinations
Route Guidance Not Active
If an OnStar destination is downloaded while routeguidance is not active, the navigation system displaysan OnStar Destination Download Screen and operationswill continue as outlined in the Using OnStarDestination Download section:
Route Guidance Active
If OnStar downloads a destination while route guidanceis already active, the navigation system adds thedownloaded destination as the next waypoint in theexisting route. All features such as Call and Add toAddress Book will be available for the waypoint.Refer to the section on Waypoints for more information.
5-35

Previous Destinations
Previous OnStar Destination Downloads are savedunder Previous Destinations in the navigation systemwhere they can be accessed or saved to theaddress book.
Important Notes regarding OnStar DestinationDownload:
.If the navigation system is turned off when thedestination download is attempted, the navigationsystem will automatically turn on and display theOnStar Destination Download Screen. The radiowill remain on after the download occurs.
.If OnStar downloads a destination and the addressis not found in the mapping disc’s database androuting by coordinates is not available, the Go andMap buttons gray out and routing will not beavailable. Press the blue OnStar button for furtherassistance.
.The Call button grays out when there is no phonenumber available for your destination and whileconnected to OnStar.
Map Destination Screen Functions
If the map screen is used to show destination, it willhave map screen capabilities such as Go, Mark,Zoom, Scroll, etc. The address is shown at the top ofthe screen.
Destination Map Screen
5-36
