2010 CADILLAC ESCALADE ESV Owners Manual

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
{ WARNING: Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts cannot do their job when you
are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
Your vehicle has a memory function which allows seat
settings to be saved and recalled. See Memory
Features on page 2 ‑ 6 .
2-9

Black plate (10,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Rear Seats Heated Seats
Driver's Side RSA Heated
Seat Button Only shown The rear outboard seats
have the heated seat
feature. The buttons used
to control this feature are
located on the Rear Seat
Audio (RSA) panel.
M (Heated Seat): To heat the seat cushion, press the
button with the heated seat symbol.
A heated seat symbol will be shown in the RSA display
to indicate that the feature is on. Press the button to
cycle through the temperature settings of high, medium,
and low, and to turn it off. Indicator bars next to the
symbol will designate the level of heat selected: three
for high, two for medium, and one for low. The heated seats will be canceled ten seconds after the
ignition is turned off. If the vehicle is restarted, the
heated seat button will need to be pressed again to
restart the feature.
60/40 Split Bench Seat If your vehicle has a 60/40 split bench, the seat(s) can
be folded for additional cargo space or folded and
tumbled for easy entry and exit to the third row seats,
if your vehicle has them. These seats will have either
the manual fold and tumble feature or the automatic
seat release fold and tumble feature.
Manual Fold and Tumble Feature Folding and Tumbling the Seat(s) To fold and tumble the seat:
1. Make sure that there is nothing under, in front of,
or on the seat.
Notice: Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts and
return them to their normal stowed position before
folding a rear seat.
2-10

Black plate (11,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
2. Lift the lever, located on the outboard side of the
seat, to release the seatback. The seatback will fold forward automatically.
Leaving the seatback in this position creates a flat
load floor.
If the seatback cannot fold flat, try moving the front
seat forward and/or put the front seatback in the
upright position.
2-11

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
3. Lift the same lever
again to release the
rear of the seat from
the floor. The seat will
tumble forward.
Folding and Tumbling the Seat(s) from the
Third Row Seats
{ WARNING: Using the third row seating position while the
second row is folded, or folded and tumbled, could
cause injury in a sudden stop or crash. Be sure to
return the seat to the passenger seating position.
Push and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third rows, if your
vehicle has them:
1. Make sure that there is nothing under, in front of,
or on the seat.
Notice: Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts and
return them to their normal stowed position before
folding a rear seat.
2-12

Black plate (13,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
2. Lift the lever(s), located on the bottom rear of the
second row seat(s) on the inboard side, to release
the seatback. The seatback will fold forward.
3. Lift the same lever again to release the rear of the
seat from the floor. The seat will tumble forward
automatically. Automatic Seat Release Fold and
Tumble Feature The transmission must be in (P) for this feature
to work.
{ WARNING: Automatically folding and tumbling the seat when
someone is sitting in the seat, could cause injury
to the person sitting there. Always make sure
there is no one sitting in the seat before pressing
the automatic seat release button.
2-13

Black plate (14,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{ WARNING: Using the third row seating position while the
second row is folded, or folded and tumbled, could
cause injury in a sudden stop or crash. Be sure to
return the seat to the passenger seating position.
Push and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third row seats,
if your vehicle has them:
1. Make sure that there is nothing under, in front of,
or on the seat.
Notice: Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts and
return them to their normal stowed position before
folding a rear seat. Driver's Side Rear Panel
Button shown 2. Press the automatic
seat release button
located on the panel
behind the rear doors.
One press of the button automatically folds the
seatback flat and tumbles the seat forward. There
will be a slight delay between the folding of the
seatback and the tumbling of the seat.
2-14

Black plate (15,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

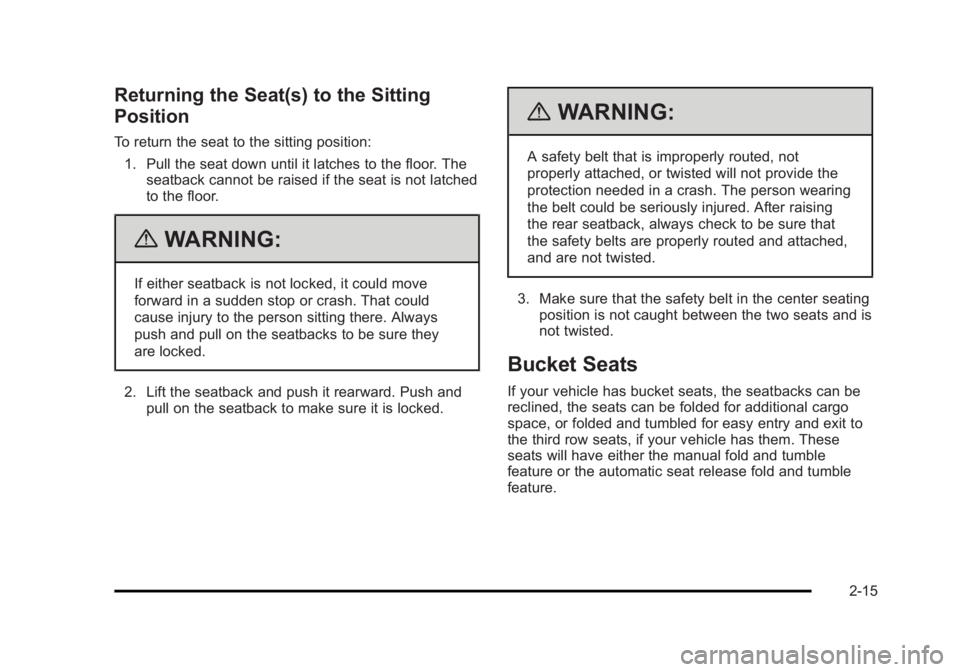

Returning the Seat(s) to the Sitting
Position To return the seat to the sitting position:
1. Pull the seat down until it latches to the floor. The
seatback cannot be raised if the seat is not latched
to the floor.
{ WARNING: If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Lift the seatback and push it rearward. Push and
pull on the seatback to make sure it is locked. { WARNING: A safety belt that is improperly routed, not
properly attached, or twisted will not provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
3. Make sure that the safety belt in the center seating
position is not caught between the two seats and is
not twisted.
Bucket Seats If your vehicle has bucket seats, the seatbacks can be
reclined, the seats can be folded for additional cargo
space, or folded and tumbled for easy entry and exit to
the third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble
feature or the automatic seat release fold and tumble
feature.
2-15

Black plate (16,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Reclining Seatbacks To recline the seatback, do the following:
1. Lift the lever located on the outboard side of
the seat.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked. To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
{ WARNING: If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Push and pull on the seatback to make sure it is
locked.
2-16
